Vous trouverez ici toutes les pièces et dessins disponibles du 'Metabo 00103000 ( LSV5-225 )'. De là, vous pouvez commander directement toutes les pièces souhaitées. De nombreuses pièces doivent être commandées auprès du fabricant, selon la marque, cela prend une à quatre semaines. Toutes les informations dont nous disposons se trouvent sur notre site Web, nous ne pouvons pas vous conseiller sur ce dont vous avez besoin, pour cela vous devrez retourner la machine pour réparation. Veuillez noter ce qui suit lors de la commande:

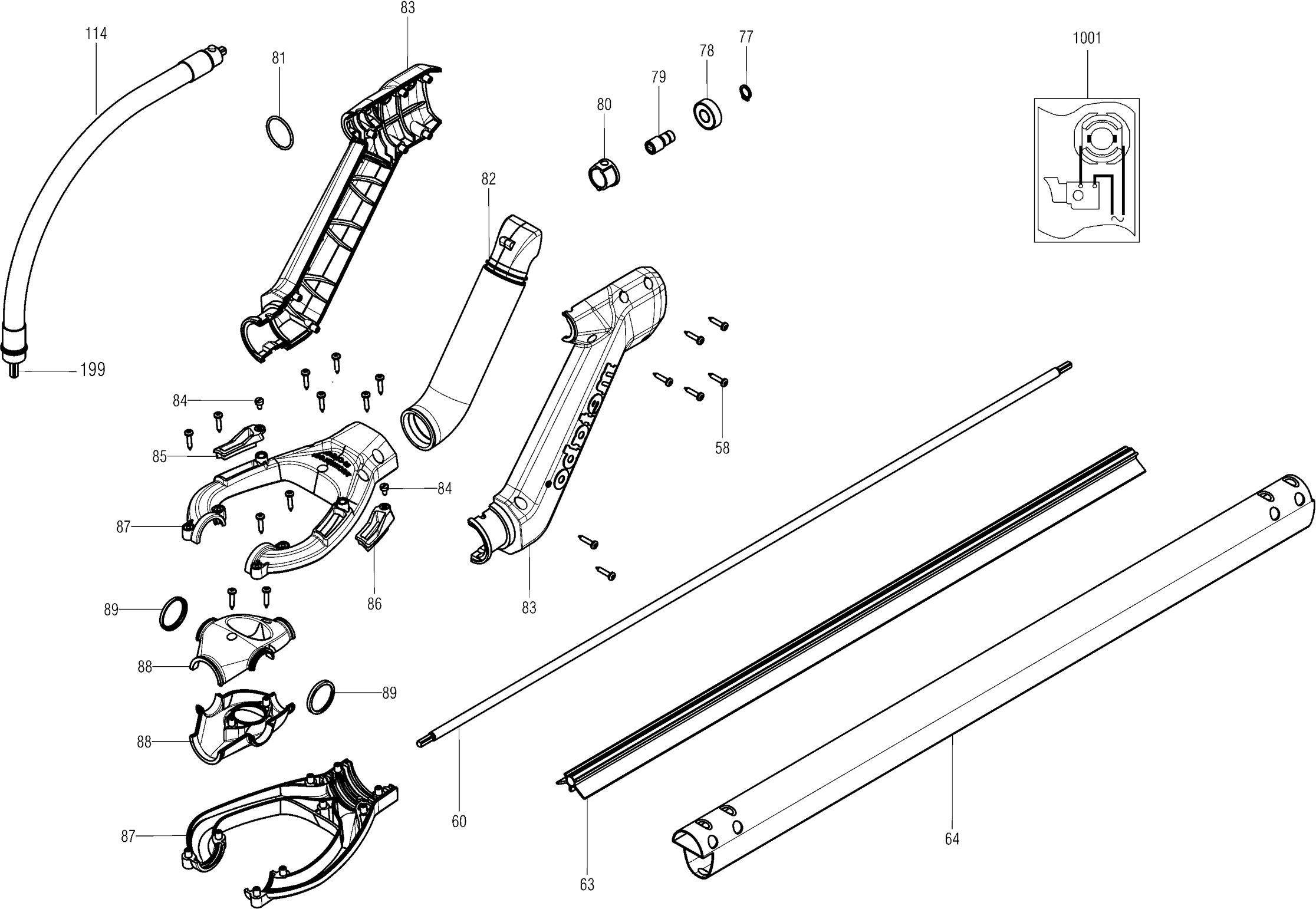

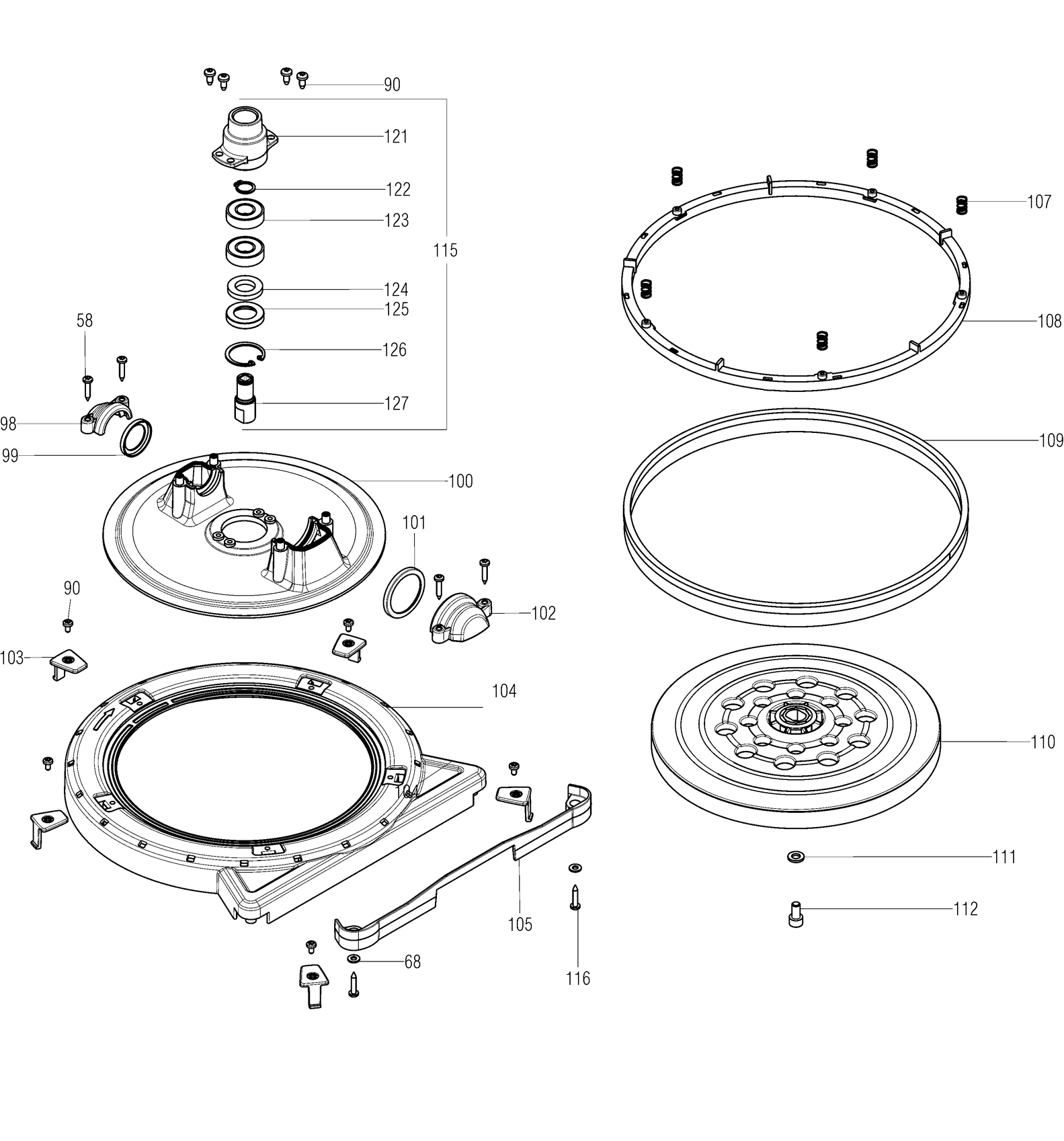

Dessins des Metabo 00103000 ( LSV5-225 )
Liste de pièces de rechange des Metabo 00103000 ( LSV5-225 )
Pos. | Description | Prix hors TVA | Prix TTC | |
Les prix affichés incluent la TVA | ||||
Dempingsring | ||||
1 | 344101760@148 | 1.58 | 1.90 | |
Koolborstelhouder-moduul | ||||
2 | 343437770@148 | 3.17 | 3.80 | |
Koolborstelset uitsch. | ||||
3 | 316046900@148 | 11.20 | 13.44 | |
Rondelle | ||||
4 | 141155950@148 | 1.58 | 1.90 | |
Vis tole avec tete bombee | ||||
5 | 141119900@148 | 1.58 | 1.90 | |
Veldpakket m.wikkeling,230V | ||||
6 | 311012320@148 | 39.27 | 47.12 | |
Lensschroef | ||||
7 | 141124100@148 | 1.58 | 1.90 | |
Motorflens | ||||
8 | 343437780@148 | 3.17 | 3.80 | |
Vis tole avec tete bombee | ||||
9 | 141118260@148 | 1.58 | 1.90 | |
Bus rubber | ||||
10 | 344097870@148 | 1.58 | 1.90 | |
Kogellager 6x19x 6 | ||||
11 | 143114750@148 | 3.17 | 3.80 | |
Anker compl.,230V | ||||
12 | 310011590@148 | 39.27 | 47.12 | |
Kogellager, 8X 22X 7 | ||||
13 | 143115890@148 | 4.68 | 5.62 | |
Bride | ||||
14 | 315202930@148 | 19.67 | 23.60 | |
Getriebedichtung | ||||
15 | 339012140@148 | 2.38 | 2.86 | |
Vis a tete bombee | ||||
16 | 141110540@148 | 1.58 | 1.90 | |
Rubber stop | ||||
17 | 344091420@148 | 1.58 | 1.90 | |
Tandwieldeksel compl. | ||||
18 | 316063070@148 | 39.27 | 47.12 | |
Tussenas compl. | ||||
19 | 316063080@148 | 22.57 | 27.08 | |
Getriebedichtung | ||||
20 | 339012130@148 | 3.17 | 3.80 | |
Tussenflens compl. | ||||
21 | 316063090@148 | 33.70 | 40.44 | |
Anlaufscheibe | ||||
22 | 339007890@148 | 1.58 | 1.90 | |
Internal gear | ||||
23 | 340004370@148 | 6.14 | 7.37 | |
Planetentraeger vollst. | ||||
24 | 316063100@148 | 12.76 | 15.31 | |
Naaldkrans | ||||
25 | 143115450@148 | 4.68 | 5.62 | |
Planetenrad | ||||
26 | 340004380@148 | 3.89 | 4.67 | |
Anlaufscheibe | ||||
27 | 339007900@148 | 1.58 | 1.90 | |
Kugell.Ausgleichssch. | ||||
28 | 143115880@148 | 1.58 | 1.90 | |
Rondelle d'ajustage | ||||
29 | 141156760@148 | 1.58 | 1.90 | |
Vis tole avec tete bombee | ||||
30 | 141116020@148 | 1.78 | 2.14 | |
Typeplaatje | ||||
31 | 338065290@148 | 1.58 | 1.90 | |
Koolborstelhouder compl. uitsch.,230V | ||||
32 | 316046890@148 | 11.20 | 13.44 | |
Huis m.deksel compl. | ||||
33 | 343437650@148 | 28.07 | 33.68 | |
Afzuigkanaal | ||||
43 | 343437680@148 | 5.41 | 6.49 | |
Collier de cable | ||||
44 | 343362490@148 | 1.78 | 2.14 | |
Vis tole avec tete bombee | ||||
45 | 141117060@148 | 1.78 | 2.14 | |
Kabelbescherming | ||||
46 | 344101140@148 | 2.38 | 2.86 | |
Schakelaar | ||||
48 | 343411540@148 | 9.24 | 11.09 | |
Klemstrip 2 polig | ||||
50 | 343050140@148 | 1.78 | 2.14 | |
Verbindingsdraad compl. | ||||
51 | 344530490@148 | 1.58 | 1.90 | |
Elektro.unit,230V 55/60Hz | ||||
53 | 343085130@148 | 50.58 | 60.70 | |
Kabel m. CEE-stekker | ||||
55 | 344493180@148 | 22.57 | 27.08 | |
Vis tole avec tete bombee | ||||
58 | 141113180@148 | 1.58 | 1.90 | |
Hohlwelle vollst. | ||||
60 | 316062000@148 | 63.16 | 75.79 | |
Dispositif de support | ||||
63 | 344101660@148 | 4.68 | 5.62 | |
Buishouder | ||||
64 | 341112890@148 | 45.01 | 54.01 | |
Rondelle | ||||
68 | 141150110@148 | 1.58 | 1.90 | |
Circlip | ||||
77 | 141180040@148 | 1.58 | 1.90 | |
Kogellager 10x26x 8 | ||||
78 | 143111120@148 | 16.94 | 20.33 | |
Arbre intermediaire | ||||
79 | 341604820@148 | 16.94 | 20.33 | |
Aufnahmehuelse | ||||
80 | 341071770@148 | 2.38 | 2.86 | |
Circlip | ||||
81 | 141156360@148 | 1.58 | 1.90 | |
Afzuigslang compl. | ||||
82 | 316062030@148 | 7.52 | 9.02 | |
Steun compl. | ||||
83 | 343437790@148 | 14.10 | 16.92 | |
Cilinderkopschroef | ||||
84 | 141111050@148 | 1.58 | 1.90 | |
Afsluitdeksel | ||||
85 | 343438600@148 | 1.58 | 1.90 | |
Afsluitdeksel | ||||
85 | 343438610@148 | 1.58 | 1.90 | |
Afsluitdeksel | ||||
86 | 343438610@148 | 1.58 | 1.90 | |
Afsluitdeksel | ||||
86 | 343438600@148 | 1.58 | 1.90 | |
Gabel vollst. | ||||
87 | 343437760@148 | 19.67 | 23.60 | |
Schwenkflansch vollst. | ||||
88 | 343437820@148 | 6.14 | 7.37 | |
Gleitbuchse | ||||
89 | 341006290@148 | 1.58 | 1.90 | |
Vis tole avec tete bombee | ||||
90 | 141116130@148 | 1.58 | 1.90 | |
Lagerbeugel | ||||
98 | 343437710@148 | 1.58 | 1.90 | |
Gleitbuchse | ||||
99 | 341006280@148 | 1.58 | 1.90 | |
Beschermkap | ||||
100 | 343437830@148 | 14.10 | 16.92 | |
Gleitbuchse | ||||
101 | 341006270@148 | 1.58 | 1.90 | |
Capot | ||||
102 | 343437720@148 | 1.78 | 2.14 | |
Haltewinkel | ||||
103 | 343437730@148 | 1.58 | 1.90 | |
Verstelring | ||||
104 | 316063120@148 | 70.25 | 84.30 | |
Kantenbescherming | ||||
105 | 343437690@148 | 3.89 | 4.67 | |
Joint levre | ||||
106 | 344101740@148 | 3.89 | 4.67 | |
Plus disponible, pas de remplacement | ||||
107 | 342004050@148 | |||
Plus disponible, pas de remplacement | ||||
108 | 343438280@148 | |||
Reserveborstelkrans 225 mm | ||||
109 | 626663000@148 | 19.77 | 23.72 | |
Slijpschijf compl. | ||||
110 | 316062010@148 | 77.32 | 92.78 | |
Rondelle | ||||
111 | 141151940@148 | 1.58 | 1.90 | |
Cilinderkopschroef | ||||
112 | 141113840@148 | 1.78 | 2.14 | |
Flexibele as | ||||
114 | 345000170@148 | 154.88 | 185.86 | |
Lagerflens compl. | ||||
115 | 316063110@148 | 50.58 | 60.70 | |
Verzonkenplaatschroef | ||||
116 | 141119430@148 | 1.58 | 1.90 | |
Anschlussmuffe vollst. | ||||
117 | 316062390@148 | 16.94 | 20.33 | |
Cache | ||||
118 | 343438390@148 | 1.58 | 1.90 | |
Cache | ||||
119 | 343438400@148 | 1.58 | 1.90 | |
Ferritring | ||||
120 | 143160180@148 | 1.58 | 1.90 | |
Lagerflens | ||||
121 | 315202920@148 | 9.24 | 11.09 | |
Circlip | ||||
122 | 141180060@148 | 1.58 | 1.90 | |
Kogellager 12x28x 8 | ||||
123 | 143111440@148 | 22.57 | 27.08 | |
Gegolfde dichtring | ||||
124 | 143194880@148 | 1.78 | 2.14 | |
Tussenstuk | ||||
125 | 341013440@148 | 2.38 | 2.86 | |
Circlip | ||||
126 | 141180360@148 | 1.78 | 2.14 | |
Aandrijfas | ||||
127 | 341211150@148 | 5.41 | 6.49 | |
Flexibele binnenas in verpakk. | ||||
199 | 316064470@148 | 33.70 | 40.44 | |
Tube vet 50 gr. 1,8oz | ||||
880 | 344130930@148 | 33.70 | 40.44 | |
Pas d'informations disponibles, non commandable | ||||
1001 | 338506030@148 |
