Dessins techniques et pièces de rechange Milwaukee MDP41

Recherche de pièces de rechange:
MilwaukeeLa référence 4000 4523 43 doit figurer sur la plaque d'identification. Des différences peuvent exister selon le numéro de type donnant lieu à la non-correspondance des pièces de rechange. Ne commandez que des pièces si les références sont correctes.

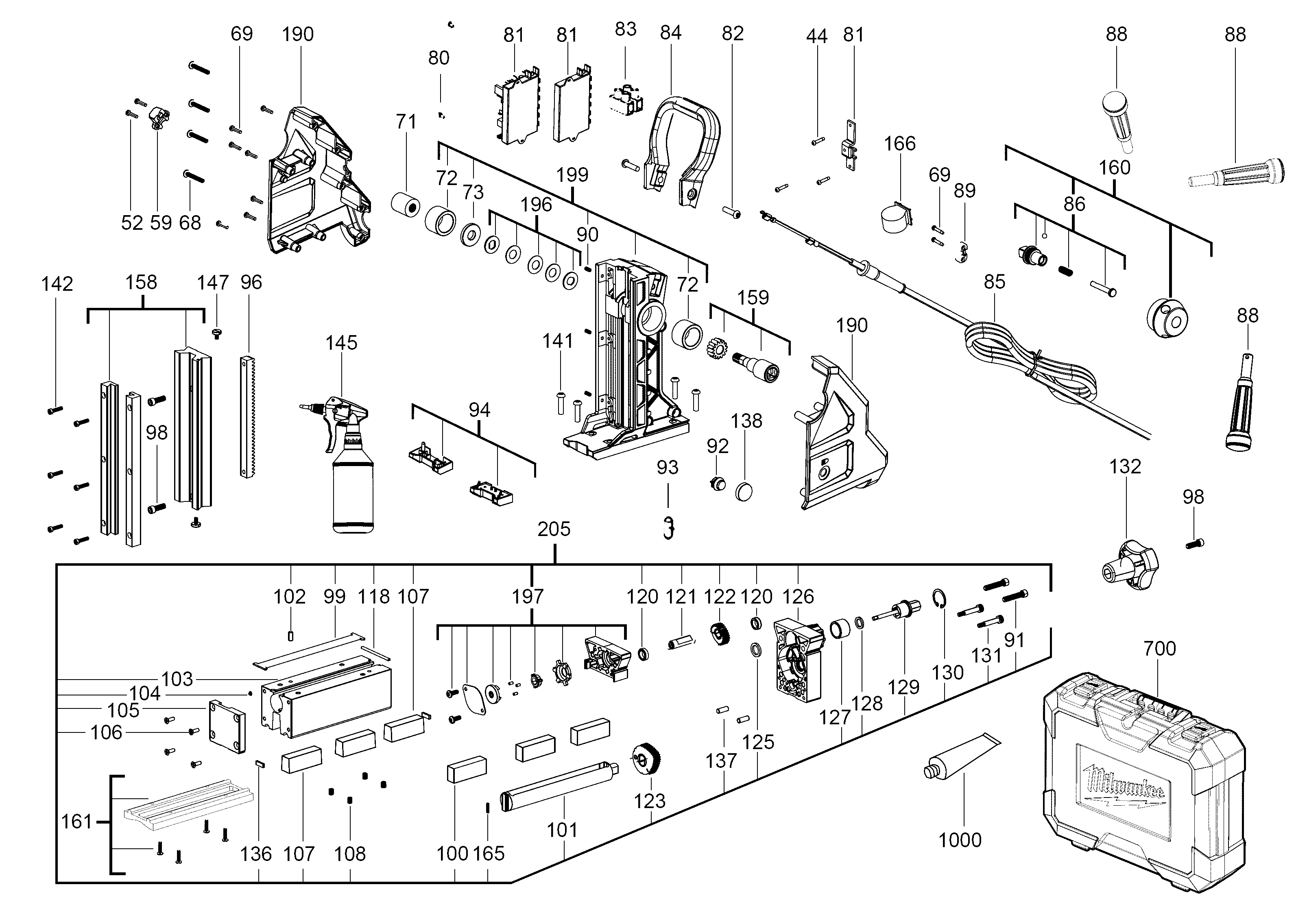

Dessins des MILWAUKEE MDP41

Liste de pièces de rechange des Milwaukee MDP41

Sur cette page, vous pouvez ajouter des pièces de rechange à votre panier en sélectionnant la quantité désirée et en cliquant sur le bouton derrière. Si vous avez terminé votre sélection, veuillez activer le bouton "Votre panier" en bas de la page. Les prix mentionnés ci-dessous sont TTC.
GUIDE BOLT
100014931453396GUIDE BOLT€ 25.29
GUIDE BAR
100024931453397GUIDE BAR€ 21.30
CHUCK SHROUD
100034931453092CHUCK SHROUD€ 75.87
RETAINING RING
100064931453093RETAINING RING€ 3.63
BALL BEARING
100074931453094BALL BEARING€ 6.53
SCREW
100084931453398SCREW€ 1.45
SCREW
100094931453100SCREW€ 1.45
CABLE CLAMP
100104931453099CABLE CLAMP€ 3.63
CLAMPING LEVER
100114931456260CLAMPING LEVER€ 18.63
RETAINING PLATE
100144931453097RETAINING PLATE€ 1.45
Commande impossible
100154931453101Commande impossible
HOLDING BRACKET
100164931453102HOLDING BRACKET€ 4.36
SPRING
100174931453103SPRING€ 3.63
HOLDING BRACKET
100184931453104HOLDING BRACKET€ 3.63
GEAR BOX
100194931453399GEAR BOX€ 55.90
LOCKING ROD
100204931453098LOCKING ROD€ 13.31
Commande impossible
100224931453105Commande impossible
Commande impossible
100234931453106Commande impossible
BALL BEARING
1002402040640BALL BEARING€ 7.26
NEEDLE BEARING
1002702502400NEEDLE BEARING€ 1.45
WORM GEAR WHEEL
100284931453400WORM GEAR WHEEL€ 26.62
HUB
100294931453110HUB€ 4.36
COUPLING
100304931453109COUPLING€ 5.81
WORM GEAR WHEEL
100314931453401WORM GEAR WHEEL€ 21.30
WASHER
10032680335077WASHER€ 1.45
RETAINING RING
100334931453112RETAINING RING€ 4.36
NEEDLE BEARING
100344931453113NEEDLE BEARING€ 13.79
SEAL
100354931453114SEAL€ 5.81
BALL BEARING
100364931453402BALL BEARING€ 3.63
WORM GEAR WHEEL
100384931453403WORM GEAR WHEEL€ 8.71
NEEDLE BEARING
100394931453404NEEDLE BEARING€ 1.45
SEAL
100404931453115SEAL€ 4.36
BALL BEARING
10043681337001BALL BEARING€ 7.26
SCREW
100464931436769SCREW€ 1.45
SCREW
10052660024030SCREW€ 1.45
MOTOR HOUSING
100564931453406MOTOR HOUSING€ 13.31
CLAMP
100594931453407CLAMP€ 1.45
PIN
100604931453408PIN€ 1.45
ELECTRIC FIELD
100614931453409ELECTRIC FIELD€ 67.88
SCREW
100624931453410SCREW€ 1.45
WASHER
100634931453411WASHER€ 1.45
AIR DEFLECTOR RING
100644931453412AIR DEFLECTOR RING€ 1.45
BUSHING
100664931453192BUSHING€ 3.63
KEY HOLDER
101434931453193KEY HOLDER€ 1.45
SAFETY STRAP
101464931453194SAFETY STRAP€ 26.62
CYLINDER PIN
101494931453172CYLINDER PIN€ 3.63
WASHER
101504931453424WASHER€ 1.45
WASHER
101514931453425WASHER€ 1.45
EJECTOR
101524931453191EJECTOR€ 4.36
TURNING KNOB
101534931453184TURNING KNOB€ 5.81
PINION
101554931453426PINION€ 37.27
PINION
101564931453427PINION€ 42.59
GEAR BOX COVER
101574931453428GEAR BOX COVER€ 43.92
MOTOR ASSEMBLY
101734931453430MOTOR ASSEMBLY€ 81.19
GEAR KIT
101744931453431GEAR KIT€ 65.22
Mandrin -1pc (1)
1017549590020Mandrin -1pc (1)€ 111.67
KIT
101764931453185KIT€ 33.28
OUTPUT SHAFT KIT
101774931453107OUTPUT SHAFT KIT€ 103.82
HOUSING
101784931453432HOUSING€ 17.30
SWITCH KIT
101824931453433SWITCH KIT€ 7.26
CARBON BRUSH SET
101834931453434CARBON BRUSH SET€ 19.97
RATING PLATE
101954931453436RATING PLATE€ 1.45
WIRE
102004931453438WIRE€ 45.25
GREASE
1100049085270GREASE€ 29.28
SCREW
200444931453405SCREW€ 1.45
SCREW
200684931453127SCREW€ 1.45
SCREW
200694931453124SCREW€ 1.45
BIT GUIDE
200714931453129BIT GUIDE€ 15.97
BUSHING
200724931453130BUSHING€ 14.64
COMPENSATION PLATE
200734931453131COMPENSATION PLATE€ 8.71
SCREW
200804931453413SCREW€ 1.45
ELECTRIC ELEMENT
200814931453414ELECTRIC ELEMENT€ 153.07
SCREW
200824931453132SCREW€ 1.45
CONNECTOR
200834931453415CONNECTOR€ 2.90
HANDLE
200844931453133HANDLE€ 14.64
CONNECTION CABLE
200854931453417CONNECTION CABLE€ 50.58
SPINDLE LOCK
200864931453136SPINDLE LOCK€ 17.30
OPERATING HANDLE
200884931453137OPERATING HANDLE€ 17.30
CABLE CLAMP
200894931453418CABLE CLAMP€ 1.45
Commande impossible
200904931435627Commande impossible
SCREW
200914931453138SCREW€ 1.45
SWITCH
200924931453155SWITCH€ 19.97
CYLINDER PIN
200934931453179CYLINDER PIN€ 3.63
ELECTRONIC
200944931453419ELECTRONIC€ 17.30
TOOTH RACK
200964931453140TOOTH RACK€ 22.63
SCREW
200984931453141SCREW€ 1.45
COVER
200994931453142COVER€ 1.45
MAGNET
201004931453150MAGNET€ 49.25
MAGNET,DISC FASTEN,
201014931453156MAGNET,DISC FASTEN,€ 54.57
CYLINDER PIN
201024931453149CYLINDER PIN€ 4.36
MAGNETIC FOOT
201034931453143MAGNETIC FOOT€ 200.98
RIVET
201044931453144RIVET€ 3.63
COVER
201054931453420COVER€ 14.64
SCREW
20106661319001SCREW€ 1.45
Commande impossible
201074931453146Commande impossible
Commande impossible
201084931453147Commande impossible
Commande impossible
201184931453151Commande impossible
BUSHING
201204931453152BUSHING€ 3.63
SHAFT
201214931453153SHAFT€ 15.97
GEAR
201224931453154GEAR€ 4.36
GEAR
201234931453157GEAR€ 8.71
WASHER
201254931453158WASHER€ 1.45
GEAR BOX HOUSING
201264931453421GEAR BOX HOUSING€ 21.30
BUSHING
201274931453160BUSHING€ 3.63
RUBBER RING
201284931453162RUBBER RING€ 3.63
SHAFT
201294931453163SHAFT€ 41.26
RETAINING RING
201304931453164RETAINING RING€ 4.36
Commande impossible
201314931453165Commande impossible
KNOB
201324931453422KNOB€ 4.36
Commande impossible
201364931453169Commande impossible
PIN
201374931453170PIN€ 1.45
SWITCH COVER
201384931453168SWITCH COVER€ 4.36
SCREW
201414931453138SCREW€ 1.45
SCREW
201424931453167SCREW€ 1.45
TANK
201454931453423TANK€ 10.16
SCREW
201474931453171SCREW€ 1.45
HOLDING DEVICE
201584931453173HOLDING DEVICE€ 202.31
GEAR BOX KIT
201594931453175GEAR BOX KIT€ 27.95
FEED SPINDLE
201604931453177FEED SPINDLE€ 42.59
Etau A Chaine -1pc (1)
2016148100130Etau A Chaine -1pc (1)€ 139.62
CYLINDER PIN
201654931453149CYLINDER PIN€ 4.36
MAGNET
201664931453429MAGNET€ 21.30
HOUSING
201904931453435HOUSING€ 25.29
Adjust, washer set
201964931453196Adjust, washer set€ 15.97
KIT
201974931453197KIT€ 34.61
FOOT
201994931453437FOOT€ 126.45
MAG BASE PLATE
202054931453439MAG BASE PLATE€ 600.28
CARRYING CASE
207004931453440CARRYING CASE€ 103.82
