Dessins techniques et pièces de rechange Milwaukee DD2-160XE 110V

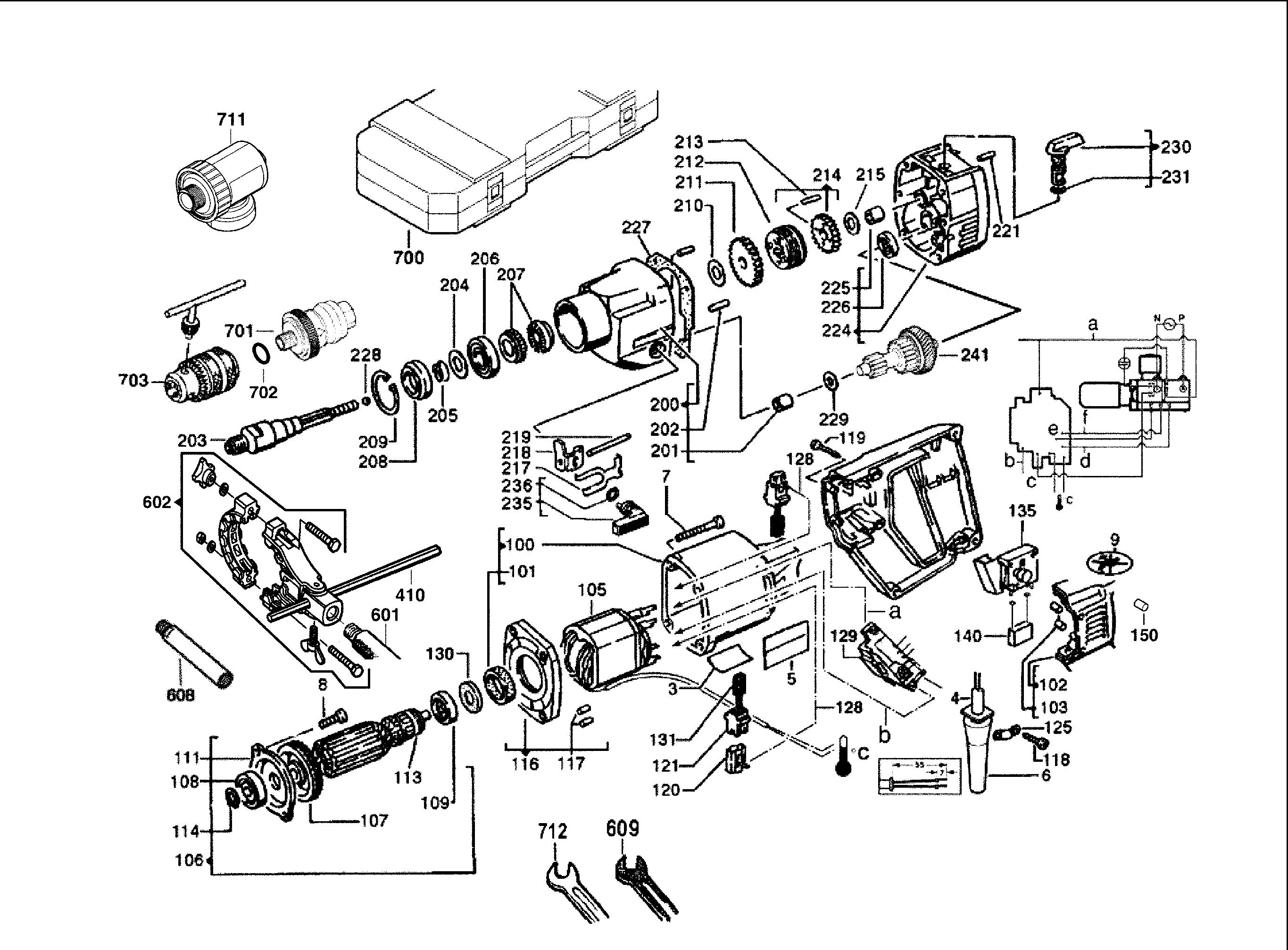

La référence 4000 3687 01 doit figurer sur la plaque d'identification. Des différences peuvent exister selon le numéro de type donnant lieu à la non-correspondance des pièces de rechange. Ne commandez que des pièces si les références sont correctes.Dessins des MILWAUKEE DD2-160XE 110V
Liste de pièces de rechange des Milwaukee DD2-160XE 110V
Sur cette page, vous pouvez ajouter des pièces de rechange à votre panier en sélectionnant la quantité désirée et en cliquant sur le bouton derrière. Si vous avez terminé votre sélection, veuillez activer le bouton "Votre panier" en bas de la page. Les prix mentionnés ci-dessous sont TTC.
| RATING PLATE | ||||
| 0003 | 4931368702 | RATING PLATE | € 1.45 | |
| CONNECTION CABLE | ||||
| 0004 | 4931623844 | CONNECTION CABLE | € 17.30 | |
| NAME PLATE | ||||
| 0005 | 4931380498 | NAME PLATE | € 1.45 | |
| CABLE ENTRY SLEEVE | ||||
| 0006 | 4931267515 | CABLE ENTRY SLEEVE | € 4.36 | |
| SCREW D 912 M 4X70 8G | ||||
| 0007 | 4931614685 | SCREW D 912 M 4X70 8G | € 1.45 | |
| SCREW | ||||
| 0008 | 4931612817 | SCREW | € 1.45 | |
| LABEL | ||||
| 0009 | 4931321699 | LABEL | € 1.45 | |
| HOUSING | ||||
| 0100 | 4931359587 | HOUSING | € 15.97 | |
| RUBBER SLEEVE | ||||
| 0101 | 4931301483 | RUBBER SLEEVE | € 1.45 | |
| HANDLE | ||||
| 0102 | 4931359589 | HANDLE | € 11.62 | |
| RUBBER STOP | ||||
| 0103 | 562578001 | RUBBER STOP | € 4.36 | |
| Commande impossible | ||||
| 0105 | 4931426604 | Commande impossible | ||
| ARMATURE | ||||
| 0106 | 4931442678 | ARMATURE | € 66.55 | |
| FAN | ||||
| 0107 | 4931271335 | FAN | € 3.63 | |
| GROOVED BALL BEAR, | ||||
| 0108 | 4931368037 | GROOVED BALL BEAR, | € 4.36 | |
| BALL BEARING | ||||
| 0109 | 4931901253 | BALL BEARING | € 7.26 | |
| BEARING COVER | ||||
| 0111 | 4931267463 | BEARING COVER | € 3.63 | |
| INSULATING DISC | ||||
| 0113 | 4931271823 | INSULATING DISC | € 4.36 | |
| RING | ||||
| 0114 | 4931605127 | RING | € 3.63 | |
| AIR DEFLECTOR RING | ||||
| 0116 | 4931337361 | AIR DEFLECTOR RING | € 7.26 | |
| RUBBER STOP | ||||
| 0117 | 562578001 | RUBBER STOP | € 4.36 | |
| SCREW | ||||
| 0118 | 4931624538 | SCREW | € 1.45 | |
| SCREW | ||||
| 0119 | 4931618253 | SCREW | € 1.45 | |
| BRUSH HOLDER | ||||
| 0120 | 4931317546 | BRUSH HOLDER | € 4.36 | |
| BRUSH HOLDER INSUL | ||||
| 0121 | 4931317545 | BRUSH HOLDER INSUL | € 7.26 | |
| CABLE COLLAR | ||||
| 0125 | 4931256500 | CABLE COLLAR | € 4.36 | |
| CONNECTION CABLE | ||||
| 0128 | 4931622342 | CONNECTION CABLE | € 4.36 | |
| FELT WASHER | ||||
| 0130 | 4931300215 | FELT WASHER | € 1.45 | |
| CARBON BRUSH SET | ||||
| 0131 | 4931392581 | CARBON BRUSH SET | € 15.97 | |
| SWITCH | ||||
| 0135 | 4931385859 | SWITCH | € 13.79 | |
| CAPACITOR | ||||
| 0140 | 4931385864 | CAPACITOR | € 4.36 | |
| Commande impossible | ||||
| 0150 | 4931271824 | Commande impossible | ||
| GEAR BOX | ||||
| 0200 | 4931412489 | GEAR BOX | € 26.62 | |
| NEEDLE BEARING | ||||
| 0201 | 4931219424 | NEEDLE BEARING | € 1.45 | |
| PIN | ||||
| 0202 | 4931615663 | PIN | € 3.63 | |
| DRILL SPINDLE | ||||
| 0203 | 4931307984 | DRILL SPINDLE | € 30.61 | |
| DISC | ||||
| 0204 | 4931621809 | DISC | € 4.36 | |
| PRESSURE SPRING | ||||
| 0205 | 4931267406 | PRESSURE SPRING | € 4.36 | |
| BALL BEARING | ||||
| 0206 | 4931891058 | BALL BEARING | € 7.26 | |
| PERCUSSION SLEEVE | ||||
| 0207 | 4931325240 | PERCUSSION SLEEVE | € 3.63 | |
| SEAL RING | ||||
| 0208 | 4931267522 | SEAL RING | € 4.36 | |
| LOCKING RING | ||||
| 0209 | 4931890311 | LOCKING RING | € 4.36 | |
| DISC | ||||
| 0210 | 4931943605 | DISC | € 4.36 | |
| DRILL SPINDLE WHEEL | ||||
| 0211 | 4931368671 | DRILL SPINDLE WHEEL | € 10.16 | |
| SHIFT RING COMPL, | ||||
| 0212 | 4931307130 | SHIFT RING COMPL, | € 13.31 | |
| PIN | ||||
| 0213 | 4931621732 | PIN | € 4.36 | |
| DRILL SPINDLE WHEEL | ||||
| 0214 | 4931369652 | DRILL SPINDLE WHEEL | € 8.71 | |
| DISC N874237 8,1X16X0,5 | ||||
| 0215 | 4931901226 | DISC N874237 8,1X16X0,5 | € 4.36 | |
| RETAINING SPRING | ||||
| 0217 | 4931307118 | RETAINING SPRING | € 4.36 | |
| SWITCH LEVER | ||||
| 0218 | 4931309010 | SWITCH LEVER | € 3.63 | |
| PIN | ||||
| 0219 | 4931621731 | PIN | € 4.36 | |
| PIN | ||||
| 0221 | 4931621650 | PIN | € 4.36 | |
| BEARING END PLATE | ||||
| 0224 | 4931412490 | BEARING END PLATE | € 26.62 | |
| SLEEVE N874989 HKO 0810 | ||||
| 0225 | 4931912093 | SLEEVE N874989 HKO 0810 | € 4.36 | |
| BALL BEARING | ||||
| 0226 | 4931624661 | BALL BEARING | € 7.26 | |
| GASKET | ||||
| 0227 | 4931307995 | GASKET | € 4.36 | |
| BALL | ||||
| 0228 | 681486001 | BALL | € 1.45 | |
| DISC N874237 8,3X16,5X1 | ||||
| 0229 | 4931919962 | DISC N874237 8,3X16,5X1 | € 4.36 | |
| SWITCH LEVER | ||||
| 0230 | 4931320109 | SWITCH LEVER | € 21.30 | |
| O-RING N874701 8X1 | ||||
| 0231 | 4931943493 | O-RING N874701 8X1 | € 1.45 | |
| SWITCH LEVER | ||||
| 0235 | 4931310479 | SWITCH LEVER | € 4.36 | |
| O-RING N874701 14X1 | ||||
| 0236 | 4931621782 | O-RING N874701 14X1 | € 1.45 | |
| REDUCTION GEAR | ||||
| 0241 | 4931368673 | REDUCTION GEAR | € 75.87 | |
| DEPTH GAUGE | ||||
| 0410 | 4931384434 | DEPTH GAUGE | € 4.36 | |
| Poignee (1) | ||||
| 0601 | 4931375516 | Poignee (1) | € 39.93 | |
| CLAMPING RING | ||||
| 0602 | 4931407017 | CLAMPING RING | € 19.97 | |
| EXTENSION | ||||
| 0608 | 4931368730 | EXTENSION | € 19.97 | |
| CARRYING CASE | ||||
| 0700 | 4931412492 | CARRYING CASE | € 49.25 | |
| Adapt. Fixtec M18/m16 (x1) (1) | ||||
| 0701 | 4932399174 | Adapt. Fixtec M18/m16 (x1) (1) | € 97.03 | |
| O-RING | ||||
| 0702 | 4931941117 | O-RING | € 1.45 | |
| Fixtec Clean Line (x1) (1) | ||||
| 0711 | 4932352172 | Fixtec Clean Line (x1) (1) | € 313.98 | |
