Vous trouverez ici toutes les pièces et dessins disponibles du 'Metabo 00340001 ( KHE56 )'. De là, vous pouvez commander directement toutes les pièces souhaitées. De nombreuses pièces doivent être commandées auprès du fabricant, selon la marque, cela prend une à quatre semaines. Toutes les informations dont nous disposons se trouvent sur notre site Web, nous ne pouvons pas vous conseiller sur ce dont vous avez besoin, pour cela vous devrez retourner la machine pour réparation. Veuillez noter ce qui suit lors de la commande:

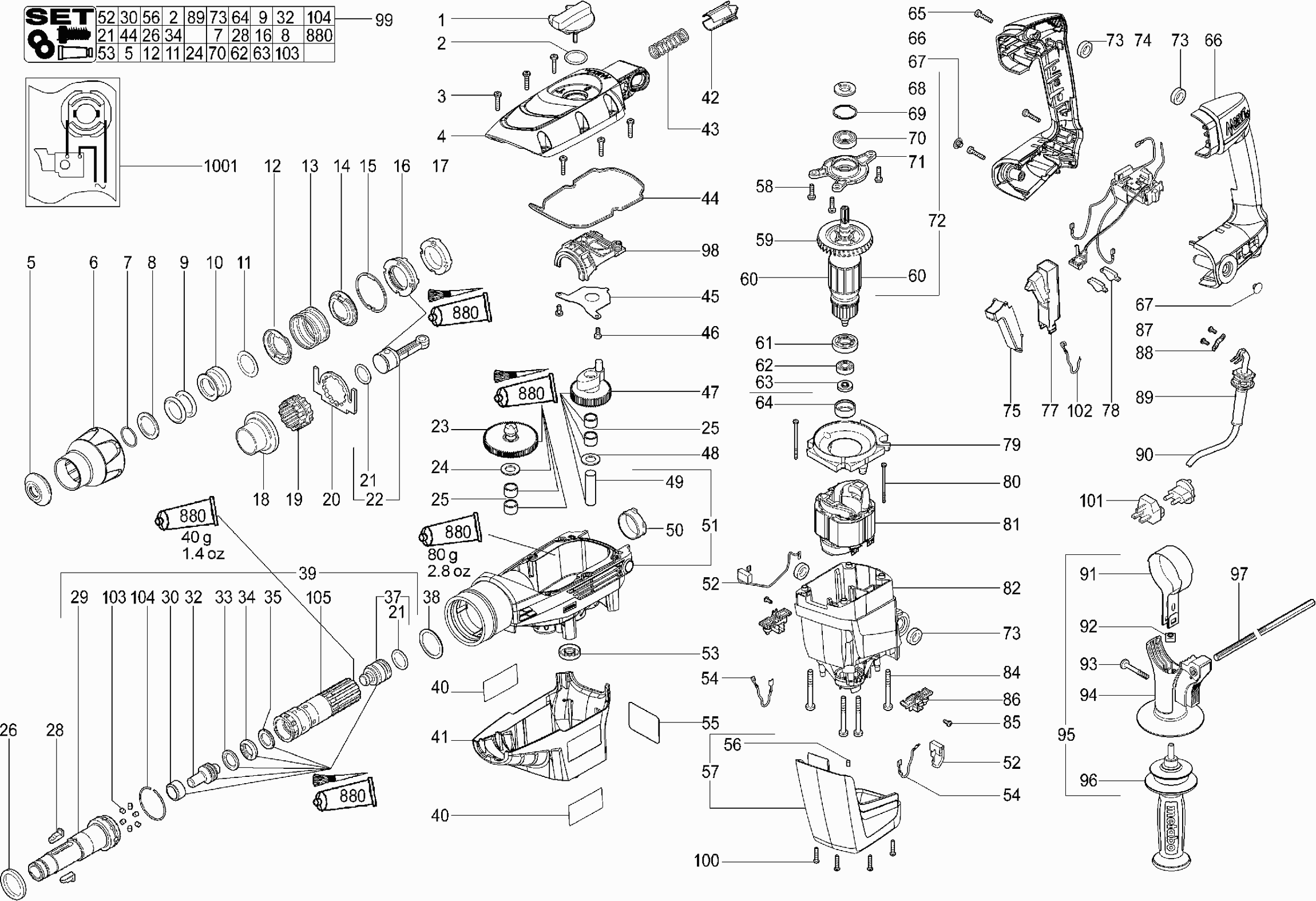

Dessins des Metabo 00340001 ( KHE56 )
Liste de pièces de rechange des Metabo 00340001 ( KHE56 )
Pos. | Description | Prix hors TVA | Prix TTC | |
Les prix affichés incluent la TVA | ||||
Schakelknop | ||||
1 | 343394400 | 12.23 | 14.68 | |
Joint torique | ||||
2 | 344098090 | 1.55 | 1.86 | |
Vis a tete bombee | ||||
3 | 141123560 | 1.55 | 1.86 | |
Tandwieldeksel | ||||
4 | 315416320 | 74.13 | 88.96 | |
Rubberen kap | ||||
5 | 344098250 | 7.22 | 8.66 | |
Schuifhuls compl. | ||||
6 | 343394410 | 12.23 | 14.68 | |
Anneau de blocage | ||||
7 | 141155450 | 1.55 | 1.86 | |
Rondelle | ||||
8 | 341012930 | 11.74 | 14.09 | |
Joint torique | ||||
9 | 344098130 | 1.55 | 1.86 | |
Douille | ||||
10 | 341058670 | 26.95 | 32.34 | |
Rondelle | ||||
11 | 341012940 | 5.87 | 7.04 | |
Feuille de guidage | ||||
12 | 339133290 | 11.74 | 14.09 | |
Ressort de pression | ||||
13 | 342003510 | 2.28 | 2.74 | |
Geleidingsplaat | ||||
14 | 339133310 | 3.02 | 3.62 | |
Circlip | ||||
15 | 141156340 | 2.28 | 2.74 | |
Support complet | ||||
16 | 316042700 | 21.64 | 25.97 | |
Bague | ||||
17 | 341070590 | 8.89 | 10.67 | |
Kegeltandwiel | ||||
18 | 340032810 | 26.95 | 32.34 | |
Bague de reglage | ||||
19 | 343394390 | 18.80 | 22.56 | |
Tole de retenue | ||||
20 | 339133180 | 10.38 | 12.46 | |
Joint torique | ||||
21 | 344098170 | 1.55 | 1.86 | |
Zuiger compl. | ||||
22 | 316042620 | 43.15 | 51.78 | |
Pas d'informations disponibles, non commandable | ||||
23 | 316042580 | |||
Rondelle | ||||
24 | 341012950 | 3.71 | 4.45 | |
Naaldkrans | ||||
25 | 320050640 | 5.87 | 7.04 | |
Amortisseur | ||||
26 | 344098670 | 5.18 | 6.22 | |
Entraineur | ||||
28 | 339133320 | 13.48 | 16.18 | |
Chemise de frappe | ||||
29 | 341059150 | 228.10 | 273.72 | |
Bague de frein | ||||
30 | 341012960 | 21.64 | 25.97 | |
Dopper compl. | ||||
32 | 316042660 | 67.33 | 80.80 | |
Geleiderring | ||||
33 | 341012860 | 13.48 | 16.18 | |
Rubberen ring | ||||
34 | 344098260 | 3.71 | 4.45 | |
Rondelle | ||||
35 | 341059110 | 13.48 | 16.18 | |
Plunjer compl. | ||||
37 | 316042610 | 32.27 | 38.72 | |
Rondelle | ||||
38 | 341012880 | 2.28 | 2.74 | |
Broche | ||||
39 | 316063830 | 348.32 | 417.98 | |
Metabo plaatje | ||||
40 | 338121090 | 3.71 | 4.45 | |
Tandwielhuisdeksel | ||||
41 | 343394340 | 11.74 | 14.09 | |
Membre de pression | ||||
42 | 343394430 | 5.87 | 7.04 | |
Ressort de pression | ||||
43 | 342003520 | 1.55 | 1.86 | |
Vormpakking | ||||
44 | 344098230 | 7.22 | 8.66 | |
Tole de retenue | ||||
45 | 339133220 | 7.22 | 8.66 | |
Vis a tete bombee | ||||
46 | 141123580 | 1.55 | 1.86 | |
Tandwiel compl. | ||||
47 | 316042590 | 94.12 | 112.94 | |
Rondelle | ||||
48 | 341012910 | 1.55 | 1.86 | |
Lagerstift | ||||
49 | 341515310 | 21.64 | 25.97 | |
Palier | ||||
50 | 320050680 | 5.18 | 6.22 | |
Pas d'informations disponibles, non commandable | ||||
51 | 315104730 | |||
Koolborstelset | ||||
52 | 316042650 | 32.27 | 38.72 | |
Gegolfde dichtring | ||||
53 | 339011650 | 13.48 | 16.18 | |
Interrupteur de fil de connexion | ||||
54 | 344497400 | 1.67 | 2.00 | |
Typeplaatje | ||||
55 | 338049330 | 1.67 | 2.00 | |
Joint torique | ||||
56 | 344098090 | 1.55 | 1.86 | |
Capuchon de moteur | ||||
57 | 343394320 | 26.95 | 32.34 | |
Vis a tete bombee | ||||
58 | 141123550 | 1.55 | 1.86 | |
Ventilateur | ||||
59 | 330001870 | 4.51 | 5.41 | |
Anker compl.,220-240 V | ||||
60 | 310009310 | 201.99 | 242.39 | |
Stofafdichting | ||||
61 | 344098070 | 10.38 | 12.46 | |
Kogellager | ||||
62 | 320050650 | 11.74 | 14.09 | |
Disque de tachymètre | ||||
63 | 343394310 | 21.64 | 25.97 | |
Rubberen bus | ||||
64 | 344098220 | 3.71 | 4.45 | |
Vis ,L5x35 T2025 | ||||
65 | 341704270 | 1.55 | 1.86 | |
Handgreep 2-delig | ||||
66 | 343394330 | 53.86 | 64.63 | |
Chapeau | ||||
67 | 343394290 | 1.67 | 2.00 | |
Afdichtring | ||||
68 | 344098080 | 21.64 | 25.97 | |
Circlip | ||||
69 | 342022070 | 1.55 | 1.86 | |
Groefkogellager | ||||
70 | 320050670 | 16.25 | 19.50 | |
Lagerschild | ||||
71 | 315300630 | 53.86 | 64.63 | |
Induit avec bride | ||||
72 | 316042520 | 242.14 | 290.57 | |
Dempingsring | ||||
73 | 339011640 | 8.89 | 10.67 | |
Unité électronique, 220-240 V | ||||
74 | 343081350 | 80.81 | 96.97 | |
Membre de pression | ||||
75 | 343394350 | 5.18 | 6.22 | |
Schakelaar | ||||
77 | 343407670 | 48.48 | 58.18 | |
Lichtgeleider | ||||
78 | 343394380 | 5.18 | 6.22 | |
Disque de guidage d'air | ||||
79 | 339151110 | 7.22 | 8.66 | |
Vis ,4x64 | ||||
80 | 341704210 | 1.55 | 1.86 | |
Champ | ||||
81 | 311010850 | 53.86 | 64.63 | |
Carter du moteur | ||||
82 | 315013260 | 43.15 | 51.78 | |
Vis a tete bombee | ||||
84 | 141123540 | 1.55 | 1.86 | |
Vis | ||||
85 | 341704240 | 1.55 | 1.86 | |
Koolborstelhouder | ||||
86 | 343000920 | 7.22 | 8.66 | |
Vis | ||||
87 | 341704240 | 1.55 | 1.86 | |
Collier de cable avec vis | ||||
88 | 343394210 | 1.55 | 1.86 | |
Kabelbescherming | ||||
89 | 344098210 | 3.71 | 4.45 | |
Câble m.Connecteur CEE | ||||
90 | 344497430 | 32.27 | 38.72 | |
Klemhouder | ||||
91 | 339133190 | 13.48 | 16.18 | |
Vierkante moer | ||||
92 | 141131020 | 1.67 | 2.00 | |
Vis ,K5x45 T20 | ||||
93 | 341704220 | 1.55 | 1.86 | |
Partie inférieure complète | ||||
94 | 316042540 | 24.23 | 29.08 | |
Pas d'informations disponibles, non commandable | ||||
95 | 314001080 | |||
Poignée Anti-Vibration Complète | ||||
96 | 314001070 | 53.86 | 64.63 | |
Dieptegeleider | ||||
97 | 331050750 | 8.89 | 10.67 | |
Schakel-element compl. | ||||
98 | 316042630 | 5.87 | 7.04 | |
Onderhoudset | ||||
99 | 316045130 | 201.99 | 242.39 | |
Vis, | ||||
100 | 341704260 | 1.55 | 1.86 | |
Pas d'informations disponibles, non commandable | ||||
101 | 399999990 | |||
Pas d'informations disponibles, non commandable | ||||
102 | 399999990 | |||
Goupille | ||||
103 | 341520220 | 2.28 | 2.74 | |
Circlip | ||||
104 | 342200640 | 2.28 | 2.74 | |
Pas d'informations disponibles, non commandable | ||||
105 | 341059160 | |||
Tube de graisse, 45 g Urethyn | ||||
880 | 344131170 | 13.48 | 16.18 | |
Pas d'informations disponibles, non commandable | ||||
1001 | 338504740 |
