Vous trouverez ici toutes les pièces et dessins disponibles du 'Metabo 0090505000-13 ( BAS505GWNB )'. De là, vous pouvez commander directement toutes les pièces souhaitées. De nombreuses pièces doivent être commandées auprès du fabricant, selon la marque, cela prend une à quatre semaines. Toutes les informations dont nous disposons se trouvent sur notre site Web, nous ne pouvons pas vous conseiller sur ce dont vous avez besoin, pour cela vous devrez retourner la machine pour réparation. Veuillez noter ce qui suit lors de la commande:

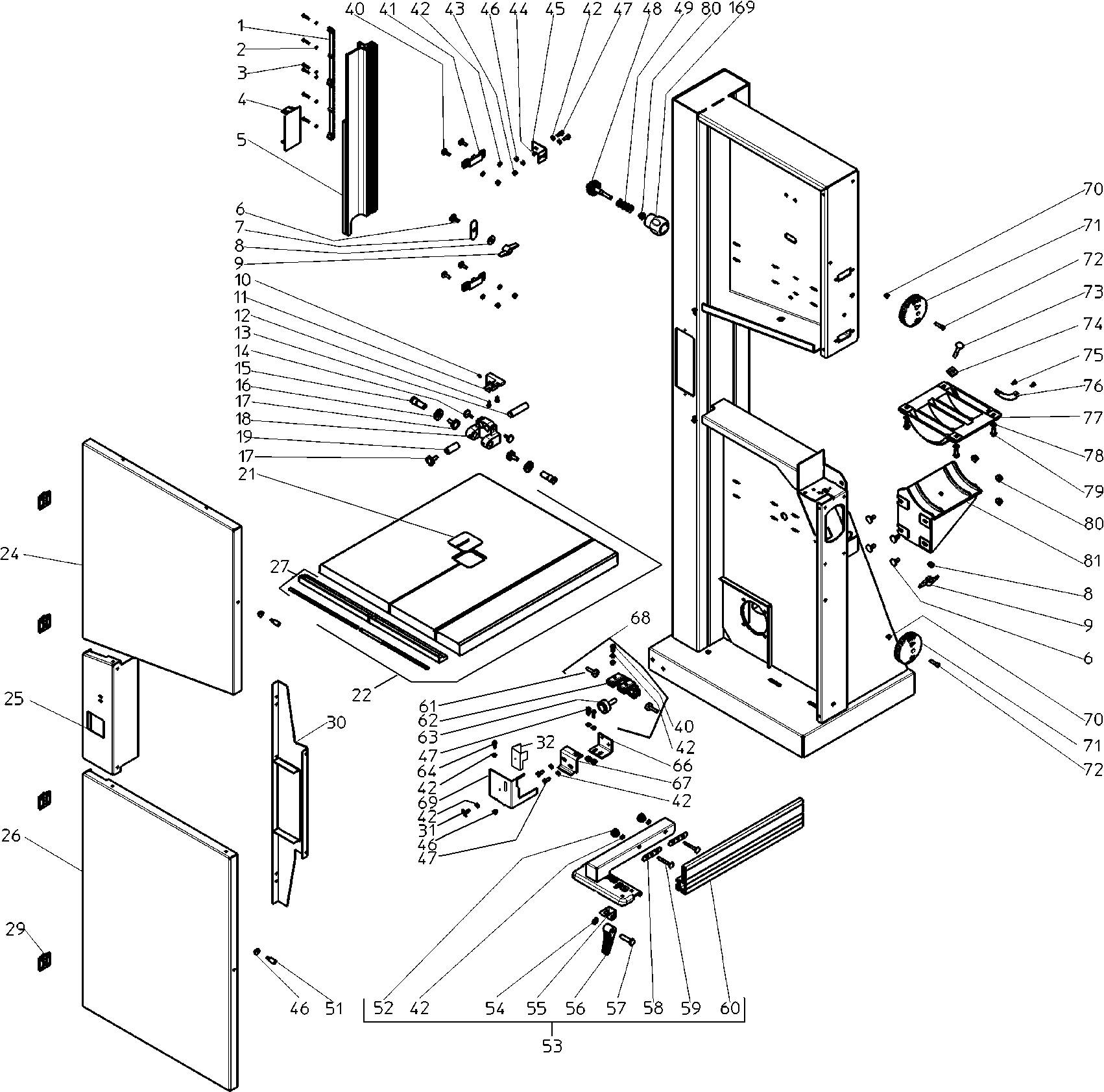

Dessins des Metabo 0090505000-13 ( BAS505GWNB )
Liste de pièces de rechange des Metabo 0090505000-13 ( BAS505GWNB )
Pos. | Description | Prix hors TVA | Prix TTC | |
Les prix affichés incluent la TVA | ||||
Tige d'Engrenage 13 MM | ||||
1 | 1380085514 | 3.02 | 3.62 | |
Tandveerring | ||||
2 | 141150430 | 1.55 | 1.86 | |
VIS À TÔLE À TÊTE CRUCIFORME M 4X20 GALV. | ||||
3 | 6123084703 | 1.55 | 1.86 | |
Glissière 64,8X120 | ||||
4 | 1381419360 | 10.38 | 12.46 | |
PROFIL DE TUBE COULISSANT 600 MM | ||||
5 | 1383419430 | 113.82 | 136.58 | |
Boulon à tête plate | ||||
6 | 6110017942 | 1.55 | 1.86 | |
GUIDE DE VIS BL 1,5X22X60 | ||||
7 | 1382083667 | 1.55 | 1.86 | |
Rondelle | ||||
8 | 141151340 | 1.55 | 1.86 | |
BOUTON | ||||
9 | 7005135529 | 1.67 | 2.00 | |
Vis de réglage | ||||
10 | 6163121261 | 1.55 | 1.86 | |
Support de guide à trois rouleaux au-dessus | ||||
11 | 1380406469 | 16.25 | 19.50 | |
Pas d'informations disponibles, non commandable | ||||
12 | 141122870 | |||
BOULON RD 16/14,5X65 | ||||
13 | 1485409005 | 18.80 | 22.56 | |
Vis à molette plate M 5X16 verz. | ||||
14 | 7009120054 | 2.28 | 2.74 | |
Manchon de roulement RD 18x46 | ||||
15 | 1385693105 | 18.80 | 22.56 | |
Écrou moleté M 16x1 | ||||
16 | 1385693113 | 8.89 | 10.67 | |
ROULETTE RD 25/8X28 | ||||
17 | 1485681171 | 37.65 | 45.18 | |
Logement de guide à trois rouleaux grand | ||||
18 | 1380419161 | 48.48 | 58.18 | |
Douille RD 16x41 | ||||
19 | 1385419178 | 12.23 | 14.68 | |
DISQUE D'INSERTION BL 2,00X69X70,5 | ||||
21 | 1382692671 | 5.87 | 7.04 | |
Pas d'informations disponibles, non commandable | ||||
22 | 1009720924 | |||
Pas d'informations disponibles, non commandable | ||||
24 | 1382721264 | |||
Pas d'informations disponibles, non commandable | ||||
25 | 1382721426 | |||
Pas d'informations disponibles, non commandable | ||||
26 | 1382721299 | |||
PROFILE DE GUIDAGE AVEC ÉCHELLE BAS 505 | ||||
27 | 1009720940 | 32.27 | 38.72 | |
Charnière vissable 40X40 | ||||
29 | 1321712858 | 7.22 | 8.66 | |
Pas d'informations disponibles, non commandable | ||||
30 | 1382721442 | |||
Vis à ailettes,M6 x 12 | ||||
31 | 341112750 | 1.55 | 1.86 | |
Protection de Scie à Bande BL 1,50X63,5X96 BAS | ||||
32 | 1382713008 | 16.25 | 19.50 | |
Boulon à fente avec insertion carrée | ||||
40 | 6110000608 | 1.55 | 1.86 | |
PROFIL GUIDAGE | ||||
41 | 1380404164 | 5.87 | 7.04 | |
Rondelle | ||||
42 | 141151940 | 1.55 | 1.86 | |
Zeskante moer | ||||
43 | 141130100 | 1.55 | 1.86 | |
Circlip | ||||
44 | 141180020 | 1.55 | 1.86 | |
COIN D'ARRÊT BL 1,5X33X82 | ||||
45 | 1382046028 | 2.28 | 2.74 | |
Écrou de bride | ||||
46 | 6209114230 | 1.55 | 1.86 | |
Zeskantschroef | ||||
47 | 141113290 | 1.55 | 1.86 | |
ARBRE DE RÉGLAGE | ||||
48 | 1009008876 | 74.13 | 88.96 | |
Ressort conique | ||||
49 | 141150540 | 1.55 | 1.86 | |
Pas d'informations disponibles, non commandable | ||||
51 | 1485693129 | |||
Ecrou Molete | ||||
52 | 6241125058 | 1.67 | 2.00 | |
Pas d'informations disponibles, non commandable | ||||
53 | 1009693021 | |||
STARLOCK | ||||
54 | 7016050711 | 1.55 | 1.86 | |
PANNEAU DE PARTICULES ,BL 1X26X91.5 | ||||
55 | 1392205620 | 1.67 | 2.00 | |
CENTRE DE SERRAGE | ||||
56 | 2390205484 | 7.22 | 8.66 | |
BOULON AVEC TÊTE | ||||
57 | 6632111175 | 2.28 | 2.74 | |
PLAQUE GUIDAGE COUREUR | ||||
58 | 1392201587 | 1.55 | 1.86 | |
BOULON À CHOIX AVEC INSERTION CARRÉE M 6X50 VERZ | ||||
59 | 6110052292 | 1.55 | 1.86 | |
Plus disponible, pas de remplacement | ||||
60 | 1383693051 | |||
Plus disponible, pas de remplacement | ||||
61 | 1009010935 | |||
Pas d'informations disponibles, non commandable | ||||
62 | 2380113670 | |||
Pas d'informations disponibles, non commandable | ||||
63 | 1009010951 | |||
Cilinderkopschroef | ||||
64 | 141113890 | 1.67 | 2.00 | |
Pas d'informations disponibles, non commandable | ||||
66 | 1382700330 | |||
Pas d'informations disponibles, non commandable | ||||
67 | 1382697100 | |||
Pas d'informations disponibles, non commandable | ||||
68 | 1009692785 | |||
Pas d'informations disponibles, non commandable | ||||
69 | 1382697126 | |||
Ecrou de sécurité hexagonal | ||||
70 | 141130650 | 1.67 | 2.00 | |
BOUTON ROTATIF DE VERROUILLAGE | ||||
71 | 1381692694 | 5.87 | 7.04 | |
BOULON À TÊTE CARRÉE M 8X50 END | ||||
73 | 6110080245 | 1.55 | 1.86 | |
Pas d'informations disponibles, non commandable | ||||
74 | 1381092115 | |||
Vis de positionnement M. Tête cruciforme | ||||
75 | 6172015687 | 1.55 | 1.86 | |
Pas d'informations disponibles, non commandable | ||||
76 | 1141403490 | |||
Pas d'informations disponibles, non commandable | ||||
77 | 1380062506 | |||
Disque lamellaire | ||||
78 | 6304001745 | 1.55 | 1.86 | |
Vis hexagonale | ||||
79 | 6103001178 | 1.55 | 1.86 | |
Écrou de bride | ||||
80 | 6209110995 | 1.55 | 1.86 | |
Pas d'informations disponibles, non commandable | ||||
81 | 2380062510 | |||
Écrou hexagonal M 16X1,5 verz. | ||||
91 | 6200050477 | 1.55 | 1.86 | |
RONDLETTE B 16 VERZ. | ||||
92 | 6301000292 | 1.55 | 1.86 | |
Goupille de roulement RD 21X70 BAS505 | ||||
93 | 1485704023 | 21.64 | 25.97 | |
ROULEAU DE SCIE À BANDE SUPÉRIEUR COMPLET | ||||
94 | 1388198580 | 256.98 | 308.38 | |
Circlip | ||||
95 | 141180110 | 1.67 | 2.00 | |
Pas d'informations disponibles, non commandable | ||||
96 | 8132719552 | |||
Écrou de bride | ||||
97 | 6209620098 | 1.55 | 1.86 | |
Pas d'informations disponibles, non commandable | ||||
98 | 1382697002 | |||
Pas d'informations disponibles, non commandable | ||||
99 | 6200199675 | |||
Vis a tete bombee | ||||
100 | 141111430 | 1.67 | 2.00 | |
Boîte à commutateurs BL 2,00x120,5x270 | ||||
101 | 1382692981 | 80.81 | 96.97 | |
VIS DE PERÇAGE À SIX PANS | ||||
102 | 6144063978 | 1.55 | 1.86 | |
Vis a tete fraisee | ||||
103 | 141123420 | 1.55 | 1.86 | |
Brosse Longue | ||||
104 | 9132081414 | 8.89 | 10.67 | |
BOULON À TÊTE CARRÉE M 8X100 END | ||||
105 | 6110082701 | 1.67 | 2.00 | |
BOUGIE RD 10,7/8,5X50 VERZ. | ||||
106 | 6442084643 | 4.51 | 5.41 | |
Goupille cylindrique 10 h11X100 | ||||
116 | 6500087283 | 3.71 | 4.45 | |
Cilinderkopschroef | ||||
118 | 141113900 | 1.67 | 2.00 | |
Coulisseau | ||||
119 | 343433180 | 3.71 | 4.45 | |
ROULEAU DE SCIE À RUBAN INFÉRIEUR COMPLET | ||||
120 | 1009010870 | 405.62 | 486.74 | |
Écrou hexagonal M 20X1,5 verz. | ||||
121 | 6200046208 | 1.67 | 2.00 | |
RONDLETTE B 20 VERZ. | ||||
122 | 6301047329 | 1.55 | 1.86 | |
BOULON DE PALIER INFERIEUR RD 25X170 BAS505 | ||||
123 | 1485721688 | 37.65 | 45.18 | |
Plus disponible, pas de remplacement | ||||
124 | 141110270 | |||
Taraud à goupille avec cône Morse M 6X12 VERZ. | ||||
125 | 6161050910 | 1.55 | 1.86 | |
Pas d'informations disponibles, non commandable | ||||
126 | 7240045014 | |||
ROULEMENT À BILLES 17X40X12 6203-2RS1 | ||||
127 | 143116240 | 4.51 | 5.41 | |
Pas d'informations disponibles, non commandable | ||||
128 | 1009010927 | |||
CADRE DE SERRAGE BL 2,99X152,5X256,5 BAS505 | ||||
140 | 1382721493 | 43.15 | 51.78 | |
RESSORT DE PRESSION D=7,5/DE=40/LO=160 | ||||
141 | 7051697094 | 18.80 | 22.56 | |
Plaque de pression ISC 240 complet | ||||
142 | 1009732639 | 24.23 | 29.08 | |
Clavette A 3x3X8 Verz. | ||||
143 | 6721060355 | 2.28 | 2.74 | |
REGLAGE DE LA HAUTEUR DE LA BROCHE RD 20X304,5 | ||||
144 | 1485692866 | 60.59 | 72.71 | |
Plus disponible, pas de remplacement | ||||
145 | 7104693142 | |||
Volant De Manoeuvre | ||||
146 | 7003079524 | 16.25 | 19.50 | |
Écrou hexagonal auto-bloquant | ||||
147 | 6202002305 | 1.55 | 1.86 | |
Plus disponible, pas de remplacement | ||||
148 | 1009732620 | |||
PALE DE VENTILATEUR AVEC VENTILATEUR ET | ||||
152 | 1010689259 | 11.74 | 14.09 | |
E-MOTEUR 1,50 WNB RE.-M.BR. (BAS) | ||||
153 | 8012688483 | 348.32 | 417.98 | |
Condensateur 30uF/450V 35 X 90 | ||||
154 | 8050732160 | 21.64 | 25.97 | |
PIÈCE D'EXTRACTION AVEC PROTECTION CONTRE BAS505 | ||||
155 | 1009707596 | 21.64 | 25.97 | |
Pas d'informations disponibles, non commandable | ||||
156 | 6621007910 | |||
Pas d'informations disponibles, non commandable | ||||
160 | 7230047396 | |||
Pas d'informations disponibles, non commandable | ||||
161 | 7230047400 | |||
Pas d'informations disponibles, non commandable | ||||
162 | 9101178894 | |||
CLÉ À GOUJON SW 3 NOIR | ||||
163 | 9102029329 | 2.28 | 2.74 | |
Pas d'informations disponibles, non commandable | ||||
165 | 1382721582 | |||
Pas d'informations disponibles, non commandable | ||||
166 | 1382721620 | |||
TIGE FILETÉE M 8X94 | ||||
167 | 1485208140 | 2.28 | 2.74 | |
ROND ELLE | ||||
168 | 7053075104 | 1.55 | 1.86 | |
POIGNÉE EN PLASTIQUE | ||||
169 | 1388698264 | 5.18 | 6.22 | |
Pas d'informations disponibles, non commandable | ||||
170 | 1382721566 | |||
Rondelle | ||||
172 | 141150010 | 1.55 | 1.86 | |
AUTOCOLLANT TRANS./NOIR 16X90 TENSION DE LAME | ||||
173 | 1141721468 | 7.22 | 8.66 | |
INDICATEUR DE TENSION DE LAME BAS505 BL 1,50X16X18 | ||||
174 | 1382721540 | 5.87 | 7.04 | |
Zeskantschroef | ||||
175 | 141110320 | 1.67 | 2.00 |
