Vous trouverez ici toutes les pièces et dessins disponibles du 'Makita UR014G'. De là, vous pouvez commander directement toutes les pièces souhaitées. De nombreuses pièces doivent être commandées auprès du fabricant, selon la marque, cela prend une à quatre semaines. Toutes les informations dont nous disposons se trouvent sur notre site Web, nous ne pouvons pas vous conseiller sur ce dont vous avez besoin, pour cela vous devrez retourner la machine pour réparation. Veuillez noter ce qui suit lors de la commande:

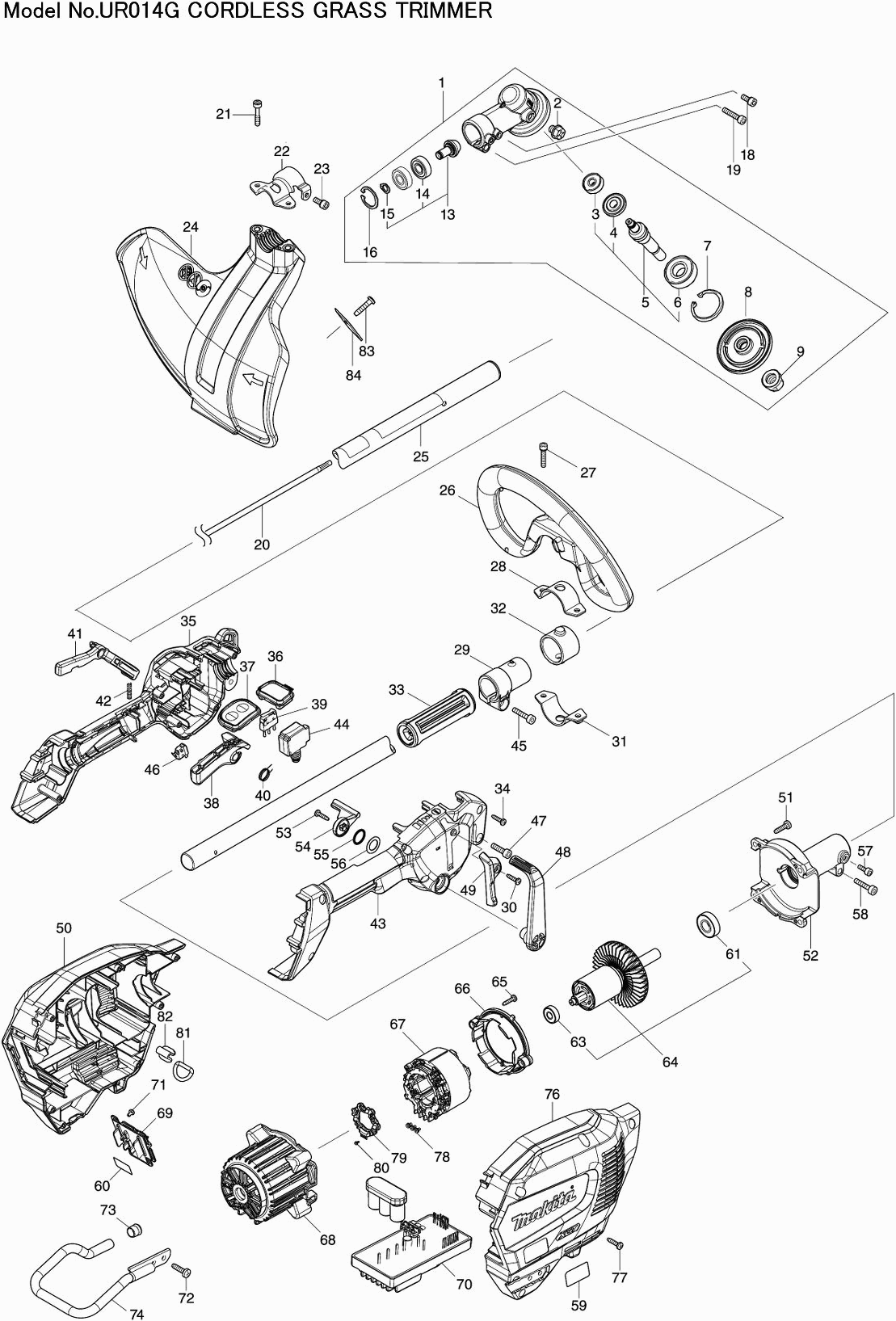

Dessins des Makita UR014G
Liste de pièces de rechange des Makita UR014G
Pos. | Description | Prix hors TVA | Prix TTC | |
Les prix affichés incluent la TVA | ||||
Pas d'informations disponibles, non commandable | ||||
001 | 122D73-8 | |||
Vis en métal Ck M8x10mm | ||||
002 | 265590-2 | 0.83 | 1.00 | |
Pas d'informations disponibles, non commandable | ||||
003 | 210030-5 | |||
Pas d'informations disponibles, non commandable | ||||
004 | 227A47-7 | |||
Pas d'informations disponibles, non commandable | ||||
005 | 136860-5 | |||
Roulement à billes 6202llb | ||||
006 | 211228-7 | 7.44 | 8.93 | |
Bague de verrouillage ext R-35 EM408MP | ||||
007 | 259069-3 | 0.83 | 1.00 | |
Pas d'informations disponibles, non commandable | ||||
008 | 327B76-7 | |||
Écrou M10-17 | ||||
009 | 252236-9 | 3.20 | 3.84 | |
Pas d'informations disponibles, non commandable | ||||
013 | 136861-3 | |||
Pas d'informations disponibles, non commandable | ||||
014 | 210157-1 | |||
Pas d'informations disponibles, non commandable | ||||
015 | 259071-6 | |||
Pas d'informations disponibles, non commandable | ||||
016 | 259072-4 | |||
Vis hexagonale 5x14 | ||||
018 | 922216-6 | 0.83 | 1.00 | |
Boulon Allen m6x30 | ||||
019 | 922353-6 | 0.83 | 1.00 | |
Arbre Ebh253U A | ||||
020 | 327056-1 | 9.52 | 11.42 | |
Vis à six pans creux m6x25 | ||||
021 | 266280-0 | 0.83 | 1.00 | |
Pas d'informations disponibles, non commandable | ||||
022 | 347B13-5 | |||
Vis hexagonale 5x14 | ||||
023 | 922216-6 | 0.83 | 1.00 | |
Pas d'informations disponibles, non commandable | ||||
024 | 413N78-2 | |||
Pas d'informations disponibles, non commandable | ||||
025 | 141N31-5 | |||
Étiquette logo Makita | ||||
025C10 | 819312-8 | 2.80 | 3.36 | |
Pas d'informations disponibles, non commandable | ||||
025C20 | 8063Y2-5 | |||
Poignée D DUR368L | ||||
026 | 457267-5 | 11.19 | 13.43 | |
Vis Allen M5X20 | ||||
027 | 922234-4 | 0.83 | 1.00 | |
Support de serrage 35, Haut | ||||
028 | 347113-9 | 0.83 | 1.00 | |
Pas d'informations disponibles, non commandable | ||||
029 | 413P01-9 | |||
Pas d'informations disponibles, non commandable | ||||
030 | 266326-2 | |||
Support de serrage 35, Bas | ||||
031 | 347114-7 | 1.21 | 1.45 | |
Amortisseur Dux60 | ||||
032 | 424942-8 | 1.21 | 1.45 | |
Pas d'informations disponibles, non commandable | ||||
033 | 413P05-1 | |||
Pas d'informations disponibles, non commandable | ||||
034 | 266326-2 | |||
Pas d'informations disponibles, non commandable | ||||
035 | 183X43-2 | |||
Ecrou Hex M5 | ||||
035C10 | 931202-6 | 0.83 | 1.00 | |
Pas d'informations disponibles, non commandable | ||||
036 | 141N51-9 | |||
Pas d'informations disponibles, non commandable | ||||
037 | 141N47-0 | |||
Pas d'informations disponibles, non commandable | ||||
037C10 | 8064D9-0 | |||
Pas d'informations disponibles, non commandable | ||||
038 | 413N93-6 | |||
Pas d'informations disponibles, non commandable | ||||
039 | 632U35-5 | |||
Ressort de torsion 12 | ||||
040 | 233622-3 | 0.83 | 1.00 | |
Pas d'informations disponibles, non commandable | ||||
041 | 413P00-1 | |||
Ressort de compression 4 | ||||
042 | 233101-1 | 0.83 | 1.00 | |
Pas d'informations disponibles, non commandable | ||||
043 | 183X43-2 | |||
Ecrou Hex M5 | ||||
043C10 | 931202-6 | 0.83 | 1.00 | |
Interrupteur UR002/3G | ||||
044 | 651492-2 | 14.23 | 17.08 | |
Vis à ailettes M5X25Mm | ||||
045 | 922244-1 | 1.00 | 1.20 | |
Pas d'informations disponibles, non commandable | ||||
046 | 632U36-3 | |||
Pas d'informations disponibles, non commandable | ||||
047 | 922233-6 | |||
Pas d'informations disponibles, non commandable | ||||
048 | 413N94-4 | |||
Pas d'informations disponibles, non commandable | ||||
049 | 413P03-5 | |||
Pas d'informations disponibles, non commandable | ||||
050 | 183X40-8 | |||
Stylo en caoutchouc 6 | ||||
050C10 | 263005-3 | 0.83 | 1.00 | |
Etiquette XGT UX01G | ||||
050C20 | 8025F3-0 | 1.02 | 1.22 | |
Vis 4x20 | ||||
051 | 266420-0 | 0.83 | 1.00 | |
Pas d'informations disponibles, non commandable | ||||
052 | 136862-1 | |||
Goupille en Caoutchouc 4 | ||||
052C10 | 263002-9 | 0.83 | 1.00 | |
Pas d'informations disponibles, non commandable | ||||
053 | 266326-2 | |||
Pas d'informations disponibles, non commandable | ||||
054 | 413N95-2 | |||
Anneau O 14 | ||||
055 | 213154-6 | 0.83 | 1.00 | |
Rivet 13 | ||||
056 | 253798-0 | 0.83 | 1.00 | |
Boulon BTR 5x12 | ||||
057 | 922211-6 | 0.83 | 1.00 | |
Boulon Allen m6x30 | ||||
058 | 922353-6 | 0.83 | 1.00 | |
Pas d'informations disponibles, non commandable | ||||
059 | 8585W2-9 | |||
Pas d'informations disponibles, non commandable | ||||
060 | 8585W9-5 | |||
Roulement à billes 6001ZZ DUX18 | ||||
061 | 210244-6 | 2.45 | 2.94 | |
Pas d'informations disponibles, non commandable | ||||
063 | 210062-2 | |||
Pas d'informations disponibles, non commandable | ||||
064 | 510551-0 | |||
Pas d'informations disponibles, non commandable | ||||
065 | 266326-2 | |||
Pas d'informations disponibles, non commandable | ||||
066 | 413N96-0 | |||
Pas d'informations disponibles, non commandable | ||||
067 | 629B96-0 | |||
Pas d'informations disponibles, non commandable | ||||
068 | 413N72-4 | |||
Unité de connexion UC016G/017G | ||||
069 | 632T07-4 | 6.74 | 8.09 | |
Pas d'informations disponibles, non commandable | ||||
070 | 620K90-9 | |||
Vis M3X6 | ||||
071 | 652031-1 | 0.83 | 1.00 | |
Vis 4x20 | ||||
072 | 266420-0 | 0.83 | 1.00 | |
Bouchon, -Fermeture Dga700 | ||||
073 | 422230-7 | 0.83 | 1.00 | |
Pas d'informations disponibles, non commandable | ||||
074 | 327B36-9 | |||
Pas d'informations disponibles, non commandable | ||||
076 | 183X40-8 | |||
Stylo en caoutchouc 6 | ||||
076C10 | 263005-3 | 0.83 | 1.00 | |
Etiquette XGT UX01G | ||||
076C20 | 8025F3-0 | 1.02 | 1.22 | |
Pas d'informations disponibles, non commandable | ||||
077 | 266326-2 | |||
Vis à tête cruciforme M3X6 | ||||
078 | 652069-6 | 0.83 | 1.00 | |
Jeu de capteurs RS002G | ||||
079 | 632R96-7 | 21.70 | 26.04 | |
Vis métallique M2x5mm RS002G | ||||
080 | 652093-9 | 0.83 | 1.00 | |
D-Anneau 20 UX01G | ||||
081 | 327742-4 | 1.02 | 1.22 | |
Anneau de Soutien UX01G | ||||
082 | 347783-4 | 0.83 | 1.00 | |
Vis à tôle 5x16mm | ||||
083 | 266388-0 | 0.83 | 1.00 | |
Pas d'informations disponibles, non commandable | ||||
084 | 347B15-1 |
