Vous trouverez ici toutes les pièces et dessins disponibles du 'Makita SG1250'. De là, vous pouvez commander directement toutes les pièces souhaitées. De nombreuses pièces doivent être commandées auprès du fabricant, selon la marque, cela prend une à quatre semaines. Toutes les informations dont nous disposons se trouvent sur notre site Web, nous ne pouvons pas vous conseiller sur ce dont vous avez besoin, pour cela vous devrez retourner la machine pour réparation. Veuillez noter ce qui suit lors de la commande:

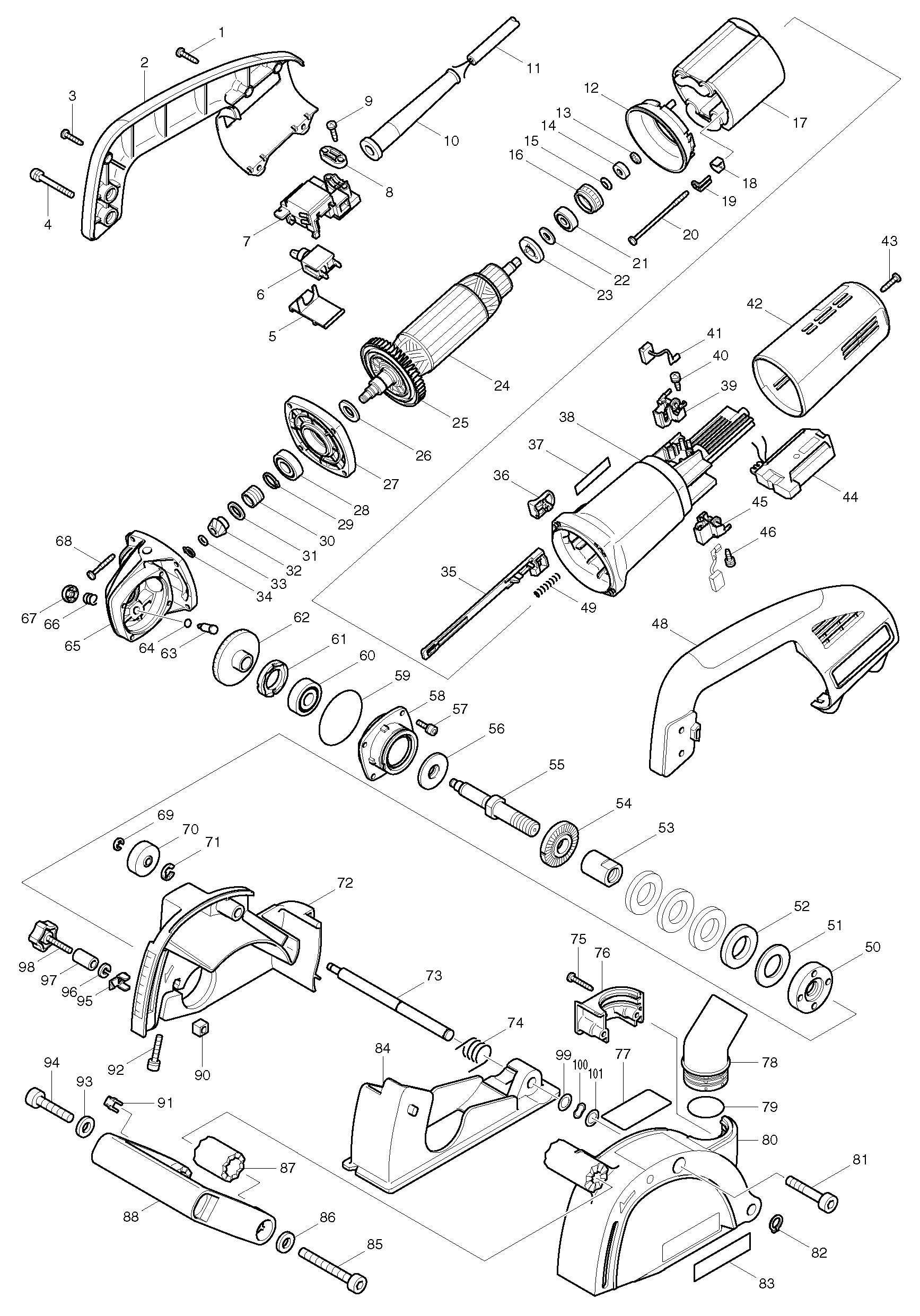

Dessins des Makita SG1250
Liste de pièces de rechange des Makita SG1250
Pos. | Description | Prix hors TVA | Prix TTC | |
Les prix affichés incluent la TVA | ||||
Tapschroef 4x18 | ||||
001 | 265995-6 | 0.83 | 1.00 | |
Handgreep set | ||||
002 | 183692-1 | 21.96 | 26.35 | |
Tapschroef 4x18 | ||||
003 | 265995-6 | 0.83 | 1.00 | |
Schroef 5x40 | ||||
004 | 911263-2 | 0.83 | 1.00 | |
Schakelaar afdekkap | ||||
005 | 687113-0 | 0.83 | 1.00 | |
Épuisé | ||||
006 | 651428-1 | |||
Schakelaarhouder | ||||
007 | 632945-0 | 8.80 | 10.56 | |
Klemstrip | ||||
008 | 687053-2 | 0.83 | 1.00 | |
Tapschroef 4x18 | ||||
009 | 265995-6 | 0.83 | 1.00 | |
Kabeltule 8-110 | ||||
010 | 682559-5 | 0.83 | 1.00 | |
Netsnoer 2x1.50 4.0mtr | ||||
011 | 695123-3 | 20.08 | 24.10 | |
Plaque Intermediaire | ||||
012 | 413076-2 | 1.32 | 1.58 | |
Anneau de retenue | ||||
013 | 259039-2 | 0.83 | 1.00 | |
Magnetische Bus Rt0700 A | ||||
014 | 688117-5 | 2.58 | 3.10 | |
Veerring 6 | ||||
015 | 267756-0 | 0.83 | 1.00 | |
Épuisé | ||||
016 | 421738-8 | |||
Inducteur | ||||
017 | 626598-5 | 26.56 | 31.87 | |
Isolatiedeksel | ||||
018 | 417237-6 | 0.83 | 1.00 | |
Plateau De Retenue | ||||
019 | 344871-8 | 0.83 | 1.00 | |
Tapschroef 4x70 | ||||
020 | 266258-3 | 0.83 | 1.00 | |
Kogellager 627ddw | ||||
021 | 210045-2 | 2.98 | 3.58 | |
Sluitring 7 | ||||
022 | 253823-7 | 0.83 | 1.00 | |
Isolatiering | ||||
023 | 681656-4 | 0.83 | 1.00 | |
Induit | ||||
024 | 515208-8 | 64.89 | 77.87 | |
Waaier 57 | ||||
025 | 240033-5 | 3.77 | 4.52 | |
Sluitring 12 | ||||
026 | 253084-9 | 0.83 | 1.00 | |
Palier | ||||
027 | 317359-1 | 10.00 | 12.00 | |
Kogellager 6001zz | ||||
028 | 211148-5 | 7.81 | 9.37 | |
Borgring S-12 | ||||
029 | 961052-5 | 0.83 | 1.00 | |
Borgveer 12 | ||||
030 | 233901-9 | 2.58 | 3.10 | |
Sluitring 12 | ||||
031 | 253052-2 | 0.83 | 1.00 | |
Tandwiel 9 | ||||
032 | 227429-7 | 11.64 | 13.97 | |
Sluitring 6 | ||||
033 | 253077-6 | 0.83 | 1.00 | |
Borgring S-6 | ||||
034 | 961002-0 | 0.83 | 1.00 | |
Schakelaarhandel | ||||
035 | 417186-7 | 1.58 | 1.90 | |
Bouton De Commande | ||||
036 | 417813-6 | 0.83 | 1.00 | |
Label "makita" | ||||
037 | 819080-3 | 3.54 | 4.25 | |
Carter De Moteur | ||||
038 | 418512-3 | 13.78 | 16.54 | |
S/e Porte Balais | ||||
039 | 643760-7 | 2.98 | 3.58 | |
Zelftapper Pt 3x10 | ||||
040 | 266256-7 | 0.83 | 1.00 | |
Kooborstelset CB-318 | ||||
041 | 191978-9 | 7.81 | 9.37 | |
Achterdeksel | ||||
042 | 417183-3 | 7.81 | 9.37 | |
Tapschroef 4x18 | ||||
043 | 265995-6 | 0.83 | 1.00 | |
Toerenregelcircuit | ||||
044 | 631492-8 | 42.81 | 51.37 | |
S/e Porte Balais | ||||
045 | 643760-7 | 2.98 | 3.58 | |
Zelftapper Pt 3x10 | ||||
046 | 266256-7 | 0.83 | 1.00 | |
Handgreep set | ||||
048 | 183692-1 | 21.96 | 26.35 | |
Drukveer 4 | ||||
049 | 233071-4 | 0.83 | 1.00 | |
Sluitmoer M14x45mm | ||||
050 | 224577-3 | 6.75 | 8.10 | |
Afstandring 3,0mm | ||||
051 | 331661-8 | 3.75 | 4.50 | |
Afstandring 6,0mm | ||||
052 | 331662-6 | 3.75 | 4.50 | |
Douille | ||||
053 | 257732-2 | 9.22 | 11.06 | |
Binnenflens 42mm | ||||
054 | 224415-9 | 4.25 | 5.10 | |
Arbre | ||||
055 | 324393-4 | 26.69 | 32.03 | |
Labyrint ring | ||||
056 | 415300-9 | 1.12 | 1.34 | |
Inbusbout 4x16 | ||||
057 | 266437-3 | 0.83 | 1.00 | |
Lagerhuis alu | ||||
058 | 318334-0 | 20.08 | 24.10 | |
O-ring 52 | ||||
059 | 213673-2 | 0.83 | 1.00 | |
Kogellager 6201dw1 | ||||
060 | 211129-9 | 6.88 | 8.26 | |
Lager borgring 19-33 | ||||
061 | 285841-7 | 1.58 | 1.90 | |
Tandwiel 35 | ||||
062 | 227430-2 | 16.56 | 19.87 | |
Goupille | ||||
063 | 256459-1 | 1.12 | 1.34 | |
O-ring 6 | ||||
064 | 213048-5 | 0.83 | 1.00 | |
Carter | ||||
065 | 153488-4 | 18.32 | 21.98 | |
Kogellager 607llb | ||||
065A | 211021-9 | 4.24 | 5.09 | |
Drukveer 8 | ||||
066 | 233072-2 | 0.83 | 1.00 | |
Blokkeerknopkap | ||||
067 | 417236-8 | 0.83 | 1.00 | |
Tapschroef 4x28 | ||||
068 | 266257-5 | 0.83 | 1.00 | |
Stopring E-4 | ||||
069 | 961011-9 | 0.83 | 1.00 | |
Loopwiel 6x20mm | ||||
070 | 257227-5 | 4.24 | 5.09 | |
Épuisé | ||||
071 | 961014-3 | |||
slijpkap | ||||
072 | 153685-2 | 49.38 | 59.26 | |
Schaalverdeling | ||||
072A | 816397-5 | 1.92 | 2.30 | |
Kraagas Sg1250 | ||||
073 | 324392-6 | 4.82 | 5.78 | |
Torsieveer 11 | ||||
074 | 231655-2 | 1.39 | 1.67 | |
Tapschroef Ct 4x25 | ||||
075 | 266040-0 | 0.83 | 1.00 | |
Stofkap | ||||
076 | 418390-1 | 5.69 | 6.83 | |
Étiquette | ||||
077 | 850945-0 | 2.58 | 3.10 | |
Stofafzuigadapter sleuvenzaag | ||||
078 | 416741-2 | 5.00 | 6.00 | |
O-ring 30 | ||||
079 | 213423-5 | 0.83 | 1.00 | |
Protecteur | ||||
080 | 183718-9 | 38.62 | 46.34 | |
Inbusbout M8x45 | ||||
081 | 922466-3 | 0.97 | 1.16 | |
Borgring S-10 | ||||
082 | 961006-2 | 0.83 | 1.00 | |
Label "makita" | ||||
083 | 819064-1 | 0.83 | 1.00 | |
Plaque de base | ||||
084 | 317723-6 | 29.24 | 35.09 | |
Inbusbout M8x65 | ||||
085 | 922487-5 | 0.94 | 1.13 | |
Épuisé | ||||
086 | 941201-0 | |||
Came | ||||
087 | 223145-9 | 3.77 | 4.52 | |
Front greep | ||||
088 | 417665-5 | 10.02 | 12.02 | |
Moer M6 4-k | ||||
090 | 252185-0 | 1.32 | 1.58 | |
Bitklem | ||||
091 | 344391-2 | 0.83 | 1.00 | |
Inbusbout M5X30 Sg1250 | ||||
092 | 922251-4 | 0.83 | 1.00 | |
Épuisé | ||||
093 | 941201-0 | |||
Inbusbout M8x40 | ||||
094 | 922462-1 | 0.83 | 1.00 | |
Indicator Sg1250 | ||||
095 | 345364-8 | 1.58 | 1.90 | |
Épuisé | ||||
096 | 942151-2 | |||
Bus 7Mm Sg1250 | ||||
097 | 257731-4 | 1.58 | 1.90 | |
Schroef 6x33 | ||||
098 | 251897-2 | 2.98 | 3.58 | |
Dunne sluitring 10 | ||||
099 | 253310-6 | 0.83 | 1.00 | |
Veerring 10 | ||||
100 | 267783-7 | 0.83 | 1.00 | |
Dunne sluitring 10 | ||||
101 | 253310-6 | 0.83 | 1.00 |
