Vous trouverez ici toutes les pièces et dessins disponibles du 'Makita JS1601'. De là, vous pouvez commander directement toutes les pièces souhaitées. De nombreuses pièces doivent être commandées auprès du fabricant, selon la marque, cela prend une à quatre semaines. Toutes les informations dont nous disposons se trouvent sur notre site Web, nous ne pouvons pas vous conseiller sur ce dont vous avez besoin, pour cela vous devrez retourner la machine pour réparation. Veuillez noter ce qui suit lors de la commande:

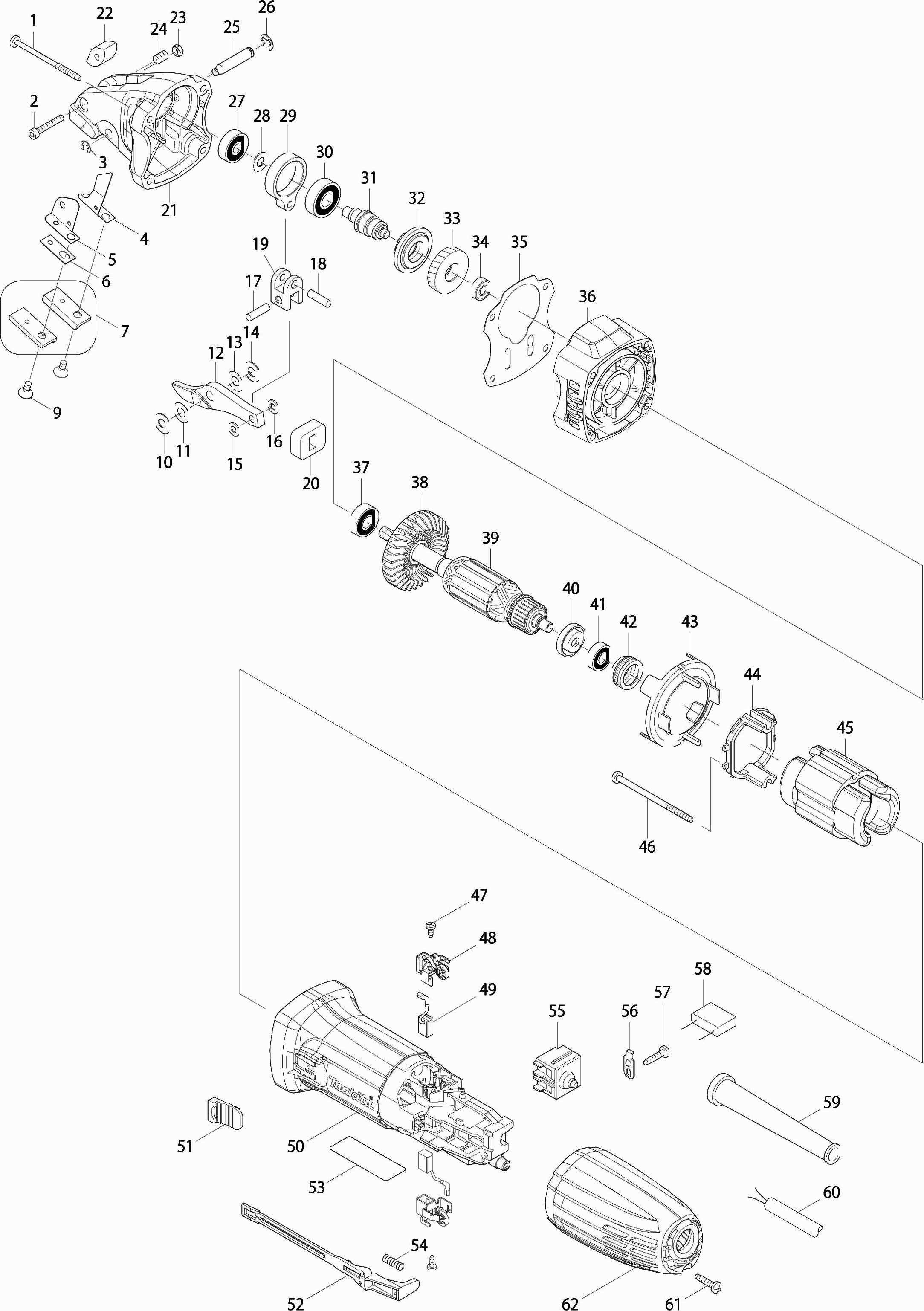

Dessins des Makita JS1601
Liste de pièces de rechange des Makita JS1601
Pos. | Description | Prix hors TVA | Prix TTC | |
Les prix affichés incluent la TVA | ||||
Tapschroef 4x50 | ||||
001 | 266091-3@141 | 0.83 | 1.00 | |
Inbusbout M4X25 | ||||
002 | 922147-9@141 | 0.83 | 1.00 | |
Stopring E-4 | ||||
003 | 961011-9@141 | 0.83 | 1.00 | |
Porte-lame | ||||
004 | 346131-4@141 | 3.22 | 3.86 | |
Porte-lame | ||||
005 | 343480-0@141 | 1.43 | 1.72 | |
Opvulplaat | ||||
006 | 343481-8@141 | 0.83 | 1.00 | |
Zijmessen set | ||||
007 | 792533-6@141 | 37.00 | 44.40 | |
Schroef 5x10 | ||||
009 | 251951-2@141 | 0.83 | 1.00 | |
Kunststof Ring 7 Bjs160/Js1000 | ||||
010 | 261065-9@141 | 0.83 | 1.00 | |
Dunne Sluitring 7 | ||||
011 | 253338-4@141 | 1.01 | 1.21 | |
Middenmes | ||||
012 | 792534-4@141 | 51.13 | 61.36 | |
Dunne Sluitring 7 | ||||
013 | 253338-4@141 | 1.01 | 1.21 | |
Kunststof Ring 7 Bjs160/Js1000 | ||||
014 | 261065-9@141 | 0.83 | 1.00 | |
Sluitring 5 | ||||
015 | 267010-2@141 | 0.83 | 1.00 | |
Sluitring 5 | ||||
016 | 267010-2@141 | 0.83 | 1.00 | |
Pen 5 | ||||
017 | 256155-1@141 | 0.83 | 1.00 | |
Pen 5 | ||||
018 | 256155-1@141 | 0.83 | 1.00 | |
Verrouillage du pilote | ||||
019 | 331329-6@141 | 12.55 | 15.06 | |
Stofafdichting Js1650-1660-167 | ||||
020 | 423118-4@141 | 0.83 | 1.00 | |
Krukashuis | ||||
021 | 140506-7@141 | 53.39 | 64.07 | |
Pen 3 | ||||
021A | 256180-2@141 | 0.83 | 1.00 | |
Geleideblok | ||||
022 | 325727-4@141 | 6.58 | 7.90 | |
Zeskant borgmoer 4x7 | ||||
023 | 252083-8@141 | 0.83 | 1.00 | |
Stelschroef M6x10mm | ||||
024 | 266085-8@141 | 0.83 | 1.00 | |
Pen 7 | ||||
025 | 256733-7@141 | 2.08 | 2.50 | |
Stopring E-6 | ||||
026 | 259053-8@141 | 0.83 | 1.00 | |
Pas d'informations disponibles, non commandable | ||||
027 | 211027-7@141 | |||
Sluitring 7 | ||||
028 | 253133-2@141 | 0.83 | 1.00 | |
Bielle | ||||
029 | 331273-7@141 | 12.58 | 15.10 | |
Kogellager 6000zz | ||||
030 | 210067-2@141 | 1.21 | 1.45 | |
Krukas | ||||
031 | 325948-8@141 | 10.81 | 12.97 | |
Vis D'arret | ||||
032 | 325949-6@141 | 11.68 | 14.02 | |
Tandwiel 40 | ||||
033 | 227731-8@141 | 31.62 | 37.94 | |
Kogellager 696ZZ A | ||||
034 | 210026-6@141 | 3.65 | 4.38 | |
Joint | ||||
035 | 442161-4@141 | 1.21 | 1.45 | |
Carter | ||||
036 | 140507-5@141 | 7.44 | 8.93 | |
Kogellager 608ddw | ||||
037 | 210005-4@141 | 4.58 | 5.50 | |
Ventilateur | ||||
038 | 240076-7@141 | 1.02 | 1.22 | |
Induit 230v | ||||
039 | 517674-5@141 | 55.92 | 67.10 | |
Isolatiering | ||||
040 | 681636-0@141 | 1.21 | 1.45 | |
Kogellager 607Zz A | ||||
041 | 211382-7@141 | 0.83 | 1.00 | |
Tussenring 9554Nb A | ||||
042 | 422768-2@141 | 0.83 | 1.00 | |
Plaque Intermediaire | ||||
043 | 450796-7@141 | 0.83 | 1.00 | |
Afstandbus | ||||
044 | 452073-3@141 | 3.22 | 3.86 | |
Inducteur | ||||
045 | 623549-9@141 | 22.75 | 27.30 | |
Tapschroef Pt4x70 | ||||
046 | 266004-4@141 | 1.21 | 1.45 | |
Tapschroef Pt3X8 | ||||
047 | 265954-0@141 | 0.83 | 1.00 | |
S/e Porte Balais | ||||
048 | 643839-4@141 | 1.01 | 1.21 | |
Koolborstelset Cb-459 | ||||
049 | 194722-3@141 | 2.08 | 2.50 | |
Carter De Moteur | ||||
050 | 450795-9@141 | 6.16 | 7.39 | |
Schakelknop | ||||
051 | 418016-5@141 | 0.83 | 1.00 | |
Schakelstang Ga4530 | ||||
052 | 450797-5@141 | 0.83 | 1.00 | |
Étiquette | ||||
053 | 868086-8@141 | 2.80 | 3.36 | |
Drukveer 4 | ||||
054 | 233121-5@141 | 0.83 | 1.00 | |
Schakelaar Ps10 | ||||
055 | 650621-4@141 | 2.80 | 3.36 | |
Trekontlaster | ||||
056 | 687682-1@141 | 0.83 | 1.00 | |
Tapschroef 4x18 | ||||
057 | 265A48-7@141 | 0.90 | 1.08 | |
Condensateur Antiparasit. | ||||
058 | 638739-1@141 | 2.08 | 2.50 | |
Kabeltule 10 | ||||
059 | 682566-8@141 | 1.21 | 1.45 | |
Netsnoer 2x1.50 4.0mtr | ||||
060 | 695123-3@141 | 21.70 | 26.04 | |
Tapschroef 4x18 | ||||
061 | 265A48-7@141 | 0.90 | 1.08 | |
Achterdeksel | ||||
062 | 456381-4@141 | 2.80 | 3.36 |
