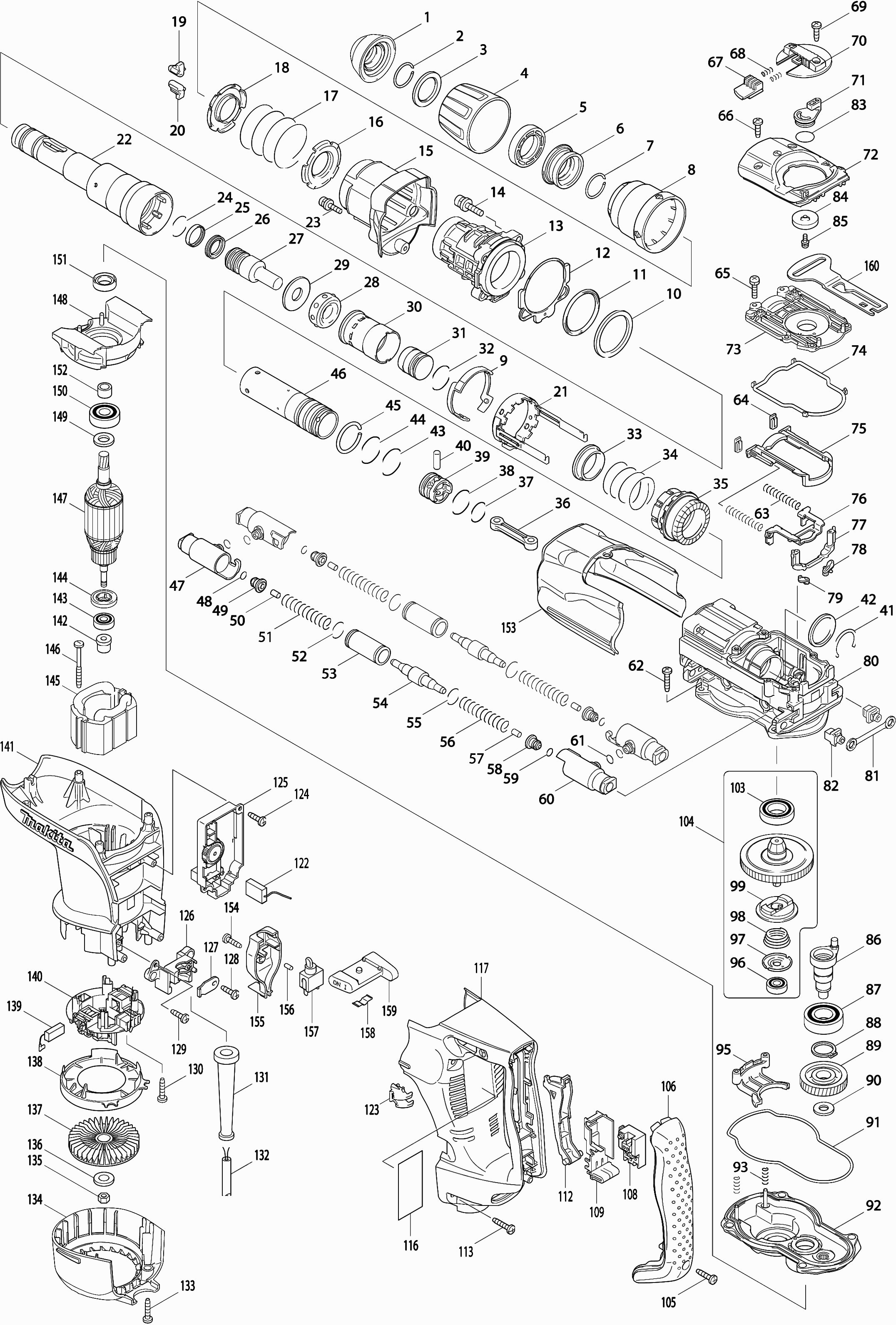

Dessins techniques et pièces de rechange Makita HR4010C
La référence HR4010C doit figurer sur la plaque d'identification. Des différences peuvent exister selon le numéro de type donnant lieu à la non-correspondance des pièces de rechange. Ne commandez que des pièces si les références sont correctes.Dessins des MAKITA HR4010C
Liste de pièces de rechange des Makita HR4010C
Sur cette page, vous pouvez ajouter des pièces de rechange à votre panier en sélectionnant la quantité désirée et en cliquant sur le bouton derrière. Si vous avez terminé votre sélection, veuillez activer le bouton "Votre panier" en bas de la page. Les prix mentionnés ci-dessous sont TTC.
| Beitelhouderkap | ||||
| 001 | 286285-4 | Beitelhouderkap | € 2.11 | |
| Veerring 25 | ||||
| 002 | 231984-3 | Veerring 25 | € 1.00 | |
| Platte ring 28 | ||||
| 003 | 267272-2 | Platte ring 28 | € 2.83 | |
| Beitelblokkeerkap | ||||
| 004 | 419015-0 | Beitelblokkeerkap | € 2.47 | |
| Afstandring | ||||
| 005 | 419002-9 | Afstandring | € 1.23 | |
| Inspanring | ||||
| 006 | 324548-1 | Inspanring | € 5.30 | |
| Veerring 25 | ||||
| 007 | 231984-3 | Veerring 25 | € 1.00 | |
| Ontgrendelkap | ||||
| 008 | 419016-8 | Ontgrendelkap | € 2.47 | |
| Borgingsbusgeleider | ||||
| 009 | 419760-7 | Borgingsbusgeleider | € 1.45 | |
| Sluitring 45 | ||||
| 010 | 267336-2 | Sluitring 45 | € 2.47 | |
| Kunststof ring 45 | ||||
| 011 | 262116-1 | Kunststof ring 45 | € 5.95 | |
| Afdichtingsring | ||||
| 012 | 421911-0 | Afdichtingsring | € 1.23 | |
| Cilinder compleet | ||||
| 013 | 154621-1 | Cilinder compleet | € 40.46 | |
| Inbusbout M6x30 | ||||
| 014 | 922353-6 | Inbusbout M6x30 | € 1.00 | |
| Cilinderkap compleet | ||||
| 015 | 154624-5 | Cilinderkap compleet | € 7.55 | |
| Etiquette Info. | ||||
| 015A | 810100-6 | Etiquette Info. | € 2.83 | |
| Guide De Ressort | ||||
| 016 | 345579-7 | Guide De Ressort | € 1.23 | |
| Drukveer 48 | ||||
| 017 | 233431-0 | Drukveer 48 | € 1.00 | |
| Guide De Ressort | ||||
| 018 | 345579-7 | Guide De Ressort | € 1.23 | |
| Gereedschapklem | ||||
| 019 | 310161-1 | Gereedschapklem | € 8.57 | |
| Gereedschapklem | ||||
| 020 | 310161-1 | Gereedschapklem | € 8.57 | |
| Blokkeerbus | ||||
| 021 | 165633-9 | Blokkeerbus | € 20.10 | |
| Beitelhouder | ||||
| 022 | 324542-3 | Beitelhouder | € 153.07 | |
| Inbusbout 4x16 | ||||
| 023 | 922128-3 | Inbusbout 4x16 | € 1.00 | |
| O-ring 20 | ||||
| 024* | 213317-4 | O-ring 20 | € 1.00 | |
| Fluoride ring 25 | ||||
| 025* | 213392-0 | Fluoride ring 25 | € 8.57 | |
| X-ring 18 | ||||
| 026* | 213281-9 | X-ring 18 | € 3.27 | |
| Percuteur | ||||
| 027 | 324569-3 | Percuteur | € 4.14 | |
| Rubber ring 17 | ||||
| 028 | 421901-3 | Rubber ring 17 | € 5.95 | |
| Ring 17 | ||||
| 029 | 324573-2 | Ring 17 | € 5.30 | |
| Bague Guide | ||||
| 030 | 419003-7 | Bague Guide | € 2.11 | |
| Slaghamer | ||||
| 031 | 324571-6 | Slaghamer | € 2.47 | |
| O-ring 22 | ||||
| 032 | 213962-5 | O-ring 22 | € 1.74 | |
| Ring 33 Hr4010C | ||||
| 033* | 331709-6 | Ring 33 Hr4010C | € 5.30 | |
| Drukveer 37 | ||||
| 034 | 233448-3 | Drukveer 37 | € 1.00 | |
| Tandwiel 25 | ||||
| 035 | 227509-9 | Tandwiel 25 | € 29.28 | |
| Bielle | ||||
| 036 | 419005-3 | Bielle | € 1.02 | |
| O-ring 21 | ||||
| 037 | 213379-2 | O-ring 21 | € 1.00 | |
| O-ring 22 | ||||
| 038* | 213962-5 | O-ring 22 | € 1.74 | |
| Piston | ||||
| 039 | 419004-5 | Piston | € 1.74 | |
| Pen 7 | ||||
| 040 | 256197-5 | Pen 7 | € 1.23 | |
| Anneau de retenue | ||||
| 041 | 233937-8 | Anneau de retenue | € 1.00 | |
| Ring 33 | ||||
| 042 | 257268-1 | Ring 33 | € 2.83 | |
| O-ring 30 | ||||
| 043 | 213406-5 | O-ring 30 | € 1.23 | |
| O-ring 30 | ||||
| 044 | 213406-5 | O-ring 30 | € 1.23 | |
| Borgring 32 | ||||
| 045 | 233935-2 | Borgring 32 | € 1.00 | |
| Cilinder 28.5 | ||||
| 046 | 324570-8 | Cilinder 28.5 | € 71.21 | |
| Pijphouder | ||||
| 047 | 317923-8 | Pijphouder | € 16.31 | |
| O-ring 8 | ||||
| 048 | 213030-4 | O-ring 8 | € 1.00 | |
| Guide De Ressort | ||||
| 049 | 419011-8 | Guide De Ressort | € 1.00 | |
| Rubber pen 6 | ||||
| 050 | 263005-3 | Rubber pen 6 | € 1.00 | |
| Drukveer 11 | ||||
| 051 | 233435-2 | Drukveer 11 | € 1.00 | |
| O-ring 18 | ||||
| 052 | 213275-4 | O-ring 18 | € 1.00 | |
| Rijp 16 | ||||
| 053 | 324572-4 | Rijp 16 | € 7.55 | |
| Balansgewicht | ||||
| 054 | 324574-0 | Balansgewicht | € 3.70 | |
| O-ring 18 | ||||
| 055 | 213275-4 | O-ring 18 | € 1.00 | |
| Drukveer 11 | ||||
| 056 | 233435-2 | Drukveer 11 | € 1.00 | |
| Rubber pen 6 | ||||
| 057 | 263005-3 | Rubber pen 6 | € 1.00 | |
| Guide De Ressort | ||||
| 058 | 419011-8 | Guide De Ressort | € 1.00 | |
| O-ring 8 | ||||
| 059 | 213030-4 | O-ring 8 | € 1.00 | |
| Pijphouder | ||||
| 060 | 317923-8 | Pijphouder | € 16.31 | |
| O-ring 8 | ||||
| 061 | 213030-4 | O-ring 8 | € 1.00 | |
| Tapschroef 5x25 | ||||
| 062 | 266041-8 | Tapschroef 5x25 | € 1.00 | |
| Drukveer 7 Hr4010C | ||||
| 063 | 233432-8 | Drukveer 7 Hr4010C | € 1.00 | |
| Rubber plaat | ||||
| 064 | 421910-2 | Rubber plaat | € 1.00 | |
| Schroef 4x18 | ||||
| 065 | 911133-5 | Schroef 4x18 | € 1.00 | |
| Schroef Pt4x12mm | ||||
| 066 | 266020-6 | Schroef Pt4x12mm | € 1.00 | |
| Blokkeerknop | ||||
| 067 | 419009-5 | Blokkeerknop | € 1.02 | |
| Drukveer 3 | ||||
| 068 | 233436-0 | Drukveer 3 | € 1.00 | |
| Schroef Pt4x12mm | ||||
| 069 | 266020-6 | Schroef Pt4x12mm | € 1.00 | |
| Verstelknop | ||||
| 070 | 419020-7 | Verstelknop | € 4.65 | |
| Krukgeleider | ||||
| 071 | 419007-9 | Krukgeleider | € 1.74 | |
| Tandwielhuiskap | ||||
| 072 | 317925-4 | Tandwielhuiskap | € 12.34 | |
| Palier | ||||
| 073 | 419030-4 | Palier | € 2.83 | |
| Afdichtingsring | ||||
| 074 | 421908-9 | Afdichtingsring | € 1.23 | |
| Verbindingsplaat Hr4010C | ||||
| 075 | 419019-2 | Verbindingsplaat Hr4010C | € 1.74 | |
| Verbindingsplaat Hr4010C | ||||
| 076 | 345582-8 | Verbindingsplaat Hr4010C | € 3.70 | |
| Luchtpijp | ||||
| 077 | 419012-6 | Luchtpijp | € 1.45 | |
| Luchtpijppakking | ||||
| 078 | 421909-7 | Luchtpijppakking | € 1.00 | |
| Luchtpijppakking | ||||
| 079 | 421909-7 | Luchtpijppakking | € 1.00 | |
| Crank Case | ||||
| 080 | 154622-9 | Crank Case | € 75.87 | |
| Glijlager 51 | ||||
| 080A | 214656-5 | Glijlager 51 | € 4.14 | |
| Ring 40 | ||||
| 080B | 324568-5 | Ring 40 | € 6.68 | |
| Vibratieplaat | ||||
| 081 | 423345-3 | Vibratieplaat | € 1.00 | |
| Passtuk | ||||
| 082 | 419008-7 | Passtuk | € 1.00 | |
| O-ring 18 | ||||
| 083 | 213262-3 | O-ring 18 | € 1.02 | |
| Verbindingsring | ||||
| 084 | 419006-1 | Verbindingsring | € 2.83 | |
| Schroef 4x10 | ||||
| 085 | 911511-9 | Schroef 4x10 | € 1.00 | |
| Crank Shaft | ||||
| 086 | 324550-4 | Crank Shaft | € 10.96 | |
| Kogellager 6004llu | ||||
| 087 | 211332-2 | Kogellager 6004llu | € 6.68 | |
| Borgring S-20 | ||||
| 088 | 961060-6 | Borgring S-20 | € 1.00 | |
| Tandwiel 38 | ||||
| 089 | 226605-0 | Tandwiel 38 | € 13.94 | |
| Sluitring 10 | ||||
| 090 | 253180-3 | Sluitring 10 | € 1.02 | |
| Afdichtingsring | ||||
| 091 | 421907-1 | Afdichtingsring | € 1.45 | |
| Carter | ||||
| 092 | 154623-7 | Carter | € 54.17 | |
| Naaldlager 1010 Hm1810 | ||||
| 092A | 212075-9 | Naaldlager 1010 Hm1810 | € 3.27 | |
| Pen 4 | ||||
| 092B | 268136-3 | Pen 4 | € 1.00 | |
| Drukveer 5 | ||||
| 093 | 233433-6 | Drukveer 5 | € 1.00 | |
| Wisselplaat Hr4010C | ||||
| 095 | 419018-4 | Wisselplaat Hr4010C | € 1.74 | |
| Kogellager 608ddw | ||||
| 096 | 210005-4 | Kogellager 608ddw | € 4.65 | |
| Schotelring 8 | ||||
| 097 | 345581-0 | Schotelring 8 | € 1.00 | |
| Conische drukveer | ||||
| 098 | 233936-0 | Conische drukveer | € 1.00 | |
| ??? | ||||
| 099 | 324549-9 | ??? | € 6.68 | |
| Kogellager 6904 | ||||
| 103 | 211323-3 | Kogellager 6904 | € 8.57 | |
| Koppelbegrenzer | ||||
| 104 | 135508-6 | Koppelbegrenzer | € 110.47 | |
| Sluitring 38mm | ||||
| 104A | 267456-2 | Sluitring 38mm | € 1.00 | |
| Tapschroef 4x18 | ||||
| 105 | 265995-6 | Tapschroef 4x18 | € 1.00 | |
| Handgreepdeksel Hr4010C | ||||
| 106 | 419036-2 | Handgreepdeksel Hr4010C | € 16.31 | |
| Commande impossible | ||||
| 108 | 650567-4 | Commande impossible | ||
| Switch Holder | ||||
| 109 | 154626-1 | Switch Holder | € 2.47 | |
| Sponsvel | ||||
| 109A | 423344-5 | Sponsvel | € 1.00 | |
| Schakelknop | ||||
| 112 | 419028-1 | Schakelknop | € 2.47 | |
| Tapschroef 5x25 | ||||
| 113 | 266041-8 | Tapschroef 5x25 | € 1.00 | |
| Étiquette | ||||
| 116 | 861492-6 | Étiquette | € 2.83 | |
| Poignee | ||||
| 117 | 419040-1 | Poignee | € 40.46 | |
| Draadboom | ||||
| 122 | 638407-6 | Draadboom | € 1.74 | |
| Lentille | ||||
| 123 | 419010-0 | Lentille | € 1.23 | |
| Schroef Pt4x12mm | ||||
| 124 | 266020-6 | Schroef Pt4x12mm | € 1.00 | |
| Toerenregelcircuit | ||||
| 125 | 631657-2 | Toerenregelcircuit | € 46.98 | |
| Klemstripbasis | ||||
| 126 | 419024-9 | Klemstripbasis | € 1.23 | |
| Trekontlaster | ||||
| 127 | 687169-3 | Trekontlaster | € 1.00 | |
| Schroef Pt4x12mm | ||||
| 128 | 266020-6 | Schroef Pt4x12mm | € 1.00 | |
| Schroef Pt4x12mm | ||||
| 129 | 266020-6 | Schroef Pt4x12mm | € 1.00 | |
| Tapschroef 4x18 | ||||
| 130 | 265995-6 | Tapschroef 4x18 | € 1.00 | |
| Kabeltule 10 | ||||
| 131 | 682560-0 | Kabeltule 10 | € 1.74 | |
| Netsnoer 2x1.50 4.0mtr | ||||
| 132 | 695123-3 | Netsnoer 2x1.50 4.0mtr | € 22.02 | |
| Tapschroef 4x18 | ||||
| 133 | 265995-6 | Tapschroef 4x18 | € 1.00 | |
| Onderdeksel | ||||
| 134 | 419032-0 | Onderdeksel | € 6.68 | |
| Zeskant moer M6 | ||||
| 135 | 931303-0 | Zeskant moer M6 | € 1.00 | |
| Sluitring 6x12mm | ||||
| 136 | 941151-9 | Sluitring 6x12mm | € 1.00 | |
| Waaier 76 | ||||
| 137 | 241876-8 | Waaier 76 | € 4.14 | |
| Waaiergeleider | ||||
| 138 | 419022-3 | Waaiergeleider | € 1.74 | |
| Koolborstelset Cb350 | ||||
| 139* | 194160-9 | Koolborstelset Cb350 | € 12.00 | |
| Koolborstelunit | ||||
| 140 | 638715-5 | Koolborstelunit | € 6.68 | |
| Koolborstelunit | ||||
| 140A | 638715-5 | Koolborstelunit | € 6.68 | |
| Motorhuis Hr4010C | ||||
| 141 | 154619-8 | Motorhuis Hr4010C | € 37.67 | |
| Bevestigingsplaat Hr4010/11C | ||||
| 141A | 345650-7 | Bevestigingsplaat Hr4010/11C | € 1.23 | |
| Kraagbus 6 | ||||
| 142 | 324390-0 | Kraagbus 6 | € 2.47 | |
| Kogellager 608ddw | ||||
| 143 | 210005-4 | Kogellager 608ddw | € 4.65 | |
| Isolatiering | ||||
| 144 | 681650-6 | Isolatiering | € 5.30 | |
| Inducteur | ||||
| 145 | 625758-6 | Inducteur | € 22.02 | |
| Tapschroef Pt 5X55 Hr5001C A | ||||
| 146 | 266095-5 | Tapschroef Pt 5X55 Hr5001C A | € 1.02 | |
| Induit | ||||
| 147 | 513633-7 | Induit | € 57.90 | |
| Keerplaat Hr4010C | ||||
| 148 | 419021-5 | Keerplaat Hr4010C | € 4.14 | |
| Sluitring 12 | ||||
| 149 | 253084-9 | Sluitring 12 | € 1.00 | |
| Kogellager 6201llu | ||||
| 150 | 211137-0 | Kogellager 6201llu | € 5.30 | |
| Keerring 10 | ||||
| 151 | 213231-4 | Keerring 10 | € 5.95 | |
| Bus 12 | ||||
| 152 | 331596-3 | Bus 12 | € 5.30 | |
| Krukashuisbedekking | ||||
| 153 | 419033-8 | Krukashuisbedekking | € 13.94 | |
| Schroef Pt4x12mm | ||||
| 154 | 266020-6 | Schroef Pt4x12mm | € 1.00 | |
| Schakelaardoos | ||||
| 155 | 419026-5 | Schakelaardoos | € 1.74 | |
| Rubber pen 4 | ||||
| 156 | 263027-3 | Rubber pen 4 | € 1.00 | |
| Commande impossible | ||||
| 157 | 651428-1 | Commande impossible | ||
| Ressort A Lame | ||||
| 158 | 232209-8 | Ressort A Lame | € 1.00 | |
| Schuifschakelknop | ||||
| 159 | 154635-0 | Schuifschakelknop | € 6.68 | |
| Bus 4 | ||||
| 159A | 257754-2 | Bus 4 | € 1.00 | |
| Commande impossible | ||||
| 159B | 268138-9 | Commande impossible | ||
| Controlle plaat | ||||
| 160 | 419027-3 | Controlle plaat | € 2.47 | |
| Spons | ||||
| 161 | 421939-8 | Spons | € 1.00 | |
Votre panier contient 0 de produits.
