Vous trouverez ici toutes les pièces et dessins disponibles du 'Makita DJR189'. De là, vous pouvez commander directement toutes les pièces souhaitées. De nombreuses pièces doivent être commandées auprès du fabricant, selon la marque, cela prend une à quatre semaines. Toutes les informations dont nous disposons se trouvent sur notre site Web, nous ne pouvons pas vous conseiller sur ce dont vous avez besoin, pour cela vous devrez retourner la machine pour réparation. Veuillez noter ce qui suit lors de la commande:

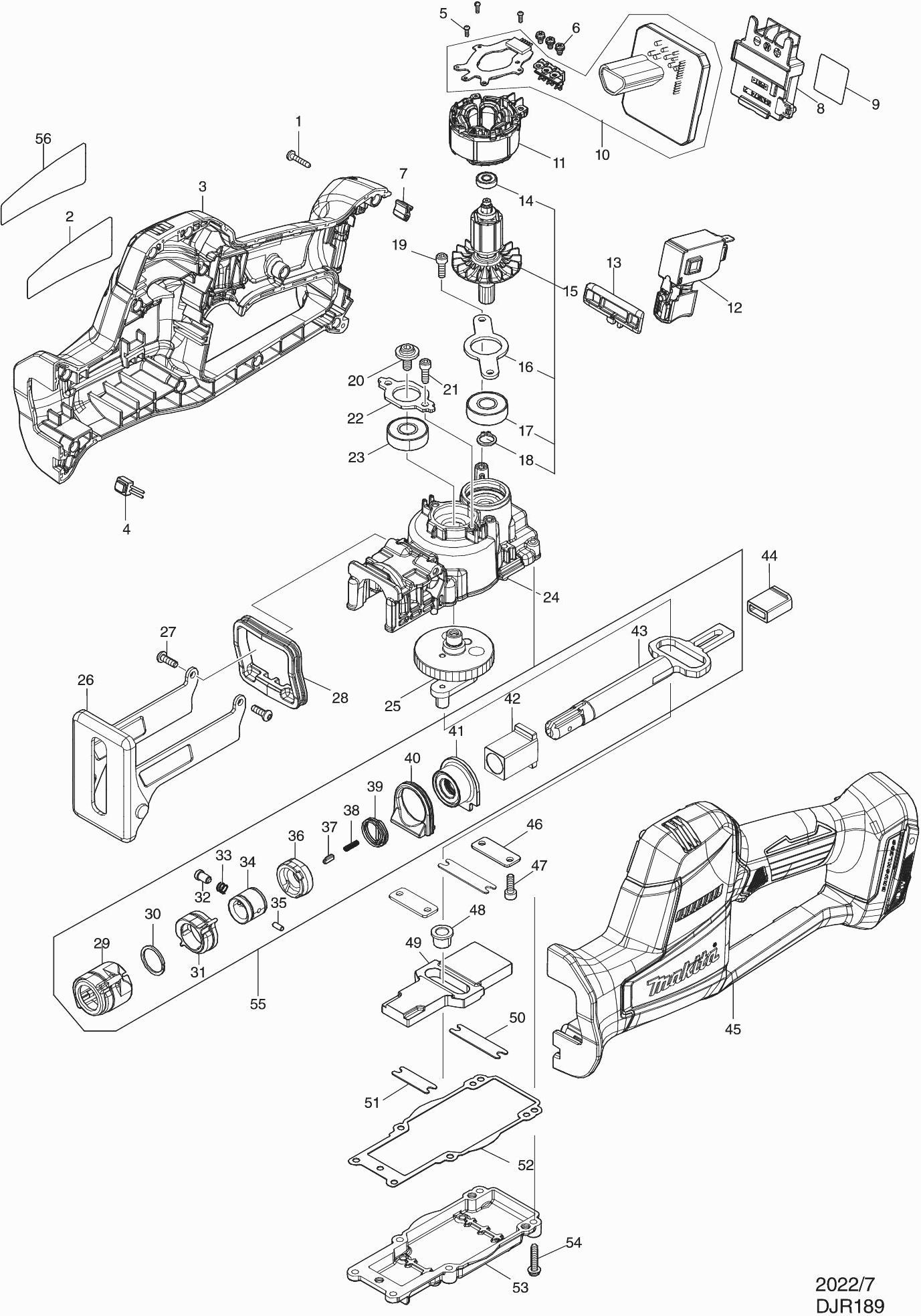

Dessins des Makita DJR189
Liste de pièces de rechange des Makita DJR189
Pos. | Description | Prix hors TVA | Prix TTC | |
Les prix affichés incluent la TVA | ||||
Vis auto-taraudeuse 3x16 | ||||
001 | 266130-9 | 0.83 | 1.00 | |
Pas d'informations disponibles, non commandable | ||||
002 | 858X57-7 | |||
Pas d'informations disponibles, non commandable | ||||
003 | 183W50-9 | |||
Stylo en caoutchouc 6 | ||||
003C10 | 263005-3 | 0.83 | 1.00 | |
Écrou de blocage M4x7mm | ||||
003C20 | 252126-6 | 0.83 | 1.00 | |
Pas d'informations disponibles, non commandable | ||||
004 | 620K03-0 | |||
Parker Ck 2x6mm | ||||
005 | 266490-9 | 0.83 | 1.00 | |
Vis à tête cruciforme M3X6 | ||||
006 | 652069-6 | 0.83 | 1.00 | |
Protection AF-DW | ||||
007 | 424517-3 | 0.83 | 1.00 | |
Unité de connexion | ||||
008 | 643874-2 | 3.65 | 4.38 | |
Pas d'informations disponibles, non commandable | ||||
009 | 858X65-8 | |||
Pas d'informations disponibles, non commandable | ||||
010 | 620K04-8 | |||
Pas d'informations disponibles, non commandable | ||||
011 | 629B65-1 | |||
Interrupteur C3jw-4b | ||||
012 | 650006-4 | 18.20 | 21.84 | |
Pas d'informations disponibles, non commandable | ||||
013 | 413L03-1 | |||
Roulement à billes 609ddw | ||||
014 | 210039-7 | 3.20 | 3.84 | |
Pas d'informations disponibles, non commandable | ||||
015 | 519770-5 | |||
Pas d'informations disponibles, non commandable | ||||
016 | 285054-0 | |||
Roulement à billes 6000ddw | ||||
017 | 211289-7 | 12.58 | 15.10 | |
Bague de blocage S-10 | ||||
018 | 257408-1 | 0.95 | 1.14 | |
Vis à tête hexagonale 4x12 | ||||
019 | 265353-6 | 0.83 | 1.00 | |
Pas d'informations disponibles, non commandable | ||||
020 | 265C93-4 | |||
Vis à tête hexagonale 4x12 | ||||
021 | 265353-6 | 0.83 | 1.00 | |
Pas d'informations disponibles, non commandable | ||||
022 | 285055-8 | |||
Roulement à billes 6000ddw | ||||
023 | 211289-7 | 12.58 | 15.10 | |
Pas d'informations disponibles, non commandable | ||||
024 | 136824-9 | |||
Goupille en Caoutchouc 4 | ||||
024C10 | 263002-9 | 0.83 | 1.00 | |
Joint torique 26 | ||||
024C20 | 213434-0 | 0.83 | 1.00 | |
Pas d'informations disponibles, non commandable | ||||
025 | 141L92-3 | |||
Pas d'informations disponibles, non commandable | ||||
026 | 162B95-4 | |||
Pas d'informations disponibles, non commandable | ||||
027 | 265C84-5 | |||
Pas d'informations disponibles, non commandable | ||||
028 | 422950-3 | |||
Pas d'informations disponibles, non commandable | ||||
029 | 422949-8 | |||
Anneau de blocage 18A | ||||
030 | 257430-8 | 0.83 | 1.00 | |
Pas d'informations disponibles, non commandable | ||||
031 | 313448-0 | |||
Goupille à collet 5 | ||||
032 | 256569-4 | 0.83 | 1.00 | |
Ressort de Compression 6 | ||||
033A | 234381-2 | 0.83 | 1.00 | |
Ressort de Compression 6 | ||||
033B | 233345-3 | 0.83 | 1.00 | |
Bague de guidage JR3061T | ||||
034 | 327650-9 | 1.24 | 1.49 | |
Stylo 3mm JR002G | ||||
035 | 256A11-1 | 0.83 | 1.00 | |
Manchon de connexion JR001G | ||||
036 | 458968-8 | 0.83 | 1.00 | |
Broche à Pousser JR001G | ||||
037 | 310912-2 | 2.08 | 2.50 | |
Ressort de compression 2mm JR001G | ||||
038 | 232472-3 | 0.83 | 1.00 | |
Ressort de torsion 17 JR3051 | ||||
039 | 233594-2 | 0.83 | 1.00 | |
Pas d'informations disponibles, non commandable | ||||
040 | 422951-1 | |||
Pas d'informations disponibles, non commandable | ||||
041 | 141L93-1 | |||
Pas d'informations disponibles, non commandable | ||||
042 | 214215-5 | |||
Pas d'informations disponibles, non commandable | ||||
043 | 162B76-8 | |||
Pas d'informations disponibles, non commandable | ||||
044 | 313450-3 | |||
Pas d'informations disponibles, non commandable | ||||
045 | 183W50-9 | |||
Stylo en caoutchouc 6 | ||||
045C10 | 263005-3 | 0.83 | 1.00 | |
Écrou de blocage M4x7mm | ||||
045C20 | 252126-6 | 0.83 | 1.00 | |
Pas d'informations disponibles, non commandable | ||||
046 | 347A47-2 | |||
Vis à tête hexagonale 4x12 | ||||
047 | 265353-6 | 0.83 | 1.00 | |
Pas d'informations disponibles, non commandable | ||||
048 | 327A55-9 | |||
Pas d'informations disponibles, non commandable | ||||
049 | 313446-4 | |||
Pas d'informations disponibles, non commandable | ||||
050 | 347A49-8 | |||
Pas d'informations disponibles, non commandable | ||||
051 | 347A48-0 | |||
Pas d'informations disponibles, non commandable | ||||
052 | 422952-9 | |||
Pas d'informations disponibles, non commandable | ||||
053 | 312D37-2 | |||
Vis 4x20 | ||||
054 | 911138-5 | 0.83 | 1.00 | |
Pas d'informations disponibles, non commandable | ||||
055 | 136867-1 | |||
Pas d'informations disponibles, non commandable | ||||
056 | 8058N1-7 |
