Vous trouverez ici toutes les pièces et dessins disponibles du 'Makita DFT124F'. De là, vous pouvez commander directement toutes les pièces souhaitées. De nombreuses pièces doivent être commandées auprès du fabricant, selon la marque, cela prend une à quatre semaines. Toutes les informations dont nous disposons se trouvent sur notre site Web, nous ne pouvons pas vous conseiller sur ce dont vous avez besoin, pour cela vous devrez retourner la machine pour réparation. Veuillez noter ce qui suit lors de la commande:

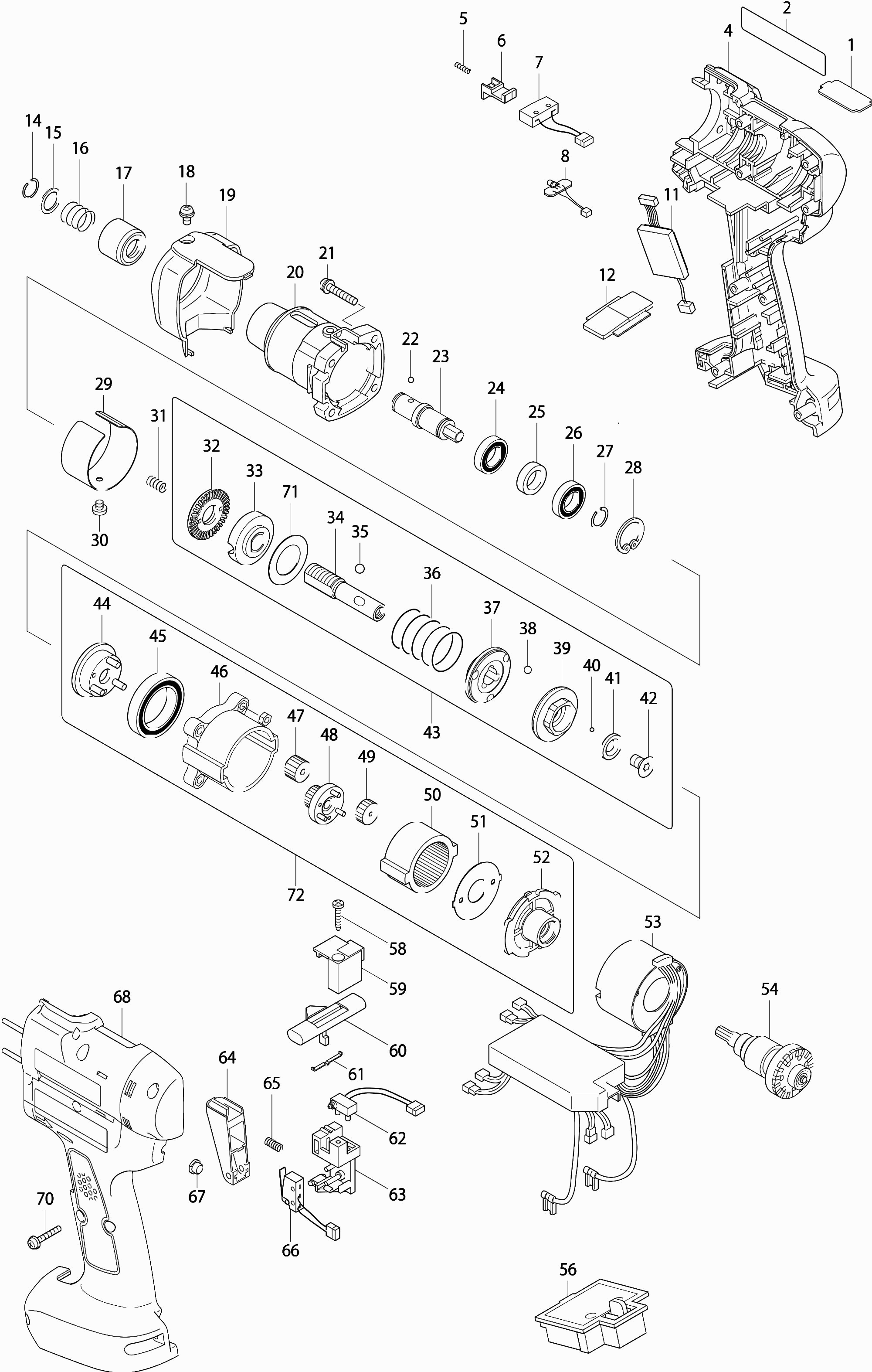

Dessins des Makita DFT124F
Liste de pièces de rechange des Makita DFT124F
Pos. | Description | Prix hors TVA | Prix TTC | |
Les prix affichés incluent la TVA | ||||
Plaat I 5-12nm (hard-torque) | ||||
001 | 345345-2@141 | 4.09 | 4.91 | |
Naamplaat "dft124f" | ||||
002 | 850N07-8@141 | 2.80 | 3.36 | |
Carter | ||||
004 | 187858-5@141 | 114.05 | 136.86 | |
Drukveer 2 | ||||
005 | 233025-1@141 | 0.83 | 1.00 | |
Schakelknop | ||||
006 | 418002-6@141 | 1.43 | 1.72 | |
Schakelunit | ||||
007 | 638274-9@141 | 9.52 | 11.42 | |
Led-circuit | ||||
008 | 631513-6@141 | 13.19 | 15.83 | |
Stroomcircuit BFT041F * | ||||
011 | 620A40-4@141 | 18.20 | 21.84 | |
Capot de recouvrement | ||||
012 | 452189-4@141 | 7.80 | 9.36 | |
Veerring 10 | ||||
014 | 231965-7@141 | 0.83 | 1.00 | |
Platte ring | ||||
015 | 267143-3@141 | 0.83 | 1.00 | |
Drukveer 13 | ||||
016 | 233005-7@141 | 0.83 | 1.00 | |
Douille | ||||
017 | 162218-2@141 | 6.90 | 8.28 | |
Schroef M4x8 | ||||
018 | 265171-2@141 | 0.83 | 1.00 | |
Embrayage | ||||
019 | 418289-0@141 | 7.44 | 8.93 | |
Embrayage | ||||
020 | 317694-7@141 | 28.73 | 34.48 | |
Schroef 4x22 | ||||
021 | 265145-3@141 | 0.83 | 1.00 | |
Stalen kogel 3 | ||||
022 | 216019-1@141 | 0.83 | 1.00 | |
Arbre | ||||
023 | 324377-2@141 | 41.78 | 50.14 | |
Kogellager 6801llb | ||||
024 | 210112-3@141 | 5.22 | 6.26 | |
Ring 12 | ||||
025 | 257011-8@141 | 1.21 | 1.45 | |
Kogellager 6801llb | ||||
026 | 210112-3@141 | 5.22 | 6.26 | |
Borgring 11 | ||||
027 | 231951-8@141 | 0.83 | 1.00 | |
Borgring R-21 | ||||
028 | 962111-8@141 | 0.83 | 1.00 | |
Ring 38i | ||||
029 | 345351-7@141 | 7.80 | 9.36 | |
Schroef Ph M4X4 Bfh/Bht-Serie | ||||
030 | 265127-5@141 | 0.83 | 1.00 | |
Drukveer 5 | ||||
031 | 233019-6@141 | 0.83 | 1.00 | |
Borgring M12 | ||||
032 | 324834-0@141 | 10.81 | 12.97 | |
Instelring | ||||
033 | 158408-3@141 | 5.22 | 6.26 | |
Arbre | ||||
034 | 324296-2@141 | 34.36 | 41.23 | |
Stalen kogel 5.0 | ||||
035 | 216018-3@141 | 0.83 | 1.00 | |
Drukveer 19c | ||||
036 | 233358-4@141 | 5.22 | 6.26 | |
Pas d'informations disponibles, non commandable | ||||
037 | 223146-7@141 | |||
Stalen kogel 4 | ||||
038 | 216024-8@141 | 0.83 | 1.00 | |
Pas d'informations disponibles, non commandable | ||||
039 | 223139-4@141 | |||
Stalen kogel 3 | ||||
040 | 216019-1@141 | 0.83 | 1.00 | |
Pas d'informations disponibles, non commandable | ||||
041 | 267247-1@141 | |||
Schroef M5x10 | ||||
042 | 266305-0@141 | 0.83 | 1.00 | |
Koppeling "g" | ||||
043 | 125394-3@141 | 100.32 | 120.38 | |
Tandwieldrager B | ||||
044 | 153444-4@141 | 9.96 | 11.95 | |
Kogellager 6805llb | ||||
045 | 211375-4@141 | 13.02 | 15.62 | |
Pas d'informations disponibles, non commandable | ||||
046 | 418004-2@141 | |||
Tandwiel 18 | ||||
047 | 227052-8@141 | 1.01 | 1.21 | |
Tandwiel 9 | ||||
048 | 153447-8@141 | 6.60 | 7.92 | |
Pas d'informations disponibles, non commandable | ||||
049 | 227049-7@141 | |||
Pas d'informations disponibles, non commandable | ||||
050 | 227048-9@141 | |||
Anneau de retenue | ||||
051 | 267774-8@141 | 1.21 | 1.45 | |
Motorsteun | ||||
052 | 418003-4@141 | 2.80 | 3.36 | |
Motor controle unit | ||||
053 | 631987-1@141 | 460.32 | 552.38 | |
Induit | ||||
054 | 619208-1@141 | 240.47 | 288.56 | |
Aansluitunit (2 contacten) | ||||
056 | 643828-9@141 | 4.58 | 5.50 | |
Tapschroef 3x16 | ||||
058 | 266130-9@141 | 0.83 | 1.00 | |
Capot de recouvrement | ||||
059 | 418204-4@141 | 6.90 | 8.28 | |
L/r verstelhendel | ||||
060 | 418201-0@141 | 4.08 | 4.90 | |
Ressort A Lame | ||||
061 | 232201-4@141 | 2.16 | 2.59 | |
Commutateur | ||||
062 | 638276-5@141 | 7.80 | 9.36 | |
Schakel montageplaat compl. | ||||
063 | 418202-8@141 | 8.84 | 10.61 | |
Schakelaarhandel | ||||
064 | 418203-6@141 | 8.84 | 10.61 | |
Drukveer 4 | ||||
065 | 231397-8@141 | 0.83 | 1.00 | |
Commutateur | ||||
066 | 638275-7@141 | 11.32 | 13.58 | |
Lentille | ||||
067 | 419829-7@141 | 7.44 | 8.93 | |
Carter | ||||
068 | 187858-5@141 | 114.05 | 136.86 | |
Kruiskopschroef 3x20 | ||||
070 | 265095-2@141 | 0.83 | 1.00 | |
Platte ring 18 | ||||
071 | 267276-4@141 | 0.83 | 1.00 | |
Tandwielset "b" | ||||
072 | 125190-9@141 | 46.31 | 55.57 |
