Vous trouverez ici toutes les pièces et dessins disponibles du 'Makita DDA460'. De là, vous pouvez commander directement toutes les pièces souhaitées. De nombreuses pièces doivent être commandées auprès du fabricant, selon la marque, cela prend une à quatre semaines. Toutes les informations dont nous disposons se trouvent sur notre site Web, nous ne pouvons pas vous conseiller sur ce dont vous avez besoin, pour cela vous devrez retourner la machine pour réparation. Veuillez noter ce qui suit lors de la commande:

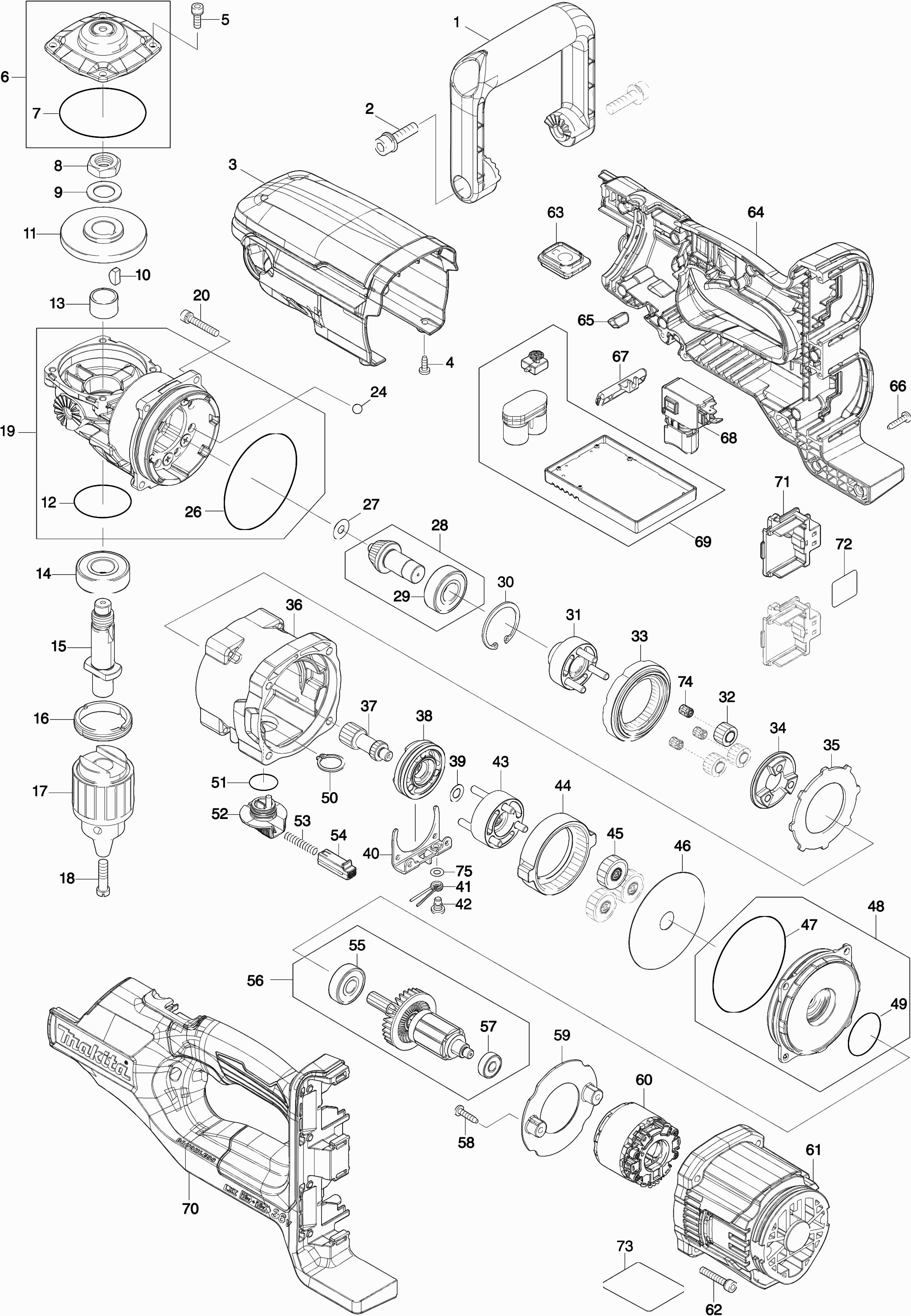

Dessins des Makita DDA460
Liste de pièces de rechange des Makita DDA460
Pos. | Description | Prix hors TVA | Prix TTC | |
Les prix affichés incluent la TVA | ||||
Handgreep | ||||
001 | 458431-1@141 | 4.56 | 5.47 | |
Inbusbout M8X30 | ||||
002 | 922453-2@141 | 0.83 | 1.00 | |
Bovendeksel DDA460 | ||||
003 | 458430-3@141 | 9.54 | 11.45 | |
Tapschroef M4x12mm Ck | ||||
004 | 266026-4@141 | 0.83 | 1.00 | |
Schroef 5X16 JR3051T A | ||||
005 | 265C32-4@141 | 0.83 | 1.00 | |
Tandwielhuisdeksel Dda460D | ||||
006 | 140A21-7@141 | 11.16 | 13.39 | |
O-ring 63 | ||||
007 | 213709-7@141 | 1.72 | 2.06 | |
Zeskantmoer M16x22 DDA460 | ||||
008 | 252267-8@141 | 10.81 | 12.97 | |
Sluitring 16 * | ||||
009 | 253771-0@141 | 0.83 | 1.00 | |
Inlegspie 5 | ||||
010 | 254032-1@141 | 1.70 | 2.04 | |
Tandwiel 40 | ||||
011 | 227416-6@141 | 34.36 | 41.23 | |
O-ring 40 | ||||
012 | 213507-9@141 | 1.01 | 1.21 | |
Bus 17 DDA460 | ||||
013 | 257440-5@141 | 1.24 | 1.49 | |
Kogellager 6203dw | ||||
014 | 211278-2@141 | 9.52 | 11.42 | |
As DDA460 | ||||
015 | 327106-2@141 | 34.25 | 41.10 | |
Boorkop tandkrans S13 1,0-13,0mm | ||||
017 | 763250-5@141 | 24.34 | 29.21 | |
Schroef LI M6x22 boork DDA460 | ||||
018 | 251463-5@141 | 2.05 | 2.46 | |
Tandwielhuis DDA460 | ||||
019 | 140A22-5@141 | 65.59 | 78.71 | |
Drukveer 5 | ||||
019C10 | 233326-7@141 | 0.83 | 1.00 | |
Kraagpen 5-8.5 | ||||
019C20 | 256393-5@141 | 0.83 | 1.00 | |
Geleidingsplaat DDA460 | ||||
019C30 | 347364-4@141 | 2.08 | 2.50 | |
Metaalschroef M5x14 | ||||
019C40 | 265148-7@141 | 0.83 | 1.00 | |
Inbusbout M5x30mm DDA460 | ||||
020 | 265695-8@141 | 0.83 | 1.00 | |
Pas d'informations disponibles, non commandable | ||||
020-1 | 265D08-7@141 | |||
Stalen kogel 7.0 | ||||
024 | 216022-2@141 | 0.83 | 1.00 | |
O-ring 75 | ||||
026 | 213755-0@141 | 2.80 | 3.36 | |
Sluitring 6 | ||||
027 | 253411-0@141 | 0.83 | 1.00 | |
Tandwiel 13C DDA460 | ||||
028 | 140A23-3@141 | 31.62 | 37.94 | |
Kogellager 6202llb | ||||
029 | 211228-7@141 | 7.44 | 8.93 | |
Borgring R-35 | ||||
030 | 962153-2@141 | 0.83 | 1.00 | |
Tandwieldrager A DDA460 | ||||
031 | 140A13-6@141 | 17.90 | 21.48 | |
Tandwiel 13 DDA460 | ||||
032 | 226176-7@141 | 0.83 | 1.00 | |
Intern tandwiel 40 DDA460 | ||||
033 | 226177-5@141 | 6.58 | 7.90 | |
Nokkenschijf DDA460 | ||||
034 | 223188-1@141 | 7.44 | 8.93 | |
Sluitring 65 DDA460 | ||||
035 | 347365-2@141 | 1.43 | 1.72 | |
Tandwielhuis DDA460D | ||||
036 | 140A16-0@141 | 23.75 | 28.50 | |
Tandwiel 14 DDA460 | ||||
037 | 226175-9@141 | 5.87 | 7.04 | |
Koppelring DDA460 | ||||
038 | 310876-0@141 | 8.52 | 10.22 | |
Sluitring 8 x 14 X 0,5mm | ||||
039 | 253215-0@141 | 0.83 | 1.00 | |
Schakelplaat DDA460 | ||||
040 | 347366-0@141 | 1.21 | 1.45 | |
Trekveer 6 | ||||
041 | 231657-8@141 | 0.83 | 1.00 | |
Kruiskopschroef M5 DDA460 | ||||
042 | 265628-3@141 | 0.83 | 1.00 | |
Tandwieldrager B compleet | ||||
043 | 140A14-4@141 | 17.90 | 21.48 | |
Intern tandwiel 71 DDA460 | ||||
044 | 226174-1@141 | 5.22 | 6.26 | |
Tandwiel 29 compleet DDA460 | ||||
045 | 140A12-8@141 | 6.58 | 7.90 | |
Sluitring 15 | ||||
046 | 253412-8@141 | 0.83 | 1.00 | |
O-ring 75 | ||||
047 | 213755-0@141 | 2.80 | 3.36 | |
Motorsteun DDA460 | ||||
048 | 140A20-9@141 | 10.81 | 12.97 | |
O-ring 30 | ||||
049 | 213406-5@141 | 1.21 | 1.45 | |
Borgring S-18 DDF460 | ||||
050 | 961058-3@141 | 0.83 | 1.00 | |
O-ring 17 | ||||
051 | 213265-7@141 | 0.83 | 1.00 | |
Verstelknop DDA460 | ||||
052 | 458433-7@141 | 2.45 | 2.94 | |
Drukveer 4 | ||||
053 | 233279-0@141 | 0.83 | 1.00 | |
Blokkeerknop DDA460 | ||||
054 | 458434-5@141 | 1.01 | 1.21 | |
Kogellager 6200dw | ||||
055 | 211087-9@141 | 7.44 | 8.93 | |
Anker DDA460 | ||||
056 | 519526-6@141 | 57.06 | 68.47 | |
Anker DA001G | ||||
056-1 | 519689-8@141 | 49.85 | 59.82 | |
Kogellager 607llb | ||||
057 | 211021-9@141 | 4.58 | 5.50 | |
Pas d'informations disponibles, non commandable | ||||
058 | 266326-2@141 | |||
Tussenplaat DDA460 | ||||
059 | 458427-2@141 | 1.43 | 1.72 | |
Anker DDA460 | ||||
060 | 629356-8@141 | 57.06 | 68.47 | |
Pas d'informations disponibles, non commandable | ||||
060-1 | 629B69-3@141 | |||
Motorhuis DDA460 | ||||
061 | 458426-4@141 | 9.52 | 11.42 | |
Inbusbout M5x30mm DDA460 | ||||
062 | 265695-8@141 | 0.83 | 1.00 | |
Pas d'informations disponibles, non commandable | ||||
062-1 | 265D08-7@141 | |||
Schakelaar compleet DDA460 | ||||
063 | 140A19-4@141 | 12.58 | 15.10 | |
Label A/U AS1925 | ||||
063C10 | 810D46-0@141 | 2.80 | 3.36 | |
Handgreep set DDA460 | ||||
064 | 183J58-5@141 | 49.85 | 59.82 | |
Rubber pen 6 | ||||
064C10 | 263005-3@141 | 0.83 | 1.00 | |
Boorkopsleutelhouder DDA460 | ||||
064C20 | 347379-1@141 | 7.44 | 8.93 | |
Licht circuit DDA460 | ||||
065 | 620839-1@141 | 4.58 | 5.50 | |
Pas d'informations disponibles, non commandable | ||||
066 | 266326-2@141 | |||
Verstelknop F/R DA460 | ||||
067 | 458432-9@141 | 1.02 | 1.22 | |
Schakelaar C3jw-4b | ||||
068 | 650006-4@141 | 18.20 | 21.84 | |
Controller DDA460 | ||||
069 | 620838-3@141 | 150.83 | 181.00 | |
Handgreep set DDA460 | ||||
070 | 183J58-5@141 | 49.85 | 59.82 | |
Rubber pen 6 | ||||
070C10 | 263005-3@141 | 0.83 | 1.00 | |
Boorkopsleutelhouder DDA460 | ||||
070C20 | 347379-1@141 | 7.44 | 8.93 | |
Aansluitunit (3 contacten) | ||||
071 | 644809-6@141 | 4.08 | 4.90 | |
Label serienr DDA460 | ||||
072 | 854K90-9@141 | 2.80 | 3.36 | |
Naamplaat DDA460 | ||||
073 | 854K86-0@141 | 2.80 | 3.36 | |
Naaldlager 5810 | ||||
074 | 212193-3@141 | 2.08 | 2.50 | |
Sluitring 5 | ||||
075 | 267010-2@141 | 0.83 | 1.00 | |
Pas d'informations disponibles, non commandable | ||||
076 | 620K74-7@141 | |||
Pas d'informations disponibles, non commandable | ||||
077 | 652119-7@141 | |||
Pas d'informations disponibles, non commandable | ||||
078 | 638A31-1@141 | |||
Pas d'informations disponibles, non commandable | ||||
084 | 620K74-7@141 | |||
Pas d'informations disponibles, non commandable | ||||
085 | 652119-7@141 | |||
Pas d'informations disponibles, non commandable | ||||
086 | 638A31-1@141 |
