Vous trouverez ici toutes les pièces et dessins disponibles du 'Makita BLS713'. De là, vous pouvez commander directement toutes les pièces souhaitées. De nombreuses pièces doivent être commandées auprès du fabricant, selon la marque, cela prend une à quatre semaines. Toutes les informations dont nous disposons se trouvent sur notre site Web, nous ne pouvons pas vous conseiller sur ce dont vous avez besoin, pour cela vous devrez retourner la machine pour réparation. Veuillez noter ce qui suit lors de la commande:

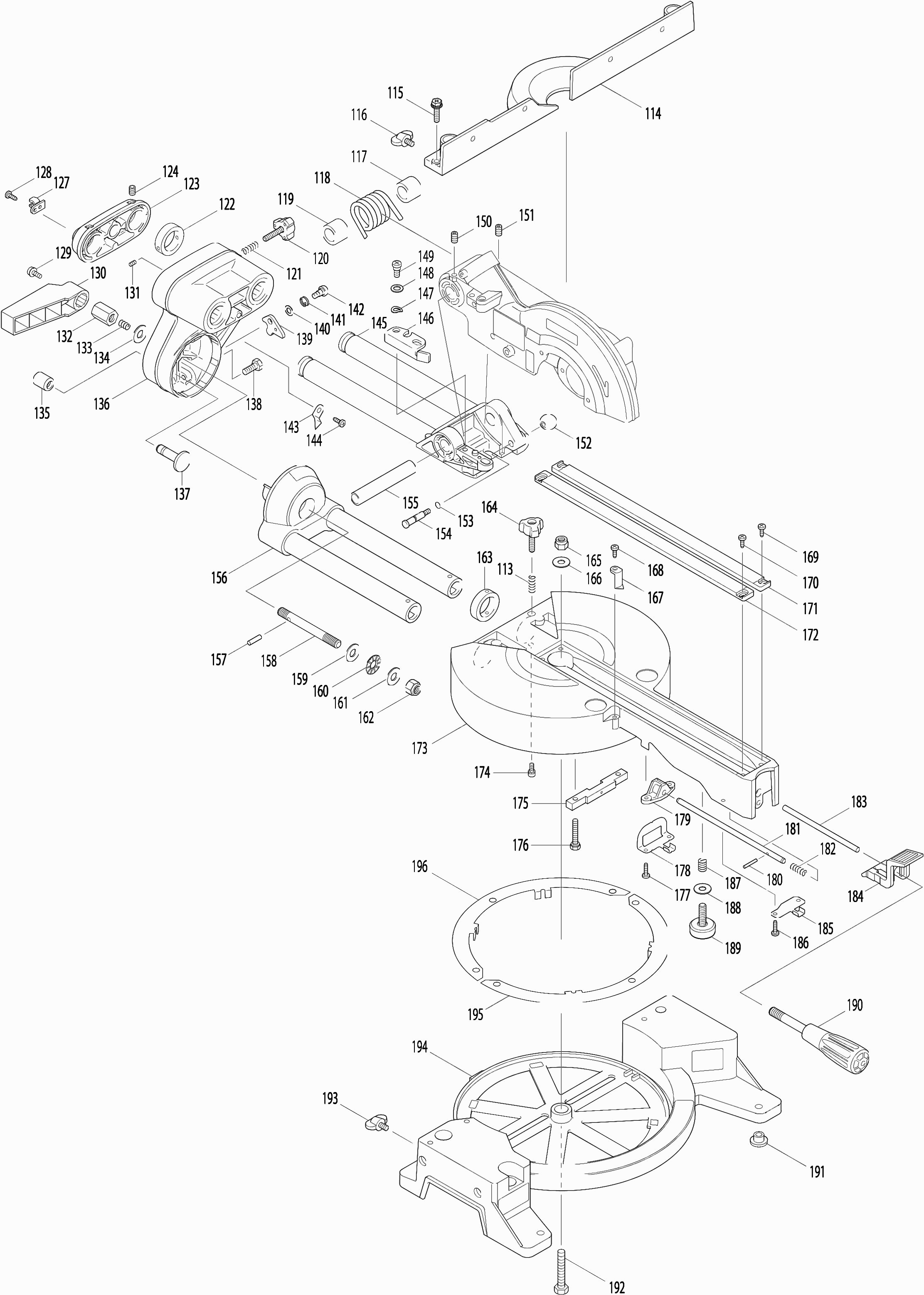

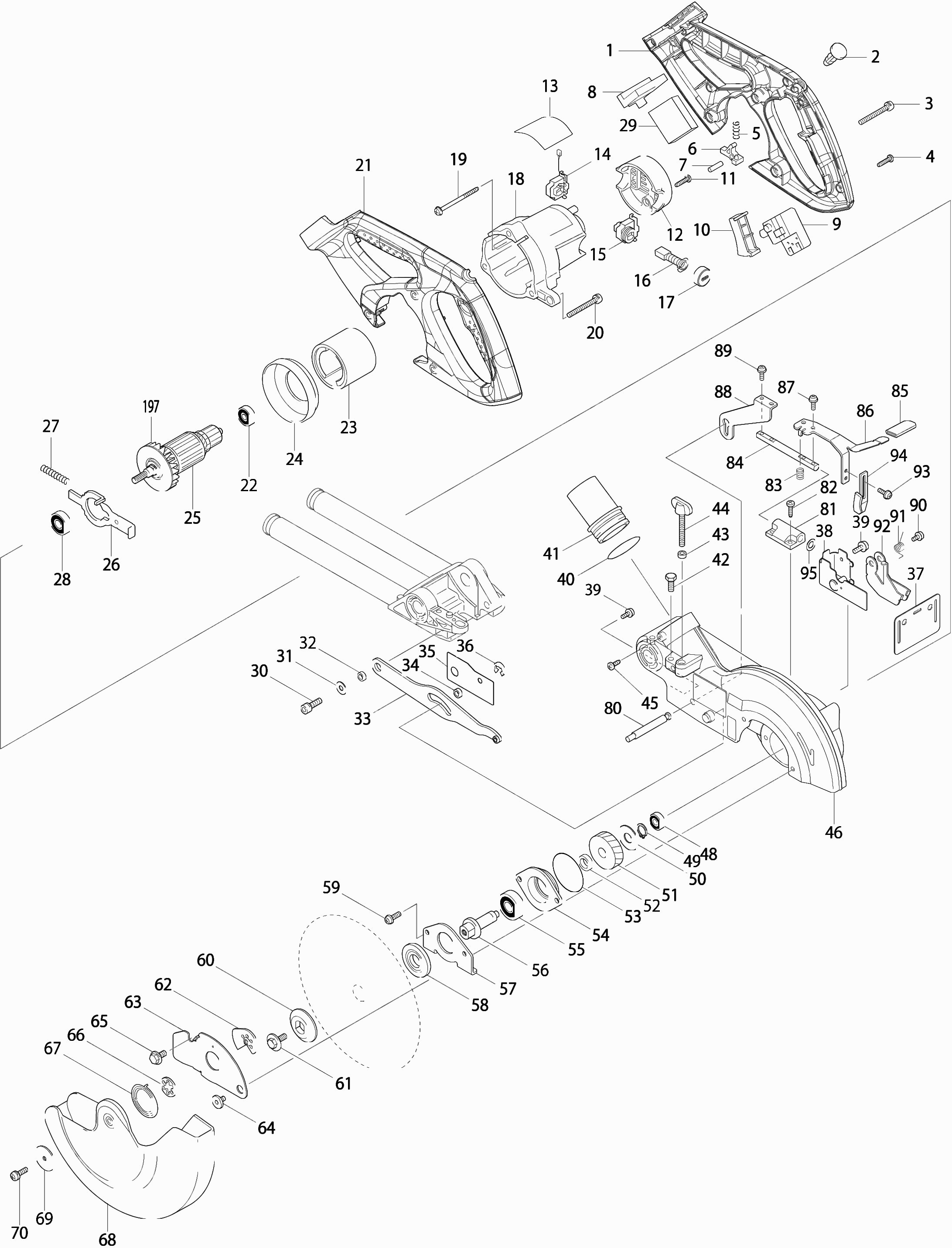

Dessins des Makita BLS713
Liste de pièces de rechange des Makita BLS713
| Pos. | Description | Prix hors TVA | Prix TTC | |
| Les prix affichés incluent la TVA | ||||
| Achterhandgreep set | ||||
| 001 | 188961-5@141 | 35.99 | 43.19 | |
| Deblokkeerknop | ||||
| 002 | 417113-4@141 | 1.20 | 1.44 | |
| Schroef 5x45 | ||||
| 003 | 911268-2@141 | 0.83 | 1.00 | |
| Tapschroef 4x18 | ||||
| 004 | 265A48-7@141 | 0.90 | 1.08 | |
| Drukveer 4 | ||||
| 005 | 231026-3@141 | 0.83 | 1.00 | |
| Deblokkkeer Handel Ls800Dw | ||||
| 006 | 416533-9@141 | 1.43 | 1.72 | |
| Pen 5 | ||||
| 007 | 256123-4@141 | 1.43 | 1.72 | |
| Aansluitunit (3 contacten) | ||||
| 008 | 644808-8@141 | 3.65 | 4.38 | |
| Schakelaar 2 contacten | ||||
| 009 | 651956-6@141 | 12.58 | 15.10 | |
| Schakelaarhandel | ||||
| 010 | 452130-7@141 | 3.37 | 4.04 | |
| Tapschroef 4x18 | ||||
| 011 | 265A48-7@141 | 0.90 | 1.08 | |
| Achterdeksel | ||||
| 012 | 416639-3@141 | 5.46 | 6.55 | |
| Étiquette | ||||
| 013 | 868774-7@141 | 2.80 | 3.36 | |
| S/e Porte Balais | ||||
| 014 | 643864-5@141 | 3.22 | 3.86 | |
| S/e Porte Balais | ||||
| 015 | 643863-7@141 | 3.22 | 3.86 | |
| Koolborstel set Cb-441 | ||||
| 016 | 194435-6@141 | 4.58 | 5.50 | |
| Koolborstelhouderdop | ||||
| 017 | 643941-3@141 | 2.44 | 2.93 | |
| Carter De Moteur | ||||
| 018 | 416909-0@141 | 18.80 | 22.56 | |
| Tapschroef 4x60 | ||||
| 019 | 266209-6@141 | 0.83 | 1.00 | |
| Schroef 5x45 | ||||
| 020 | 911268-2@141 | 0.83 | 1.00 | |
| Achterhandgreep set | ||||
| 021 | 188961-5@141 | 35.99 | 43.19 | |
| Kogellager 627ddw | ||||
| 022 | 210045-2@141 | 3.22 | 3.86 | |
| Magneet houder | ||||
| 023 | 632828-4@141 | 23.75 | 28.50 | |
| Plaque Intermediaire | ||||
| 024 | 416907-4@141 | 2.44 | 2.93 | |
| Induit | ||||
| 025 | 519269-0@141 | 48.51 | 58.21 | |
| Asblokkering | ||||
| 026 | 344681-3@141 | 2.93 | 3.52 | |
| Drukveer 5 | ||||
| 027 | 233092-6@141 | 0.83 | 1.00 | |
| Kogellager 6000ddw | ||||
| 028 | 211088-7@141 | 5.22 | 6.26 | |
| Pas d'informations disponibles, non commandable | ||||
| 029 | 631999-4@141 | |||
| Inbusbout M6x20 | ||||
| 030 | 265905-3@141 | 0.83 | 1.00 | |
| Sluitring 6 | ||||
| 031 | 253804-1@141 | 0.83 | 1.00 | |
| Ring 16 | ||||
| 032 | 257163-5@141 | 1.24 | 1.49 | |
| Verbindingsplaat | ||||
| 033 | 154643-1@141 | 14.23 | 17.08 | |
| Ring 16 | ||||
| 034 | 257163-5@141 | 1.24 | 1.49 | |
| Verbindingsdeksel | ||||
| 035 | 346330-8@141 | 0.83 | 1.00 | |
| Stopring E-5 | ||||
| 036 | 961018-5@141 | 0.83 | 1.00 | |
| Plaque De Caoutchouc | ||||
| 037 | 421626-9@141 | 0.83 | 1.00 | |
| Pas d'informations disponibles, non commandable | ||||
| 038 | 165414-1@141 | |||
| Schroef 4x10 | ||||
| 039 | 911113-1@141 | 0.83 | 1.00 | |
| O-ring 35 | ||||
| 040 | 213460-9@141 | 1.21 | 1.45 | |
| Stofafzuigadapter afkortzaag | ||||
| 041 | 419277-0@141 | 2.59 | 3.11 | |
| Zeskant bout 6x16 | ||||
| 042 | 265251-4@141 | 0.83 | 1.00 | |
| Kunststof Ring 5 | ||||
| 043 | 262001-8@141 | 1.43 | 1.72 | |
| Vleugelbout m6x43 | ||||
| 044 | 265717-4@141 | 2.05 | 2.46 | |
| Tapschroef M4x12mm Ck | ||||
| 045 | 266026-4@141 | 0.83 | 1.00 | |
| Rubber pen 4 | ||||
| 046 | 263002-9@141 | 0.83 | 1.00 | |
| Rubber pen 6 | ||||
| 046A | 263005-3@141 | 0.83 | 1.00 | |
| Etiquette Info. | ||||
| 046B | 810968-0@141 | 1.43 | 1.72 | |
| Kogellager 607llb | ||||
| 048 | 211021-9@141 | 4.58 | 5.50 | |
| Borgring S-12 | ||||
| 049 | 961052-5@141 | 0.83 | 1.00 | |
| Sluitring 12 | ||||
| 050 | 253813-0@141 | 1.24 | 1.49 | |
| Tandwiel 60 | ||||
| 051 | 226512-7@141 | 11.16 | 13.39 | |
| Ring 12 | ||||
| 052 | 257011-8@141 | 1.21 | 1.45 | |
| O-ring 46 | ||||
| 053 | 213623-7@141 | 0.83 | 1.00 | |
| Logement De Palier | ||||
| 054 | 317193-9@141 | 10.84 | 13.01 | |
| Kogellager 6201dw1 | ||||
| 055 | 211129-9@141 | 7.44 | 8.93 | |
| Plongeur | ||||
| 056 | 323798-5@141 | 11.16 | 13.39 | |
| Lagerborging | ||||
| 057 | 285736-4@141 | 1.72 | 2.06 | |
| Collet Interieur | ||||
| 058 | 224397-5@141 | 6.58 | 7.90 | |
| Binnenflens 40 | ||||
| 058A | 224370-5@141 | 5.22 | 6.26 | |
| Schroef 5x16 | ||||
| 059 | 911224-2@141 | 0.83 | 1.00 | |
| Collet Exterieur | ||||
| 060 | 224282-2@141 | 5.88 | 7.06 | |
| Buitenflens 40 | ||||
| 060A | 224275-9@141 | 6.58 | 7.90 | |
| Pas d'informations disponibles, non commandable | ||||
| 061 | 265461-3@141 | |||
| Centreerplaat | ||||
| 062 | 345585-2@141 | 2.80 | 3.36 | |
| Afdekplaat kap | ||||
| 063 | 346232-8@141 | 5.88 | 7.06 | |
| Zeskant bout M6 | ||||
| 064 | 265985-9@141 | 1.43 | 1.72 | |
| Pas d'informations disponibles, non commandable | ||||
| 065 | 265473-6@141 | |||
| Centreerplaatring | ||||
| 066 | 345589-4@141 | 1.01 | 1.21 | |
| Torsieveer 24 | ||||
| 067 | 231934-8@141 | 2.44 | 2.93 | |
| Pas d'informations disponibles, non commandable | ||||
| 068 | 452129-2@141 | |||
| Ring 5 | ||||
| 069 | 267136-0@141 | 1.01 | 1.21 | |
| Zeskant bout 5x16 | ||||
| 070 | 265491-4@141 | 0.83 | 1.00 | |
| Axe De Blocage | ||||
| 080 | 324455-8@141 | 2.08 | 2.50 | |
| Ashouder | ||||
| 081 | 452134-9@141 | 4.58 | 5.50 | |
| Tapschroef Ct4x16 | ||||
| 082 | 266034-5@141 | 0.83 | 1.00 | |
| Drukveer 7 | ||||
| 083 | 231316-4@141 | 0.83 | 1.00 | |
| Stang 8 | ||||
| 084 | 325980-2@141 | 1.72 | 2.06 | |
| Capuchon | ||||
| 085 | 421589-9@141 | 0.83 | 1.00 | |
| Deblokkeerhandel | ||||
| 086 | 346320-1@141 | 3.22 | 3.86 | |
| Schroef 4x10 | ||||
| 087 | 911113-1@141 | 0.83 | 1.00 | |
| Blokkerplaat | ||||
| 088 | 346322-7@141 | 1.43 | 1.72 | |
| Schroef 4x10 | ||||
| 089 | 911113-1@141 | 0.83 | 1.00 | |
| Schroef 4x10 | ||||
| 090 | 911114-9@141 | 0.83 | 1.00 | |
| Trekveer 8 | ||||
| 091 | 231690-0@141 | 0.83 | 1.00 | |
| Besch.pl assy (incl A t/m E) A | ||||
| 092 | 135511-7@141 | 5.22 | 6.26 | |
| Schroef 4x10 | ||||
| 093 | 911113-1@141 | 0.83 | 1.00 | |
| Hulphandel | ||||
| 094 | 346321-9@141 | 1.21 | 1.45 | |
| Sluitring 8 x 14 X 0,5mm | ||||
| 095 | 253215-0@141 | 0.83 | 1.00 | |
| Drukveer 6 | ||||
| 113 | 231325-3@141 | 0.83 | 1.00 | |
| Achterlineaal | ||||
| 114 | 319193-5@141 | 43.10 | 51.72 | |
| Pas d'informations disponibles, non commandable | ||||
| 115 | 265593-6@141 | |||
| Vleugelbout 6x10 | ||||
| 116 | 924306-1@141 | 0.83 | 1.00 | |
| Douille | ||||
| 117 | 416535-5@141 | 1.21 | 1.45 | |
| Torsieveer 28 | ||||
| 118 | 231638-2@141 | 5.88 | 7.06 | |
| Douille | ||||
| 119 | 416535-5@141 | 1.21 | 1.45 | |
| Vleugelbout M6x28 | ||||
| 120 | 265790-4@141 | 0.83 | 1.00 | |
| Drukveer 6 | ||||
| 121 | 231325-3@141 | 0.83 | 1.00 | |
| Ring 26 | ||||
| 122 | 257214-4@141 | 7.44 | 8.93 | |
| Geleide arm houder | ||||
| 123 | 318651-8@141 | 10.84 | 13.01 | |
| Inwendig zeskant bout M6x8 | ||||
| 124 | 265894-2@141 | 0.83 | 1.00 | |
| sleutelklem | ||||
| 127 | 416536-3@141 | 1.80 | 2.16 | |
| Trekontlaster | ||||
| 127A | 687045-1@141 | 2.93 | 3.52 | |
| Tapschroef M4x12mm Ck | ||||
| 128 | 266026-4@141 | 0.83 | 1.00 | |
| Schroef 4x10 | ||||
| 129 | 911113-1@141 | 0.83 | 1.00 | |
| Poignee | ||||
| 130 | 416006-2@141 | 4.08 | 4.90 | |
| Vis De Reglage | ||||
| 131 | 913106-4@141 | 0.83 | 1.00 | |
| Zeskant moer 10x17 | ||||
| 132 | 252144-4@141 | 2.80 | 3.36 | |
| Veer 5 voor lever 100 | ||||
| 133 | 231266-3@141 | 0.83 | 1.00 | |
| Ring 10 | ||||
| 134 | 253024-7@141 | 0.83 | 1.00 | |
| Kap 16 | ||||
| 135 | 286236-7@141 | 0.83 | 1.00 | |
| Arm compleet | ||||
| 136 | 140609-7@141 | 74.76 | 89.71 | |
| Lineair kogell 2560 | ||||
| 136 | 211376-2@141 | 23.75 | 28.50 | |
| Vilten ring 25 | ||||
| 136 | 262077-5@141 | 1.43 | 1.72 | |
| Capuchon | ||||
| 136 | 344638-4@141 | 1.06 | 1.27 | |
| Rubber pen 6 | ||||
| 136 | 263005-3@141 | 0.83 | 1.00 | |
| Ontspanstift | ||||
| 137 | 324295-4@141 | 3.83 | 4.60 | |
| Zeskant bout 6x16 | ||||
| 138 | 265251-4@141 | 0.83 | 1.00 | |
| Entretoise | ||||
| 139 | 345299-3@141 | 1.70 | 2.04 | |
| Sluitring 6 | ||||
| 140 | 253726-5@141 | 0.83 | 1.00 | |
| Torsieveer 8 | ||||
| 141 | 231663-3@141 | 0.83 | 1.00 | |
| Schroef Ph L8 | ||||
| 142 | 265113-6@141 | 0.83 | 1.00 | |
| Markeerpunt | ||||
| 143 | 343678-9@141 | 0.83 | 1.00 | |
| Tapschroef M4x12mm Ck | ||||
| 144 | 266026-4@141 | 0.83 | 1.00 | |
| Voorarm cpl | ||||
| 145 | 140608-9@141 | 65.59 | 78.71 | |
| Blokkeerarm | ||||
| 146 | 344643-1@141 | 2.44 | 2.93 | |
| Veerring 20 | ||||
| 147 | 253948-7@141 | 0.83 | 1.00 | |
| Sluitring 8 x 14 x 1mm | ||||
| 148 | 253835-0@141 | 0.83 | 1.00 | |
| Schroef M6 | ||||
| 149 | 251267-5@141 | 0.83 | 1.00 | |
| Zeskant bout 6x10 | ||||
| 150 | 251961-9@141 | 0.83 | 1.00 | |
| Zeskant bout 6x10 | ||||
| 151 | 251961-9@141 | 0.83 | 1.00 | |
| Knop 20 | ||||
| 152 | 271601-3@141 | 0.83 | 1.00 | |
| O-ring 5 | ||||
| 153 | 213021-5@141 | 0.83 | 1.00 | |
| Axe De Blocage | ||||
| 154 | 324183-5@141 | 1.01 | 1.21 | |
| Pijp 16-90 | ||||
| 155 | 331350-5@141 | 5.88 | 7.06 | |
| Armhouder | ||||
| 156 | 140610-2@141 | 57.34 | 68.81 | |
| Schaalverdeling | ||||
| 156 | 816392-5@141 | 2.80 | 3.36 | |
| Pen 5 | ||||
| 157 | 256123-4@141 | 1.43 | 1.72 | |
| Tapeind M10 | ||||
| 158 | 266320-4@141 | 3.37 | 4.04 | |
| Ring 10 | ||||
| 159 | 253024-7@141 | 0.83 | 1.00 | |
| Druknaaldlager 1023 | ||||
| 160 | 216413-7@141 | 2.80 | 3.36 | |
| Ring 10 | ||||
| 161 | 253024-7@141 | 0.83 | 1.00 | |
| Moer M10-17 | ||||
| 162 | 264005-6@141 | 1.43 | 1.72 | |
| Ring 26 | ||||
| 163 | 257214-4@141 | 7.44 | 8.93 | |
| Vleugelbout M6x28 | ||||
| 164 | 265790-4@141 | 0.83 | 1.00 | |
| Borgmoer M8x13 hoog | ||||
| 165 | 252105-4@141 | 0.83 | 1.00 | |
| Sluitring 8 | ||||
| 166 | 253731-2@141 | 0.83 | 1.00 | |
| Indicatieplaat | ||||
| 167 | 416355-7@141 | 2.93 | 3.52 | |
| Tapschroef M4x12mm Ck | ||||
| 168 | 266026-4@141 | 0.83 | 1.00 | |
| Tapschroef M4x12mm Ck | ||||
| 169 | 266026-4@141 | 0.83 | 1.00 | |
| Tapschroef M4x12mm Ck | ||||
| 170 | 266026-4@141 | 0.83 | 1.00 | |
| Inzaagplaat | ||||
| 171 | 419103-3@141 | 3.22 | 3.86 | |
| Inzaagplaat | ||||
| 172 | 419103-3@141 | 3.22 | 3.86 | |
| Draaiplateau | ||||
| 173 | 140614-4@141 | 166.57 | 199.88 | |
| Lineair kogell 2560 | ||||
| 173 | 211376-2@141 | 23.75 | 28.50 | |
| Etiquette Info. | ||||
| 173 | 810495-7@141 | 2.93 | 3.52 | |
| Vilten ring 25 | ||||
| 173 | 262077-5@141 | 1.43 | 1.72 | |
| Capuchon | ||||
| 173 | 344638-4@141 | 1.06 | 1.27 | |
| Rubber pen 6 | ||||
| 173 | 263005-3@141 | 0.83 | 1.00 | |
| Etiquette Info. | ||||
| 173 | 817283-3@141 | 0.83 | 1.00 | |
| Inbusbout M4x10 | ||||
| 174 | 922112-8@141 | 0.83 | 1.00 | |
| Vierkant pen | ||||
| 175 | 153580-6@141 | 11.32 | 13.58 | |
| Rubber pen 6 | ||||
| 175 | 263005-3@141 | 0.83 | 1.00 | |
| Zeskant bout 5x30 | ||||
| 176 | 925251-3@141 | 0.83 | 1.00 | |
| Tapschroef Ct4x16 | ||||
| 177 | 266034-5@141 | 0.83 | 1.00 | |
| Blokkeerplaat | ||||
| 178 | 344601-7@141 | 1.27 | 1.52 | |
| Pinhouder | ||||
| 179 | 317616-7@141 | 7.80 | 9.36 | |
| Pen 3 | ||||
| 180 | 256158-5@141 | 0.83 | 1.00 | |
| Blokkeerpin Ls0714 | ||||
| 181 | 324288-1@141 | 2.80 | 3.36 | |
| Drukveer 6 | ||||
| 182 | 231325-3@141 | 0.83 | 1.00 | |
| Stang 6mm | ||||
| 183 | 324289-9@141 | 1.01 | 1.21 | |
| Blokkeerhandel | ||||
| 184 | 416450-3@141 | 2.08 | 2.50 | |
| Blokkeerplaat | ||||
| 185 | 345272-3@141 | 1.21 | 1.45 | |
| Tapschroef Ct4x16 | ||||
| 186 | 266034-5@141 | 0.83 | 1.00 | |
| Drukveer 9 | ||||
| 187 | 231418-6@141 | 0.83 | 1.00 | |
| Sluitring 8 | ||||
| 188 | 253731-2@141 | 0.83 | 1.00 | |
| Stelbout M8x27 | ||||
| 189 | 266432-3@141 | 1.43 | 1.72 | |
| Handvat 32 | ||||
| 190 | 273658-0@141 | 14.23 | 17.08 | |
| Capot de recouvrement | ||||
| 191 | 416972-3@141 | 1.02 | 1.22 | |
| Zeskant bout 8x50 | ||||
| 192 | 921472-5@141 | 0.83 | 1.00 | |
| Vleugelbout 6x10 | ||||
| 193 | 924306-1@141 | 0.83 | 1.00 | |
| Schaalverdeling | ||||
| 194 | 816339-9@141 | 7.44 | 8.93 | |
| Etiquette Info. | ||||
| 194A | 810486-8@141 | 2.80 | 3.36 | |
| Voetzool | ||||
| 194B | 140612-8@141 | 102.31 | 122.77 | |
| Curseur | ||||
| 195 | 344646-5@141 | 2.80 | 3.36 | |
| Curseur | ||||
| 196 | 344646-5@141 | 2.80 | 3.36 | |
| Waaier 55 | ||||
| 197 | 241873-4@141 | 2.93 | 3.52 | |
