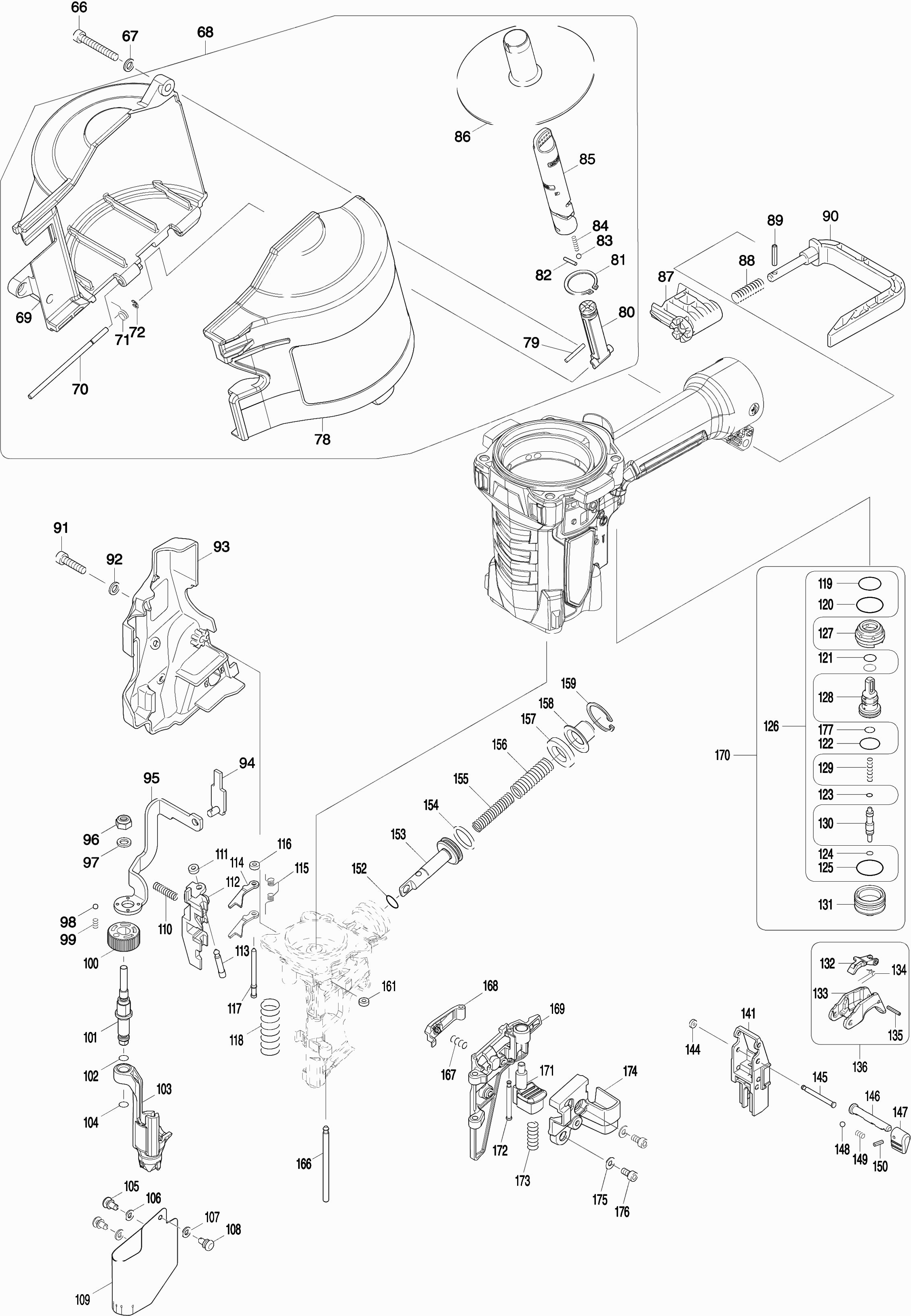

Dessins techniques et pièces de rechange Makita AN935H
La référence AN935H doit figurer sur la plaque d'identification. Des différences peuvent exister selon le numéro de type donnant lieu à la non-correspondance des pièces de rechange. Ne commandez que des pièces si les références sont correctes.Dessins des MAKITA AN935H
Liste de pièces de rechange des Makita AN935H
Sur cette page, vous pouvez ajouter des pièces de rechange à votre panier en sélectionnant la quantité désirée et en cliquant sur le bouton derrière. Si vous avez terminé votre sélection, veuillez activer le bouton "Votre panier" en bas de la page. Les prix mentionnés ci-dessous sont TTC.
| Inbusbout M6x30mm | ||||
| 001 | 266913-7 | Inbusbout M6x30mm | € 1.00 | |
| Bovendeksel | ||||
| 002 | 319360-2 | Bovendeksel | € 37.67 | |
| Stootkussen achter | ||||
| 003 | 424649-6 | Stootkussen achter | € 2.83 | |
| Klepgeleider An935H | ||||
| 004 | 332118-2 | Klepgeleider An935H | € 2.47 | |
| Klepstoel | ||||
| 005 | 424648-8 | Klepstoel | € 6.68 | |
| Hoofdklep geleider | ||||
| 006 | 455320-1 | Hoofdklep geleider | € 40.46 | |
| Revisieset An935H | ||||
| 007 | 197788-2 | Revisieset An935H | € 8.57 | |
| O-ring 48 | ||||
| 008 | 213791-6 | O-ring 48 | € 1.02 | |
| O-ring 45 | ||||
| 009 | 213792-4 | O-ring 45 | € 1.00 | |
| O-ring 58 | ||||
| 010 | 213790-8 | O-ring 58 | € 1.02 | |
| O-ring 58 | ||||
| 011 | 213790-8 | O-ring 58 | € 1.02 | |
| Hoofdklep | ||||
| 012 | 332120-5 | Hoofdklep | € 29.28 | |
| Slagpen set | ||||
| 013 | 135719-3 | Slagpen set | € 110.47 | |
| O-ring 28 | ||||
| 014 | 213588-3 | O-ring 28 | € 4.14 | |
| Drukveer 52 | ||||
| 015 | 234341-4 | Drukveer 52 | € 2.47 | |
| Verdeler | ||||
| 016 | 332117-4 | Verdeler | € 22.02 | |
| O-ring 56 | ||||
| 017 | 213658-8 | O-ring 56 | € 1.00 | |
| O-ring 45 | ||||
| 018 | 213086-7 | O-ring 45 | € 1.74 | |
| O-ring 36 | ||||
| 019 | 213510-0 | O-ring 36 | € 1.23 | |
| Cylindre | ||||
| 020 | 326766-7 | Cylindre | € 32.08 | |
| O-ring 40 | ||||
| 021 | 213509-5 | O-ring 40 | € 1.00 | |
| O-ring 75 | ||||
| 022 | 213755-0 | O-ring 75 | € 2.83 | |
| Pakking, bovendeksel- | ||||
| 023 | 162368-3 | Pakking, bovendeksel- | € 3.70 | |
| Étiquette | ||||
| 024 | 852K50-5 | Étiquette | € 2.83 | |
| Carcasse | ||||
| 025 | 183E68-2 | Carcasse | € 161.05 | |
| Makita logo label R | ||||
| 026 | 809M90-6 | Makita logo label R | € 5.30 | |
| Makita logo label L | ||||
| 027 | 809M89-1 | Makita logo label L | € 5.30 | |
| Goupille Elastique | ||||
| 028 | 951078-5 | Goupille Elastique | € 1.00 | |
| Goupille Elastique | ||||
| 029 | 951078-5 | Goupille Elastique | € 1.00 | |
| Spanstift 3-24 | ||||
| 030 | 951072-7 | Spanstift 3-24 | € 1.00 | |
| Inbusschroef M5 x 10 mm | ||||
| 031 | 266912-9 | Inbusschroef M5 x 10 mm | € 1.00 | |
| Uitlaatkap | ||||
| 032 | 455322-7 | Uitlaatkap | € 2.11 | |
| Filtre | ||||
| 033 | 455319-6 | Filtre | € 1.45 | |
| Filtre | ||||
| 034 | 455319-6 | Filtre | € 1.45 | |
| Uitlaatkap | ||||
| 035 | 455321-9 | Uitlaatkap | € 2.11 | |
| Inbusschroef M5 x 10 mm | ||||
| 036 | 266912-9 | Inbusschroef M5 x 10 mm | € 1.00 | |
| Stootkussen voor | ||||
| 037 | 424387-0 | Stootkussen voor | € 12.34 | |
| O-Ring 45 Hm1214C | ||||
| 038 | 213569-7 | O-Ring 45 Hm1214C | € 1.00 | |
| O-Ring 6 An250/Bo3711 | ||||
| 039 | 213045-1 | O-Ring 6 An250/Bo3711 | € 1.00 | |
| Slagpengeleider | ||||
| 040 | 143408-6 | Slagpengeleider | € 299.48 | |
| Inbusschroef M8 x 30 mm | ||||
| 041 | 266914-5 | Inbusschroef M8 x 30 mm | € 1.45 | |
| Entree | ||||
| 042 | 196452-2 | Entree | € 75.87 | |
| Anneau de retenue | ||||
| 043 | 962165-5 | Anneau de retenue | € 1.02 | |
| Inlaat houder | ||||
| 044 | 318983-3 | Inlaat houder | € 7.55 | |
| O-ring 33 | ||||
| 045 | 213462-5 | O-ring 33 | € 1.00 | |
| O-ring 40 | ||||
| 046 | 213509-5 | O-ring 40 | € 1.00 | |
| Inlaat flens | ||||
| 047 | 331929-2 | Inlaat flens | € 8.57 | |
| D-ring 14 | ||||
| 048 | 424455-9 | D-ring 14 | € 1.00 | |
| O-ring 14 | ||||
| 049 | 213154-6 | O-ring 14 | € 1.00 | |
| O-ring 3 | ||||
| 050 | 213034-6 | O-ring 3 | € 1.00 | |
| O-ring 5mm | ||||
| 051 | 213005-3 | O-ring 5mm | € 1.00 | |
| Ontlastklep | ||||
| 052 | 452107-2 | Ontlastklep | € 1.74 | |
| Inbusbout 4x16 | ||||
| 053 | 922127-5 | Inbusbout 4x16 | € 1.00 | |
| Revisieset | ||||
| 054 | 197789-0 | Revisieset | € 6.68 | |
| O-ring 3 | ||||
| 055 | 213034-6 | O-ring 3 | € 1.00 | |
| O-ring 3 | ||||
| 056 | 213979-8 | O-ring 3 | € 1.45 | |
| O-ring 5,5 | ||||
| 057 | 213545-1 | O-ring 5,5 | € 1.00 | |
| O-ring 8 | ||||
| 058 | 213030-4 | O-ring 8 | € 1.00 | |
| Klepsteller | ||||
| 059 | 325930-7 | Klepsteller | € 4.65 | |
| Klepgeleider | ||||
| 060 | 326042-9 | Klepgeleider | € 7.55 | |
| Drukveer 5 | ||||
| 061 | 234003-4 | Drukveer 5 | € 1.74 | |
| Schakeldrukknop | ||||
| 062 | 452473-7 | Schakeldrukknop | € 3.70 | |
| Spanstift 2-8 | ||||
| 063 | 951001-0 | Spanstift 2-8 | € 1.00 | |
| Capuchon | ||||
| 064 | 286280-4 | Capuchon | € 1.02 | |
| Insteeknippel Orion | ||||
| 065 | 243105-5 | Insteeknippel Orion | € 16.31 | |
| Inbusbout 5x35 | ||||
| 066 | 922257-2 | Inbusbout 5x35 | € 1.00 | |
| Sluitring 5 | ||||
| 067 | 941102-2 | Sluitring 5 | € 1.00 | |
| Magazijn compleet | ||||
| 068 | 135820-4 | Magazijn compleet | € 54.17 | |
| Reservoir | ||||
| 069 | 453086-7 | Reservoir | € 14.45 | |
| Pen 4 | ||||
| 070 | 256773-5 | Pen 4 | € 2.47 | |
| Torsieveer 7 | ||||
| 071 | 233505-7 | Torsieveer 7 | € 3.27 | |
| Stopring E-3 | ||||
| 072 | 259042-3 | Stopring E-3 | € 1.00 | |
| Deksel tbv magazijn compleet | ||||
| 078 | 143916-7 | Deksel tbv magazijn compleet | € 24.09 | |
| Magazijn label | ||||
| 078A | 809M88-3 | Magazijn label | € 7.55 | |
| Pen 3 | ||||
| 079 | 268168-0 | Pen 3 | € 1.00 | |
| Commande impossible | ||||
| 080 | 454691-3 | Commande impossible | ||
| Borgring S-25 | ||||
| 081 | 961105-0 | Borgring S-25 | € 1.00 | |
| Commande impossible | ||||
| 082 | 268272-5 | Commande impossible | ||
| Stalen kogel 4 | ||||
| 083 | 216008-6 | Stalen kogel 4 | € 1.00 | |
| Drukveer 2 | ||||
| 084 | 233492-0 | Drukveer 2 | € 1.00 | |
| Verstelhuls | ||||
| 085 | 419859-8 | Verstelhuls | € 2.11 | |
| Wisselplaat | ||||
| 086 | 419860-3 | Wisselplaat | € 4.65 | |
| Houder tbv draaghaak | ||||
| 087 | 455324-3 | Houder tbv draaghaak | € 2.83 | |
| Drukveer 7 | ||||
| 088 | 233343-7 | Drukveer 7 | € 1.00 | |
| Spanstift 3-16 | ||||
| 089 | 951063-8 | Spanstift 3-16 | € 1.00 | |
| Crochet | ||||
| 090 | 168583-7 | Crochet | € 16.31 | |
| Inbusbout 5x20 | ||||
| 091 | 266369-4 | Inbusbout 5x20 | € 1.00 | |
| Sluitring 5 | ||||
| 092 | 941102-2 | Sluitring 5 | € 1.00 | |
| Couvercle | ||||
| 093 | 456258-3 | Couvercle | € 4.14 | |
| Kontaktplaatje | ||||
| 094 | 310504-7 | Kontaktplaatje | € 12.34 | |
| Contactarm | ||||
| 095 | 346386-1 | Contactarm | € 3.70 | |
| Moer M6-10 | ||||
| 096 | 264027-6 | Moer M6-10 | € 1.00 | |
| Sluitring 6Mm A | ||||
| 097 | 267214-6 | Sluitring 6Mm A | € 1.00 | |
| Stalen kogel 3.5 | ||||
| 098 | 216040-0 | Stalen kogel 3.5 | € 1.00 | |
| Drukveer 3 | ||||
| 099 | 231236-2 | Drukveer 3 | € 1.00 | |
| Piece De Reglage | ||||
| 100 | 451949-1 | Piece De Reglage | € 3.70 | |
| As, afsteller- | ||||
| 101 | 326751-0 | As, afsteller- | € 7.55 | |
| O-ring 5mm | ||||
| 102 | 213005-3 | O-ring 5mm | € 1.00 | |
| Contactpunt | ||||
| 103 | 310673-4 | Contactpunt | € 22.02 | |
| O-ring 5mm | ||||
| 104 | 213005-3 | O-ring 5mm | € 1.00 | |
| Rivet | ||||
| 105 | 255174-4 | Rivet | € 1.02 | |
| Sluitring 4 | ||||
| 106 | 941051-3 | Sluitring 4 | € 1.00 | |
| Sluitring 4 | ||||
| 107 | 941051-3 | Sluitring 4 | € 1.00 | |
| Rivet | ||||
| 108 | 255174-4 | Rivet | € 1.02 | |
| Capot de recouvrement | ||||
| 109 | 413152-2 | Capot de recouvrement | € 1.23 | |
| Drukveer 5 | ||||
| 110 | 234225-6 | Drukveer 5 | € 1.02 | |
| Urethaan ring 3 | ||||
| 111 | 262054-7 | Urethaan ring 3 | € 1.02 | |
| Aanvoerklauw | ||||
| 112 | 310466-9 | Aanvoerklauw | € 18.17 | |
| Pen 4-4,5 | ||||
| 113 | 256432-1 | Pen 4-4,5 | € 2.11 | |
| Borgklauw | ||||
| 114 | 346387-9 | Borgklauw | € 1.00 | |
| Torsieveer 4 | ||||
| 115 | 233581-1 | Torsieveer 4 | € 1.45 | |
| Urethaan ring 3 | ||||
| 116 | 262054-7 | Urethaan ring 3 | € 1.02 | |
| Pen 3 | ||||
| 117 | 256517-3 | Pen 3 | € 1.74 | |
| Drukveer 5 | ||||
| 118 | 234186-0 | Drukveer 5 | € 1.23 | |
| O-ring 15 | ||||
| 119 | 213233-0 | O-ring 15 | € 1.00 | |
| O-ring 18 | ||||
| 120 | 213275-4 | O-ring 18 | € 1.00 | |
| O-ring 7 | ||||
| 121 | 213968-3 | O-ring 7 | € 1.74 | |
| O-ring 12,5 | ||||
| 122 | 213185-5 | O-ring 12,5 | € 1.00 | |
| O-ring 3 | ||||
| 123 | 213044-3 | O-ring 3 | € 1.00 | |
| O-ring 3 | ||||
| 124 | 213640-7 | O-ring 3 | € 2.11 | |
| O-ring 18 | ||||
| 125 | 213275-4 | O-ring 18 | € 1.00 | |
| Commande impossible | ||||
| 126 | 197787-4 | Commande impossible | ||
| Schakelklepgeleiding | ||||
| 127 | 455318-8 | Schakelklepgeleiding | € 24.09 | |
| Regelklep | ||||
| 128 | 412156-1 | Regelklep | € 32.08 | |
| Drukveer 3 | ||||
| 129 | 234188-6 | Drukveer 3 | € 1.45 | |
| Schakelklepsteel | ||||
| 130 | 326476-6 | Schakelklepsteel | € 5.95 | |
| Schakelklephuis | ||||
| 131 | 332136-0 | Schakelklephuis | € 7.55 | |
| Commande impossible | ||||
| 132 | 310503-9 | Commande impossible | ||
| Commande impossible | ||||
| 133 | 310434-2 | Commande impossible | ||
| Commande impossible | ||||
| 134 | 233570-6 | Commande impossible | ||
| Spanstift 2-12 | ||||
| 135 | 951007-8 | Spanstift 2-12 | € 1.00 | |
| Schakelknop | ||||
| 136 | 123204-8 | Schakelknop | € 29.28 | |
| Schakel montageplaat | ||||
| 141 | 451963-7 | Schakel montageplaat | € 5.95 | |
| Rondelle | ||||
| 144 | 261118-4 | Rondelle | € 1.00 | |
| Pen 3 | ||||
| 145 | 268262-8 | Pen 3 | € 2.83 | |
| Blokkeerpen 6mm | ||||
| 146 | 325928-4 | Blokkeerpen 6mm | € 7.55 | |
| Ontgrendelpal | ||||
| 147 | 451953-0 | Ontgrendelpal | € 3.27 | |
| Stalen kogel 3.5 | ||||
| 148 | 216040-0 | Stalen kogel 3.5 | € 1.00 | |
| Drukveer 3 | ||||
| 149 | 231236-2 | Drukveer 3 | € 1.00 | |
| Spanstift 2-8 | ||||
| 150 | 951001-0 | Spanstift 2-8 | € 1.00 | |
| O-ring 9 | ||||
| 152 | 213054-0 | O-ring 9 | € 1.00 | |
| Piston | ||||
| 153 | 326438-4 | Piston | € 13.94 | |
| O-ring 16 | ||||
| 154 | 213207-1 | O-ring 16 | € 1.00 | |
| Drukveer 9 | ||||
| 155 | 234045-8 | Drukveer 9 | € 4.65 | |
| Drukveer 10 | ||||
| 156 | 234046-6 | Drukveer 10 | € 4.65 | |
| Rubber ring 14 | ||||
| 157 | 262123-4 | Rubber ring 14 | € 2.47 | |
| Cupring | ||||
| 158 | 345781-2 | Cupring | € 1.45 | |
| Seegering R24 | ||||
| 159 | 257395-4 | Seegering R24 | € 1.02 | |
| Urethaan ring 3 | ||||
| 161 | 262054-7 | Urethaan ring 3 | € 1.02 | |
| Pen 4 | ||||
| 166 | 256570-9 | Pen 4 | € 1.02 | |
| Drukveer 4 | ||||
| 167 | 234009-2 | Drukveer 4 | € 1.74 | |
| Nagelhouder | ||||
| 168 | 310444-9 | Nagelhouder | € 10.96 | |
| Porte | ||||
| 169 | 310684-9 | Porte | € 71.21 | |
| Schakelklep cmpl. | ||||
| 170 | 135654-5 | Schakelklep cmpl. | € 75.87 | |
| Blokkeerhandel | ||||
| 171 | 162320-1 | Blokkeerhandel | € 4.14 | |
| Pen 3 | ||||
| 172 | 268274-1 | Pen 3 | € 3.27 | |
| Drukveer 7 | ||||
| 173 | 231401-3 | Drukveer 7 | € 1.00 | |
| Deurkap | ||||
| 174 | 452553-9 | Deurkap | € 2.83 | |
| Sluitring 4 | ||||
| 175 | 941051-3 | Sluitring 4 | € 1.00 | |
| Commande impossible | ||||
| 176 | 922107-1 | Commande impossible | ||
| O-ring 6 | ||||
| 177 | 213771-2 | O-ring 6 | € 1.00 | |
| Capot de recouvrement | ||||
| 178 | 424771-9 | Capot de recouvrement | € 5.30 | |
| Poignee | ||||
| 179 | 424770-1 | Poignee | € 5.95 | |
Votre panier contient 0 de produits.
