Vous trouverez ici toutes les pièces et dessins disponibles du 'Makita 9920'. De là, vous pouvez commander directement toutes les pièces souhaitées. De nombreuses pièces doivent être commandées auprès du fabricant, selon la marque, cela prend une à quatre semaines. Toutes les informations dont nous disposons se trouvent sur notre site Web, nous ne pouvons pas vous conseiller sur ce dont vous avez besoin, pour cela vous devrez retourner la machine pour réparation. Veuillez noter ce qui suit lors de la commande:

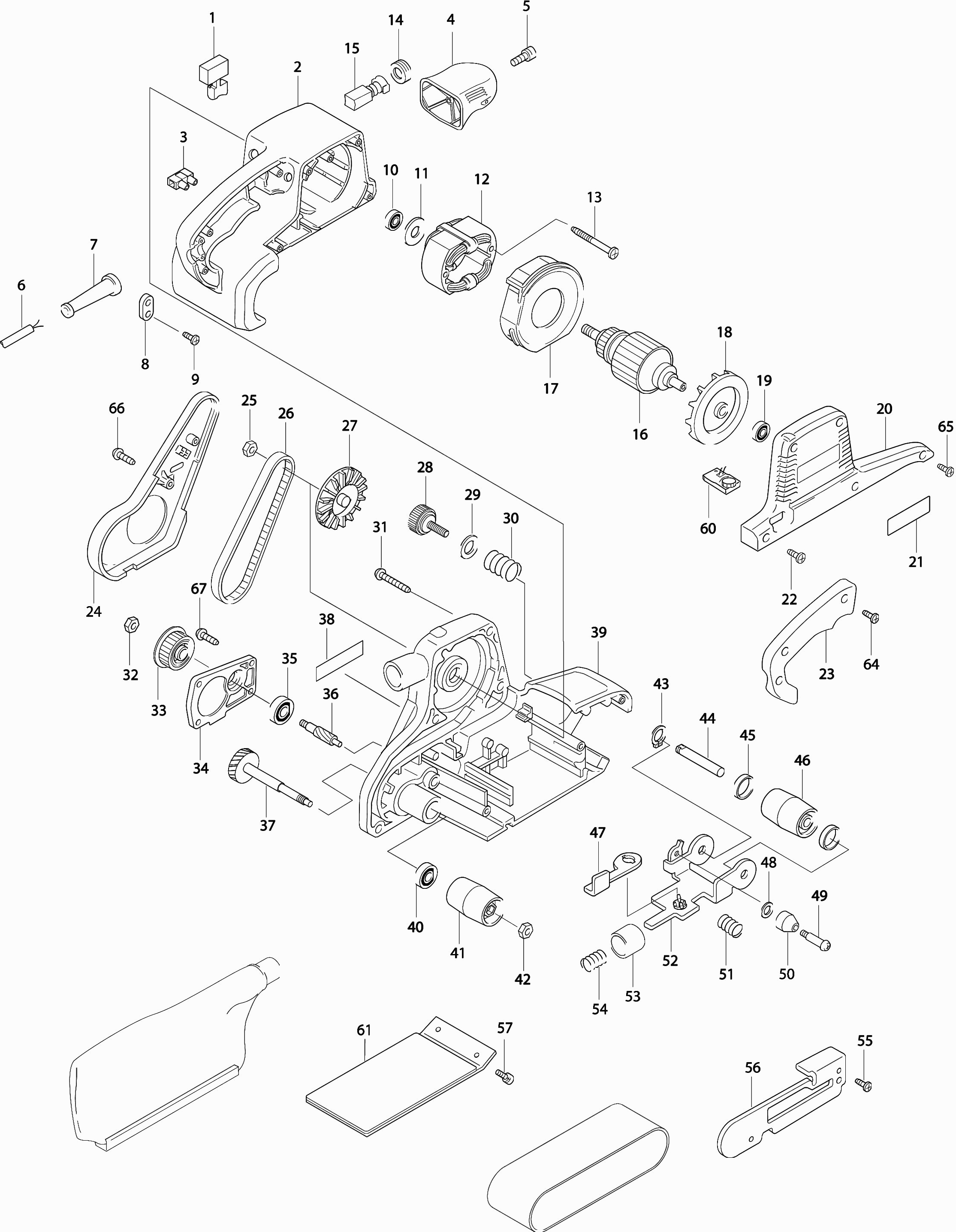

Dessins des Makita 9920
Liste de pièces de rechange des Makita 9920
Pos. | Description | Prix hors TVA | Prix TTC | |
Les prix affichés incluent la TVA | ||||
Commutateur | ||||
001 | 650230-9@141 | 6.58 | 7.90 | |
Carter De Moteur | ||||
002 | 151743-8@141 | 34.35 | 41.22 | |
Kroonsteen Bo4553-Bo4554 A | ||||
003 | 654475-1@141 | 0.83 | 1.00 | |
Voorhandgreep | ||||
004 | 417049-7@141 | 4.58 | 5.50 | |
Tapschroef Pt 5x30 | ||||
005 | 266173-1@141 | 0.83 | 1.00 | |
Netsnoer 2x1.00 2.2mtr | ||||
006 | 665383-1@141 | 10.81 | 12.97 | |
Kabeltule 8-90 | ||||
007 | 682503-2@141 | 1.43 | 1.72 | |
Klemstrip | ||||
008 | 687053-2@141 | 0.83 | 1.00 | |
Tapschroef 4x18 | ||||
009 | 265A48-7@141 | 0.90 | 1.08 | |
Kogellager 6000ddw | ||||
010 | 211088-7@141 | 5.22 | 6.26 | |
Isolatiering | ||||
011 | 681649-1@141 | 0.83 | 1.00 | |
Veld 9903 | ||||
012 | 523404-4@141 | 43.02 | 51.62 | |
Met.schroef M5x45mm | ||||
013 | 266037-9@141 | 0.83 | 1.00 | |
Koolborstelhouderdop | ||||
014 | 643750-0@141 | 0.83 | 1.00 | |
Koolborstel set Cb-303 | ||||
015 | 191963-2@141 | 5.22 | 6.26 | |
Induit | ||||
016 | 513339-7@141 | 74.76 | 89.71 | |
Plaque Intermediaire | ||||
017 | 417050-2@141 | 2.08 | 2.50 | |
Waaier 75 | ||||
018 | 240026-2@141 | 2.80 | 3.36 | |
Kogellager 627ddw | ||||
019 | 210045-2@141 | 3.22 | 3.86 | |
Motorhuisdeksel | ||||
020 | 417048-9@141 | 10.81 | 12.97 | |
Tapschroef 4x18 | ||||
022 | 265A48-7@141 | 0.90 | 1.08 | |
Handgreepdeksel | ||||
023 | 417051-0@141 | 5.46 | 6.55 | |
Snaardeksel | ||||
024 | 417052-8@141 | 3.65 | 4.38 | |
Zeskant moer 6x10 | ||||
025 | 252153-3@141 | 0.83 | 1.00 | |
V-snaar 6-330 | ||||
026 | 225084-9@141 | 4.58 | 5.50 | |
Waaier 76 | ||||
027 | 241663-5@141 | 21.70 | 26.04 | |
Vastzetschroef M6x25 | ||||
028 | 265763-7@141 | 1.01 | 1.21 | |
Sluitring 16 A | ||||
029 | 267323-1@141 | 0.83 | 1.00 | |
Pas d'informations disponibles, non commandable | ||||
030 | 231225-7@141 | |||
Tapschroef Pt4x30 | ||||
031 | 266050-7@141 | 0.83 | 1.00 | |
Moer M8 | ||||
032 | 931402-8@141 | 0.83 | 1.00 | |
Snaarschijf 9.5x46.0 | ||||
033 | 222156-1@141 | 8.46 | 10.15 | |
Couvercle d'engrenages | ||||
034 | 317273-1@141 | 8.84 | 10.61 | |
Kogellager 629ddw | ||||
035 | 211092-6@141 | 4.58 | 5.50 | |
Tandwiel 10 | ||||
036 | 226520-8@141 | 11.19 | 13.43 | |
Tandwiel 39 | ||||
037 | 151755-1@141 | 16.07 | 19.28 | |
Chassis | ||||
039 | 151747-0@141 | 120.91 | 145.09 | |
Glijlager 12 | ||||
039A | 214101-0@141 | 2.80 | 3.36 | |
Kogellager 6000ddw | ||||
040 | 211088-7@141 | 5.22 | 6.26 | |
Rouleau d'entraînement | ||||
041 | 162217-4@141 | 17.90 | 21.48 | |
Zeskant moer 8x13 | ||||
042 | 252154-1@141 | 0.83 | 1.00 | |
Borgring S-12 | ||||
043 | 961052-5@141 | 0.83 | 1.00 | |
Voorrolas | ||||
044 | 323931-9@141 | 3.83 | 4.60 | |
Schotelring M12 | ||||
045 | 253922-5@141 | 0.83 | 1.00 | |
Voorrol | ||||
046 | 151753-5@141 | 21.70 | 26.04 | |
Levier | ||||
047 | 344823-9@141 | 2.80 | 3.36 | |
Cupring | ||||
048 | 267731-6@141 | 0.83 | 1.00 | |
Borstschroef M4 | ||||
049 | 265059-6@141 | 1.01 | 1.21 | |
Piece De Guidage | ||||
050 | 416417-1@141 | 1.01 | 1.21 | |
Drukveer 7 | ||||
051 | 233249-9@141 | 0.83 | 1.00 | |
Spanarm | ||||
052 | 151744-6@141 | 16.07 | 19.28 | |
Cupring 17 | ||||
053 | 267746-3@141 | 2.08 | 2.50 | |
Drukveer 12 | ||||
054 | 233250-4@141 | 0.83 | 1.00 | |
Schroef 4x14 | ||||
055 | 911121-2@141 | 0.83 | 1.00 | |
Protecteur | ||||
056 | 344822-1@141 | 11.19 | 13.43 | |
Schroef 4x12 | ||||
057 | 911116-5@141 | 0.83 | 1.00 | |
Toerenregelingsunit | ||||
060 | 631380-9@141 | 20.76 | 24.91 | |
Koolstofplaat | ||||
061 | 423316-0@141 | 4.08 | 4.90 | |
Tapschroef 4x18 | ||||
064 | 265A48-7@141 | 0.90 | 1.08 | |
Schroef 4x14 | ||||
065 | 911121-2@141 | 0.83 | 1.00 | |
Schroef 4x14 | ||||
066 | 911121-2@141 | 0.83 | 1.00 | |
Schroef 4x14 | ||||
067 | 911121-2@141 | 0.83 | 1.00 |
