Vous trouverez ici toutes les pièces et dessins disponibles du 'Makita 9031'. De là, vous pouvez commander directement toutes les pièces souhaitées. De nombreuses pièces doivent être commandées auprès du fabricant, selon la marque, cela prend une à quatre semaines. Toutes les informations dont nous disposons se trouvent sur notre site Web, nous ne pouvons pas vous conseiller sur ce dont vous avez besoin, pour cela vous devrez retourner la machine pour réparation. Veuillez noter ce qui suit lors de la commande:

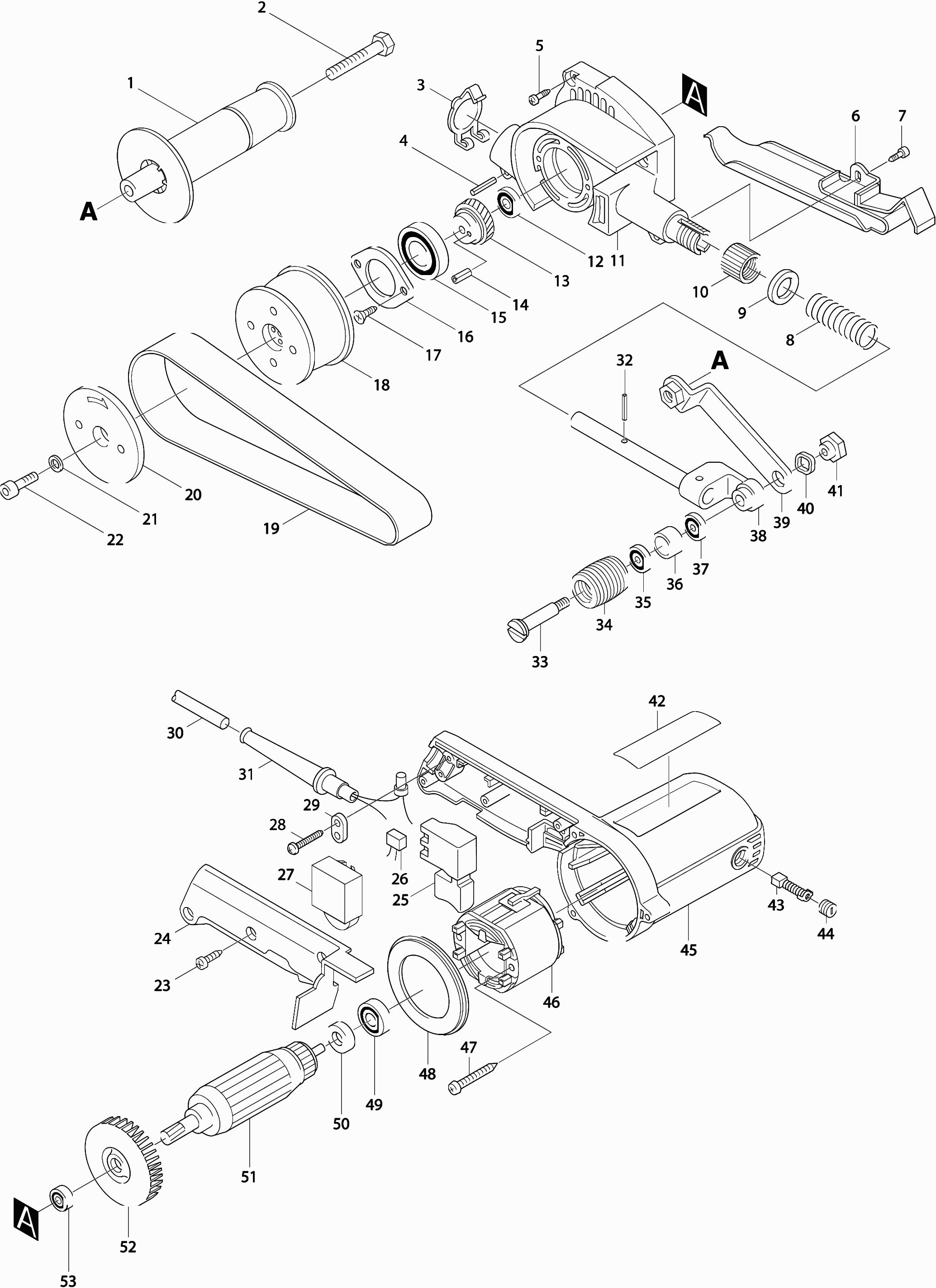

Dessins des Makita 9031
Liste de pièces de rechange des Makita 9031
Pos. | Description | Prix hors TVA | Prix TTC | |
Les prix affichés incluent la TVA | ||||
Handgreep M8 | ||||
001 | 153489-2@141 | 2.81 | 3.37 | |
Bout 8x40 | ||||
002 | 921462-8@141 | 0.83 | 1.00 | |
Afdekplaat 9031 * | ||||
003 | 286241-4@141 | 2.56 | 3.07 | |
Spanstift 4-20 | ||||
004 | 951116-3@141 | 0.83 | 1.00 | |
Tapschroef 4x25 | ||||
005 | 265924-9@141 | 0.83 | 1.00 | |
Platte zool | ||||
006 | 342152-4@141 | 7.44 | 8.93 | |
Tapschroef 5x12 | ||||
007 | 266035-3@141 | 0.83 | 1.00 | |
Drukveer 13 | ||||
008 | 231056-4@141 | 0.83 | 1.00 | |
Sluitring 12 | ||||
009 | 253052-2@141 | 0.83 | 1.00 | |
Moer M16 | ||||
010 | 252605-4@141 | 2.93 | 3.52 | |
Pas d'informations disponibles, non commandable | ||||
011 | 159748-2@141 | |||
Rubber pen 4 | ||||
011A | 263002-9@141 | 0.83 | 1.00 | |
Kogellager 607llb | ||||
012 | 211021-9@141 | 4.58 | 5.50 | |
Tandwiel 35 | ||||
013 | 226435-9@141 | 24.88 | 29.86 | |
Spanstift 3,5-12 * | ||||
014 | 258009-8@141 | 0.83 | 1.00 | |
Kogellager 6904ddw | ||||
015 | 211331-4@141 | 12.58 | 15.10 | |
Palier en tôle | ||||
016 | 285830-2@141 | 1.72 | 2.06 | |
Tapschroef M4x12mm Vk | ||||
017 | 266058-1@141 | 0.83 | 1.00 | |
Antriebsrad Roue d'entraînement | ||||
018 | 222129-4@141 | 17.90 | 21.48 | |
Centreerplaat | ||||
020 | 415624-3@141 | 3.65 | 4.38 | |
Sluitring 5mm DSP601 A | ||||
021 | 253414-4@141 | 0.83 | 1.00 | |
Inbusbout 5X20 | ||||
022 | 266067-0@141 | 0.83 | 1.00 | |
Tapschroef 4x18 | ||||
023 | 265A48-7@141 | 0.90 | 1.08 | |
Handgreepdeksel | ||||
024 | 415635-8@141 | 7.44 | 8.93 | |
Schakelaar Sw134 | ||||
025 | 651263-7@141 | 6.58 | 7.90 | |
Condensator 0,22uf | ||||
026 | 645190-8@141 | 2.44 | 2.93 | |
Tapschroef 4x18 | ||||
028 | 265A48-7@141 | 0.90 | 1.08 | |
Klemstrip | ||||
029 | 687124-5@141 | 0.83 | 1.00 | |
Netsnoer 2x1.00 2.2mtr | ||||
030 | 665383-1@141 | 10.81 | 12.97 | |
Kabeltule 8-85 | ||||
031 | 682502-4@141 | 1.72 | 2.06 | |
Spanstift 4-20 | ||||
032 | 951116-3@141 | 0.83 | 1.00 | |
Pulleybout | ||||
033 | 322746-1@141 | 5.22 | 6.26 | |
Pulley 30-25 | ||||
034 | 222130-9@141 | 19.80 | 23.76 | |
Kogellager 688ddw | ||||
035 | 210211-1@141 | 2.80 | 3.36 | |
Bus 12 | ||||
036 | 331450-1@141 | 2.08 | 2.50 | |
Kogellager 688ddw | ||||
037 | 210211-1@141 | 2.80 | 3.36 | |
Hoeksteun | ||||
038 | 154417-0@141 | 95.74 | 114.89 | |
Handgreeparm | ||||
039 | 165110-1@141 | 10.84 | 13.01 | |
Veerring 12 | ||||
040 | 253904-7@141 | 0.83 | 1.00 | |
Moer M6-17 9031 | ||||
041 | 252138-9@141 | 2.08 | 2.50 | |
Koolborstel set Cb-411 | ||||
043 | 191940-4@141 | 4.58 | 5.50 | |
Koolborstelhouderdop | ||||
044 | 643550-8@141 | 0.83 | 1.00 | |
Carter du moteur complet | ||||
045 | 159747-4@141 | 18.76 | 22.51 | |
Koolborstelhouder * | ||||
045A | 643917-0@141 | 3.22 | 3.86 | |
Pas d'informations disponibles, non commandable | ||||
046 | 599328-6@141 | |||
Tapschroef 4X60 * | ||||
047 | 265988-3@141 | 0.83 | 1.00 | |
Plaque Intermediaire | ||||
048 | 415634-0@141 | 1.51 | 1.81 | |
Kogellager 627llb | ||||
049 | 210025-8@141 | 2.80 | 3.36 | |
Isolatiering | ||||
050 | 681614-0@141 | 0.83 | 1.00 | |
Induit | ||||
051 | 517148-6@141 | 57.06 | 68.47 | |
Waaier 60 | ||||
052 | 241884-9@141 | 4.08 | 4.90 | |
Kogellager 608ddw | ||||
053 | 210005-4@141 | 4.58 | 5.50 |
