Dessins techniques et pièces de rechange Makita 4351FCT

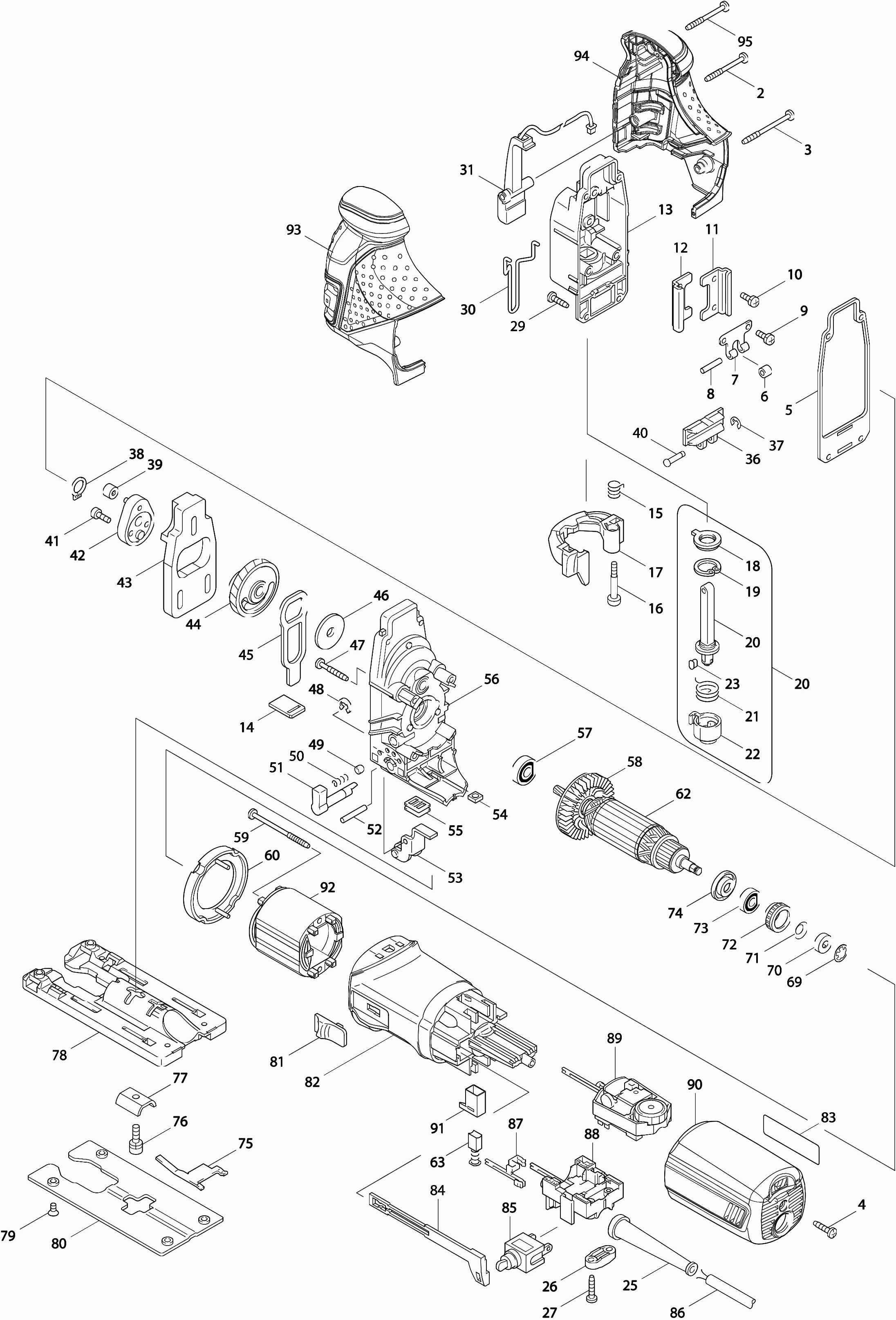

Dessins des MAKITA 4351FCT
Liste de pièces de rechange des Makita 4351FCT
Sur cette page, vous pouvez ajouter des pièces de rechange à votre panier en sélectionnant la quantité désirée et en cliquant sur le bouton derrière. Si vous avez terminé votre sélection, veuillez activer le bouton "Votre panier" en bas de la page. Les prix mentionnés ci-dessous sont TTC.
Tapschroef 4x40 | ||||
002 | 266048-4 | Tapschroef 4x40 | € 1.00 | |
Tapschroef 4x50 | ||||
003 | 266091-3 | Tapschroef 4x50 | € 1.00 | |
Tapschroef 4x18 | ||||
004 | 265995-6 | Tapschroef 4x18 | € 1.00 | |
Tandwielhuispakking | ||||
005 | 442138-9 | Tandwielhuispakking | € 1.00 | |
Glijlager 4 | ||||
006 | 214031-5 | Glijlager 4 | € 1.00 | |
Ressort A Lame | ||||
007 | 232207-2 | Ressort A Lame | € 1.00 | |
Pen 4 | ||||
008 | 256117-9 | Pen 4 | € 1.00 | |
Schroef 4x10 | ||||
009 | 911111-5 | Schroef 4x10 | € 1.00 | |
Schroef 4x10 | ||||
010 | 911111-5 | Schroef 4x10 | € 1.00 | |
Piece De Guidage | ||||
011 | 345240-6 | Piece De Guidage | € 2.83 | |
Piece De Guidage | ||||
012 | 345240-6 | Piece De Guidage | € 2.83 | |
Palier | ||||
013 | 153338-3 | Palier | € 40.46 | |
Dunne sluitring 14 | ||||
013A | 253313-0 | Dunne sluitring 14 | € 1.00 | |
Ring 20 | ||||
013B | 257250-0 | Ring 20 | € 2.11 | |
Stofring 8 | ||||
013C | 421815-6 | Stofring 8 | € 1.00 | |
Couvercle | ||||
014 | 417839-8 | Couvercle | € 1.00 | |
Trekveer 6 | ||||
015 | 231659-4 | Trekveer 6 | € 1.00 | |
Kruiskopschroef M4 | ||||
016 | 265026-1 | Kruiskopschroef M4 | € 1.45 | |
Snelwisselhandel | ||||
017 | 419820-5 | Snelwisselhandel | € 2.83 | |
Dust Seal | ||||
018 | 421817-2 | Dust Seal | € 1.00 | |
Borgring R-18 | ||||
019 | 962068-3 | Borgring R-18 | € 1.00 | |
Zaagas set cpl | ||||
020 | 135060-4 | Zaagas set cpl | € 40.46 | |
Trekveer 15 | ||||
021 | 231660-9 | Trekveer 15 | € 1.00 | |
Zaaghouder | ||||
022 | 310136-0 | Zaaghouder | € 13.94 | |
Drukpen | ||||
023 | 310135-2 | Drukpen | € 3.70 | |
Kabeltule 8-110 | ||||
025 | 682559-5 | Kabeltule 8-110 | € 1.00 | |
Klemstrip | ||||
026 | 687124-5 | Klemstrip | € 1.00 | |
Tapschroef 4x18 | ||||
027 | 265995-6 | Tapschroef 4x18 | € 1.00 | |
Tapschroef Ct4x16 | ||||
029 | 266034-5 | Tapschroef Ct4x16 | € 1.00 | |
Veiligheidsveer | ||||
030 | 324233-6 | Veiligheidsveer | € 1.00 | |
Led-circuit | ||||
031 | 631470-8 | Led-circuit | € 12.34 | |
Zaagasgeleider | ||||
036 | 310134-4 | Zaagasgeleider | € 16.31 | |
Stopring E-3 | ||||
037 | 961017-7 | Stopring E-3 | € 1.00 | |
Borgring S-8 | ||||
038 | 961004-6 | Borgring S-8 | € 1.00 | |
Commande impossible | ||||
039 | 212014-9 | Commande impossible | ||
Borgpin 4 | ||||
040 | 268090-1 | Borgpin 4 | € 1.45 | |
Inbusbout 4x12 | ||||
041 | 265353-6 | Inbusbout 4x12 | € 1.00 | |
Excentrique | ||||
042 | 153336-7 | Excentrique | € 5.30 | |
Balansplaat | ||||
043 | 313108-4 | Balansplaat | € 6.68 | |
Pignon | ||||
044 | 153335-9 | Pignon | € 26.49 | |
Naaldlager 810 | ||||
044A | 212043-2 | Naaldlager 810 | € 2.83 | |
Plateau De Pression | ||||
045 | 345235-9 | Plateau De Pression | € 2.47 | |
Sluitring 8 | ||||
046 | 253877-4 | Sluitring 8 | € 1.00 | |
Tapschroef Pt4x30 | ||||
047 | 266050-7 | Tapschroef Pt4x30 | € 1.00 | |
Stopring E-5 | ||||
048 | 961018-5 | Stopring E-5 | € 1.00 | |
Kap 5 | ||||
049 | 286032-3 | Kap 5 | € 1.00 | |
Drukveer 3 4340/41 | ||||
050 | 233139-6 | Drukveer 3 4340/41 | € 1.00 | |
Pendelknop 17 | ||||
051 | 272244-4 | Pendelknop 17 | € 5.30 | |
Pin 4 | ||||
052 | 268063-4 | Pin 4 | € 1.00 | |
Geleidewiel cpl | ||||
053 | 153334-1 | Geleidewiel cpl | € 13.94 | |
Moer M5-8 | ||||
054 | 252171-1 | Moer M5-8 | € 1.00 | |
Dust Seal | ||||
055 | 421816-4 | Dust Seal | € 1.00 | |
Carter | ||||
056 | 153337-5 | Carter | € 43.66 | |
Kogellager 608ddw | ||||
057 | 210005-4 | Kogellager 608ddw | € 4.65 | |
Waaier 52 | ||||
058 | 241881-5 | Waaier 52 | € 2.11 | |
Commande impossible | ||||
059 | 266052-3 | Commande impossible | ||
Plaque Intermediaire | ||||
060 | 417838-0 | Plaque Intermediaire | € 1.00 | |
Induit | ||||
062 | 517398-3 | Induit | € 43.66 | |
Koolborstel set Cb-419 | ||||
063 | 191962-4 | Koolborstel set Cb-419 | € 10.70 | |
Anneau de retenue | ||||
069 | 259039-2 | Anneau de retenue | € 1.00 | |
Magnetische Bus Rt0700 A | ||||
070 | 688117-5 | Magnetische Bus Rt0700 A | € 2.83 | |
Veerring 6 | ||||
071 | 267756-0 | Veerring 6 | € 1.00 | |
Rubber ring 19 | ||||
072 | 421494-0 | Rubber ring 19 | € 4.14 | |
Kogellager 607llb | ||||
073 | 211021-9 | Kogellager 607llb | € 4.65 | |
Isolatiering | ||||
074 | 681636-0 | Isolatiering | € 1.23 | |
Ressort A Lame | ||||
075 | 232208-0 | Ressort A Lame | € 1.00 | |
Inbusbout 5x18 | ||||
076 | 922226-3 | Inbusbout 5x18 | € 1.00 | |
Tole De Construction | ||||
077 | 345237-5 | Tole De Construction | € 1.00 | |
Plaque de base | ||||
078 | 317565-8 | Plaque de base | € 22.02 | |
Verzonkenschroef 4x8 | ||||
079 | 912107-9 | Verzonkenschroef 4x8 | € 1.00 | |
Curseur | ||||
080 | 345238-3 | Curseur | € 2.83 | |
Schakelknop Aan/uit | ||||
081 | 417840-3 | Schakelknop Aan/uit | € 1.02 | |
Carter De Moteur | ||||
082 | 419893-8 | Carter De Moteur | € 5.30 | |
Étiquette | ||||
083 | 863690-8 | Étiquette | € 2.83 | |
Schakelhandel | ||||
084 | 417841-1 | Schakelhandel | € 1.02 | |
Commande impossible | ||||
085 | 651428-1 | Commande impossible | ||
Netsnoer 2x1.00 2.2mtr | ||||
086 | 665383-1 | Netsnoer 2x1.00 2.2mtr | € 10.96 | |
Veldverbinder | ||||
087 | 654223-8 | Veldverbinder | € 1.00 | |
Schakelblok | ||||
088 | 638108-6 | Schakelblok | € 8.57 | |
Toerenregelcircuit | ||||
089 | 631769-1 | Toerenregelcircuit | € 32.08 | |
Motorhuisdeksel | ||||
090 | 419896-2 | Motorhuisdeksel | € 4.14 | |
S/e Porte Balais | ||||
091 | 643975-6 | S/e Porte Balais | € 1.00 | |
Inducteur | ||||
092 | 633518-2 | Inducteur | € 13.94 | |
Jeu De Poignees | ||||
093 | 188290-6 | Jeu De Poignees | € 20.10 | |
Jeu De Poignees | ||||
094 | 188290-6 | Jeu De Poignees | € 20.10 | |
Tapschroef 4x40 | ||||
095 | 266048-4 | Tapschroef 4x40 | € 1.00 |
