Dessins techniques et pièces de rechange Makita 4103D

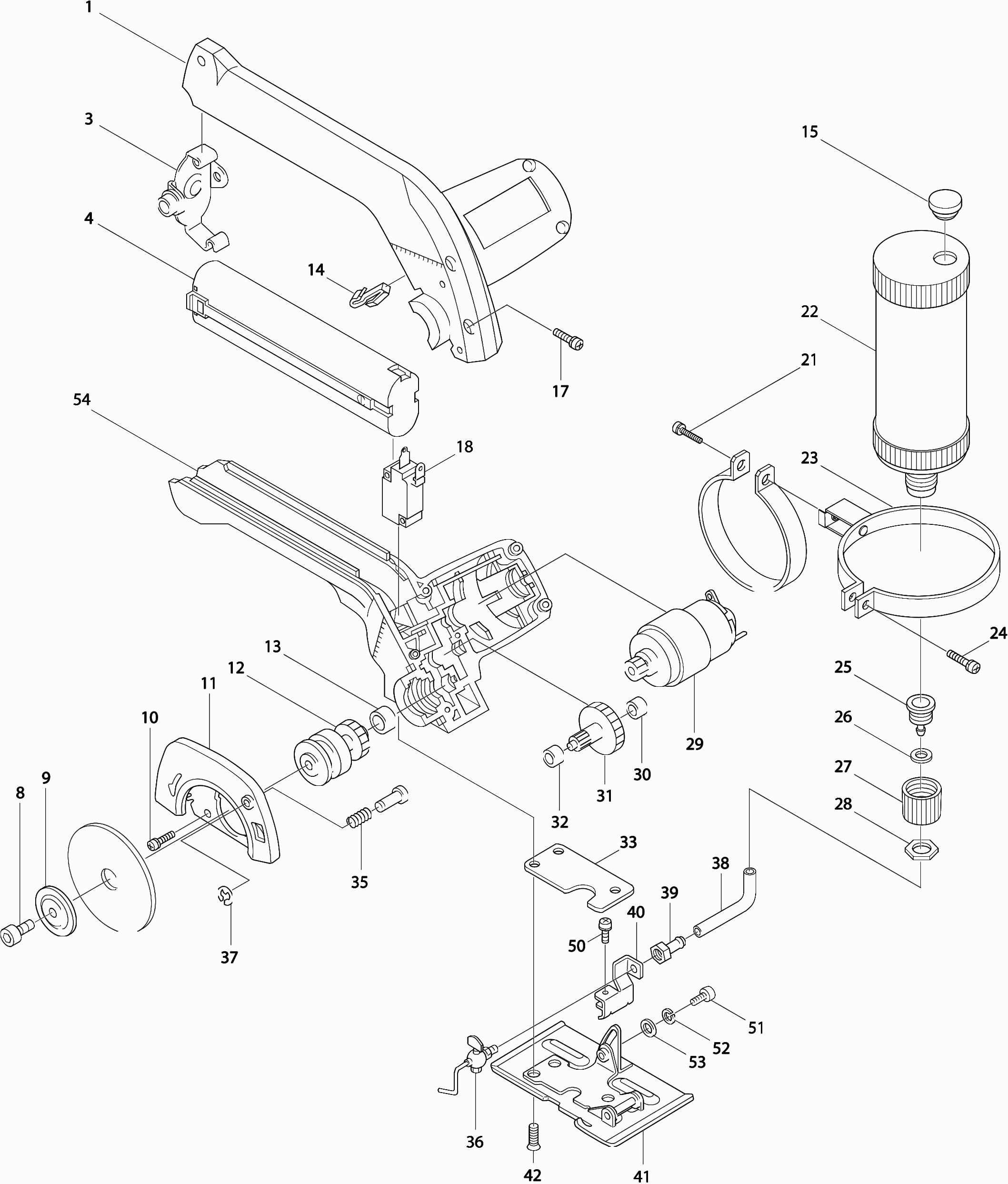

Dessins des MAKITA 4103D
Liste de pièces de rechange des Makita 4103D
Sur cette page, vous pouvez ajouter des pièces de rechange à votre panier en sélectionnant la quantité désirée et en cliquant sur le bouton derrière. Si vous avez terminé votre sélection, veuillez activer le bouton "Votre panier" en bas de la page. Les prix mentionnés ci-dessous sont TTC.
Commande impossible | ||||
001 | 181389-6 | Commande impossible | ||
Schroef 4x22 | ||||
002 | 911143-2 | Schroef 4x22 | € 1.00 | |
Batterijklemplaat | ||||
003 | 342833-0 | Batterijklemplaat | € 2.47 | |
Commande impossible | ||||
004 | 191681-2 | Commande impossible | ||
Schroef 4x22 | ||||
006 | 911143-2 | Schroef 4x22 | € 1.00 | |
Commande impossible | ||||
007 | 257553-2 | Commande impossible | ||
Inbusbout M5X12 | ||||
008 | 922212-4 | Inbusbout M5X12 | € 1.00 | |
Buitenflens 28 4190Dw-4191Dwa | ||||
009 | 224177-9 | Buitenflens 28 4190Dw-4191Dwa | € 1.45 | |
Schroef 4x14 | ||||
010 | 911123-8 | Schroef 4x14 | € 1.00 | |
Commande impossible | ||||
011 | 164547-9 | Commande impossible | ||
Pignon | ||||
012 | 153132-3 | Pignon | € 22.02 | |
Glijlager 5 | ||||
013 | 214017-9 | Glijlager 5 | € 1.00 | |
Commande impossible | ||||
014 | 232061-4 | Commande impossible | ||
Couvercle | ||||
015 | 421198-4 | Couvercle | € 2.11 | |
Schroef 4x25 | ||||
017 | 911146-6 | Schroef 4x25 | € 1.00 | |
Schakelaar a/u+l/r | ||||
018 | 531043-6 | Schakelaar a/u+l/r | € 14.45 | |
Schroef 4x25 | ||||
021 | 911146-6 | Schroef 4x25 | € 1.00 | |
Watertank | ||||
022 | 134152-6 | Watertank | € 16.31 | |
Watertankbevestiging | ||||
023 | 163159-5 | Watertankbevestiging | € 26.49 | |
Schroef 4x20 | ||||
024 | 911138-5 | Schroef 4x20 | € 1.00 | |
Verloopbus | ||||
025 | 321512-3 | Verloopbus | € 6.68 | |
Kunststof ring 12 | ||||
026 | 261056-0 | Kunststof ring 12 | € 1.00 | |
Tankdop voor toevoer | ||||
027 | 411988-3 | Tankdop voor toevoer | € 1.00 | |
Zeskant moer 12x3 | ||||
028 | 252064-2 | Zeskant moer 12x3 | € 1.02 | |
Commande impossible | ||||
029 | 629574-8 | Commande impossible | ||
Glijlager 4 | ||||
030 | 214019-5 | Glijlager 4 | € 1.00 | |
Tandwiel 11-67 | ||||
031 | 226053-3 | Tandwiel 11-67 | € 14.45 | |
Glijlager 4 | ||||
032 | 214019-5 | Glijlager 4 | € 1.00 | |
Tussenpakking | ||||
033 | 423070-6 | Tussenpakking | € 1.02 | |
Borgpen 5 | ||||
034 | 256625-0 | Borgpen 5 | € 1.23 | |
Drukveer 6 | ||||
035 | 231098-8 | Drukveer 6 | € 1.00 | |
Commande impossible | ||||
036 | 168104-5 | Commande impossible | ||
Stopring E-4 | ||||
037 | 961011-9 | Stopring E-4 | € 1.00 | |
Commande impossible | ||||
038 | 412054-9 | Commande impossible | ||
Slangewartel | ||||
039 | 323601-0 | Slangewartel | € 4.14 | |
Commande impossible | ||||
040 | 341940-6 | Commande impossible | ||
Commande impossible | ||||
041 | 168084-5 | Commande impossible | ||
Verzonken schroef 5x16 | ||||
042 | 912221-1 | Verzonken schroef 5x16 | € 1.00 | |
Commande impossible | ||||
044 | 411773-4 | Commande impossible | ||
Commande impossible | ||||
045 | 181314-7 | Commande impossible | ||
Commande impossible | ||||
046 | 631096-6 | Commande impossible | ||
Commande impossible | ||||
047 | 649079-2 | Commande impossible | ||
Commande impossible | ||||
049 | 911170-9 | Commande impossible | ||
Schroef 4x12 | ||||
050 | 911116-5 | Schroef 4x12 | € 1.00 | |
Inbusbout 5x10 | ||||
051 | 922207-7 | Inbusbout 5x10 | € 1.00 | |
Veerring M5 | ||||
052 | 942101-7 | Veerring M5 | € 1.00 | |
Sluitring 5mm DSP601 A | ||||
053 | 253414-4 | Sluitring 5mm DSP601 A | € 1.00 | |
Commande impossible | ||||
054 | P-02060 | Commande impossible |
