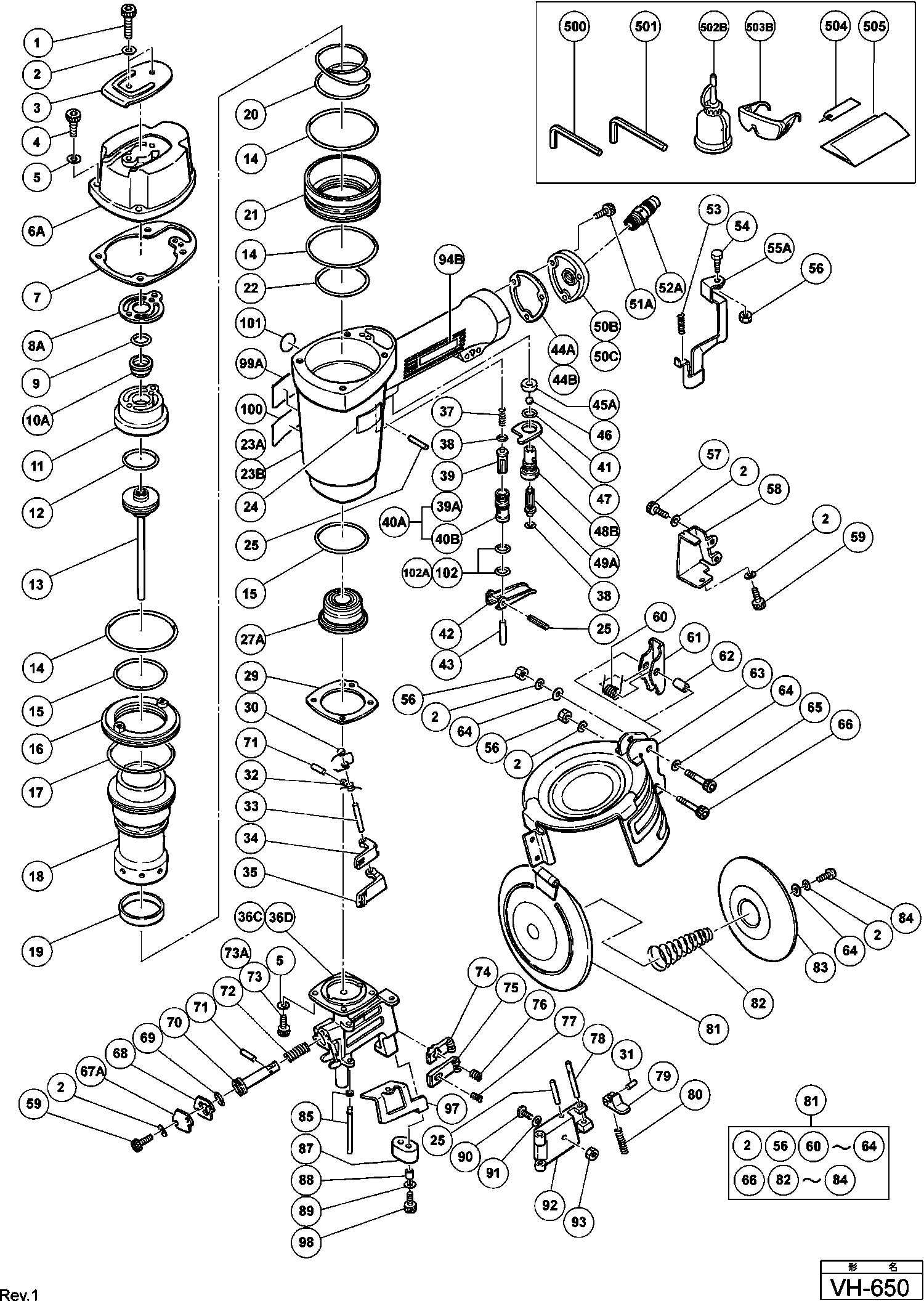

Dessins des Hikoki VH-650
Liste de pièces de rechange des Hikoki VH-650
Pos. | Description | Prix hors TVA | Prix TTC | |
Les prix affichés incluent la TVA | ||||
Pas d'informations disponibles, non commandable | ||||
1 | 949822 | |||
Rondelle de ressort M5 (10 pièces) | ||||
2 | 949454 | 1.04 | 1.24 | |
COUVERCLE SUPERIEUR | ||||
3 | 876444 | 1.65 | 1.98 | |
Vis M6x25 (paquet de 10) | ||||
4 | 949652 | 3.30 | 3.96 | |
Rondelle de ressort M6 (ancien 949455z, 10 pieces) | ||||
5 | 949455 | 1.05 | 1.26 | |
Pas d'informations disponibles, non commandable | ||||
6A | 876769 | |||
Emballage de couvercle de tête (f) | ||||
7 | 876747P | 3.00 | 3.60 | |
Joint (g) | ||||
8A | 876749 | 1.05 | 1.26 | |
O Ring Nv 50a1 Till 12.1987 | ||||
9 | 872821 | 3.00 | 3.60 | |
Valve | ||||
10A | 878417 | 5.85 | 7.02 | |
Capsule de tête (d) | ||||
11 | 876748P | 35.06 | 42.08 | |
Capuchon de tête (c) | ||||
11 | 876442 | 24.34 | 29.20 | |
O-ring Nh-650a | ||||
12 | 931835 | 1.65 | 1.98 | |
Piston (1) | ||||
13 | 876734 | 148.78 | 178.53 | |
O Ring Nt 65ab | ||||
14 | 874104 | 3.90 | 4.68 | |
Joint d'arbre cylindrique I.d. 50,9mm | ||||
15 | 875602 | 8.40 | 10.08 | |
Pas d'informations disponibles, non commandable | ||||
16 | 876435 | |||
Joint | ||||
17 | 877312 | 1.95 | 2.34 | |
Pas d'informations disponibles, non commandable | ||||
18 | 876732 | |||
Anneau de Cylindre | ||||
19 | 876434 | 3.00 | 3.60 | |
Pas d'informations disponibles, non commandable | ||||
20 | 875605 | |||
Pas d'informations disponibles, non commandable | ||||
21 | 876731 | |||
Joint torique de cylindre (b) D.int.55.9 | ||||
22 | 876433 | 11.25 | 13.50 | |
Pas d'informations disponibles, non commandable | ||||
23A | 876758 | |||
Pas d'informations disponibles, non commandable | ||||
23B | 876759 | |||
Broche à Rouleau D3x30 (10 Pièces) | ||||
25 | 949866 | 3.60 | 4.32 | |
Amortisseur de piston (a) | ||||
27A | 876766 | 26.68 | 32.01 | |
Emballage (a) | ||||
29 | 876737 | 1.04 | 1.24 | |
Ressort d'alimentation principal (a) | ||||
30 | 876717 | 6.45 | 7.74 | |
Goupille Nv65ac | ||||
31 | 949776 | 2.40 | 2.88 | |
Ressort de sous-alimentation | ||||
32 | 876691 | 3.90 | 4.68 | |
Arbre d'alimentation | ||||
33 | 876689 | 3.60 | 4.32 | |
Alimentation principale | ||||
34 | 876688 | 24.34 | 29.20 | |
Sous-alimentateur | ||||
35 | 876707 | 25.71 | 30.86 | |
Pas d'informations disponibles, non commandable | ||||
36C | 876751 | |||
Pas d'informations disponibles, non commandable | ||||
36D | 876752 | |||
Ressort | ||||
37 | 875643 | 1.05 | 1.26 | |
Joint Torique | ||||
38 | 874820 | 1.65 | 1.98 | |
Piston de sécurité (a) | ||||
39 | 876739 | 10.95 | 13.14 | |
Plongeur Nv65ac | ||||
39A | 878122 | 2.40 | 2.88 | |
Pas d'informations disponibles, non commandable | ||||
40A | 876764 | |||
Fourreau De Valve Nv65ac | ||||
40B | 878266 | 16.50 | 19.80 | |
Joint | ||||
41 | 875638 | 1.65 | 1.98 | |
Gachette | ||||
42 | 876203 | 2.55 | 3.06 | |
Plongeur Nv65ac | ||||
43 | 875642 | 8.70 | 10.44 | |
Pas d'informations disponibles, non commandable | ||||
44A | 876447 | |||
Joint Nv65ac | ||||
44B | 877331 | 1.05 | 1.26 | |
Pas d'informations disponibles, non commandable | ||||
45A | 878734 | |||
Bille Plastique | ||||
46 | 875645 | 3.90 | 4.68 | |
Plaque | ||||
47 | 875644 | 1.05 | 1.26 | |
Fourreau De Valve | ||||
48B | 877335 | 12.60 | 15.12 | |
Piston de déclencheur | ||||
49A | 878121 | 1.65 | 1.98 | |
Pas d'informations disponibles, non commandable | ||||
50B | 877050Z | |||
Couvercle Nv65ac | ||||
50C | 878311 | 10.65 | 12.78 | |
Boulon Hex.à douille M5x18 (10 Pièces) | ||||
51A | 949658 | 1.80 | 2.16 | |
Bouchon | ||||
52 | 872035 | 1.04 | 1.24 | |
Pas d'informations disponibles, non commandable | ||||
52A | 874782 | |||
Ressort de sécurité | ||||
53 | 876676 | 1.05 | 1.26 | |
Boulon | ||||
54 | 875650 | 1.05 | 1.26 | |
Barre de poussée (g) (ancien 876740) | ||||
55A | 876763 | 40.84 | 49.00 | |
Écrou M5 (10 pièces) (ANCIEN 949555Z) | ||||
56 | 949555 | 1.05 | 1.26 | |
Vis M5x12 (paquet de 10) | ||||
57 | 949765 | 2.55 | 3.06 | |
Garde de sécurité | ||||
58 | 876696 | 5.85 | 7.02 | |
Vis M.5*10 (paquet de 10) | ||||
59 | 949819 | 2.55 | 3.06 | |
Ressort de verrouillage du magasin | ||||
60 | 876703 | 3.90 | 4.68 | |
Pas d'informations disponibles, non commandable | ||||
61 | 876702 | |||
Pas d'informations disponibles, non commandable | ||||
62 | 876743 | |||
Pas d'informations disponibles, non commandable | ||||
63 | 876742 | |||
Plus disponible, pas de remplacement | ||||
64 | 876205 | |||
Boulon Hex. à Douille M5x30 (10 Pcs) | ||||
65 | 949664 | 3.75 | 4.50 | |
Vis M5x25 (paquet de 10) | ||||
66 | 949662 | 2.10 | 2.52 | |
Couvercle du piston d'alimentation (ancien 876694) | ||||
67A | 876661 | 24.34 | 29.20 | |
Emballage de couvercle de tête (e) | ||||
68 | 876695 | 1.05 | 1.26 | |
O Ring | ||||
69 | 873095 | 1.04 | 1.24 | |
Piston d'alimentation | ||||
70 | 876692 | 13.50 | 16.20 | |
Goupille de rouleau D2,5x10 (10 pièces) | ||||
71 | 949551 | 1.65 | 1.98 | |
Ressort | ||||
72 | 876693 | 2.55 | 3.06 | |
Vis M6*20 (paquet de 10) | ||||
73 | 949660 | 3.30 | 3.96 | |
Plus disponible, pas de remplacement | ||||
73A | 877947 | |||
Pas d'informations disponibles, non commandable | ||||
74 | 877143 | |||
Pas d'informations disponibles, non commandable | ||||
75 | 876679 | |||
Ressort Nv65ac | ||||
76 | 876681 | 1.65 | 1.98 | |
Ressort de butée secondaire | ||||
77 | 876685 | 1.50 | 1.80 | |
Axe de verrouillage | ||||
78 | 876682 | 3.90 | 4.68 | |
Verrou de guidage | ||||
79 | 877374 | 10.20 | 12.24 | |
Ressort (1) | ||||
80 | 877372 | 2.40 | 2.88 | |
Magasin complet | ||||
81 | 876741 | 233.34 | 280.00 | |
Pas d'informations disponibles, non commandable | ||||
82 | 876701 | |||
Porte-clou | ||||
83 | 876700 | 8.70 | 10.44 | |
Vis de réglage Allen M5x10 | ||||
84 | 876705 | 1.05 | 1.26 | |
Pas d'informations disponibles, non commandable | ||||
85 | 876760 | |||
Amortisseur de garde | ||||
87 | 876697 | 3.30 | 3.96 | |
Collier d'amortisseur | ||||
88 | 876706 | 1.65 | 1.98 | |
Rondelle Ø5 (x10) paquet de 10 | ||||
89 | 949431 | 1.04 | 1.24 | |
Boulon | ||||
90 | 876680 | 2.55 | 3.06 | |
RONDELLE D'ARRET | ||||
91 | 876686 | 1.04 | 1.24 | |
Pas d'informations disponibles, non commandable | ||||
92 | 876677 | |||
Pas d'informations disponibles, non commandable | ||||
93 | 874780 | |||
Pas d'informations disponibles, non commandable | ||||
94B | 878312 | |||
Pas d'informations disponibles, non commandable | ||||
97 | 880040 | |||
Vis M5*14 (paquet de 10) | ||||
98 | 949665 | 2.10 | 2.52 | |
ÉTIQUETTE D'AVERTISSEMENT | ||||
99A | 884070 | 1.65 | 1.98 | |
Plus disponible, pas de remplacement | ||||
100 | 878183 | |||
Étiquette d'avertissement (a) | ||||
101 | 883513 | 1.65 | 1.98 | |
Joint | ||||
102 | 875638 | 1.65 | 1.98 | |
Joint torique (i.d 10,7) | ||||
102A | 884112 | 1.65 | 1.98 | |
Pas d'informations disponibles, non commandable | ||||
501 | 944459 | |||
Pas d'informations disponibles, non commandable | ||||
502B | 877153 | |||
Pas d'informations disponibles, non commandable | ||||
503B | 875769 | |||
Étiquette de mise en garde | ||||
504 | 882413 | 1.95 | 2.34 | |
Pas d'informations disponibles, non commandable | ||||
505 | 882414 | |||
Pas d'informations disponibles, non commandable | ||||
601 | 876750Z | |||
Hex.cle Hd.boulon M5x90 | ||||
602 | 876607 | 2.10 | 2.52 | |
Pas d'informations disponibles, non commandable | ||||
603 | 876618 | |||
Joint (g) | ||||
604A | 876749 | 1.05 | 1.26 | |
Pas d'informations disponibles, non commandable | ||||
605 | 876606 | |||
Pas d'informations disponibles, non commandable | ||||
606 | 876605 | |||
Pas d'informations disponibles, non commandable | ||||
607 | 876441 | |||
Pas d'informations disponibles, non commandable | ||||
608 | 876604 | |||
Pas d'informations disponibles, non commandable | ||||
609 | 876720 | |||
Pas d'informations disponibles, non commandable | ||||
610 | 874116 | |||
Pas d'informations disponibles, non commandable | ||||
611 | 876754Z | |||
Pas d'informations disponibles, non commandable | ||||
612 | 876755Z | |||
Piston (A) | ||||
613 | 876723Z | 13.05 | 15.66 | |
Piston (B) | ||||
614 | 876724Z | 11.70 | 14.04 | |
Ressort | ||||
615 | 877144 | 1.65 | 1.98 | |
Ressort de piston (a) | ||||
616 | 876725Z | 1.04 | 1.24 | |
RESSORT DE PISTON (B) | ||||
617 | 876726 | 1.04 | 1.24 | |
Bague de vanne (d) | ||||
618 | 876727Z | 17.88 | 21.45 | |
Joint Torique | ||||
619 | 874820 | 1.65 | 1.98 | |
Pas d'informations disponibles, non commandable | ||||
620 | 876750 | |||
Pas d'informations disponibles, non commandable | ||||
621 | 876762 | |||
Graisse (attolub n°2) 500g | ||||
622 | 317918 | 32.18 | 38.61 |
