Dessins techniques et pièces de rechange Hikoki THT-2520SB
Type exact:
THT-2520SB
THT-2520SB

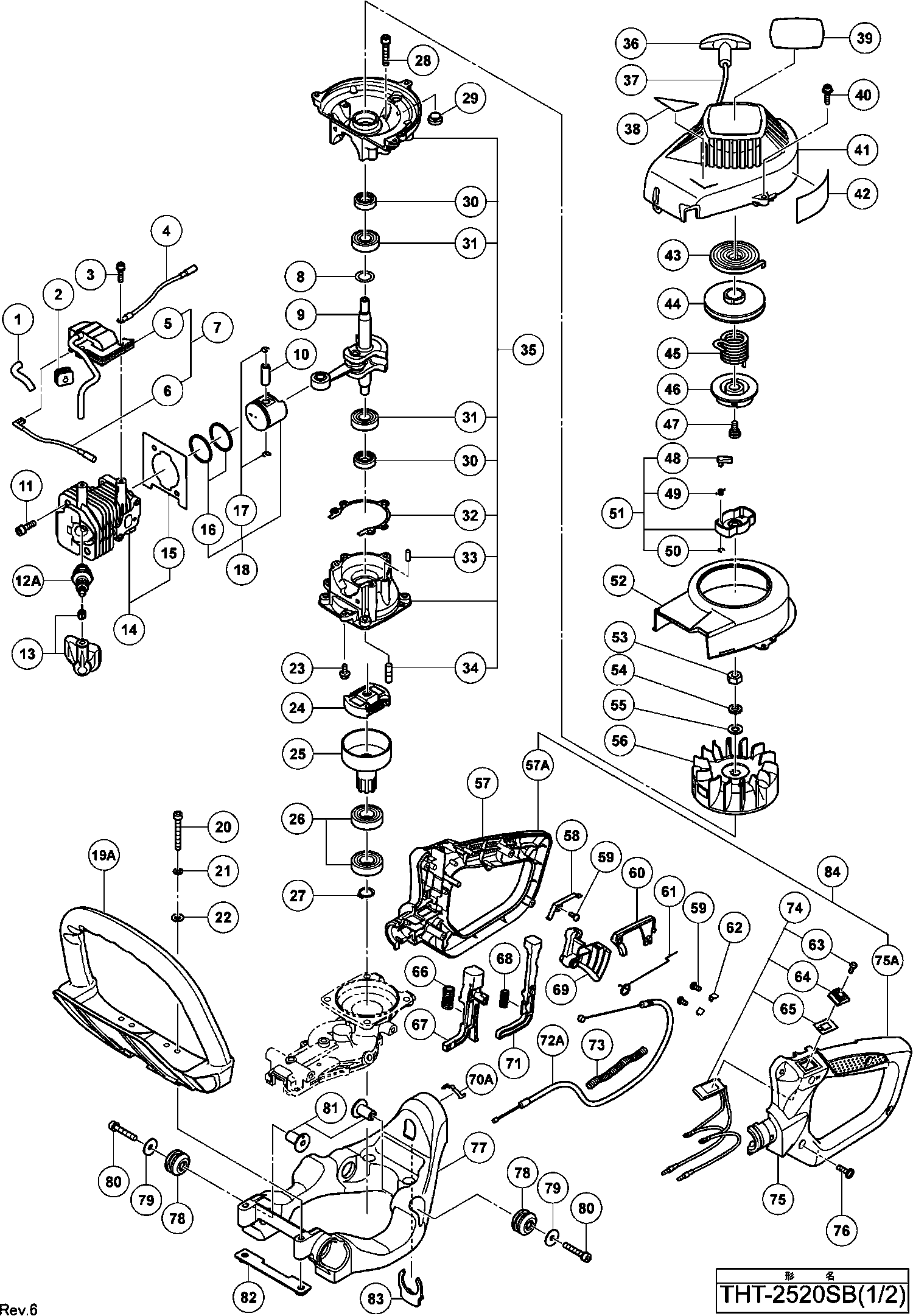

Dessins des HIKOKI THT-2520SB
Liste de pièces de rechange des HIKOKI THT-2520SB
Sur cette page, vous pouvez ajouter des pièces de rechange à votre panier en sélectionnant la quantité désirée et en cliquant sur le bouton derrière. Si vous avez terminé votre sélection, veuillez activer le bouton "Votre panier" en bas de la page. Les prix mentionnés ci-dessous sont TTC. Le montant exact de la TVA est calculé dans le panier en fonction du pays dans lequel vous souhaitez recevoir le colis.
| Insulator Tube 50l (old 250-06500-20) | ||||
| 1 | 6684597 | Insulator Tube 50l (old 250-06500-20) | € 2.08 | |
| Grommet (old 203-0604a-20) | ||||
| 2 | 6688050 | Grommet (old 203-0604a-20) | € 1.11 | |
| Vis Ø4x18 Till H124040 | ||||
| 3 | 6684599 | Vis Ø4x18 Till H124040 | € 2.08 | |
| Cord (old 274-51705-80) | ||||
| 4 | 6688477 | Cord (old 274-51705-80) | € 2.24 | |
| Cord 200m (old 178-51705-80) | ||||
| 6 | 6687918 | Cord 200m (old 178-51705-80) | € 3.19 | |
| Gear Shaft Shim 0.20 (oud 330-00200-23) | ||||
| 8 | 6684604 | Gear Shaft Shim 0.20 (oud 330-00200-23) | € 2.08 | |
| Gear Shaft Shim 0.30 (oud 330-00200-24) | ||||
| 8 | 6684605 | Gear Shaft Shim 0.30 (oud 330-00200-24) | € 2.08 | |
| Crank Shaft Comp. (old 046-06500-80) | ||||
| 9 | 6686205 | Crank Shaft Comp. (old 046-06500-80) | € 69.99 | |
| Goupille | ||||
| 10 | 6684591 | Goupille | € 4.15 | |
| Vis Ø5x18 | ||||
| 11 | 6684586 | Vis Ø5x18 | € 2.08 | |
| Bougie (oud 6685086) | ||||
| 12A | 6699319 | Bougie (oud 6685086) | € 8.63 | |
| Spark Plug Cap Ass'y (old 157-06500-91) | ||||
| 13 | 6687476 | Spark Plug Cap Ass'y (old 157-06500-91) | € 4.31 | |
| Cylinder Set (old 001-06600-90) | ||||
| 14 | 6685481 | Cylinder Set (old 001-06600-90) | € 42.89 | |
| Cylinder Gasket (old 017-06500-20) | ||||
| 15 | 6685744 | Cylinder Gasket (old 017-06500-20) | € 1.11 | |
| Piston Ring (oud 041-01601-20) | ||||
| 16 | 6684588 | Piston Ring (oud 041-01601-20) | € 8.30 | |
| Piston Pin Circlip (old 039-01620-20) | ||||
| 17 | 6686028 | Piston Pin Circlip (old 039-01620-20) | € 1.11 | |
| Piston Set, Spare (old 030-06600-90) | ||||
| 18 | 6685893 | Piston Set, Spare (old 030-06600-90) | € 21.53 | |
| Handle (old 6698748) | ||||
| 19A | 6699079 | Handle (old 6698748) | € 5.08 | |
| Hex. Hole Bolt 5x40 (old 990-51050-403) | ||||
| 20 | 6695054 | Hex. Hole Bolt 5x40 (old 990-51050-403) | € 1.11 | |
| Rondelle D.5 | ||||
| 21 | 6684834 | Rondelle D.5 | € 2.08 | |
| Rondelle Ø 5 | ||||
| 22 | 6684918 | Rondelle Ø 5 | € 2.08 | |
| Bolt 4x12ps (old 994-25040-128) | ||||
| 23 | 6695441 | Bolt 4x12ps (old 994-25040-128) | € 1.11 | |
| Slipkoppeling Kompleet | ||||
| 24 | 6688494 | Slipkoppeling Kompleet | € 9.43 | |
| Clutch Drum Comp. (old 288-33180-80) | ||||
| 25 | 6688570 | Clutch Drum Comp. (old 288-33180-80) | € 17.13 | |
| Roulement à billes | ||||
| 26 | 6695538 | Roulement à billes | € 6.39 | |
| Stop Ring C-15, Outer (old 993-50015-002) | ||||
| 27 | 6695285 | Stop Ring C-15, Outer (old 993-50015-002) | € 1.11 | |
| Hex. Socket Hd. Bolt M5x30 S (old 994-61050-304) | ||||
| 28 | 6684786 | Hex. Socket Hd. Bolt M5x30 S (old 994-61050-304) | € 2.08 | |
| Caoutchouc anti-vibrateur | ||||
| 29 | 6691822 | Caoutchouc anti-vibrateur | € 1.11 | |
| Olie Keerring | ||||
| 30 | 6684607 | Olie Keerring | € 4.15 | |
| Roulement à billes | ||||
| 31 | 6684608 | Roulement à billes | € 3.68 | |
| Crank Case Gasket (old 090-06500-20) | ||||
| 32 | 6686720 | Crank Case Gasket (old 090-06500-20) | € 1.11 | |
| Knock Pin 4x12 (old 999-05041-203) | ||||
| 33 | 6695521 | Knock Pin 4x12 (old 999-05041-203) | € 1.11 | |
| Stud Bolt 6x22 (old 100-02100-20) | ||||
| 34 | 6686771 | Stud Bolt 6x22 (old 100-02100-20) | € 1.11 | |
| Crank Case Ass'y (old 072-06500-90) | ||||
| 35 | 6686574 | Crank Case Ass'y (old 072-06500-90) | € 40.85 | |
| Starthendel | ||||
| 36 | 6693237 | Starthendel | € 1.11 | |
| Rope 3x890 (old 783-0651h-20) | ||||
| 37 | 6693172 | Rope 3x890 (old 783-0651h-20) | € 2.24 | |
| Hex.hole Bolt 4x18ps (old 994-63040-184) | ||||
| 40 | 6695502 | Hex.hole Bolt 4x18ps (old 994-63040-184) | € 1.11 | |
| Enveloppe De Ventilateur | ||||
| 41 | 6687014 | Enveloppe De Ventilateur | € 16.40 | |
| Recoil Spring (old 780-06097-20/6697591) | ||||
| 43 | 6684675 | Recoil Spring (old 780-06097-20/6697591) | € 11.18 | |
| Starter Rope Reel (old 774-0651h-20) | ||||
| 44 | 6693072 | Starter Rope Reel (old 774-0651h-20) | € 4.95 | |
| Dumper Spring (old 758-0651h-20) | ||||
| 45 | 6684677 | Dumper Spring (old 758-0651h-20) | € 8.30 | |
| Cam Plate (old 759-0651h-20) | ||||
| 46 | 6684678 | Cam Plate (old 759-0651h-20) | € 6.23 | |
| SET SCREW (OLD 839-03045-20) | ||||
| 47 | 6684679 | SET SCREW (OLD 839-03045-20) | € 2.08 | |
| Starter Pawl (old 788-0651h-20) | ||||
| 48 | 6684685 | Starter Pawl (old 788-0651h-20) | € 4.15 | |
| Starter Pawl Spring (old 790-06097-20) | ||||
| 49 | 6684684 | Starter Pawl Spring (old 790-06097-20) | € 4.15 | |
| D4e Retaining Ring (old 993-55040-001) | ||||
| 50 | 6685101 | D4e Retaining Ring (old 993-55040-001) | € 1.11 | |
| Starter Pulley Ass'y (old 798-0651h-90) | ||||
| 51 | 6684681 | Starter Pulley Ass'y (old 798-0651h-90) | € 12.78 | |
| Deflector (old 132-06602-20) | ||||
| 52 | 6687209 | Deflector (old 132-06602-20) | € 6.23 | |
| Nut M8 (old 991-01080-011/327325/332299/726603) | ||||
| 53 | 6684612 | Nut M8 (old 991-01080-011/327325/332299/726603) | € 2.08 | |
| Bague | ||||
| 54 | 6684971 | Bague | € 1.00 | |
| Ring M8 (old 992-01080-011) | ||||
| 55 | 6684611 | Ring M8 (old 992-01080-011) | € 2.08 | |
| Vliegwiel | ||||
| 56 | 6687389 | Vliegwiel | € 25.33 | |
| Épuisé | ||||
| 57A | 6698868 | Épuisé | ||
| Earth Terminal | ||||
| 58 | 6696350 | Earth Terminal | € 1.02 | |
| Tapschroef D3 | ||||
| 59 | 696352 | Tapschroef D3 | € 1.09 | |
| Schakelaar Blokkering | ||||
| 60 | 6696344 | Schakelaar Blokkering | € 1.02 | |
| Throttle Lever Spring | ||||
| 61 | 6696345 | Throttle Lever Spring | € 1.02 | |
| Tab Terminal | ||||
| 62 | 6696355 | Tab Terminal | € 1.02 | |
| Screw 3x10 (old 994-31030-101) | ||||
| 63 | 6684913 | Screw 3x10 (old 994-31030-101) | € 2.08 | |
| Button Stop (old 258-11650-20) | ||||
| 64 | 6688366 | Button Stop (old 258-11650-20) | € 1.11 | |
| Stop Button Mark (old 925-33160-20) | ||||
| 65 | 6694588 | Stop Button Mark (old 925-33160-20) | € 1.11 | |
| Spring (a) | ||||
| 66 | 6696348 | Spring (a) | € 1.02 | |
| Lock Lever | ||||
| 67 | 6696346 | Lock Lever | € 1.02 | |
| Spring (b) | ||||
| 68 | 6696349 | Spring (b) | € 1.02 | |
| Regulateur | ||||
| 69 | 6696343 | Regulateur | € 1.02 | |
| Épuisé | ||||
| 70A | 6698784 | Épuisé | ||
| Release Lever | ||||
| 71 | 6696347 | Release Lever | € 1.02 | |
| Gaskabel | ||||
| 72A | 6698828 | Gaskabel | € 3.05 | |
| Protection Tube 150l (old 164-07015-01) | ||||
| 73 | 6687524 | Protection Tube 150l (old 164-07015-01) | € 1.11 | |
| Stop Switch Ass'y (a) | ||||
| 74 | 6696354 | Stop Switch Ass'y (a) | € 13.73 | |
| Handle (b) | ||||
| 75A | 6698869 | Handle (b) | € 4.50 | |
| Vis Ø 4*16 Noir | ||||
| 76 | 305812 | Vis Ø 4*16 Noir | € 1.00 | |
| Frame Ch66eb3/ch78ec3 | ||||
| 77 | 6696363 | Frame Ch66eb3/ch78ec3 | € 8.57 | |
| Damper B (old 266-32750-20/6688412) | ||||
| 78 | 6688412 | Damper B (old 266-32750-20/6688412) | € 1.11 | |
| Bague | ||||
| 79 | 6689680 | Bague | € 1.11 | |
| Hex. Socket Hd. Bolt M5x30 S (old 994-61050-304) | ||||
| 80 | 6684786 | Hex. Socket Hd. Bolt M5x30 S (old 994-61050-304) | € 2.08 | |
| Damper Collar B (old 276-32710-20) | ||||
| 81 | 6688485 | Damper Collar B (old 276-32710-20) | € 1.11 | |
| Handle Support Comp. (old 040-33160-80) | ||||
| 82 | 6686111 | Handle Support Comp. (old 040-33160-80) | € 2.24 | |
| Clip | ||||
| 83 | 6696359 | Clip | € 1.02 | |
| Épuisé | ||||
| 84 | 6698870 | Épuisé | ||
| Tapping Screw D4.5x16 (old 990-72045-164/790451) | ||||
| 91 | 6684636 | Tapping Screw D4.5x16 (old 990-72045-164/790451) | € 2.08 | |
| Muffler Protector (old 738-06600-20) | ||||
| 92 | 6692799 | Muffler Protector (old 738-06600-20) | € 5.43 | |
| Hex. Socket Hd. Bolt M5x50 (old 990-51050-503) | ||||
| 93 | 6685114 | Hex. Socket Hd. Bolt M5x50 (old 990-51050-503) | € 1.11 | |
| Bague | ||||
| 94 | 6684661 | Bague | € 2.08 | |
| Muffler Set (old 704-06504-91) | ||||
| 95 | 6692477 | Muffler Set (old 704-06504-91) | € 12.62 | |
| Warmteschild | ||||
| 96 | 6687252 | Warmteschild | € 2.24 | |
| Muffler Gasket (old 737-06500-20) | ||||
| 97 | 6692744 | Muffler Gasket (old 737-06500-20) | € 1.11 | |
| Intake Pipe Gasket (old 403-06500-20) | ||||
| 98 | 6689891 | Intake Pipe Gasket (old 403-06500-20) | € 1.11 | |
| Carb. Insulator Set,spare (old 404-06500-90) | ||||
| 99 | 6689966 | Carb. Insulator Set,spare (old 404-06500-90) | € 6.70 | |
| Hex. Hole Bolt 5x25ws (old 994-64050-254/6696513) | ||||
| 100 | 6695515 | Hex. Hole Bolt 5x25ws (old 994-64050-254/6696513) | € 1.11 | |
| Carburetor Gasket (old 402-06500-20) | ||||
| 101 | 6689839 | Carburetor Gasket (old 402-06500-20) | € 1.11 | |
| Carburateurset | ||||
| 102 | 6690487 | Carburateurset | € 69.99 | |
| Épuisé | ||||
| 103 | 6684628 | Épuisé | ||
| Épuisé | ||||
| 104 | 6695670 | Épuisé | ||
| Cleaner Body Comp. (old 423-06500-81/6690118) For | ||||
| 105 | 6690119 | Cleaner Body Comp. (old 423-06500-81/6690118) For | € 4.31 | |
| Collar 7.5 (old 470-06500-20) | ||||
| 106 | 6690804 | Collar 7.5 (old 470-06500-20) | € 1.11 | |
| Choke Valve (old 528-0650t-20) | ||||
| 107 | 6691274 | Choke Valve (old 528-0650t-20) | € 2.24 | |
| Épuisé | ||||
| 108 | 6684658 | Épuisé | ||
| Blow Over Check Board (old 476-01700-20/790189) | ||||
| 109 | 6690843 | Blow Over Check Board (old 476-01700-20/790189) | € 1.11 | |
| Ring (oud 992-10050-012) | ||||
| 110 | 6684662 | Ring (oud 992-10050-012) | € 2.08 | |
| Screw M5x60 (oud 990-11050-602) | ||||
| 111 | 6684660 | Screw M5x60 (oud 990-11050-602) | € 2.08 | |
| Reinigingsspons | ||||
| 112 | 6690364 | Reinigingsspons | € 1.11 | |
| Luchtfilterkap | ||||
| 113 | 6690417 | Luchtfilterkap | € 5.75 | |
| Special Screw (old 380-0637c-20) | ||||
| 114 | 6689737 | Special Screw (old 380-0637c-20) | € 1.11 | |
| Swivel (oud 539-25120-20) | ||||
| 115 | 6684697 | Swivel (oud 539-25120-20) | € 6.23 | |
| Stop Ring (oud 489-25100-20) | ||||
| 116 | 6684696 | Stop Ring (oud 489-25100-20) | € 2.08 | |
| O-RING (OUD 550-25100-20) | ||||
| 117 | 6684695 | O-RING (OUD 550-25100-20) | € 4.15 | |
| Main Jet #34.5 (old 599-200bw-34) | ||||
| 118 | 6691888 | Main Jet #34.5 (old 599-200bw-34) | € 6.07 | |
| Inlet Screen (oud 578-25007-20) | ||||
| 119 | 6684700 | Inlet Screen (oud 578-25007-20) | € 4.15 | |
| Pump Body Comp. (old 575-25147-80/6691428) | ||||
| 120 | 6691430 | Pump Body Comp. (old 575-25147-80/6691428) | € 34.99 | |
| Diaphragm Cover (old 476-25004-20) | ||||
| 121 | 6685222 | Diaphragm Cover (old 476-25004-20) | € 4.31 | |
| Set Screw (old 548-25101-20) | ||||
| 122 | 6691312 | Set Screw (old 548-25101-20) | € 1.11 | |
| Throttle Set Screw (old 548-25140-20) | ||||
| 123 | 6684698 | Throttle Set Screw (old 548-25140-20) | € 4.15 | |
| Throttle Valve Comp. (old 488-25145-80) | ||||
| 124 | 6684883 | Throttle Valve Comp. (old 488-25145-80) | € 18.15 | |
| Pump Gasket (old 577-25100-20) | ||||
| 125 | 6691457 | Pump Gasket (old 577-25100-20) | € 6.87 | |
| Pump Diaphragm (old 576-25100-20 & 6696325) | ||||
| 126 | 6684693 | Pump Diaphragm (old 576-25100-20 & 6696325) | € 8.30 | |
| Diaphragm Packing (old 475-25038-20) | ||||
| 127 | 6685220 | Diaphragm Packing (old 475-25038-20) | € 2.24 | |
| Metering Diaphragm Comp. (old 474-25001-80/6690826 | ||||
| 128 | 6690827 | Metering Diaphragm Comp. (old 474-25001-80/6690826 | € 11.34 | |
| Priming Pump Comp. (old 442-25143-80) | ||||
| 129 | 6685139 | Priming Pump Comp. (old 442-25143-80) | € 5.75 | |
| Fuel Pipe 2.5x4x80 (old 700-02504-08) | ||||
| 130 | 6692347 | Fuel Pipe 2.5x4x80 (old 700-02504-08) | € 1.11 | |
| Collar 5.8 (old 659-00801-20) | ||||
| 131 | 6692244 | Collar 5.8 (old 659-00801-20) | € 1.11 | |
| Hex. Hole Bolt 5x18ps (old 994-63050-185) | ||||
| 132 | 6695505 | Hex. Hole Bolt 5x18ps (old 994-63050-185) | € 1.11 | |
| Resevoir | ||||
| 133 | 6696360 | Resevoir | € 3.92 | |
| Air Vent Ass'y (old 564-06611-90) | ||||
| 134 | 6691389 | Air Vent Ass'y (old 564-06611-90) | € 9.90 | |
| Air Vent Valve Ass'y (old 646-06612-90) | ||||
| 136 | 6692171 | Air Vent Valve Ass'y (old 646-06612-90) | € 4.79 | |
| Fuel Pipe 2.5x4x70 (old 700-02504-07) | ||||
| 137 | 6692346 | Fuel Pipe 2.5x4x70 (old 700-02504-07) | € 1.11 | |
| Return Grommet (old 6684627) | ||||
| 138A | 6697846 | Return Grommet (old 6684627) | € 1.00 | |
| Clip.6.3 Dia. (old 680-00731-20) | ||||
| 139 | 6684619 | Clip.6.3 Dia. (old 680-00731-20) | € 2.08 | |
| Pomp Filter | ||||
| 140A | 6698874 | Pomp Filter | € 11.62 | |
| Brandstofleiding | ||||
| 141A | 6698715 | Brandstofleiding | € 9.44 | |
| Épuisé | ||||
| 142 | 6684625 | Épuisé | ||
| Tank Dop Compleet | ||||
| 143 | 6691714 | Tank Dop Compleet | € 4.31 | |
| Tank Cap D Ass'y, Black (old 595-06516-90 & 669171 | ||||
| 143 | 6691763 | Tank Cap D Ass'y, Black (old 595-06516-90 & 669171 | € 7.34 | |
| Guard Plate | ||||
| 144A | 6698894 | Guard Plate | € 1.16 | |
| U-nut M6 | ||||
| 145A | 6698946 | U-nut M6 | € 2.03 | |
| Support Plate (old 462-33290-20) | ||||
| 148 | 6690762 | Support Plate (old 462-33290-20) | € 3.19 | |
| Nut 6 Ups-p (old 991-87060-001 & 6698766) | ||||
| 149 | 6695175 | Nut 6 Ups-p (old 991-87060-001 & 6698766) | € 1.11 | |
| Bague | ||||
| 150 | 6684639 | Bague | € 2.08 | |
| Gear Case Comp. (old 300-33290-81 & 6695770) | ||||
| 151 | 6688684 | Gear Case Comp. (old 300-33290-81 & 6695770) | € 14.64 | |
| GREASE NIPPLE COMP. (OLD 300-32250-80) | ||||
| 152 | 6688643 | GREASE NIPPLE COMP. (OLD 300-32250-80) | € 1.11 | |
| Spring Nut 6 (old 994-40060-011) | ||||
| 153 | 6695475 | Spring Nut 6 (old 994-40060-011) | € 1.11 | |
| Hex. Hole Bolt 6x18/s (old 994-61060-184) | ||||
| 154 | 6695495 | Hex. Hole Bolt 6x18/s (old 994-61060-184) | € 1.11 | |
| Cutter Guide 845l M6 (old 122-33191-20) | ||||
| 155 | 6687144 | Cutter Guide 845l M6 (old 122-33191-20) | € 25.33 | |
| Guide Plate (old 075-33160-20) | ||||
| 156 | 6686612 | Guide Plate (old 075-33160-20) | € 1.11 | |
| Cam Rod (old 101-33190-20) | ||||
| 157 | 6686811 | Cam Rod (old 101-33190-20) | € 5.59 | |
| Gear 2 Comp. | ||||
| 159A | 6698773 | Gear 2 Comp. | € 18.23 | |
| Gear Case Gasket (old 303-33160-20) | ||||
| 160 | 6688909 | Gear Case Gasket (old 303-33160-20) | € 1.11 | |
| Gear Case Cover (old 630-33165-20) | ||||
| 161 | 6692101 | Gear Case Cover (old 630-33165-20) | € 6.07 | |
| Roulement à billes | ||||
| 162 | 6695547 | Roulement à billes | € 3.19 | |
| Gear Case B Comp. (old 301-33160-80) | ||||
| 163 | 6695985 | Gear Case B Comp. (old 301-33160-80) | € 9.29 | |
| Hex. Hole Bolt M4x12/s (old 994-61040-124) | ||||
| 164 | 6684595 | Hex. Hole Bolt M4x12/s (old 994-61040-124) | € 2.08 | |
| HEX. SOCKET FLAT HD. SCREW M6X25 | ||||
| 165A | 6698764 | HEX. SOCKET FLAT HD. SCREW M6X25 | € 1.16 | |
| AFDICHT RUBBER | ||||
| 166 | 6686654 | AFDICHT RUBBER | € 1.11 | |
| WASHER M6 | ||||
| 167A | 6698886 | WASHER M6 | € 1.16 | |
| Bolt (a) | ||||
| 168A | 6698887 | Bolt (a) | € 3.05 | |
| Hex. Hole Bolt 4x10s (old 994-61040-104) | ||||
| 169 | 6695484 | Hex. Hole Bolt 4x10s (old 994-61040-104) | € 1.11 | |
| Fuel Grommet | ||||
| 170 | 6698931 | Fuel Grommet | € 3.34 | |
| Blade Ass'y | ||||
| 171 | 6698774 | Blade Ass'y | € 73.60 | |
| Épuisé | ||||
| 501 | 6684813 | Épuisé | ||
| Combi Box Spanner 10x19 ,plus (old 036-29331-50) | ||||
| 502 | 6685997 | Combi Box Spanner 10x19 ,plus (old 036-29331-50) | € 4.31 | |
| Guard Plate (old 135-33191-20) | ||||
| 601 | 6687275 | Guard Plate (old 135-33191-20) | € 2.24 | |
| Ecrou de bride | ||||
| 602 | 6695170 | Ecrou de bride | € 1.11 | |
| Protection Plate (old 136-33190-20) | ||||
| 603 | 6687289 | Protection Plate (old 136-33190-20) | € 12.46 | |
| Bovenmes (a) | ||||
| 604 | 6687092 | Bovenmes (a) | € 58.42 | |
| Hex. Hole Flush Bolt 6x25 (old 990-52060-255) | ||||
| 605 | 6695075 | Hex. Hole Flush Bolt 6x25 (old 990-52060-255) | € 1.11 | |
| Bague | ||||
| 606 | 6687187 | Bague | € 1.11 | |
| Boulon | ||||
| 607 | 6687158 | Boulon | € 1.11 | |
Votre panier contient 0 de produits.
