Dessins techniques et pièces de rechange Hikoki THT-2000SB

Recherche de pièces de rechange:
Hikoki
Type exact:
THT-2000SB

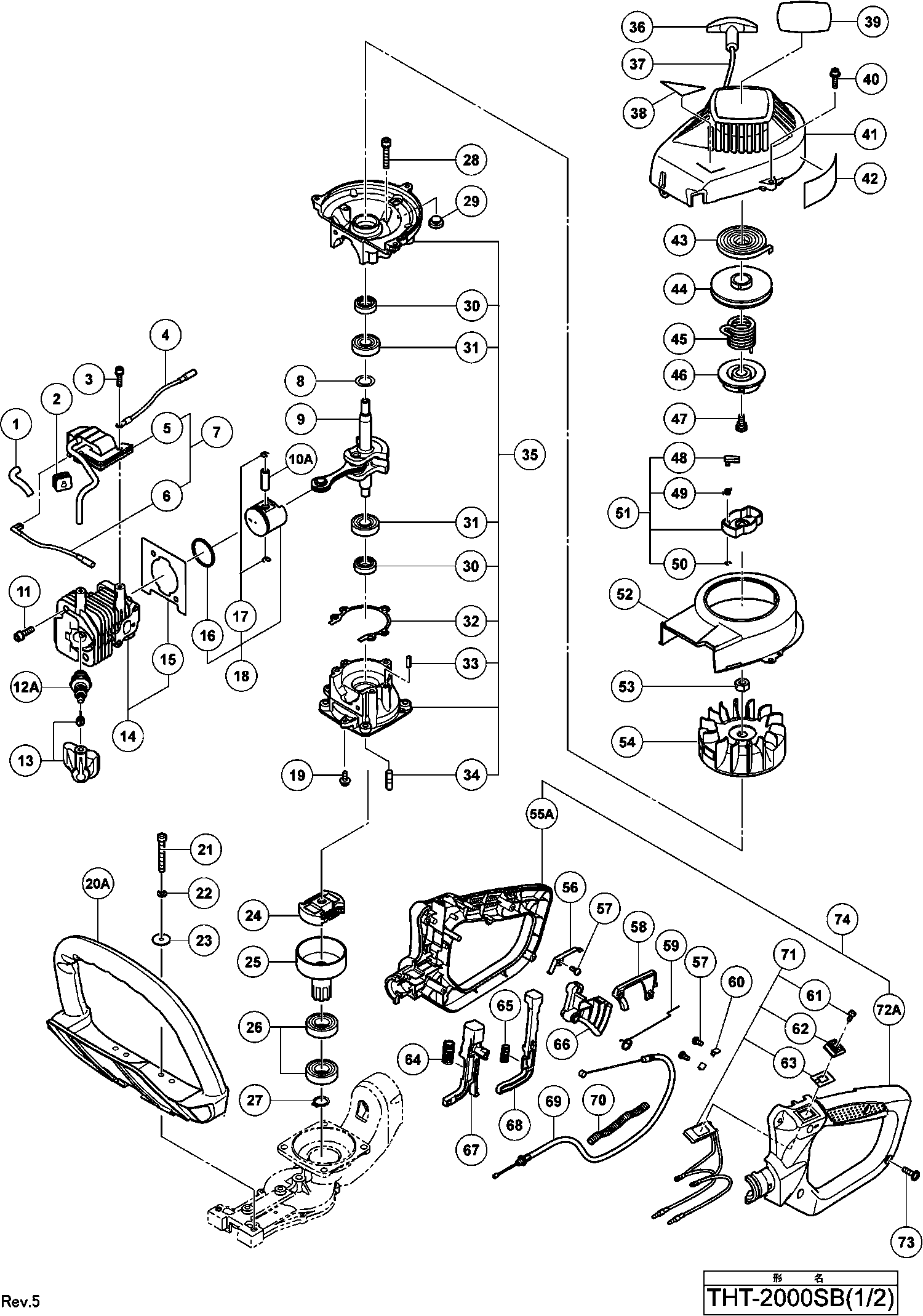

Dessins des HIKOKI THT-2000SB

Liste de pièces de rechange des HIKOKI THT-2000SB

Sur cette page, vous pouvez ajouter des pièces de rechange à votre panier en sélectionnant la quantité désirée et en cliquant sur le bouton derrière. Si vous avez terminé votre sélection, veuillez activer le bouton "Votre panier" en bas de la page. Les prix mentionnés ci-dessous sont TTC. Le montant exact de la TVA est calculé dans le panier en fonction du pays dans lequel vous souhaitez recevoir le colis.
Insulator Tube 50l (old 250-06500-20)
16684597Insulator Tube 50l (old 250-06500-20)€ 2.06
Grommet (old 203-0604a-20)
26688050Grommet (old 203-0604a-20)€ 1.10
Vis Ø4x18 Till H124040
36684599Vis Ø4x18 Till H124040€ 2.06
Cord (old 274-51705-80)
46688477Cord (old 274-51705-80)€ 2.22
Cord 200m (old 178-51705-80)
66687918Cord 200m (old 178-51705-80)€ 3.17
Gear Shaft Shim 0.20 (oud 330-00200-23)
86684604Gear Shaft Shim 0.20 (oud 330-00200-23)€ 2.06
Gear Shaft Shim 0.30 (oud 330-00200-24)
86684605Gear Shaft Shim 0.30 (oud 330-00200-24)€ 2.06
Crank Shaft Comp (old 046-06621-80)
96686208Crank Shaft Comp (old 046-06621-80)€ 38.63
Zuiger Pin
10A6696944Zuiger Pin€ 3.19
Vis Ø5x18
116684586Vis Ø5x18€ 2.06
Bougie (oud 6685086)
12A6699319Bougie (oud 6685086)€ 8.56
Spark Plug Cap Ass'y (old 157-06500-91)
136687476Spark Plug Cap Ass'y (old 157-06500-91)€ 4.27
Cylinder Set (old 001-0650a-90)
146685480Cylinder Set (old 001-0650a-90)€ 38.63
Cylinder Gasket (old 017-06500-20)
156685744Cylinder Gasket (old 017-06500-20)€ 1.10
Piston Ring (old 041-00601-21/ 6686117)
166686118Piston Ring (old 041-00601-21/ 6686117)€ 4.27
Piston Pin Circlip (old 039-00601-20)
176684590Piston Pin Circlip (old 039-00601-20)€ 2.06
Piston Set (old 030-00070-90)
186685869Piston Set (old 030-00070-90)€ 14.95
Bolt 4x12ps (old 994-25040-128)
196695441Bolt 4x12ps (old 994-25040-128)€ 1.10
Handle (old 6698748)
20A6699079Handle (old 6698748)€ 5.04
Hex. Hole Bolt 5x40 (old 990-51050-403)
216695054Hex. Hole Bolt 5x40 (old 990-51050-403)€ 1.10
Rondelle D.5
226684834Rondelle D.5€ 2.06
Bague
236689680Bague€ 1.10
Slipkoppeling Kompleet
246688494Slipkoppeling Kompleet€ 9.35
Clutch Drum Comp. (old 288-33180-80)
256688570Clutch Drum Comp. (old 288-33180-80)€ 16.99
Roulement à billes
266695538Roulement à billes€ 6.34
Stop Ring C-15, Outer (old 993-50015-002)
276695285Stop Ring C-15, Outer (old 993-50015-002)€ 1.10
Hex. Socket Hd. Bolt M5x30 S (old 994-61050-304)
286684786Hex. Socket Hd. Bolt M5x30 S (old 994-61050-304)€ 2.06
Caoutchouc anti-vibrateur
296691822Caoutchouc anti-vibrateur€ 1.10
Olie Keerring
306684607Olie Keerring€ 4.12
Roulement à billes
316684608Roulement à billes€ 3.65
Crank Case Gasket (old 090-06500-20)
326686720Crank Case Gasket (old 090-06500-20)€ 1.10
Knock Pin 4x12 (old 999-05041-203)
336695521Knock Pin 4x12 (old 999-05041-203)€ 1.10
Stud Bolt 6x22 (old 100-02100-20)
346686771Stud Bolt 6x22 (old 100-02100-20)€ 1.10
Crank Case Ass'y (old 072-06500-90)
356686574Crank Case Ass'y (old 072-06500-90)€ 40.51
Starthendel
366693237Starthendel€ 1.10
Rope 3x890 (old 783-0651h-20)
376693172Rope 3x890 (old 783-0651h-20)€ 2.22
Hex.hole Bolt 4x18ps (old 994-63040-184)
406695502Hex.hole Bolt 4x18ps (old 994-63040-184)€ 1.10
Enveloppe De Ventilateur
416687014Enveloppe De Ventilateur€ 16.26
Recoil Spring (old 780-06097-20/6697591)
436684675Recoil Spring (old 780-06097-20/6697591)€ 11.09
Starter Rope Reel (old 774-0651h-20)
446693072Starter Rope Reel (old 774-0651h-20)€ 4.91
Dumper Spring (old 758-0651h-20)
456684677Dumper Spring (old 758-0651h-20)€ 8.23
Cam Plate (old 759-0651h-20)
466684678Cam Plate (old 759-0651h-20)€ 6.18
SET SCREW (OLD 839-03045-20)
476684679SET SCREW (OLD 839-03045-20)€ 2.06
Starter Pawl (old 788-0651h-20)
486684685Starter Pawl (old 788-0651h-20)€ 4.12
Starter Pawl Spring (old 790-06097-20)
496684684Starter Pawl Spring (old 790-06097-20)€ 4.12
D4e Retaining Ring (old 993-55040-001)
506685101D4e Retaining Ring (old 993-55040-001)€ 1.10
Starter Pulley Ass'y (old 798-0651h-90)
516684681Starter Pulley Ass'y (old 798-0651h-90)€ 12.67
Deflector (old 132-06602-20)
526687209Deflector (old 132-06602-20)€ 6.18
Nut M8 (old 991-01080-011/327325/332299/726603)
536684612Nut M8 (old 991-01080-011/327325/332299/726603)€ 2.06
Épuisé
546687396Épuisé
Épuisé
55A6698868Épuisé
Earth Terminal
566696350Earth Terminal€ 1.01
Tapschroef D3
57696352Tapschroef D3€ 1.08
Schakelaar Blokkering
586696344Schakelaar Blokkering€ 1.01
Throttle Lever Spring
596696345Throttle Lever Spring€ 1.01
Tab Terminal
606696355Tab Terminal€ 1.01
Screw 3x10 (old 994-31030-101)
616684913Screw 3x10 (old 994-31030-101)€ 2.06
Button Stop (old 258-11650-20)
626688366Button Stop (old 258-11650-20)€ 1.10
Stop Button Mark (old 925-33160-20)
636694588Stop Button Mark (old 925-33160-20)€ 1.10
Spring (a)
646696348Spring (a)€ 1.01
Spring (b)
656696349Spring (b)€ 1.01
Regulateur
666696343Regulateur€ 1.01
Lock Lever
676696346Lock Lever€ 1.01
Release Lever
686696347Release Lever€ 1.01
Épuisé
696698827Épuisé
Protection Tube 130l (old 164-07013-01)
706687521Protection Tube 130l (old 164-07013-01)€ 1.10
Stop Switch Ass'y (a)
716696354Stop Switch Ass'y (a)€ 13.62
Handle (b)
72A6698869Handle (b)€ 4.46
Vis Ø 4*16 Noir
73305812Vis Ø 4*16 Noir€ 1.00
Épuisé
746698870Épuisé
Tapping Screw D4.5x16 (old 990-72045-164/790451)
916684636Tapping Screw D4.5x16 (old 990-72045-164/790451)€ 2.06
Muffler Protector (old 738-06500-20)
926692795Muffler Protector (old 738-06500-20)€ 6.65
Hex. Socket Hd. Bolt M5x50 (old 990-51050-503)
936685114Hex. Socket Hd. Bolt M5x50 (old 990-51050-503)€ 1.10
Bague
946684661Bague€ 2.06
Épuisé
956692481Épuisé
Warmteschild
966687252Warmteschild€ 2.22
Muffler Gasket (old 737-06500-20)
976692744Muffler Gasket (old 737-06500-20)€ 1.10
Intake Pipe Gasket (old 403-06500-20)
986689891Intake Pipe Gasket (old 403-06500-20)€ 1.10
Carb. Insulator Set,spare (old 404-06500-90)
996689966Carb. Insulator Set,spare (old 404-06500-90)€ 6.65
Hex. Hole Bolt 5x25ws (old 994-64050-254/6696513)
1006695515Hex. Hole Bolt 5x25ws (old 994-64050-254/6696513)€ 1.10
Carburetor Gasket (old 402-06500-20)
1016689839Carburetor Gasket (old 402-06500-20)€ 1.10
Throttle Wire Fixing Plate (old 878-06620-20)
1026684629Throttle Wire Fixing Plate (old 878-06620-20)€ 4.12
CARBURETOR GASKET (OLD 402-0602K-21/6689836)
1036684615CARBURETOR GASKET (OLD 402-0602K-21/6689836)€ 2.06
Carburateurset
1046690494Carburateurset€ 56.05
Carburateurset
1046690495Carburateurset€ 59.82
Épuisé
1056684628Épuisé
Cleaner Gasket (old 431-06020-20/791187)
1066690184Cleaner Gasket (old 431-06020-20/791187)€ 1.10
Cleaner Body Comp. (old 423-0072z-81)
1076690091Cleaner Body Comp. (old 423-0072z-81)€ 5.54
Collar (old 470-00025-20)
1086690801Collar (old 470-00025-20)€ 2.22
Choke Plate,w/1.5mm Hole (old 528-0602k-20)
1096691267Choke Plate,w/1.5mm Hole (old 528-0602k-20)€ 4.27
Spacer (oud 453-0602k-20)
1106684859Spacer (oud 453-0602k-20)€ 2.06
Bague
1116684661Bague€ 2.06
Ring (oud 992-10050-012)
1126684662Ring (oud 992-10050-012)€ 2.06
Screw 5x65 (old 990-11050-652)
1136694918Screw 5x65 (old 990-11050-652)€ 1.10
Élément de filtre à air
1146690350Élément de filtre à air€ 5.39
Air Cleaner Cap (old 424-0072z-20)
1156690142Air Cleaner Cap (old 424-0072z-20)€ 4.75
Swivel (oud 539-25120-20)
1166684697Swivel (oud 539-25120-20)€ 6.18
Stop Ring (oud 489-25100-20)
1176684696Stop Ring (oud 489-25100-20)€ 2.06
O-RING (OUD 550-25100-20)
1186684695O-RING (OUD 550-25100-20)€ 4.12
Main Jet #39 (old 599-2000w-39) New
1196684878Main Jet #39 (old 599-2000w-39) New€ 4.27
Inlet Screen (oud 578-25007-20)
1206684700Inlet Screen (oud 578-25007-20)€ 4.12
Pump Body Comp. (old 575-25157-80)
1216691433Pump Body Comp. (old 575-25157-80)€ 34.70
Priming Pump Comp. (oud 442-25151-80)
1226684687Priming Pump Comp. (oud 442-25151-80)€ 15.68
Diaphragm Cover (oud 476-25151-20)
1236684688Diaphragm Cover (oud 476-25151-20)€ 8.23
Set Screw (old 548-25151-20 & 6696324)
1246684699Set Screw (old 548-25151-20 & 6696324)€ 2.06
Throttle Set Screw (old 548-25140-20)
1256684698Throttle Set Screw (old 548-25140-20)€ 4.12
Throttle Valve Comp. (old 488-25145-80)
1266684883Throttle Valve Comp. (old 488-25145-80)€ 18.00
Pump Gasket (old 577-25100-20)
1276691457Pump Gasket (old 577-25100-20)€ 6.82
Pump Diaphragm (old 576-25100-20 & 6696325)
1286684693Pump Diaphragm (old 576-25100-20 & 6696325)€ 8.23
Diaphragm Gasket (oud 475-25153-20)
1296684691Diaphragm Gasket (oud 475-25153-20)€ 8.23
Metering Diaphragm Comp. (old 474-25001-80/6690826
1306690827Metering Diaphragm Comp. (old 474-25001-80/6690826€ 11.24
Metering Diaphragm Comp. (old 474-25241-80)
1306690830Metering Diaphragm Comp. (old 474-25241-80)€ 11.40
Priming Body (oud 447-25108-20)
1316684689Priming Body (oud 447-25108-20)€ 6.18
Resevoir
1326696356Resevoir€ 3.89
Resevoir
1326696357Resevoir€ 3.89
Air Vent Ass'y (old 564-06611-90)
1336691389Air Vent Ass'y (old 564-06611-90)€ 9.82
Air Vent Valve Ass'y (old 646-06612-90)
1356692171Air Vent Valve Ass'y (old 646-06612-90)€ 4.75
Collar 5.8 (old 659-00801-20)
1366692244Collar 5.8 (old 659-00801-20)€ 1.10
Hex. Hole Bolt 5x18ps (old 994-63050-185)
1376695505Hex. Hole Bolt 5x18ps (old 994-63050-185)€ 1.10
Clip.6.3 Dia. (old 680-00731-20)
1386684619Clip.6.3 Dia. (old 680-00731-20)€ 2.06
Pomp Filter
139A6698874Pomp Filter€ 11.52
Brandstofleiding
140A6698715Brandstofleiding€ 9.36
Épuisé
1416684625Épuisé
Tank Dop Compleet
1426691714Tank Dop Compleet€ 4.27
Tank Cap D Ass'y, Black (old 595-06516-90 & 669171
1426691763Tank Cap D Ass'y, Black (old 595-06516-90 & 669171€ 7.28
Fuel Pipe 3x5x65 (old 700-03005-06)
1436684626Fuel Pipe 3x5x65 (old 700-03005-06)€ 2.06
Return Grommet (old 6684627)
144A6697846Return Grommet (old 6684627)€ 1.00
GREASE NIPPLE COMP. (OLD 300-32250-80)
1456688643GREASE NIPPLE COMP. (OLD 300-32250-80)€ 1.10
Nylon Nut M5 (old 991-78050-010)
146305491Nylon Nut M5 (old 991-78050-010)€ 1.58
Ring 5 (oud 992-00050-011)
1476684864Ring 5 (oud 992-00050-011)€ 2.06
Épuisé
148A6698766Épuisé
Support Plate
150A6698890Support Plate€ 1.15
Cutter Cover (old 138-33258-20)
1516687311Cutter Cover (old 138-33258-20)€ 7.28
U-nut M6
152A6698946U-nut M6€ 2.02
Épuisé
153A6698784Épuisé
Tandwielkast (a)
154A6699125Tandwielkast (a)€ 17.42
Cord Clamp Comp. (old 198-10246-80)
1556688008Cord Clamp Comp. (old 198-10246-80)€ 1.10
Spring Nut 6 (old 994-40060-011)
1566695475Spring Nut 6 (old 994-40060-011)€ 1.10
Hex. Hole Bolt 6x18/s (old 994-61060-184)
1576695495Hex. Hole Bolt 6x18/s (old 994-61060-184)€ 1.10
Clip
1586696359Clip€ 1.01
Guide Plate (old 075-33287-20)
1616686614Guide Plate (old 075-33287-20)€ 4.27
Pignon
163A6698746Pignon€ 15.71
Holding Plate (old 070-33287-20)
1656686468Holding Plate (old 070-33287-20)€ 1.10
Gear Case Gasket (old 303-33160-20)
1666688909Gear Case Gasket (old 303-33160-20)€ 1.10
Gear Case Cover (old 630-33287-20)
1676692102Gear Case Cover (old 630-33287-20)€ 5.54
Hex. Hole Bolt 4x10s (old 994-61040-104)
1686695484Hex. Hole Bolt 4x10s (old 994-61040-104)€ 1.10
Afdicht Rubber
1696686658Afdicht Rubber€ 1.10
WASHER M6
170A6698886WASHER M6€ 1.15
BOLT (B)
171A6698888BOLT (B)€ 1.15
Bolt (a)
172A6698887Bolt (a)€ 3.02
Fuel Grommet
1736698931Fuel Grommet€ 3.31
Blade Ass'y (a)
1746698747Blade Ass'y (a)€ 49.24
Épuisé
5016684813Épuisé
Combi Box Spanner 10x19 ,plus (old 036-29331-50)
5026685997Combi Box Spanner 10x19 ,plus (old 036-29331-50)€ 4.27
Nut 6 Ups-p (old 991-87060-001 & 6698766)
6016695175Nut 6 Ups-p (old 991-87060-001 & 6698766)€ 1.10
Bague
6026684639Bague€ 2.06
Support Plate (old 462-33287-20)
6036690761Support Plate (old 462-33287-20)€ 3.17
Ecrou de bride
6046695170Ecrou de bride€ 1.10
Cutter Guide 590 (old 6687152)
605A6697700Cutter Guide 590 (old 6687152)€ 10.78
Bague
6086687187Bague€ 1.10
Boulon
6096687162Boulon€ 1.10
Boulon
6106687158Boulon€ 1.10
Votre panier contient 0 de produits.
