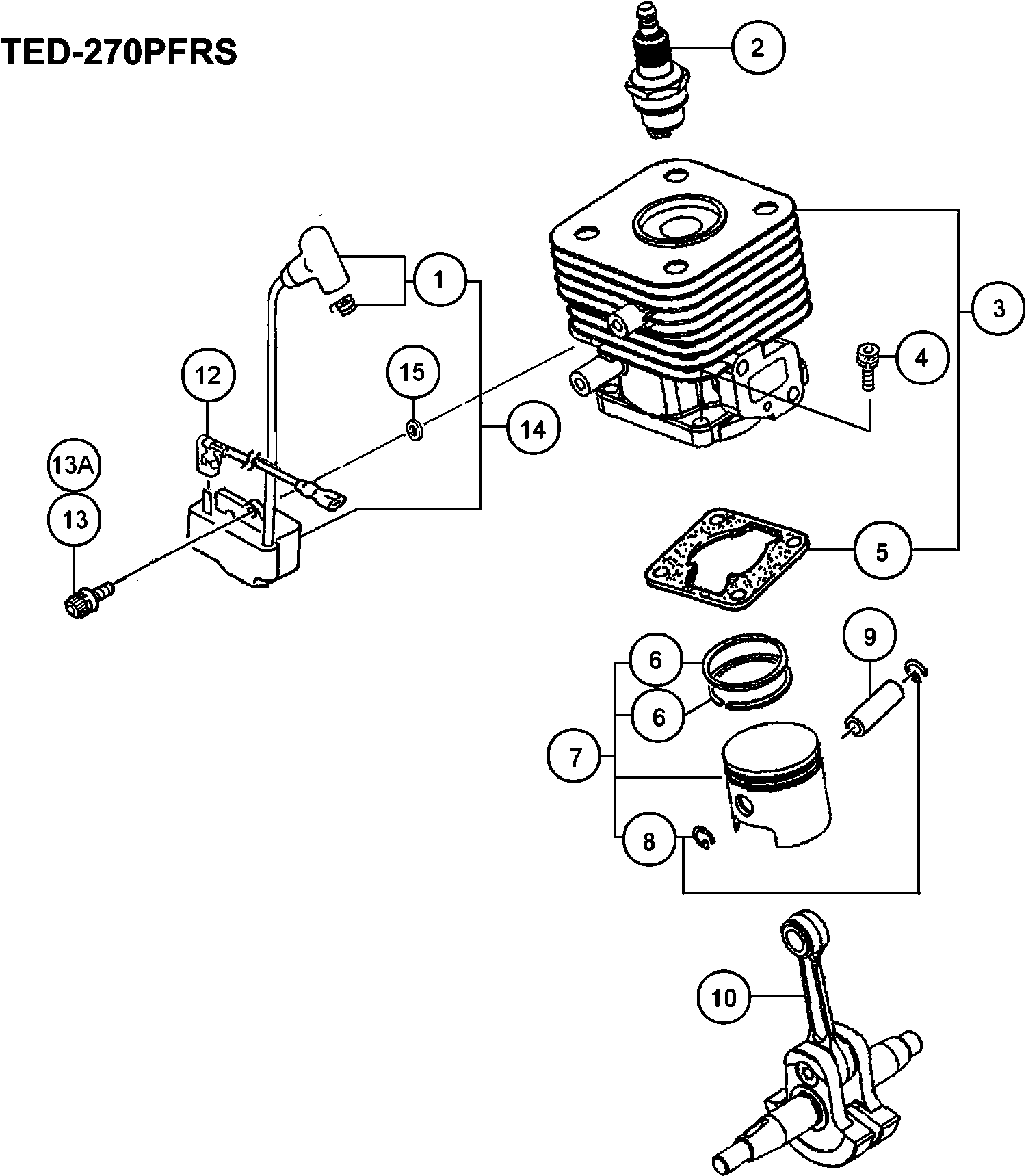

Dessins des Hikoki TED-270PFRS
Liste de pièces de rechange des Hikoki TED-270PFRS
Pos. | Description | Prix hors TVA | Prix TTC | |
Les prix affichés incluent la TVA | ||||
Anti Parasite | ||||
1 | 6684894 | 8.58 | 10.29 | |
BOUGIE BMR6A | ||||
2 | 6699315 | 13.35 | 16.02 | |
Pas d'informations disponibles, non commandable | ||||
3 | 6685495 | |||
Boulon à trou hexagonal M5x18 / s (ancien 994-6105 | ||||
4 | 6684586 | 2.15 | 2.58 | |
Joint de cylindre (ancien 017-07350-20) | ||||
5 | 6684896 | 2.15 | 2.58 | |
Bague de piston (ancien 041-01700-20) | ||||
6 | 6686121 | 4.45 | 5.34 | |
Ensemble de pistons (ancien 030-07350-90) | ||||
7 | 6685902 | 20.11 | 24.14 | |
Circlip de goupille de piston (ancien 039-00601-20 | ||||
8 | 6684590 | 2.15 | 2.58 | |
Goupille de Piston (ancien 037-07045-20) | ||||
9 | 6684591 | 4.29 | 5.14 | |
Arbre à manivelle comp. (ancien 046-07350-82) | ||||
10 | 6686219 | 72.30 | 86.76 | |
Arrêt de câble B 190m (ancien 178-01680-80) | ||||
12 | 6687836 | 2.31 | 2.78 | |
Vis Ø4x18 Till H124040 | ||||
13 | 6684599 | 2.15 | 2.58 | |
Vis haute tension 4x18ws (ancienne 994-16040-186) | ||||
13A | 6695407 | 1.15 | 1.38 | |
Bobine (ancienne 167-21015-90) | ||||
14 | 6687689 | 42.20 | 50.64 | |
Rondelle (ancien 182-0186a-20) | ||||
15 | 6684600 | 2.15 | 2.58 | |
Cale d'arbre d'engrenage 0.20 (ancien 330-00200-23 | ||||
21 | 6684604 | 2.15 | 2.58 | |
Cale d'arbre d'engrenage 0.30 (ancien 330-00200-24 | ||||
21 | 6684605 | 2.15 | 2.58 | |
Rotor de Magnéto Combiné Fw- (ancien 155-21014-80) | ||||
22 | 6687385 | 22.24 | 26.68 | |
Écrou M8 (ancien 991-01080-011/327325/332299/72660 | ||||
23 | 6684612 | 2.15 | 2.58 | |
Rondelle M8 (ancien 992-01080-011) | ||||
24 | 6684611 | 2.15 | 2.58 | |
Carter d'assemblage (ancien 072-03045-94) | ||||
25 | 6684905 | 54.45 | 65.34 | |
Joint d'huile | ||||
26 | 6684607 | 4.29 | 5.14 | |
Roulement à billes 6001 C3 | ||||
27 | 6684608 | 3.80 | 4.56 | |
Joint de carter (ancien 090-07350-22) | ||||
28 | 6684904 | 2.15 | 2.58 | |
Boulon à tête hexagonale M5x16/s (ancien 994-61050 | ||||
29 | 6684903 | 2.15 | 2.58 | |
Joint de collecteur d'admission | ||||
41 | 6689895 | 1.15 | 1.38 | |
Ensemble d'isolants (ancien 404-07020-91) | ||||
42 | 6689972 | 6.28 | 7.53 | |
Vis Ø5x25 Ws (2) | ||||
43 | 6684617 | 2.15 | 2.58 | |
Joint de carburateur (ancien 402-0656a-20) | ||||
44 | 6684616 | 2.15 | 2.58 | |
Set carburateur Wyj-463 (ancien 455-0740a-90) | ||||
45 | 6690522 | 80.31 | 96.38 | |
Corps de nettoyeur complet (ancien 423-0652n-80) | ||||
46 | 6690120 | 4.45 | 5.34 | |
Éponge de nettoyage | ||||
47 | 6690365 | 1.15 | 1.38 | |
Couvercle du filtre à air | ||||
48 | 6690402 | 10.23 | 12.27 | |
Comp. de boulon de fixation de couvercle | ||||
49 | 6698730 | 3.15 | 3.78 | |
Vis 5x55 (ancienne 990-11050-552) | ||||
50 | 6694914 | 1.15 | 1.38 | |
Rondelle 5 (ancien 992-00050-011) | ||||
51 | 6684864 | 2.15 | 2.58 | |
Volet d'étranglement 2.0 (ancien 528-0652n-22/6691 | ||||
52 | 6691276 | 1.15 | 1.38 | |
Levier de contrôle de l'étranglement (ancien 523-0 | ||||
53 | 6691239 | 1.15 | 1.38 | |
Réservoir Blanc (ancien 591-07350-22/6691519/66916 | ||||
54 | 6691602 | 15.13 | 18.15 | |
Resevoir | ||||
54A | 6601167 | 8.91 | 10.70 | |
Collier 5.8 (ancien 659-00801-20) | ||||
55 | 6692244 | 1.15 | 1.38 | |
Grommet de retour (ancien 6684627) | ||||
56 | 6697846 | 1.04 | 1.24 | |
Grommet de carburant | ||||
56A | 6600358 | 1.04 | 1.24 | |
Pipe à carburant 3x5x65 (ancien 700-03005-06) | ||||
57 | 6684626 | 2.15 | 2.58 | |
Pas d'informations disponibles, non commandable | ||||
58 | 6684620 | |||
Clip D6 (ancien 680-00070-20) | ||||
59 | 6685198 | 1.15 | 1.38 | |
Tuyau de carburant Ass'y (ancien 223-0097a-90) | ||||
60 | 6684618 | 4.29 | 5.14 | |
Tuyau de Carburant | ||||
60A | 6601181 | 1.04 | 1.24 | |
Pas d'informations disponibles, non commandable | ||||
62 | 6685049 | |||
Pas d'informations disponibles, non commandable | ||||
63 | 6684625 | |||
Boulon à trou hexagonal 5x16/ps (ancien 994-63050- | ||||
64 | 6695504 | 1.15 | 1.38 | |
Boulon (avec bride) | ||||
64A | 6696574 | 1.05 | 1.26 | |
Vis à tôle 4x14 P (ancienne 993-49040-142/6695112) | ||||
65 | 6695280 | 1.15 | 1.38 | |
Bague | ||||
66 | 6685070 | 1.15 | 1.38 | |
Rondelle (ancienne 992-10050-012) | ||||
67 | 6684662 | 2.15 | 2.58 | |
Couvercle de Cylindre Noir (ancien 016-07500-20) | ||||
71 | 6685693 | 4.79 | 5.74 | |
Boulon à trou hexagonal 5x16/ps (ancien 994-63050- | ||||
72 | 6695504 | 1.15 | 1.38 | |
Boulon Hex. Trou 6x65 (ancien 990-51060-653) | ||||
73 | 6695067 | 1.15 | 1.38 | |
Bague | ||||
74 | 6684639 | 2.15 | 2.58 | |
Pas d'informations disponibles, non commandable | ||||
75 | 6699602 | |||
Protecteur de silencieux (ancien 738-0740a-80) | ||||
77 | 6692817 | 20.11 | 24.14 | |
Boulon à trou hexagonal 4x18ws (ancien 994-64040-1 | ||||
78 | 6695508 | 1.15 | 1.38 | |
Vis 4x18/ps (ancien 994-15040-182) | ||||
78A | 6695375 | 1.15 | 1.38 | |
Déflecteur d'air | ||||
79 | 6687216 | 3.30 | 3.96 | |
Bague | ||||
80 | 6684642 | 2.15 | 2.58 | |
Pas d'informations disponibles, non commandable | ||||
80A | 6697619 | |||
Chaussure d'accouplement | ||||
81 | 6684643 | 11.55 | 13.86 | |
Pas d'informations disponibles, non commandable | ||||
81A | 6697656 | |||
Ressort d'embrayage (ancien 342-0630b-20) | ||||
82 | 6684644 | 2.15 | 2.58 | |
Ressort d'embrayage | ||||
82A | 6697657 | 1.04 | 1.24 | |
Plaque d'embrayage A 0.5 (ancienne 348-0630a-20/66 | ||||
83 | 6684645 | 2.15 | 2.58 | |
Plaque d'embrayage A (ancien 348-0602r-20) | ||||
83A | 6689528 | 1.15 | 1.38 | |
Boulon d'étape (ancien 357-0075t-20) | ||||
84 | 6684646 | 2.15 | 2.58 | |
Boulon d'étape (ancien 357-00601-20) | ||||
84A | 6689627 | 1.15 | 1.38 | |
Boulon à trou hexagonal M5x18/ws (ancien 994-64050 | ||||
85 | 6684647 | 2.15 | 2.58 | |
Bague | ||||
86 | 6684648 | 2.15 | 2.58 | |
Kit d'embrayage | ||||
87 | 6697655 | 6.76 | 8.12 | |
Boulon à trou hexagonal 4x15/ps (ancien 994-63040- | ||||
88 | 6684682 | 2.15 | 2.58 | |
Bouclier thermique | ||||
89 | 6687265 | 4.45 | 5.34 | |
Vis autotaraudeuse 4x14 (ancien 993-48040-142) | ||||
90 | 6684751 | 2.15 | 2.58 | |
Enveloppe De Ventilateur | ||||
91 | 6687037 | 19.81 | 23.78 | |
Passe-câble principal (ancien 203-11660-20) | ||||
92 | 6688057 | 1.15 | 1.38 | |
Joint spécial d'échappement (ancien 751-06500-20) | ||||
93 | 6692886 | 1.15 | 1.38 | |
Ensemble de tuyaux d'échappement (ancienne 734-074 | ||||
94 | 6692716 | 4.79 | 5.74 | |
Vis M4x8/ws (ancien 994-36040-081) | ||||
95 | 6684651 | 2.15 | 2.58 | |
Pare-étincelles (ancien 732-0740a-20) Nouveau | ||||
96 | 6692702 | 2.31 | 2.78 | |
Pas d'informations disponibles, non commandable | ||||
101A | 6699995 | |||
Boîtier de Démarreur à Rappel Comp. (ancien 772-07 | ||||
102 | 6684673 | 19.06 | 22.88 | |
Corde de démarrage 3.5x860 (ancien 783-0720f-20/66 | ||||
103 | 6684674 | 4.29 | 5.14 | |
Ressort de rappel (ancien 780-06097-20/6697591) | ||||
104 | 6684675 | 11.55 | 13.86 | |
Bobine de corde de démarrage | ||||
105A | 6699997 | 8.41 | 10.10 | |
Ressort d'amortisseur (ancien 758-0651h-20) | ||||
106 | 6684677 | 8.58 | 10.29 | |
PLAQUE À CAMES | ||||
107A | 6699996 | 2.55 | 3.06 | |
Vis de réglage (ancienne 839-03045-20) | ||||
108 | 6684679 | 2.15 | 2.58 | |
Poignée de démarrage | ||||
109 | 6684680 | 2.15 | 2.58 | |
Poulie de démarrage Ass'y (ancien 798-0651h-90) | ||||
110 | 6684681 | 13.20 | 15.84 | |
Bague de retenue D4e (ancien 993-55040-001) | ||||
111 | 6685101 | 1.15 | 1.38 | |
Ressort de griffe de démarrage (ancien 790-06097-2 | ||||
112 | 6684684 | 4.29 | 5.14 | |
Pince d'allumage (ancien 788-0651h-20) | ||||
113 | 6684685 | 4.29 | 5.14 | |
Boulon à trou hexagonal 4x18ws (ancien 994-64040-1 | ||||
114 | 6695508 | 1.15 | 1.38 | |
Vis 4x18/ps (ancien 994-15040-182) | ||||
114A | 6695375 | 1.15 | 1.38 | |
Ass'y de Plaque de Came | ||||
115 | 6699691 | 6.10 | 7.32 | |
Corps de pompe comp. (ancien 575-25153-80) | ||||
121 | 6684879 | 62.16 | 74.60 | |
Pompe d'amorçage comp. (ancien 442-25151-80) | ||||
122 | 6684687 | 16.34 | 19.60 | |
Couvercle de membrane (ancien 476-25151-20) | ||||
123 | 6684688 | 8.58 | 10.29 | |
Corps d'amorçage (ancien 447-25108-20) | ||||
124 | 6684689 | 6.44 | 7.72 | |
Diaphragme de mesure (ancien 474-25601-20) | ||||
125 | 6684690 | 18.00 | 21.60 | |
Joint de diaphragme (ancien 475-25153-20) | ||||
126 | 6684691 | 8.58 | 10.29 | |
Diaphragme de pompe (ancien 576-25100-20 & 6696325 | ||||
127 | 6684693 | 8.58 | 10.29 | |
Joint de pompe (ancien 577-25292-20 & 6696321) | ||||
128 | 6684692 | 29.19 | 35.02 | |
Gicleur principal #38.5 (ancien 599-200bw-38/66918 | ||||
129 | 6696130 | 5.78 | 6.93 | |
O-RING (ancien 550-25100-20) | ||||
130 | 6684695 | 4.29 | 5.14 | |
Bague d'arrêt (ancien 489-25100-20) | ||||
131 | 6684696 | 2.15 | 2.58 | |
Pivot (ancien 539-25120-20) | ||||
132 | 6684697 | 6.44 | 7.72 | |
Vis de Réglage de l'Accélérateur (ancien 514-25100 | ||||
133 | 6684870 | 2.15 | 2.58 | |
Régleur de câble (vieux 544-25164-20) | ||||
134 | 6684873 | 6.44 | 7.72 | |
Joint d'Épurateur (vieux 431-0634c-20) | ||||
137 | 6684875 | 4.29 | 5.14 | |
Vis de réglage (ancien 548-25151-20 & 6696324) | ||||
138 | 6684699 | 2.15 | 2.58 | |
Rondelle (vieux 549-25165-20) | ||||
139 | 6684874 | 2.15 | 2.58 | |
Écran d'entrée (ancien 578-25007-20) | ||||
140 | 6684700 | 4.29 | 5.14 | |
Pas d'informations disponibles, non commandable | ||||
151 | 6685576 | |||
Plus disponible, pas de remplacement | ||||
152 | 6685593 | |||
Plus disponible, pas de remplacement | ||||
153 | 6686684 | |||
Ressort du guide de déplacement (ancien 106-32141- | ||||
154 | 6686837 | 1.15 | 1.38 | |
Levier de changement (ancien 108-32141-20) | ||||
155 | 6686862 | 3.30 | 3.96 | |
COMP. DE GRAISSEUR (VIEUX 300-32250-80) | ||||
156 | 6688643 | 1.15 | 1.38 | |
Bille d'acier (ancien 673-35600-20) | ||||
157 | 6692271 | 1.15 | 1.38 | |
Boulon à trou hexagonal 4x8 (ancien 990-51040-083) | ||||
158 | 6695034 | 1.15 | 1.38 | |
Bague | ||||
159 | 6685070 | 1.15 | 1.38 | |
Pas d'informations disponibles, non commandable | ||||
161 | 6695591 | |||
Engrenage 4 (ancien 018-32192-20) | ||||
162 | 6685788 | 50.21 | 60.26 | |
Roulement à billes | ||||
163 | 6695587 | 14.21 | 17.06 | |
Rondelle C 5.0 (ancien 040-32120-20) | ||||
164 | 6686065 | 3.30 | 3.96 | |
Roulement à billes | ||||
165 | 6695559 | 6.44 | 7.72 | |
Bague | ||||
166 | 6695206 | 1.15 | 1.38 | |
Anneau d'arrêt C-35, interne (ancien 993-51035-002 | ||||
167 | 6695296 | 1.15 | 1.38 | |
Clavette Wood-ruff 3x13x5 (ancien 068-01006-20) | ||||
168 | 6686455 | 1.15 | 1.38 | |
Arbre d'entraînement (ancien 022-32183-20) | ||||
169 | 6685824 | 104.51 | 125.42 | |
Vis 5x18/s (ancien 994-14050-181) | ||||
170 | 6695339 | 1.15 | 1.38 | |
Pas d'informations disponibles, non commandable | ||||
171 | 6686378 | |||
Pas d'informations disponibles, non commandable | ||||
172 | 6687314 | |||
Bague d'arrêt 20, Interne (ancienne 993-57200-002) | ||||
173 | 6695316 | 1.15 | 1.38 | |
Pas d'informations disponibles, non commandable | ||||
174 | 6695522 | |||
Rondelle Elastique | ||||
175A | 942827 | 1.04 | 1.24 | |
Bague | ||||
176 | 6687320 | 1.15 | 1.38 | |
Engrenage au Ralenti (ancien 059-32141-20) | ||||
177 | 6686373 | 64.28 | 77.13 | |
Pas d'informations disponibles, non commandable | ||||
178 | 6695591 | |||
Arbre d'Idle (ancien 058-32141-20) | ||||
179 | 6686365 | 44.31 | 53.18 | |
Pas d'informations disponibles, non commandable | ||||
180 | 6686423 | |||
Arrêt Anneau C-24.inner (ancien 993-51024-002) | ||||
181 | 6684732 | 2.15 | 2.58 | |
Roulement à billes 609z ST | ||||
182 | 6684735 | 8.58 | 10.29 | |
Bague | ||||
183 | 6687320 | 1.15 | 1.38 | |
Pas d'informations disponibles, non commandable | ||||
184 | 6686411 | |||
Pas d'informations disponibles, non commandable | ||||
185 | 6695591 | |||
Arbre de compteur (ancien 063-32192-20) | ||||
186 | 6686427 | 52.34 | 62.80 | |
Bague d'arrêt C-13, externe (ancien 993-50013-002) | ||||
187 | 6695283 | 1.15 | 1.38 | |
Boîtier d'embrayage Comp. (ancien 226-32141-80) | ||||
201 | 6688199 | 12.38 | 14.85 | |
Boulon Plus 6x30 (ancien 990-23060-301) | ||||
203 | 6695022 | 1.15 | 1.38 | |
Bague | ||||
204 | 6695219 | 1.15 | 1.38 | |
Composant de la Poignée A (ancien 258-71020-80) No | ||||
205 | 6688370 | 30.25 | 36.30 | |
Poignée de prise A (ancien 165-33130-20/6691224) | ||||
206 | 6687624 | 5.78 | 6.93 | |
Levier des gaz (ancien 060-71020-20) | ||||
207 | 6686401 | 1.15 | 1.38 | |
Vis à tôle 4x14 P (ancienne 993-49040-142/6695112) | ||||
208 | 6695280 | 1.15 | 1.38 | |
Vis 4x6 (ancien 990-11040-061) | ||||
209 | 6694860 | 1.15 | 1.38 | |
Bride de cordon (ancien 198-33130-20) | ||||
210 | 6688015 | 1.15 | 1.38 | |
Boulon Plus 6x16 (ancien 990-23060-161) | ||||
211 | 6695019 | 1.15 | 1.38 | |
Bague | ||||
212 | 6695219 | 1.15 | 1.38 | |
Composant de la Poignée B (ancien 259-3210a-80) | ||||
213 | 6688372 | 13.20 | 15.84 | |
Poignée de prise (ancienne 055-32130-20) | ||||
214 | 6686350 | 5.28 | 6.33 | |
Bague | ||||
215 | 6695225 | 1.15 | 1.38 | |
Interrupteur d'arrêt comp. (ancien 170-71020-80) | ||||
216 | 6687776 | 8.58 | 10.29 | |
Bouton d'arrêt Marque (ancien 925-33160-20) | ||||
217 | 6694588 | 1.15 | 1.38 | |
Bouton Stop (ancien 258-11650-20) | ||||
218 | 6688366 | 1.15 | 1.38 | |
Vis 3x10 (ancien 994-31030-101) | ||||
219 | 6684913 | 2.15 | 2.58 | |
Câble D'accélérateur 400+30 (ancien 885-71021-80) | ||||
220 | 6693988 | 6.28 | 7.53 | |
Tube de protection 345l (ancien 164-07034-50) | ||||
221 | 6687535 | 1.15 | 1.38 | |
Support de manche de mandrin (ancien 155-3210a-20) | ||||
222 | 6687420 | 4.45 | 5.34 | |
Support de la poignée comp. (ancien 265-71000-80) | ||||
223 | 6688404 | 15.88 | 19.05 | |
Bague | ||||
224 | 6695219 | 1.15 | 1.38 | |
Pas d'informations disponibles, non commandable | ||||
225 | 6684792 | |||
Boite d'embrayage Comp. (ancien 150-32141-80) | ||||
226 | 6687336 | 40.24 | 48.28 | |
Vis 5x18/s (ancien 994-14050-181) | ||||
227 | 6695339 | 1.15 | 1.38 | |
Corps de papillon B (ancien 884-71020-20) | ||||
228 | 6693818 | 3.30 | 3.96 | |
Corps de papillon A (ancien 875-71020-20) | ||||
229 | 6693795 | 3.30 | 3.96 | |
Ressort de levier de gaz (vieux 061-71020-20) | ||||
230 | 6686421 | 1.15 | 1.38 | |
Clé mixte 10x19 (ancien 036-29710-11/6685998) | ||||
501 | 6685999 | 5.11 | 6.14 | |
Pas d'informations disponibles, non commandable | ||||
502 | 6686379 | |||
Plus disponible, pas de remplacement | ||||
503 | 6686780 | |||
Adaptateur de poignée (ancien 076-71020-20) | ||||
504 | 6686620 | 13.53 | 16.23 | |
Plaque signalétique Ted270pfrs (ancien 906-0740f-2 | ||||
601 | 6694242 | 2.10 | 2.52 |
