Dessins techniques et pièces de rechange Hikoki TCM75EAP
Type exact:
TCM75EAP
TCM75EAP

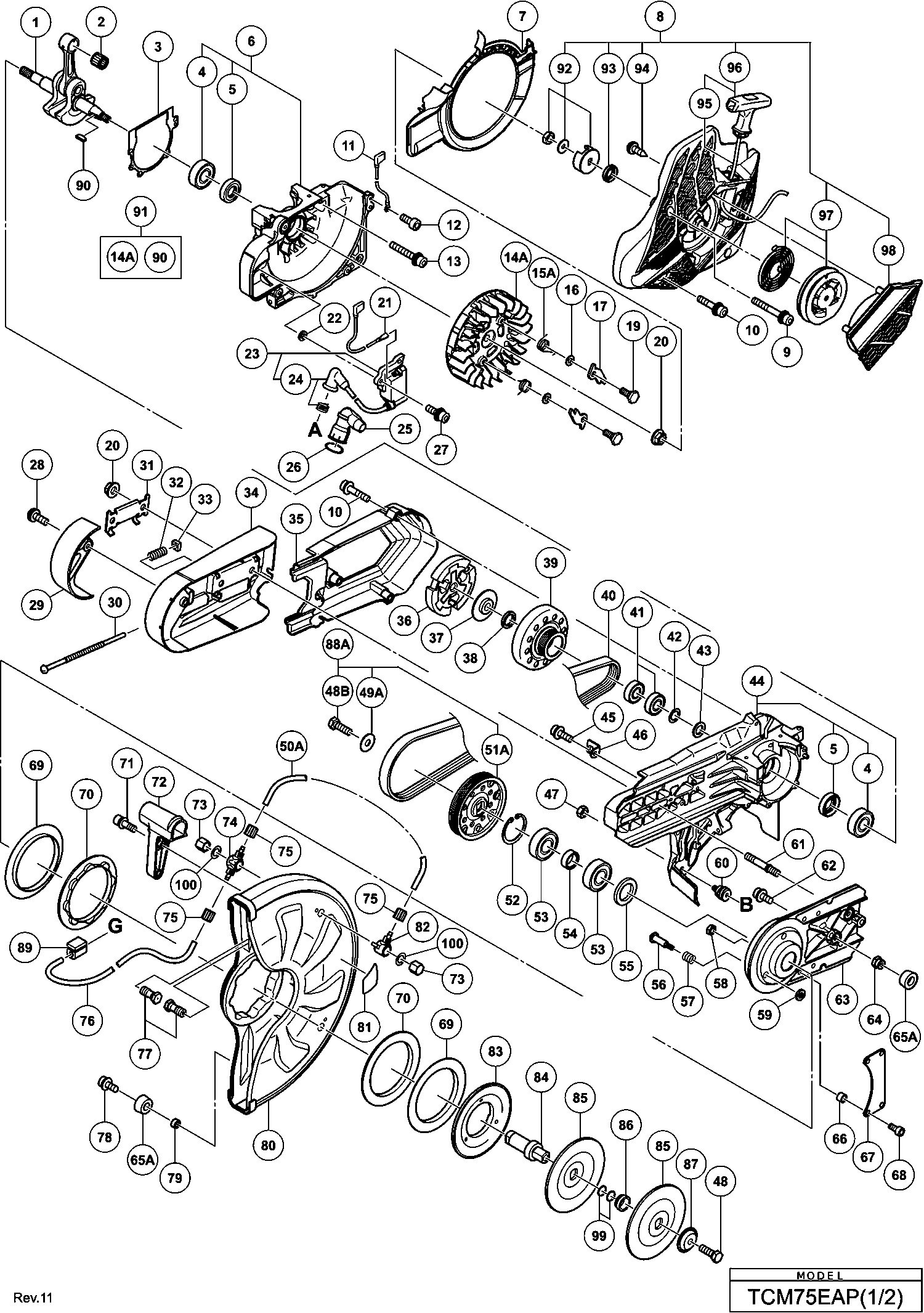

Dessins des HIKOKI TCM75EAP
Liste de pièces de rechange des HIKOKI TCM75EAP
Sur cette page, vous pouvez ajouter des pièces de rechange à votre panier en sélectionnant la quantité désirée et en cliquant sur le bouton derrière. Si vous avez terminé votre sélection, veuillez activer le bouton "Votre panier" en bas de la page. Les prix mentionnés ci-dessous sont TTC. Le montant exact de la TVA est calculé dans le panier en fonction du pays dans lequel vous souhaitez recevoir le colis.
| Krukas | ||||
| 1 | 6699801 | Krukas | € 29.55 | |
| Naaldlager (a) | ||||
| 2 | 6699803 | Naaldlager (a) | € 3.48 | |
| Crank Case Packing | ||||
| 3 | 6699800 | Crank Case Packing | € 1.00 | |
| Roulement à billes | ||||
| 4 | 6202C3 | Roulement à billes | € 4.21 | |
| Olie Keerring | ||||
| 5 | 6698914 | Olie Keerring | € 3.05 | |
| Crank Case (a) | ||||
| 6 | 6600364 | Crank Case (a) | € 91.57 | |
| Fan Guide | ||||
| 7 | 6699875 | Fan Guide | € 3.05 | |
| Épuisé | ||||
| 8 | 6699925 | Épuisé | ||
| Set Bolt M5 | ||||
| 9 | 6600374 | Set Bolt M5 | € 1.74 | |
| Set Bolt M5x25 | ||||
| 10 | 6699871 | Set Bolt M5x25 | € 1.16 | |
| Earth Cord | ||||
| 11A | 6696567 | Earth Cord | € 2.03 | |
| Vis Ø4x10 (paquet de 10) Till 12.2017 | ||||
| 12 | 949812 | Vis Ø4x10 (paquet de 10) Till 12.2017 | € 2.32 | |
| Seal Lock Hex. Socket Hd. Bolt M5 | ||||
| 13 | 6600365 | Seal Lock Hex. Socket Hd. Bolt M5 | € 1.74 | |
| Magneto Rotor (old 6699808) | ||||
| 14A | 6600458 | Magneto Rotor (old 6699808) | € 12.49 | |
| Starter Pawl Spring | ||||
| 15A | 6600477 | Starter Pawl Spring | € 1.02 | |
| Ring 0.8 | ||||
| 16 | 6696857 | Ring 0.8 | € 1.02 | |
| Starter Pawl | ||||
| 17 | 6699811 | Starter Pawl | € 1.00 | |
| Boulon | ||||
| 19 | 6696878 | Boulon | € 1.02 | |
| Moer M8 | ||||
| 20 | 6698581 | Moer M8 | € 1.16 | |
| Cord | ||||
| 21 | 6699812 | Cord | € 1.00 | |
| Bague | ||||
| 22 | 6698700 | Bague | € 1.16 | |
| Ignition Coil Ass'y | ||||
| 23 | 6699809 | Ignition Coil Ass'y | € 25.56 | |
| Cord Set | ||||
| 24 | 6600434 | Cord Set | € 10.89 | |
| Hex. Socket Hd Bolt M4x18 (w/washers) | ||||
| 27 | 6698388 | Hex. Socket Hd Bolt M4x18 (w/washers) | € 1.02 | |
| Seal Lock Hex. Socket Button Bolt M5x10 | ||||
| 28 | 6699909 | Seal Lock Hex. Socket Button Bolt M5x10 | € 1.16 | |
| Cover Plate | ||||
| 29 | 6699908 | Cover Plate | € 4.07 | |
| Tensioner Bolt | ||||
| 30 | 6699907 | Tensioner Bolt | € 2.03 | |
| Tensioner Plate | ||||
| 31 | 6699904 | Tensioner Plate | € 2.03 | |
| Tensioner Spring | ||||
| 32 | 6699906 | Tensioner Spring | € 1.16 | |
| Tension Nut | ||||
| 33 | 6699905 | Tension Nut | € 1.16 | |
| Épuisé | ||||
| 34 | 6699928 | Épuisé | ||
| Épuisé | ||||
| 35 | 6699926 | Épuisé | ||
| Clutch | ||||
| 36 | 6699823 | Clutch | € 20.23 | |
| Clutch Flange | ||||
| 37 | 6699822 | Clutch Flange | € 4.07 | |
| Feutre | ||||
| 38 | 301946 | Feutre | € 1.00 | |
| Clutch Housing | ||||
| 39 | 6699821 | Clutch Housing | € 12.49 | |
| Belt | ||||
| 40 | 6699877 | Belt | € 10.31 | |
| Kogellager 6001dducmps2s (oud 980925) | ||||
| 41 | 6001DD | Kogellager 6001dducmps2s (oud 980925) | € 6.24 | |
| Shim | ||||
| 42 | 6696946 | Shim | € 1.62 | |
| Bague | ||||
| 43 | 6685072 | Bague | € 1.11 | |
| Crank Case (b) | ||||
| 44 | 6600366 | Crank Case (b) | € 123.92 | |
| Hex. Socket Hd. Bolt M5x16 (w/washers) | ||||
| 45 | 6699826 | Hex. Socket Hd. Bolt M5x16 (w/washers) | € 1.02 | |
| Tensioner Base | ||||
| 46 | 6699825 | Tensioner Base | € 1.16 | |
| Moer M6 | ||||
| 47A | 329934 | Moer M6 | € 1.67 | |
| Bolt M8 | ||||
| 48 | 6699902 | Bolt M8 | € 1.16 | |
| Water Supply Hose | ||||
| 50A | 6600462 | Water Supply Hose | € 1.02 | |
| Circlips | ||||
| 52 | 948391 | Circlips | € 1.60 | |
| Kogellager 6203dducmav2s | ||||
| 53 | 6203DD | Kogellager 6203dducmav2s | € 7.41 | |
| Bb Collar | ||||
| 54 | 6699880 | Bb Collar | € 2.03 | |
| Feutre (1) | ||||
| 55 | 6699879 | Feutre (1) | € 1.16 | |
| Bolt M5 (s) | ||||
| 56 | 6699896 | Bolt M5 (s) | € 1.16 | |
| Wheel Guard Spring | ||||
| 57 | 6699895 | Wheel Guard Spring | € 1.16 | |
| Entretoise M5 (10 pces) | ||||
| 58 | 949566 | Entretoise M5 (10 pces) | € 1.00 | |
| Rondelle M.6 (x10) paquet de 10 | ||||
| 59 | 949425 | Rondelle M.6 (x10) paquet de 10 | € 1.02 | |
| Spring Holder | ||||
| 60A | 6601390 | Spring Holder | € 2.76 | |
| Chain Bar Bolt | ||||
| 61 | 6699881 | Chain Bar Bolt | € 2.03 | |
| Hex. Socket Hd. Bolt M5x12 (w/sp.washer) | ||||
| 62 | 6699176 | Hex. Socket Hd. Bolt M5x12 (w/sp.washer) | € 1.00 | |
| Bras | ||||
| 63 | 6600367 | Bras | € 62.02 | |
| Stopper Holder | ||||
| 64 | 6699883 | Stopper Holder | € 1.16 | |
| Stopper Rubber (2 Pcs) (old 6600368) | ||||
| 65A | 6600442 | Stopper Rubber (2 Pcs) (old 6600368) | € 2.03 | |
| Collar | ||||
| 66 | 6699866 | Collar | € 1.16 | |
| Arm Plate | ||||
| 67 | 6600396 | Arm Plate | € 1.74 | |
| Hex. Socket Hd. Bolt M5x12 (precote) | ||||
| 68 | 6696836 | Hex. Socket Hd. Bolt M5x12 (precote) | € 1.16 | |
| Plate (a) | ||||
| 69 | 6699885 | Plate (a) | € 2.03 | |
| Damper (a) | ||||
| 70 | 6699886 | Damper (a) | € 2.03 | |
| Set Bolt M5x16 | ||||
| 71 | 6699889 | Set Bolt M5x16 | € 1.16 | |
| Handle (w) | ||||
| 72 | 6699888 | Handle (w) | € 2.03 | |
| Cap Nut | ||||
| 73 | 6699892 | Cap Nut | € 2.03 | |
| Water Supply Joint (b) | ||||
| 74 | 6699891 | Water Supply Joint (b) | € 1.16 | |
| Lock Nut | ||||
| 75 | 6699912 | Lock Nut | € 1.16 | |
| Water Supply Hose | ||||
| 76 | 6699911 | Water Supply Hose | € 1.16 | |
| Nozzle Bolt | ||||
| 77 | 6699893 | Nozzle Bolt | € 4.07 | |
| Boulon | ||||
| 78 | 996399 | Boulon | € 1.00 | |
| Stopper Holder | ||||
| 79 | 6600375 | Stopper Holder | € 1.74 | |
| Wheel Guard (12') | ||||
| 80 | 6699887 | Wheel Guard (12') | € 84.65 | |
| Wheel Mark Label (12") | ||||
| 81 | 6600376 | Wheel Mark Label (12") | € 1.74 | |
| Water Supply Joint (a) | ||||
| 82 | 6699890 | Water Supply Joint (a) | € 1.16 | |
| Flange (a) | ||||
| 83 | 6699894 | Flange (a) | € 17.97 | |
| Broche (1) | ||||
| 84 | 6699882 | Broche (1) | € 11.47 | |
| Wheel Washer | ||||
| 85 | 6699897 | Wheel Washer | € 5.52 | |
| Spindle Collar | ||||
| 86 | 6699898 | Spindle Collar | € 3.05 | |
| Flange Washer | ||||
| 87 | 6699901 | Flange Washer | € 1.16 | |
| Hose Holder | ||||
| 89 | 6600457 | Hose Holder | € 1.00 | |
| Woodruff Key | ||||
| 90 | 6600459 | Woodruff Key | € 1.00 | |
| Magneto Rotor Set | ||||
| 91 | 6600460 | Magneto Rotor Set | € 13.21 | |
| Cam Complete Set | ||||
| 92 | 6600469 | Cam Complete Set | € 6.82 | |
| Starter Grommet | ||||
| 93 | 6600471 | Starter Grommet | € 5.66 | |
| Tapping Screw D4x16 | ||||
| 94 | 6600466 | Tapping Screw D4x16 | € 1.00 | |
| Starter Rope | ||||
| 95 | 6600468 | Starter Rope | € 7.41 | |
| Rope Ass'y | ||||
| 96 | 6600467 | Rope Ass'y | € 8.57 | |
| Reel Complete Set | ||||
| 97 | 6600470 | Reel Complete Set | € 20.36 | |
| Épuisé | ||||
| 98 | 6600465 | Épuisé | ||
| Joint | ||||
| 99 | 875638 | Joint | € 1.60 | |
| Pulley Washer | ||||
| 100 | 6600495 | Pulley Washer | € 1.00 | |
| Tank Dop Compleet | ||||
| 101 | 6698854 | Tank Dop Compleet | € 4.07 | |
| Tank Cap Packing (old 630-3252k-20/6685386) | ||||
| 102 | 6685179 | Tank Cap Packing (old 630-3252k-20/6685386) | € 1.11 | |
| Square Nut M5 | ||||
| 103 | 6699828 | Square Nut M5 | € 1.16 | |
| Priming Pump Comp. (old 442-25143-80) | ||||
| 104 | 6685139 | Priming Pump Comp. (old 442-25143-80) | € 5.75 | |
| BRANDSTOFLEIDING | ||||
| 105 | 6698722 | BRANDSTOFLEIDING | € 9.44 | |
| Fuel Pipe | ||||
| 106A | 6601460 | Fuel Pipe | € 2.18 | |
| Schroef D4x25 Zwart | ||||
| 107 | 304035 | Schroef D4x25 Zwart | € 1.00 | |
| Tank Mark Label | ||||
| 108 | 6698921 | Tank Mark Label | € 1.16 | |
| Tank Mark Label (25:1) | ||||
| 108 | 6698922 | Tank Mark Label (25:1) | € 1.16 | |
| Vis Ø 4*16 Noir | ||||
| 109 | 305812 | Vis Ø 4*16 Noir | € 1.00 | |
| Air Vent Cap | ||||
| 110 | 6699838 | Air Vent Cap | € 1.16 | |
| Tank Dop Compleet | ||||
| 111 | 6600370 | Tank Dop Compleet | € 14.23 | |
| Fuel Grommet | ||||
| 112 | 6698931 | Fuel Grommet | € 3.34 | |
| Return Grommet (old 6684627) | ||||
| 113 | 6697846 | Return Grommet (old 6684627) | € 1.00 | |
| Achtergreep | ||||
| 114 | 6699827 | Achtergreep | € 25.82 | |
| Long Nut M6 | ||||
| 116 | 6699852 | Long Nut M6 | € 1.16 | |
| Front Handle | ||||
| 117 | 6699842 | Front Handle | € 22.09 | |
| Tapschroef D6 | ||||
| 118 | 6696872 | Tapschroef D6 | € 1.02 | |
| Inbus Bout M6x20 | ||||
| 119 | 881722 | Inbus Bout M6x20 | € 1.74 | |
| Anti-trilveer | ||||
| 120 | 6699849 | Anti-trilveer | € 1.16 | |
| Front Adapter | ||||
| 121 | 6699847 | Front Adapter | € 13.79 | |
| Grip End (b) | ||||
| 122 | 6699844 | Grip End (b) | € 1.16 | |
| Hex. Socket Hd. Bolt M6x50 | ||||
| 123 | 6699819 | Hex. Socket Hd. Bolt M6x50 | € 1.00 | |
| Uitlaat | ||||
| 124 | 6699816 | Uitlaat | € 30.08 | |
| Hitteschild | ||||
| 125 | 6699815 | Hitteschild | € 1.74 | |
| Seal Lock Hex. Socket Hd. Bolt M6x20 | ||||
| 126 | 6698899 | Seal Lock Hex. Socket Hd. Bolt M6x20 | € 1.16 | |
| Bague | ||||
| 127 | 6685068 | Bague | € 1.11 | |
| Exhaust Pipe | ||||
| 128 | 6699818 | Exhaust Pipe | € 1.00 | |
| Exhaust Gasket | ||||
| 129 | 6699817 | Exhaust Gasket | € 1.00 | |
| Trigger Lockout Collar | ||||
| 130 | 6699836 | Trigger Lockout Collar | € 1.16 | |
| Épuisé | ||||
| 131 | 6699922 | Épuisé | ||
| Needle Pin D3 | ||||
| 132 | 6699834 | Needle Pin D3 | € 1.16 | |
| Throttle Lever Spring | ||||
| 133 | 6699833 | Throttle Lever Spring | € 1.16 | |
| Épuisé | ||||
| 134 | 6699921 | Épuisé | ||
| Throttle Rod | ||||
| 135 | 6699863 | Throttle Rod | € 1.16 | |
| Cilinder Afdekkap | ||||
| 136 | 6699865 | Cilinder Afdekkap | € 8.86 | |
| Brandstofleiding | ||||
| 137 | 6698908 | Brandstofleiding | € 4.50 | |
| D6 Clip | ||||
| 138 | 6685311 | D6 Clip | € 1.02 | |
| Pump Filter Body Ass'y (old 675-11657-90/6692282/6 | ||||
| 139 | 6692285 | Pump Filter Body Ass'y (old 675-11657-90/6692282/6 | € 7.03 | |
| Veerhouder | ||||
| 140 | 6699851 | Veerhouder | € 2.03 | |
| Anti-trilveer | ||||
| 141 | 6699824 | Anti-trilveer | € 2.03 | |
| Épuisé | ||||
| 142 | 6699320 | Épuisé | ||
| Decomp Cap | ||||
| 143 | 6600378 | Decomp Cap | € 3.34 | |
| Decomp. | ||||
| 144 | 6698541 | Decomp. | € 22.09 | |
| Grip End (a) | ||||
| 145 | 6699843 | Grip End (a) | € 1.16 | |
| Cylinder (old 6600371) | ||||
| 146A | 6600478 | Cylinder (old 6600371) | € 58.70 | |
| Insulator Clip | ||||
| 147 | 6699862 | Insulator Clip | € 1.16 | |
| Insulator Plate | ||||
| 148 | 6699858 | Insulator Plate | € 2.03 | |
| Carburetor Insulator | ||||
| 149 | 6699860 | Carburetor Insulator | € 8.57 | |
| Brandstofleiding (fkm) | ||||
| 150 | 6699857 | Brandstofleiding (fkm) | € 5.95 | |
| Carburetor Ass'y (c3m) | ||||
| 151 | 6699856 | Carburetor Ass'y (c3m) | € 60.69 | |
| Screw (d) | ||||
| 152 | 6600385 | Screw (d) | € 3.34 | |
| Pump Cover | ||||
| 153 | 6600386 | Pump Cover | € 10.02 | |
| Pump Gasket | ||||
| 154 | 6600387 | Pump Gasket | € 3.34 | |
| Pump Diaphragm | ||||
| 155 | 6600388 | Pump Diaphragm | € 3.34 | |
| Strainer | ||||
| 156 | 6600389 | Strainer | € 4.94 | |
| Screw (e) | ||||
| 157 | 6600390 | Screw (e) | € 3.34 | |
| Broche | ||||
| 158 | 6699082 | Broche | € 1.02 | |
| Metealing Lever Spring | ||||
| 159 | 6600391 | Metealing Lever Spring | € 3.34 | |
| Inlet Needle Valve | ||||
| 160 | 6699081 | Inlet Needle Valve | € 6.82 | |
| Metering Lever | ||||
| 161 | 6699084 | Metering Lever | € 1.60 | |
| Metealing Chamber Gasket | ||||
| 162 | 6600392 | Metealing Chamber Gasket | € 4.94 | |
| Metealing Diaphragm | ||||
| 163 | 6600393 | Metealing Diaphragm | € 9.44 | |
| Metealing Chamber Cover | ||||
| 164 | 6600394 | Metealing Chamber Cover | € 41.39 | |
| Set Screw (c) | ||||
| 165 | 6699094 | Set Screw (c) | € 1.02 | |
| Brandstofleiding | ||||
| 166 | 6698873 | Brandstofleiding | € 4.94 | |
| Square Nut (b) M5 | ||||
| 167 | 6699859 | Square Nut (b) M5 | € 1.16 | |
| Vis Dh 38ya | ||||
| 168 | 991712 | Vis Dh 38ya | € 1.02 | |
| Cylinder Packing | ||||
| 169 | 6600397 | Cylinder Packing | € 3.34 | |
| Piston Ring | ||||
| 170 | 6699806 | Piston Ring | € 2.03 | |
| Cir Clip | ||||
| 171 | 6699805 | Cir Clip | € 1.00 | |
| Piston (51.5) | ||||
| 172 | 6699804 | Piston (51.5) | € 8.42 | |
| Zuiger Pin | ||||
| 173 | 6699802 | Zuiger Pin | € 1.60 | |
| Water Supply Connector | ||||
| 174 | 6699913 | Water Supply Connector | € 9.29 | |
| Mounting Plate | ||||
| 175 | 6699914 | Mounting Plate | € 1.16 | |
| Valve | ||||
| 176 | 6699915 | Valve | € 10.31 | |
| Coupler | ||||
| 177 | 6699916 | Coupler | € 3.05 | |
| Grommet | ||||
| 178 | 6698787 | Grommet | € 1.74 | |
| Throttle Lock Pin | ||||
| 179 | 6699829 | Throttle Lock Pin | € 1.16 | |
| Carbureteur Pakking | ||||
| 180 | 6699855 | Carbureteur Pakking | € 1.16 | |
| Carburetor Bracket | ||||
| 181 | 6699854 | Carburetor Bracket | € 4.07 | |
| Pre Filter | ||||
| 182 | 6699872 | Pre Filter | € 4.94 | |
| Caution Label (eng) | ||||
| 183 | 6600382 | Caution Label (eng) | € 3.34 | |
| Cleaner Knob | ||||
| 184 | 6699874 | Cleaner Knob | € 2.03 | |
| Knob Packing | ||||
| 185 | 6698570 | Knob Packing | € 1.16 | |
| Start Label (cm75) (ex) | ||||
| 186 | 6600381 | Start Label (cm75) (ex) | € 1.74 | |
| Épuisé | ||||
| 187 | 6699924 | Épuisé | ||
| Rubber Rope | ||||
| 188 | 6699870 | Rubber Rope | € 2.03 | |
| Cleaner Box (a) | ||||
| 189 | 6699869 | Cleaner Box (a) | € 13.79 | |
| RUBBEREN PEN | ||||
| 190 | 931701 | RUBBEREN PEN | € 1.02 | |
| Épuisé | ||||
| 191 | 6699923 | Épuisé | ||
| Choke Rod Rubber | ||||
| 192 | 6685369 | Choke Rod Rubber | € 1.02 | |
| Paper Filter | ||||
| 193 | 6699868 | Paper Filter | € 6.68 | |
| Nylon Filter | ||||
| 194 | 6699867 | Nylon Filter | € 4.07 | |
| Hex. Socket Hd. Bolt M5x55 (w/washers) | ||||
| 195 | 6699861 | Hex. Socket Hd. Bolt M5x55 (w/washers) | € 1.16 | |
| Stop Switch | ||||
| 196A | 6601275 | Stop Switch | € 1.31 | |
| Switch Cover | ||||
| 197 | 6698400 | Switch Cover | € 1.02 | |
| Throttle Lock Pin Spring | ||||
| 198 | 6699830 | Throttle Lock Pin Spring | € 1.16 | |
| Throttle Lock Cap | ||||
| 199 | 6699831 | Throttle Lock Cap | € 1.16 | |
| Rear Foot | ||||
| 200 | 6699839 | Rear Foot | € 2.03 | |
| Anti-trilveer | ||||
| 201 | 6699840 | Anti-trilveer | € 1.16 | |
| Lower Guard | ||||
| 202 | 6699841 | Lower Guard | € 6.39 | |
| Muffler Guard (old 6600395) | ||||
| 203A | 6600443 | Muffler Guard (old 6600395) | € 41.13 | |
| FRONT FOOT RUBBER (B) | ||||
| 205A | 6601393 | FRONT FOOT RUBBER (B) | € 1.45 | |
| FRONT FOOT PLATE (B) | ||||
| 206A | 6601392 | FRONT FOOT PLATE (B) | € 2.18 | |
| Hex. Socket Hd. Bolt M5 (w/washers) | ||||
| 207 | 6600372 | Hex. Socket Hd. Bolt M5 (w/washers) | € 1.74 | |
| Hex. Socket Hd Bolt M5x18 (w/sp.washer) | ||||
| 207A | 6698386 | Hex. Socket Hd Bolt M5x18 (w/sp.washer) | € 1.02 | |
| Idle Sponge | ||||
| 208 | 6600056 | Idle Sponge | € 1.02 | |
| Band | ||||
| 209 | 6698943 | Band | € 1.16 | |
| Earth Cord Set | ||||
| 210 | 6601373 | Earth Cord Set | € 1.31 | |
| Spring Holder | ||||
| 211 | 6601391 | Spring Holder | € 3.63 | |
| Rondelle | ||||
| 212 | 6699112 | Rondelle | € 1.00 | |
| Front Foot Holder (old 6601365) | ||||
| 213 | 6601394 | Front Foot Holder (old 6601365) | € 5.95 | |
| Combi Box Spanner 13x19 | ||||
| 501 | 6698582 | Combi Box Spanner 13x19 | € 4.50 | |
| HEX. BAR WRENCH 4MMX135L | ||||
| 502 | 6699918 | HEX. BAR WRENCH 4MMX135L | € 3.05 | |
| Épuisé | ||||
| 503 | 875769 | Épuisé | ||
| Adapter Collar | ||||
| 504 | 6699919 | Adapter Collar | € 6.10 | |
| Épuisé | ||||
| 505 | 402728 | Épuisé | ||
Votre panier contient 0 de produits.
