Dessins techniques et pièces de rechange Hikoki TCG23ECP

Recherche de pièces de rechange:
Hikoki
Type exact:
TCG23ECP

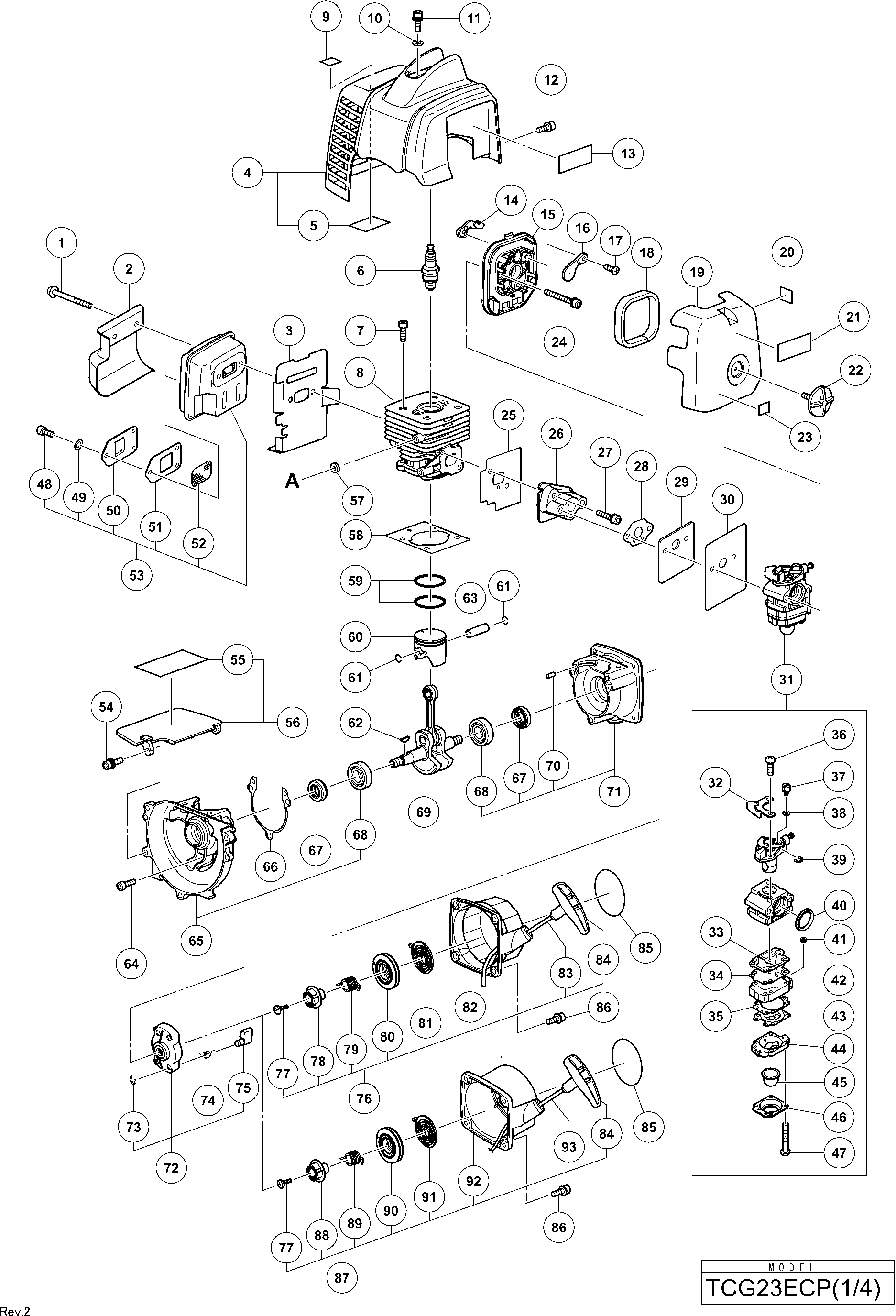

Dessins des HIKOKI TCG23ECP

Liste de pièces de rechange des HIKOKI TCG23ECP

Sur cette page, vous pouvez ajouter des pièces de rechange à votre panier en sélectionnant la quantité désirée et en cliquant sur le bouton derrière. Si vous avez terminé votre sélection, veuillez activer le bouton "Votre panier" en bas de la page. Les prix mentionnés ci-dessous sont TTC. Le montant exact de la TVA est calculé dans le panier en fonction du pays dans lequel vous souhaitez recevoir le colis.
Hex.socket Bolt M5x55
16600706Hex.socket Bolt M5x55€ 1.00
Heat Shield
26600707Heat Shield€ 6.18
Muffler Packing
36600710Muffler Packing€ 5.06
Top Cover
46601290Top Cover€ 9.35
Aluminum Tape
56600714Aluminum Tape€ 1.00
Ignition Plug (ac6ar)
66600713Ignition Plug (ac6ar)€ 7.92
Hex. Socket Hd. Bolt M5x16
76600712Hex. Socket Hd. Bolt M5x16€ 1.00
Cylindre
86600711Cylindre€ 33.83
Caution Label (hot)
96698864Caution Label (hot)€ 1.15
Entretoise (1)
106600715Entretoise (1)€ 1.00
Hex. Socket Hd. Bolt (w/washers) M5x18
116600716Hex. Socket Hd. Bolt (w/washers) M5x18€ 1.00
Hex. Socket Hd. Bolt (w/washers) M5x16
126600720Hex. Socket Hd. Bolt (w/washers) M5x16€ 1.00
Choke Lever
146600721Choke Lever€ 1.00
Cleaner Base
156600722Cleaner Base€ 2.53
Choke Plate
166600723Choke Plate€ 1.00
Tapping Screw St 4.2x9.5
176600724Tapping Screw St 4.2x9.5€ 1.00
Élément de filtre à air
186600725Élément de filtre à air€ 1.00
Cleaner Cover
196600726Cleaner Cover€ 1.90
Primer Label
206699000Primer Label€ 1.00
Cleaner Knob
226600727Cleaner Knob€ 1.00
Mark Plate (t)
236600327Mark Plate (t)€ 1.00
Hex. Socket Hd. Bolt (w/washers) M5x60
246600728Hex. Socket Hd. Bolt (w/washers) M5x60€ 1.00
Intake Packing
256600729Intake Packing€ 1.58
Carburetor Insulator
266600730Carburetor Insulator€ 5.70
Hex. Socket Hd. Bolt (w/washers) M5x25
276600731Hex. Socket Hd. Bolt (w/washers) M5x25€ 1.00
Carburetor Packing (a)
286600732Carburetor Packing (a)€ 1.00
Heat Insulation Packing
296600733Heat Insulation Packing€ 2.38
Carburetor Packing (b)
306600734Carburetor Packing (b)€ 1.74
Carburetor Ass'y (wyk-483)
316600735Carburetor Ass'y (wyk-483)€ 87.26
Cable Adjust Stay
326601292Cable Adjust Stay€ 11.57
Pump Gasket (old 577-25292-20 & 6696321)
336684692Pump Gasket (old 577-25292-20 & 6696321)€ 28.02
Pump Diaphragm (old 576-25100-20 & 6696325)
346684693Pump Diaphragm (old 576-25100-20 & 6696325)€ 8.23
Diaphragm Gasket (oud 475-25153-20)
356684691Diaphragm Gasket (oud 475-25153-20)€ 8.23
Throttle Set Screw (oud 514-25100-20)
366684870Throttle Set Screw (oud 514-25100-20)€ 2.06
Swivel
376601293Swivel€ 9.82
Ring (oud 549-25165-20)
386684874Ring (oud 549-25165-20)€ 2.06
Stop Ring (oud 489-25100-20)
396684696Stop Ring (oud 489-25100-20)€ 2.06
Cleaner Packing (oud 431-0634c-20)
406684875Cleaner Packing (oud 431-0634c-20)€ 4.12
Inlet Screen (oud 578-25007-20)
416684700Inlet Screen (oud 578-25007-20)€ 4.12
Pump Body
426601294Pump Body€ 73.91
Metering Diaphragm (old 474-25601-20)
436684690Metering Diaphragm (old 474-25601-20)€ 17.28
Priming Pump Comp. (oud 442-25151-80)
446684687Priming Pump Comp. (oud 442-25151-80)€ 15.68
Priming Body (oud 447-25108-20)
456684689Priming Body (oud 447-25108-20)€ 6.18
Diaphragm Cover (oud 476-25151-20)
466684688Diaphragm Cover (oud 476-25151-20)€ 8.23
Set Screw (old 548-25151-20 & 6696324)
476684699Set Screw (old 548-25151-20 & 6696324)€ 2.06
Hex. Socket Hd. Bolt M4x10
486600755Hex. Socket Hd. Bolt M4x10€ 1.00
Bolt Washer D4
496600756Bolt Washer D4€ 1.00
Exhaust Pipe
506600757Exhaust Pipe€ 4.75
Exhaust Packing
516600758Exhaust Packing€ 4.75
Spark Arrester
526600759Spark Arrester€ 1.00
Muffler
536600708Muffler€ 43.56
Hex. Socket Hd. Bolt (w/washers) M5x14
546600742Hex. Socket Hd. Bolt (w/washers) M5x14€ 1.00
Aluminum Tape
556600744Aluminum Tape€ 1.00
Insulation Plate
566601291Insulation Plate€ 3.48
Ignition Coil Spacer
576600660Ignition Coil Spacer€ 1.00
Cylinder Packing
586600738Cylinder Packing€ 10.30
Piston Ring
596600739Piston Ring€ 3.80
Piston (1)
606600740Piston (1)€ 11.09
Circlip (1)
616600736Circlip (1)€ 1.00
Woodruff Key
626600741Woodruff Key€ 1.00
Piston Pin
636600737Piston Pin€ 1.27
Hex. Socket Hd. Bolt M5x16
646600712Hex. Socket Hd. Bolt M5x16€ 1.00
Crank Case (a)
656600745Crank Case (a)€ 14.09
Crank Case Packing
666600746Crank Case Packing€ 1.10
Oil Seal
676600747Oil Seal€ 1.27
Roulement A Billes (1)
686600594Roulement A Billes (1)€ 5.06
Crank Shaft
696600748Crank Shaft€ 45.01
Knock Pin
706600749Knock Pin€ 1.00
Crank Case (b)
716600750Crank Case (b)€ 12.04
PULLEY ASS'Y
726600751PULLEY ASS'Y€ 3.89
Poulie (1)
726600752Poulie (1)€ 4.27
Clip De Retenue (1)
736601321Clip De Retenue (1)€ 1.00
Starter Pawl Spring
746601322Starter Pawl Spring€ 1.00
Starter Pawl
756601323Starter Pawl€ 1.10
Recoil Starter (s)
766600753Recoil Starter (s)€ 18.73
Set Screw
776601307Set Screw€ 1.00
Cam (s)
786601309Cam (s)€ 2.22
Damper Spring (s)
796601311Damper Spring (s)€ 3.32
Reel (s)
806601313Reel (s)€ 3.17
Spiral Spring (s)
816601315Spiral Spring (s)€ 6.97
Starter Case (s)
826601317Starter Case (s)€ 7.28
Starter Rope (s)
836601319Starter Rope (s)€ 1.74
Starter Handle
846601320Starter Handle€ 1.90
Hex. Socket Hd. Bolt (w/washers) M5x16
866600720Hex. Socket Hd. Bolt (w/washers) M5x16€ 1.00
RECOIL STARTER ASS'Y
876600754RECOIL STARTER ASS'Y€ 16.63
CAM (LB)
886601308CAM (LB)€ 1.73
DAMPER SPRING (LB)
896601310DAMPER SPRING (LB)€ 2.88
REEL (LB)
906601312REEL (LB)€ 2.59
SPIRAL SPRING (LB)
916601314SPIRAL SPRING (LB)€ 3.17
STARTER CASE (LB)
926601316STARTER CASE (LB)€ 6.91
STARTER ROPE (LB)
936601318STARTER ROPE (LB)€ 1.01
Hex. Socket Hd. Bolt (w/washers) M5x12
1116600760Hex. Socket Hd. Bolt (w/washers) M5x12€ 1.00
Hex. Socket Hd. Bolt (w/washers) M5x25
1126600731Hex. Socket Hd. Bolt (w/washers) M5x25€ 1.00
Holder (a)
1136600761Holder (a)€ 1.58
Holder (b)
1146600762Holder (b)€ 1.58
Anti Vibration Rubber
1156600763Anti Vibration Rubber€ 2.22
Fan Case
1166600764Fan Case€ 10.30
Hex. Socket Hd. Bolt (w/washers) M5x18
1176600716Hex. Socket Hd. Bolt (w/washers) M5x18€ 1.00
Ignition Coil
1186600765Ignition Coil€ 20.33
Cord Insulation Tube
1196600766Cord Insulation Tube€ 3.48
Plug Cap
1206600767Plug Cap€ 1.74
Plug Clip Metal
1216600768Plug Clip Metal€ 1.74
Cord
1226601296Cord€ 2.06
Hex. Socket Hd. Bolt (w/washers) M4x20
1236600775Hex. Socket Hd. Bolt (w/washers) M4x20€ 1.00
Clip De Retenue (1)
1246600770Clip De Retenue (1)€ 1.00
Clutch Shaft (s)
1256600771Clutch Shaft (s)€ 11.09
Clutch Shaft (f)
1256600772Clutch Shaft (f)€ 11.09
Step Bolt
1266600661Step Bolt€ 1.10
Bent Washer 8
1276600662Bent Washer 8€ 1.00
Clutch
1286600773Clutch€ 6.97
Clutch Washer (b)
1296600664Clutch Washer (b)€ 1.00
Fly Wheel Nut
1306600658Fly Wheel Nut€ 1.00
Magneto Rotor
1316600774Magneto Rotor€ 20.33
Fuel Pipe
132A6601401Fuel Pipe€ 1.00
Fuel Pipe
133A6601400Fuel Pipe€ 1.00
Tank Cap Retainer
1356600782Tank Cap Retainer€ 1.00
Tank Cap Retainer Holder
1366600781Tank Cap Retainer Holder€ 1.00
Tank Cap Packing
1376600780Tank Cap Packing€ 1.00
Valve Holder
1386600779Valve Holder€ 1.00
Valve
1396600778Valve€ 1.27
Tank Cap
1406600777Tank Cap€ 1.27
Tank Cap Ass'y
141A6600776Tank Cap Ass'y€ 2.22
Resevoir
1426600788Resevoir€ 11.57
Pump Filter Body Ass'y (old 675-11600-90/6692275/6
143A6685199Pump Filter Body Ass'y (old 675-11600-90/6692275/6€ 4.27
Clip
1446601295Clip€ 1.00
Stand
1456600791Stand€ 2.69
Hex. Socket Hd. Bolt (w/washers) M5x18
1466600716Hex. Socket Hd. Bolt (w/washers) M5x18€ 1.00
Tank Mark Label
1476698921Tank Mark Label€ 1.15
Filter Element
1486601396Filter Element€ 1.00
Fuel Pipe Set
1496601403Fuel Pipe Set€ 1.90
Hex. Socket Hd. Bolt (w/sp.washer) M5x35
1616600873Hex. Socket Hd. Bolt (w/sp.washer) M5x35€ 1.00
Loop Handle
1626600800Loop Handle€ 7.28
Barrier
1636600802Barrier€ 3.17
Gear Case (s)
1656600803Gear Case (s)€ 54.30
Bolt (w/washer) M6x8
1666600856Bolt (w/washer) M6x8€ 1.00
Hex. Socket Hd. Bolt M5x12
1676600855Hex. Socket Hd. Bolt M5x12€ 1.00
Holder (a)
1686600857Holder (a)€ 3.96
Holder (b)
1696600858Holder (b)€ 1.90
Nut Cover
1706600859Nut Cover€ 4.60
U-nut (left Hand) M10
1716600860U-nut (left Hand) M10€ 1.58
Hex. Socket Hd. Bolt M5x30
1726600854Hex. Socket Hd. Bolt M5x30€ 1.00
Épuisé
1736600570Épuisé
Nylon Head Cover
1746600806Nylon Head Cover€ 3.01
Reel Spring
1756600809Reel Spring€ 1.10
Poulie (1)
1766600808Poulie (1)€ 18.73
Épuisé
1776600807Épuisé
Cord Guide
1786600810Cord Guide€ 3.01
Nylon Head Cap
1796600811Nylon Head Cap€ 1.00
Throttle Lever
1806600822Throttle Lever€ 22.51
Grip
1816600852Grip€ 1.90
Throttle Coller
1826601306Throttle Coller€ 2.22
Nut M5
1836600825Nut M5€ 1.00
Handle Grip
1846600853Handle Grip€ 1.10
Screw (w/washers) M5x25
1856600839Screw (w/washers) M5x25€ 1.00
Handle (b)
1866600850Handle (b)€ 2.22
Stop Switch Comp.
1876600851Stop Switch Comp.€ 4.75
Handle Clamp
1886600843Handle Clamp€ 1.00
Throttle Lever
1896600841Throttle Lever€ 1.00
Spring (c)
1906600842Spring (c)€ 1.00
Connection Laber
1916600849Connection Laber€ 1.00
Spring (d)
1926600847Spring (d)€ 1.00
Trriger Lockout
1936600846Trriger Lockout€ 1.00
Spring (e)
1946600848Spring (e)€ 1.00
Throttle Wire Comp.
1956600840Throttle Wire Comp.€ 2.69
Handle (a)
1966600845Handle (a)€ 1.74
Screw (w/washers) M5x30
1976600844Screw (w/washers) M5x30€ 1.00
Limit Ring
1986601330Limit Ring€ 1.74
Loop Handle Rubber
1996600821Loop Handle Rubber€ 1.74
Hanger
2006600818Hanger€ 4.60
Hanger Clamp
2016600838Hanger Clamp€ 1.00
Hanger
2026600837Hanger€ 1.90
Hex. Hole Button Screw M6x25
2036600813Hex. Hole Button Screw M6x25€ 1.00
Cover Braket
2046600812Cover Braket€ 4.91
Épuisé
2076600449Épuisé
Level Mark(a)
2096601305Level Mark(a)€ 2.38
Main Pipe
2106600816Main Pipe€ 39.20
Drive Shaft
2116600817Drive Shaft€ 9.50
Carter Protection (1)
2126601299Carter Protection (1)€ 8.56
Cover Guard (eu)
2136601333Cover Guard (eu)€ 11.40
Épuisé
2146601301Épuisé
Knife
2156601302Knife€ 1.10
Flexible Shaft
2316698325Flexible Shaft€ 13.25
Main Pipe Ass'y
2326601405Main Pipe Ass'y€ 179.76
Cutter Case (old 6698810)
2336600494Cutter Case (old 6698810)€ 24.42
Bague
2346698331Bague€ 3.02
Vis M.5*10 (paquet de 10)
235949819Vis M.5*10 (paquet de 10)€ 2.45
Bolt M6
2366698334Bolt M6€ 3.02
Safety Cover Bracket
2376698335Safety Cover Bracket€ 3.02
Vis M5x25 (paquet de 10)
238949662Vis M5x25 (paquet de 10)€ 2.02
Guard (oud 6698332)
2396698809Guard (oud 6698332)€ 17.82
MACHINESCHROEF M5X14 (10 STUKS)
240949238MACHINESCHROEF M5X14 (10 STUKS)€ 1.01
Rondelle M5 (x10) paquet de 10
241949424Rondelle M5 (x10) paquet de 10€ 1.01
Mesje
2426698333Mesje€ 6.19
Rondelle M.5 (x10) paquet de 10
243949454Rondelle M.5 (x10) paquet de 10€ 1.00
MOER M5 (10 STUKS) (OUD 949555Z
244949555MOER M5 (10 STUKS) (OUD 949555Z€ 1.01
Épuisé
2456601376Épuisé
Nylon Head Cover (b)
2466601375Nylon Head Cover (b)€ 2.86
Box Spanner 16x17mm
5016600574Box Spanner 16x17mm€ 9.66
INBUSSLEUTEL 4MM
502944458INBUSSLEUTEL 4MM€ 1.30
Tool Bag
5036600863Tool Bag€ 5.54
Épuisé
5046600576Épuisé
Hanging Strap (s)
5056600579Hanging Strap (s)€ 8.40
Spanner 10x13
5066600874Spanner 10x13€ 3.01
Votre panier contient 0 de produits.
