Dessins techniques et pièces de rechange Hikoki TCG22EAP2
Type exact:
TCG22EAP2
TCG22EAP2

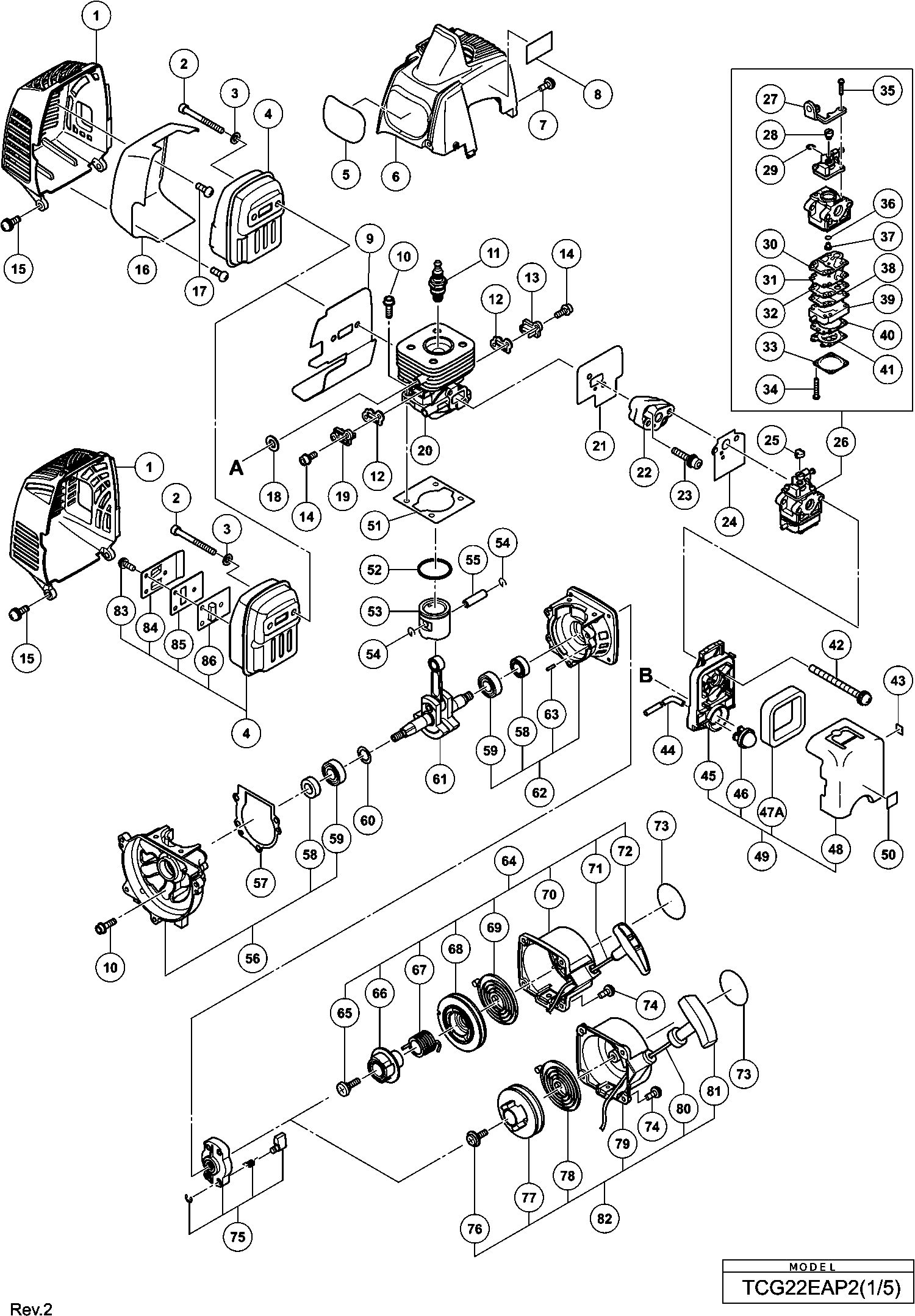

Dessins des HIKOKI TCG22EAP2
Liste de pièces de rechange des HIKOKI TCG22EAP2
Sur cette page, vous pouvez ajouter des pièces de rechange à votre panier en sélectionnant la quantité désirée et en cliquant sur le bouton derrière. Si vous avez terminé votre sélection, veuillez activer le bouton "Votre panier" en bas de la page. Les prix mentionnés ci-dessous sont TTC. Le montant exact de la TVA est calculé dans le panier en fonction du pays dans lequel vous souhaitez recevoir le colis.
| Muffler Protector | ||||
| 1 | 6600423 | Muffler Protector | € 9.00 | |
| Épuisé | ||||
| 2 | 6696819 | Épuisé | ||
| Rondelle M.6 (x10) paquet de 10 | ||||
| 3 | 949432 | Rondelle M.6 (x10) paquet de 10 | € 1.02 | |
| Knaldemper | ||||
| 4 | 6696554 | Knaldemper | € 25.74 | |
| Tanaka Label New | ||||
| 5 | 6696339 | Tanaka Label New | € 1.16 | |
| Cilinder Afdekkap (oud 6699155) | ||||
| 6 | 6600424 | Cilinder Afdekkap (oud 6699155) | € 3.05 | |
| Vis Ø 4*20 | ||||
| 7 | 307606 | Vis Ø 4*20 | € 1.02 | |
| Hitteschild | ||||
| 9 | 6600320 | Hitteschild | € 1.31 | |
| Hex. Socket Hd Bolt M5x18 (w/sp.washer) | ||||
| 10 | 6698386 | Hex. Socket Hd Bolt M5x18 (w/sp.washer) | € 1.02 | |
| Bougie Bmr7a | ||||
| 11 | 6699316 | Bougie Bmr7a | € 8.63 | |
| Cover Packing | ||||
| 12 | 6696534 | Cover Packing | € 1.02 | |
| Intake Cover (a) | ||||
| 13 | 6696535 | Intake Cover (a) | € 1.02 | |
| Hex. Socket Hd Bolt M4x12 | ||||
| 14 | 6698385 | Hex. Socket Hd Bolt M4x12 | € 1.02 | |
| Épuisé | ||||
| 15 | 887021 | Épuisé | ||
| Muffler Heat Cover Since 11 2013 | ||||
| 16 | 6600340 | Muffler Heat Cover Since 11 2013 | € 5.23 | |
| Tapping Screw D4x10 | ||||
| 17 | 6600325 | Tapping Screw D4x10 | € 1.00 | |
| Bague | ||||
| 18 | 6698700 | Bague | € 1.16 | |
| Intake Cover (b) | ||||
| 19 | 6696536 | Intake Cover (b) | € 1.02 | |
| Cylindre | ||||
| 20 | 6696527 | Cylindre | € 23.91 | |
| Joint | ||||
| 21 | 6696548 | Joint | € 1.02 | |
| Carburetor Insulator | ||||
| 22 | 6698387 | Carburetor Insulator | € 3.05 | |
| Seal Lock Hex. Socket Bolt M5x25 (w/washers) | ||||
| 23 | 6698844 | Seal Lock Hex. Socket Bolt M5x25 (w/washers) | € 1.16 | |
| Carbureteur Pakking | ||||
| 24 | 6698405 | Carbureteur Pakking | € 2.03 | |
| Swivel Cap (old 560-07120-21/6684628) | ||||
| 25 | 6691337 | Swivel Cap (old 560-07120-21/6684628) | € 1.11 | |
| Carburator Wyc-22 | ||||
| 26 | 6696550 | Carburator Wyc-22 | € 44.16 | |
| Cable Adjust Stay | ||||
| 27 | 6699287 | Cable Adjust Stay | € 3.99 | |
| Swivel | ||||
| 28 | 6696830 | Swivel | € 4.31 | |
| Stop Ring (oud 489-25100-20) | ||||
| 29 | 6684696 | Stop Ring (oud 489-25100-20) | € 2.08 | |
| Pump Gasket (old 577-25292-20 & 6696321) | ||||
| 30 | 6684692 | Pump Gasket (old 577-25292-20 & 6696321) | € 28.25 | |
| Pump Diaphragm (old 576-25100-20 & 6696325) | ||||
| 31 | 6684693 | Pump Diaphragm (old 576-25100-20 & 6696325) | € 8.30 | |
| Pump Plate (old 523-25100-20) | ||||
| 32 | 6691242 | Pump Plate (old 523-25100-20) | € 2.24 | |
| Diaphragm Cover (old 476-25004-20) | ||||
| 33 | 6685222 | Diaphragm Cover (old 476-25004-20) | € 4.31 | |
| Set Screw (old 548-25101-20) | ||||
| 34 | 6691312 | Set Screw (old 548-25101-20) | € 1.11 | |
| Set Screw M3x12 | ||||
| 35 | 6696829 | Set Screw M3x12 | € 1.00 | |
| O-RING (OUD 550-25100-20) | ||||
| 36 | 6684695 | O-RING (OUD 550-25100-20) | € 4.15 | |
| Main Jet | ||||
| 37 | 6697947 | Main Jet | € 4.95 | |
| Circuit Plate (old 522-25100-20) | ||||
| 38 | 6691234 | Circuit Plate (old 522-25100-20) | € 3.19 | |
| Pump Body | ||||
| 39 | 6696828 | Pump Body | € 12.93 | |
| Diaphragm Packing (old 475-25038-20) | ||||
| 40 | 6685220 | Diaphragm Packing (old 475-25038-20) | € 2.24 | |
| Metering Diaphragm (old 474-25601-20) | ||||
| 41 | 6684690 | Metering Diaphragm (old 474-25601-20) | € 17.42 | |
| Vis M.5*60 | ||||
| 42 | 307224 | Vis M.5*60 | € 1.02 | |
| Mark Plate (t) | ||||
| 43 | 6600327 | Mark Plate (t) | € 1.00 | |
| Brandstofleiding L70 | ||||
| 44B | 6699014 | Brandstofleiding L70 | € 1.60 | |
| Épuisé | ||||
| 45 | 6696832 | Épuisé | ||
| Priming Pump Comp. (old 442-25143-80) | ||||
| 46 | 6685139 | Priming Pump Comp. (old 442-25143-80) | € 5.75 | |
| Cleaner Sponge | ||||
| 47A | 6600704 | Cleaner Sponge | € 3.68 | |
| Épuisé | ||||
| 48 | 6696831 | Épuisé | ||
| Air Cleaner Ass'y | ||||
| 49 | 6696549 | Air Cleaner Ass'y | € 8.83 | |
| Primer Label | ||||
| 50 | 6699000 | Primer Label | € 1.00 | |
| Cylinder Packing | ||||
| 51 | 6696530 | Cylinder Packing | € 1.02 | |
| Zuiger Ring | ||||
| 52 | 6696532 | Zuiger Ring | € 2.03 | |
| Piston | ||||
| 53 | 6696531 | Piston | € 6.66 | |
| Piston Pin Circlip (old 039-00601-20) | ||||
| 54 | 6684590 | Piston Pin Circlip (old 039-00601-20) | € 2.08 | |
| Zuiger Pin | ||||
| 55 | 6696944 | Zuiger Pin | € 3.22 | |
| Crank Case (b) Comp | ||||
| 56 | 6696538 | Crank Case (b) Comp | € 12.84 | |
| Crank Case Packing | ||||
| 57 | 6696539 | Crank Case Packing | € 1.02 | |
| Olie Keerring | ||||
| 58 | 6684607 | Olie Keerring | € 4.15 | |
| Roulement à billes | ||||
| 59 | 6684608 | Roulement à billes | € 3.68 | |
| Shim | ||||
| 60 | 6696945 | Shim | € 1.62 | |
| Shim | ||||
| 60 | 6696946 | Shim | € 1.62 | |
| Krukas | ||||
| 61 | 6696533 | Krukas | € 31.28 | |
| Carter Vilbrequin (55,56,61) Includ.55,56,61 | ||||
| 62 | 6696537 | Carter Vilbrequin (55,56,61) Includ.55,56,61 | € 13.24 | |
| Knock Pin 4x12 | ||||
| 63 | 6696947 | Knock Pin 4x12 | € 1.02 | |
| Épuisé | ||||
| 64 | 6699995 | Épuisé | ||
| SET SCREW (OLD 839-03045-20) | ||||
| 65 | 6684679 | SET SCREW (OLD 839-03045-20) | € 2.08 | |
| Cam Plate | ||||
| 66 | 6699996 | Cam Plate | € 2.47 | |
| Dumper Spring (old 758-0651h-20) | ||||
| 67 | 6684677 | Dumper Spring (old 758-0651h-20) | € 8.30 | |
| Starter Rope Reel | ||||
| 68 | 6699997 | Starter Rope Reel | € 8.14 | |
| Recoil Spring (old 780-06097-20/6697591) | ||||
| 69 | 6684675 | Recoil Spring (old 780-06097-20/6697591) | € 11.18 | |
| Recoil Starter Body Comp. (old 772-07350-80) | ||||
| 70 | 6684673 | Recoil Starter Body Comp. (old 772-07350-80) | € 18.45 | |
| Starter Rope 3.5x860 (old 783-0720f-20/6697590) | ||||
| 71 | 6684674 | Starter Rope 3.5x860 (old 783-0720f-20/6697590) | € 4.15 | |
| Starthendel | ||||
| 72 | 6684680 | Starthendel | € 2.08 | |
| Screw M4x16 (w/washer) | ||||
| 74 | 6698398 | Screw M4x16 (w/washer) | € 1.02 | |
| Starter Pulley Ass'y (old 798-0651h-90) | ||||
| 75 | 6684681 | Starter Pulley Ass'y (old 798-0651h-90) | € 12.78 | |
| Starter Pulley | ||||
| 75 | 6696471 | Starter Pulley | € 4.94 | |
| Set Screw (old 839-02010-20/6693638) | ||||
| 76 | 6693633 | Set Screw (old 839-02010-20/6693638) | € 1.11 | |
| Recoil Spring (old 780-06097-20/6697591) | ||||
| 78 | 6684675 | Recoil Spring (old 780-06097-20/6697591) | € 11.18 | |
| Starter Rope (old 783-06097-20/6693174) | ||||
| 80 | 6693168 | Starter Rope (old 783-06097-20/6693174) | € 2.24 | |
| Starthendel | ||||
| 81 | 6693227 | Starthendel | € 3.19 | |
| Recoil Starter Body Ass'y | ||||
| 82 | 6696572 | Recoil Starter Body Ass'y | € 9.87 | |
| Anti Vibe Rubber (a) | ||||
| 101 | 6696963 | Anti Vibe Rubber (a) | € 3.22 | |
| Pipe Holder (a) | ||||
| 102 | 6696542 | Pipe Holder (a) | € 1.02 | |
| Pipe Holder (a) | ||||
| 102 | 6698643 | Pipe Holder (a) | € 2.03 | |
| Ecrou M.5 | ||||
| 103 | 302012 | Ecrou M.5 | € 1.02 | |
| Pipe Holder (b) | ||||
| 104 | 6696543 | Pipe Holder (b) | € 1.02 | |
| Pipe Holder (b) | ||||
| 104 | 6698644 | Pipe Holder (b) | € 2.03 | |
| Anti Vibe Rubber (b) | ||||
| 105 | 6696964 | Anti Vibe Rubber (b) | € 3.22 | |
| Hex. Socket Hd. Bolt M5x12 (w/sp.washer) | ||||
| 106 | 6699176 | Hex. Socket Hd. Bolt M5x12 (w/sp.washer) | € 1.00 | |
| Hex. Hole Bolt 5x22/s (old 994-61050-224) | ||||
| 107 | 6695492 | Hex. Hole Bolt 5x22/s (old 994-61050-224) | € 1.11 | |
| Ventilatorhuis (oud 6698725) | ||||
| 108 | 6699159 | Ventilatorhuis (oud 6698725) | € 8.86 | |
| CLUTCH SHAFT COMP | ||||
| 109A | 6696541 | CLUTCH SHAFT COMP | € 8.14 | |
| Step Bolt | ||||
| 110 | 6696469 | Step Bolt | € 1.00 | |
| Bague | ||||
| 111 | 6684648 | Bague | € 2.08 | |
| Clutch Plate (a) | ||||
| 112 | 6696546 | Clutch Plate (a) | € 1.02 | |
| Clutch | ||||
| 113 | 6696948 | Clutch | € 11.27 | |
| Rondelle | ||||
| 114 | 6696547 | Rondelle | € 1.02 | |
| Ecrou | ||||
| 115 | 6685337 | Ecrou | € 1.02 | |
| Rondelle Diam 8 Noir H65sd2 | ||||
| 116 | 323212 | Rondelle Diam 8 Noir H65sd2 | € 1.02 | |
| BOBINE | ||||
| 117 | 6699464 | BOBINE | € 17.04 | |
| Hex. Socket Hd Bolt M4x18 (w/washers) | ||||
| 118 | 6698388 | Hex. Socket Hd Bolt M4x18 (w/washers) | € 1.02 | |
| Plug Cap (old 6699932) | ||||
| 119A | 6601421 | Plug Cap (old 6699932) | € 1.00 | |
| Plug Cap Metal | ||||
| 120 | 6699186 | Plug Cap Metal | € 1.00 | |
| Cord | ||||
| 121 | 6696544 | Cord | € 1.02 | |
| Woodruff Key 3x13x4.5 (oud 068-10100-20) | ||||
| 122 | 6684899 | Woodruff Key 3x13x4.5 (oud 068-10100-20) | € 2.08 | |
| Earth Cord | ||||
| 123 | 6696545 | Earth Cord | € 1.02 | |
| Vliegwiel | ||||
| 124 | 6699289 | Vliegwiel | € 24.89 | |
| Tapping Screw D4.5x16 | ||||
| 126 | 6698878 | Tapping Screw D4.5x16 | € 1.16 | |
| Vis Ø 4*16 Noir | ||||
| 127 | 305812 | Vis Ø 4*16 Noir | € 1.00 | |
| Lock Lever | ||||
| 129 | 6696490 | Lock Lever | € 1.00 | |
| Levier (1) | ||||
| 130 | 6696488 | Levier (1) | € 1.00 | |
| Spring (a) | ||||
| 131 | 6696489 | Spring (a) | € 1.00 | |
| Stop Switch | ||||
| 132A | 6601275 | Stop Switch | € 1.31 | |
| Stop Switch Cord | ||||
| 133 | 6696491 | Stop Switch Cord | € 1.74 | |
| Stop Switch Cord | ||||
| 133 | 6696592 | Stop Switch Cord | € 2.03 | |
| Protection Tube | ||||
| 134 | 6696594 | Protection Tube | € 2.03 | |
| Protection Tube | ||||
| 134 | 6696967 | Protection Tube | € 1.02 | |
| Gaskabel | ||||
| 135 | 6696560 | Gaskabel | € 4.04 | |
| Resevoir | ||||
| 137 | 6696569 | Resevoir | € 4.44 | |
| Bolt (w/flange) | ||||
| 139 | 6696574 | Bolt (w/flange) | € 1.02 | |
| Pomp Filter | ||||
| 140 | 6600351 | Pomp Filter | € 2.61 | |
| Clip | ||||
| 141 | 6696949 | Clip | € 1.62 | |
| Brandstofleiding | ||||
| 142 | 6698716 | Brandstofleiding | € 3.34 | |
| Brandstofleiding L70 | ||||
| 143A | 6699014 | Brandstofleiding L70 | € 1.60 | |
| Return Grommet (old 6684627) | ||||
| 144 | 6697846 | Return Grommet (old 6684627) | € 1.00 | |
| Fuel Grommet | ||||
| 145 | 6698931 | Fuel Grommet | € 3.34 | |
| Tank Dop Compleet | ||||
| 146 | 6698402 | Tank Dop Compleet | € 4.07 | |
| Tank Cap Chain | ||||
| 147 | 6698732 | Tank Cap Chain | € 1.16 | |
| Tapping Screw (w/flange) D4x30 | ||||
| 171 | 323837 | Tapping Screw (w/flange) D4x30 | € 1.62 | |
| Vis 4x20 Noir | ||||
| 172 | 302086 | Vis 4x20 Noir | € 1.02 | |
| Handle (b) | ||||
| 173 | 6696590 | Handle (b) | € 3.02 | |
| Machine Screw M5x30 (black) | ||||
| 174 | 323041 | Machine Screw M5x30 (black) | € 1.02 | |
| Gaskabel | ||||
| 175 | 6696593 | Gaskabel | € 4.94 | |
| Handle Right | ||||
| 176 | 6696585 | Handle Right | € 6.24 | |
| Handle Holder (b) (old 6696577) | ||||
| 177A | 6600501 | Handle Holder (b) (old 6696577) | € 6.97 | |
| Handle Holder (c) | ||||
| 178 | 6696578 | Handle Holder (c) | € 2.03 | |
| HEX. HOLE BUTTON SCREW 6X25S (OLD 994-81060-254) | ||||
| 179 | 6684714 | HEX. HOLE BUTTON SCREW 6X25S (OLD 994-81060-254) | € 2.08 | |
| Hex. Hole Bolt M5x25/s (old 994-16050-252/790275) | ||||
| 180 | 6684709 | Hex. Hole Bolt M5x25/s (old 994-16050-252/790275) | € 2.08 | |
| Handle Holder (a) (old 6696576) | ||||
| 181A | 6600500 | Handle Holder (a) (old 6696576) | € 4.07 | |
| Handle (a) | ||||
| 182 | 6696588 | Handle (a) | € 2.03 | |
| Ecrou M.5 | ||||
| 183 | 302012 | Ecrou M.5 | € 1.02 | |
| Handle Left | ||||
| 184 | 6696595 | Handle Left | € 12.84 | |
| Barrier | ||||
| 186 | 6696973 | Barrier | € 3.22 | |
| Carter | ||||
| 190 | 6699402 | Carter | € 48.71 | |
| Cutter Holder (b) | ||||
| 193 | 6698659 | Cutter Holder (b) | € 12.62 | |
| NUT COVER | ||||
| 194 | 6699188 | NUT COVER | € 6.82 | |
| Linksmoer M10 (oud 6698658) | ||||
| 195 | 335759 | Linksmoer M10 (oud 6698658) | € 1.00 | |
| Set Screw | ||||
| 200 | 6698795 | Set Screw | € 1.31 | |
| Bouton (1) | ||||
| 203 | 6698798 | Bouton (1) | € 1.16 | |
| Cord Guide | ||||
| 204 | 6698799 | Cord Guide | € 1.16 | |
| Case | ||||
| 205 | 6698800 | Case | € 6.39 | |
| Épuisé | ||||
| 206 | 6696454 | Épuisé | ||
| Cover Blacket | ||||
| 207 | 6696494 | Cover Blacket | € 1.74 | |
| HEX. HOLE BUTTON SCREW 6X25S (OLD 994-81060-254) | ||||
| 208 | 6684714 | HEX. HOLE BUTTON SCREW 6X25S (OLD 994-81060-254) | € 2.08 | |
| Épuisé | ||||
| 213 | 6600448 | Épuisé | ||
| Épuisé | ||||
| 213 | 6600449 | Épuisé | ||
| Level Mark (b) | ||||
| 214 | 6600446 | Level Mark (b) | € 1.74 | |
| Hanger | ||||
| 218A | 6600504 | Hanger | € 1.16 | |
| Cap (a) | ||||
| 219 | 6698515 | Cap (a) | € 2.03 | |
| Cover Guard | ||||
| 220 | 6696950 | Cover Guard | € 10.62 | |
| Tapping Screw 4x14 (old 993-48040-142) | ||||
| 221 | 6684751 | Tapping Screw 4x14 (old 993-48040-142) | € 2.08 | |
| Mesje (oud 797-37714-20) | ||||
| 222 | 6684750 | Mesje (oud 797-37714-20) | € 4.15 | |
| Safety Cover Holder | ||||
| 223 | 6696951 | Safety Cover Holder | € 3.22 | |
| COVER | ||||
| 224 | 6696980 | COVER | € 16.82 | |
| Handle Holder Set (a+b) (old 6696576+6696577) | ||||
| 230 | 6600499 | Handle Holder Set (a+b) (old 6696576+6696577) | € 10.31 | |
| Vis M.5*10 (paquet de 10) For Irl | ||||
| 231 | 949236 | Vis M.5*10 (paquet de 10) For Irl | € 1.02 | |
| Flexible Shaft | ||||
| 281 | 6698325 | Flexible Shaft | € 13.36 | |
| Main Pipe Ass'y | ||||
| 282 | 6696580 | Main Pipe Ass'y | € 50.18 | |
| Cutter Case (old 6698810) | ||||
| 283 | 6600494 | Cutter Case (old 6698810) | € 24.62 | |
| Bague | ||||
| 284 | 6698331 | Bague | € 3.05 | |
| Vis M.5*10 (paquet de 10) | ||||
| 285 | 949819 | Vis M.5*10 (paquet de 10) | € 2.47 | |
| Bolt M6 | ||||
| 286 | 6698334 | Bolt M6 | € 3.05 | |
| Safety Cover Bracket | ||||
| 287 | 6698335 | Safety Cover Bracket | € 3.05 | |
| Vis M5x25 (paquet de 10) | ||||
| 288 | 949662 | Vis M5x25 (paquet de 10) | € 2.03 | |
| Guard (oud 6698332) | ||||
| 289 | 6698809 | Guard (oud 6698332) | € 17.97 | |
| MACHINESCHROEF M5X14 (10 STUKS) | ||||
| 290 | 949238 | MACHINESCHROEF M5X14 (10 STUKS) | € 1.02 | |
| Rondelle M5 (x10) paquet de 10 | ||||
| 291 | 949424 | Rondelle M5 (x10) paquet de 10 | € 1.02 | |
| Mesje | ||||
| 292 | 6698333 | Mesje | € 6.24 | |
| Rondelle M.5 (x10) paquet de 10 | ||||
| 293 | 949454 | Rondelle M.5 (x10) paquet de 10 | € 1.00 | |
| MOER M5 (10 STUKS) (OUD 949555Z | ||||
| 294 | 949555 | MOER M5 (10 STUKS) (OUD 949555Z | € 1.02 | |
| Épuisé | ||||
| 311 | 6696597 | Épuisé | ||
| ZESKANTSLEUTEL 17/19MM | ||||
| 501 | 6684764 | ZESKANTSLEUTEL 17/19MM | € 3.84 | |
| Épuisé | ||||
| 502 | 6696596 | Épuisé | ||
| INBUSSLEUTEL 4MM | ||||
| 503 | 944458 | INBUSSLEUTEL 4MM | € 1.31 | |
| Cutter Cover (old 615-37224-20/790290) | ||||
| 504A | 6684768 | Cutter Cover (old 615-37224-20/790290) | € 2.08 | |
| Épuisé | ||||
| 505 | 875769 | Épuisé | ||
| Épuisé | ||||
| 507 | 6684767 | Épuisé | ||
Votre panier contient 0 de produits.
