Dessins techniques et pièces de rechange Hikoki TC-3301

Type exact:
TC-3301
TC-3301

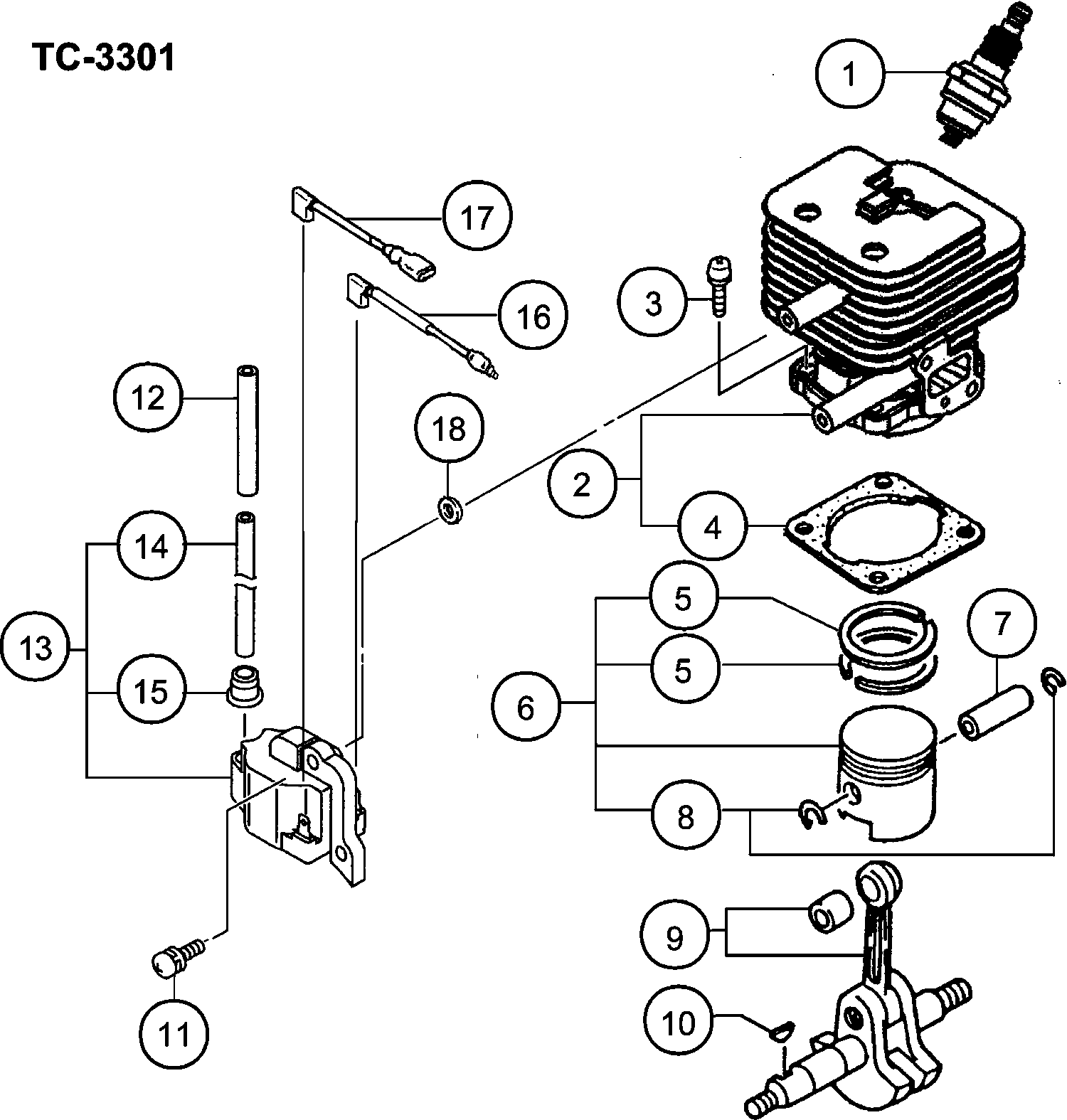

Dessins des HIKOKI TC-3301
Liste de pièces de rechange des HIKOKI TC-3301
Sur cette page, vous pouvez ajouter des pièces de rechange à votre panier en sélectionnant la quantité désirée et en cliquant sur le bouton derrière. Si vous avez terminé votre sélection, veuillez activer le bouton "Votre panier" en bas de la page. Les prix mentionnés ci-dessous sont TTC. Le montant exact de la TVA est calculé dans le panier en fonction du pays dans lequel vous souhaitez recevoir le colis.
Spark Plug Cj6y (old 6685772) | ||||
1 | 6699323 | Spark Plug Cj6y (old 6685772) | € 2.38 | |
Cylinder Set (old 001-07031-91/6685486) | ||||
2 | 6685487 | Cylinder Set (old 001-07031-91/6685486) | € 50.24 | |
Hex.hole Bolt M5x16/s (old 994-61050-164) | ||||
3 | 6684903 | Hex.hole Bolt M5x16/s (old 994-61050-164) | € 2.06 | |
Cylinder Gasket (old 017-07020-20) | ||||
4 | 6685746 | Cylinder Gasket (old 017-07020-20) | € 1.10 | |
Zuiger Ring (xr1-1856) | ||||
5 | 6685331 | Zuiger Ring (xr1-1856) | € 3.89 | |
Piston Set (old 030-07030-91/6685897) | ||||
6 | 6685898 | Piston Set (old 030-07030-91/6685897) | € 23.23 | |
Piston Pin 9 X 31 (old 037-01400-20/791170) | ||||
7 | 6686008 | Piston Pin 9 X 31 (old 037-01400-20/791170) | € 2.22 | |
Circlip (old 039-00000-20) | ||||
8 | 6685078 | Circlip (old 039-00000-20) | € 1.10 | |
Crank Shaft Comp. (old 046-07221-80/6686210) | ||||
9 | 6696499 | Crank Shaft Comp. (old 046-07221-80/6686210) | € 64.32 | |
Woodruff Key 3x13x4.5 (oud 068-10100-20) | ||||
10 | 6684899 | Woodruff Key 3x13x4.5 (oud 068-10100-20) | € 2.06 | |
High Tension Screw 4x18ws (old 994-16040-186) | ||||
11 | 6695407 | High Tension Screw 4x18ws (old 994-16040-186) | € 1.10 | |
Insulator Tube, 110l (old 250-07020-20) | ||||
12 | 6688319 | Insulator Tube, 110l (old 250-07020-20) | € 1.10 | |
Ignition Coil Ass'y (old 6687665/6699774) | ||||
13 | 6699772 | Ignition Coil Ass'y (old 6687665/6699774) | € 17.14 | |
High Tension Cord 140l (old 178-20549-20/6687887) | ||||
14 | 6687888 | High Tension Cord 140l (old 178-20549-20/6687887) | € 2.22 | |
Rubber Beschermkapje | ||||
15 | 6684602 | Rubber Beschermkapje | € 2.06 | |
Cord B 200m (old 179-0702c-80) New | ||||
16 | 6687934 | Cord B 200m (old 179-0702c-80) New | € 2.88 | |
Cord B 200m (old 178-0702c-80) New | ||||
17 | 6687872 | Cord B 200m (old 178-0702c-80) New | € 2.88 | |
Ring (old 182-0186a-20) | ||||
18 | 6684600 | Ring (old 182-0186a-20) | € 2.06 | |
Crank Case Ass'y (old 072-07020-90) | ||||
21 | 6686580 | Crank Case Ass'y (old 072-07020-90) | € 36.73 | |
Olie Keerring | ||||
22 | 6684607 | Olie Keerring | € 4.12 | |
Roulement à billes | ||||
23 | 6684608 | Roulement à billes | € 3.65 | |
Crank Case Gasket (old 090-07020-20) | ||||
24 | 6686721 | Crank Case Gasket (old 090-07020-20) | € 1.10 | |
Gear Shaft Shim 0.20 (oud 330-00200-23) | ||||
25 | 6684604 | Gear Shaft Shim 0.20 (oud 330-00200-23) | € 2.06 | |
Gear Shaft Shim 0.30 (oud 330-00200-24) | ||||
25 | 6684605 | Gear Shaft Shim 0.30 (oud 330-00200-24) | € 2.06 | |
Vliegwiel | ||||
26 | 6687375 | Vliegwiel | € 19.31 | |
Nut M8 (old 991-01080-011/327325/332299/726603) | ||||
27 | 6684612 | Nut M8 (old 991-01080-011/327325/332299/726603) | € 2.06 | |
Bague | ||||
28 | 6695184 | Bague | € 1.10 | |
Hex.hole Bolt M5x16/s (old 994-61050-164) | ||||
29 | 6684903 | Hex.hole Bolt M5x16/s (old 994-61050-164) | € 2.06 | |
Épuisé | ||||
30 | 6695420 | Épuisé | ||
Enveloppe De Ventilateur | ||||
31 | 6687022 | Enveloppe De Ventilateur | € 18.00 | |
Primary Cord Grommet (old 203-11660-20) | ||||
32 | 6688057 | Primary Cord Grommet (old 203-11660-20) | € 1.10 | |
Inlaatpakking | ||||
41 | 6689858 | Inlaatpakking | € 1.10 | |
Inlaatpakking | ||||
42 | 6689861 | Inlaatpakking | € 1.10 | |
Inlet Manifold Set (old 404-01305-90) New | ||||
43 | 6689916 | Inlet Manifold Set (old 404-01305-90) New | € 5.39 | |
Inlet Manifold (old 393-01350-20) | ||||
44 | 6689794 | Inlet Manifold (old 393-01350-20) | € 4.27 | |
Hex. Hole Bolt M5x25/s (old 994-16050-252/790275) | ||||
45 | 6684709 | Hex. Hole Bolt M5x25/s (old 994-16050-252/790275) | € 2.06 | |
Pet-cock Ass'y (old 592-00750-90) | ||||
46 | 6691651 | Pet-cock Ass'y (old 592-00750-90) | € 6.65 | |
Muffler Protecter (old 738-0720f-20) New | ||||
51 | 6692810 | Muffler Protecter (old 738-0720f-20) New | € 7.44 | |
Épuisé | ||||
52 | 6692497 | Épuisé | ||
Hex. Hole Bolt M6x55 (old 990-51060-553/6696819) | ||||
53 | 6684638 | Hex. Hole Bolt M6x55 (old 990-51060-553/6696819) | € 2.06 | |
Bague | ||||
54 | 6684639 | Bague | € 2.06 | |
Warmteschild | ||||
55 | 6687260 | Warmteschild | € 3.17 | |
Muffler Gasket (old 737-0165a-20) | ||||
56 | 6692732 | Muffler Gasket (old 737-0165a-20) | € 1.10 | |
Bague | ||||
57 | 6689645 | Bague | € 1.10 | |
Koppelingsvoering Compleet (oud 290-0138a-80/66886 | ||||
58 | 6688610 | Koppelingsvoering Compleet (oud 290-0138a-80/66886 | € 7.28 | |
RING | ||||
59 | 6695203 | RING | € 1.10 | |
Clutch Step Bolt (old 357-0136u-20) | ||||
60 | 6689628 | Clutch Step Bolt (old 357-0136u-20) | € 2.22 | |
Clutch Spring (old 342-0138a-20) | ||||
61 | 6689420 | Clutch Spring (old 342-0138a-20) | € 2.22 | |
Hex Hole Bolt 4x20ps (old 994-63040-205) | ||||
62 | 6695503 | Hex Hole Bolt 4x20ps (old 994-63040-205) | € 1.10 | |
Screw 4x15ps (old 994-15040-151) | ||||
63 | 6695373 | Screw 4x15ps (old 994-15040-151) | € 1.10 | |
Spark Plug Cap Ass'y (old 157-01570-90/6687470/668 | ||||
64 | 6687468 | Spark Plug Cap Ass'y (old 157-01570-90/6687470/668 | € 2.22 | |
Recoil Starter Body Ass'y (old 762-0720f-92/669298 | ||||
81 | 6692991 | Recoil Starter Body Ass'y (old 762-0720f-92/669298 | € 19.31 | |
Recoil Starter Body Comp. (old 772-0720f-80) | ||||
82 | 6693040 | Recoil Starter Body Comp. (old 772-0720f-80) | € 7.44 | |
Starter Rope 3.5x860 (old 783-0720f-20/6697590) | ||||
83 | 6684674 | Starter Rope 3.5x860 (old 783-0720f-20/6697590) | € 4.12 | |
Recoil Spring (old 780-06097-20/6697591) | ||||
84 | 6684675 | Recoil Spring (old 780-06097-20/6697591) | € 11.09 | |
Épuisé | ||||
85 | 6693081 | Épuisé | ||
Dumper Spring (old 758-0651h-20) | ||||
86 | 6684677 | Dumper Spring (old 758-0651h-20) | € 8.23 | |
Épuisé | ||||
87 | 6692938 | Épuisé | ||
SET SCREW (OLD 839-03045-20) | ||||
88 | 6684679 | SET SCREW (OLD 839-03045-20) | € 2.06 | |
Starthendel | ||||
89 | 6684680 | Starthendel | € 2.06 | |
Bague | ||||
90 | 6689645 | Bague | € 1.10 | |
Starter Pulley Ass'y (old 798-0651h-90) | ||||
91 | 6684681 | Starter Pulley Ass'y (old 798-0651h-90) | € 12.67 | |
Starter Pawl (old 788-0651h-20) | ||||
92 | 6684685 | Starter Pawl (old 788-0651h-20) | € 4.12 | |
Starter Pawl Spring (old 790-06097-20) | ||||
93 | 6684684 | Starter Pawl Spring (old 790-06097-20) | € 4.12 | |
D4e Retaining Ring (old 993-55040-001) | ||||
94 | 6685101 | D4e Retaining Ring (old 993-55040-001) | € 1.10 | |
Cleaner Ass'y (old 410-0720f-90) New | ||||
101 | 6690049 | Cleaner Ass'y (old 410-0720f-90) New | € 9.19 | |
Cleaner Body (old 423-0720f-20) New | ||||
102 | 6690125 | Cleaner Body (old 423-0720f-20) New | € 4.32 | |
Élément de filtre à air | ||||
103 | 6690348 | Élément de filtre à air | € 1.10 | |
Cleaner Fixing Base (old 436-00610-21) | ||||
104 | 6690194 | Cleaner Fixing Base (old 436-00610-21) | € 2.22 | |
Screw 4x25/ws (old 994-16040-251) | ||||
105 | 6695411 | Screw 4x25/ws (old 994-16040-251) | € 1.10 | |
Carburetor Ass'y Pc10t-1f (old 455-21655-91) New | ||||
121 | 6690559 | Carburetor Ass'y Pc10t-1f (old 455-21655-91) New | € 67.51 | |
Cable Adjuster (old 597-20110-20) | ||||
122 | 6691799 | Cable Adjuster (old 597-20110-20) | € 2.22 | |
Body Cap (old 595-21303-20) New | ||||
123 | 6691777 | Body Cap (old 595-21303-20) New | € 2.88 | |
Throttle Valve Spring (old 594-20110-20) | ||||
124 | 6691703 | Throttle Valve Spring (old 594-20110-20) | € 1.10 | |
Throttle Spring Receive (old 619-20110-20) | ||||
125 | 6692025 | Throttle Spring Receive (old 619-20110-20) | € 1.10 | |
Jet Needle Clip (old 593-20400-20) | ||||
126 | 6691693 | Jet Needle Clip (old 593-20400-20) | € 1.10 | |
Jet Needle Ass'y (old 592-2062t-92) New | ||||
127 | 6691681 | Jet Needle Ass'y (old 592-2062t-92) New | € 5.47 | |
Throttle Valve Ass'y (old 591-2030t-20) New | ||||
128 | 6691630 | Throttle Valve Ass'y (old 591-2030t-20) New | € 14.78 | |
Adjust Screw (old 622-21655-20) New | ||||
129 | 6692037 | Adjust Screw (old 622-21655-20) New | € 3.89 | |
Adjust Spring (old 623-21700-20) | ||||
130 | 6692044 | Adjust Spring (old 623-21700-20) | € 1.10 | |
Screw 3x6 (old 990-11030-061) | ||||
131 | 6694855 | Screw 3x6 (old 990-11030-061) | € 1.10 | |
O-ring A (old 551-20703-20) New | ||||
132 | 6691326 | O-ring A (old 551-20703-20) New | € 2.22 | |
Float Arm (old 628-20112-20) New | ||||
133 | 6692071 | Float Arm (old 628-20112-20) New | € 4.18 | |
Float Arm Pin (old 605-20112-20) New | ||||
134 | 6691959 | Float Arm Pin (old 605-20112-20) New | € 1.01 | |
Needle Jet 2080 (old 598-2017t-80) New | ||||
135 | 6691819 | Needle Jet 2080 (old 598-2017t-80) New | € 9.65 | |
Main Jet #55 (old 599-2000t-55) | ||||
136 | 6691841 | Main Jet #55 (old 599-2000t-55) | € 4.27 | |
Float (old 604-21014-20) | ||||
137 | 6691950 | Float (old 604-21014-20) | € 4.60 | |
Float Chamber Gasket (old 607-21655-20) New | ||||
138 | 6691989 | Float Chamber Gasket (old 607-21655-20) New | € 2.88 | |
Float Chamber (old 606-21655-20) New | ||||
139 | 6691976 | Float Chamber (old 606-21655-20) New | € 14.65 | |
Screw 4x16/s (old 994-14040-161) | ||||
140 | 6695328 | Screw 4x16/s (old 994-14040-161) | € 1.10 | |
Fuel Inlet Bolt (old 501-21500-20) New | ||||
141 | 6691061 | Fuel Inlet Bolt (old 501-21500-20) New | € 5.62 | |
Fuel Inlet Gasket (old 500-21700-20) New | ||||
142 | 6691026 | Fuel Inlet Gasket (old 500-21700-20) New | € 1.10 | |
Flange Gasket (old 571-20400-20) | ||||
143 | 6691411 | Flange Gasket (old 571-20400-20) | € 1.10 | |
Body Band Ass'y (old 561-21655-90) New | ||||
144 | 6691375 | Body Band Ass'y (old 561-21655-90) New | € 7.49 | |
Épuisé | ||||
145 | 6691338 | Épuisé | ||
Drain Screw Gasket (old 629-20445-20) New | ||||
146 | 6692091 | Drain Screw Gasket (old 629-20445-20) New | € 1.10 | |
Screw 4x6 (old 990-11040-061) | ||||
147 | 6694860 | Screw 4x6 (old 990-11040-061) | € 1.10 | |
Needle Valve Comp. (old 603-21655-80) New | ||||
148 | 6691938 | Needle Valve Comp. (old 603-21655-80) New | € 10.51 | |
Gaskabel | ||||
151 | 6693858 | Gaskabel | € 3.89 | |
Engine Base B Comp. (old 221-38020-81) New | ||||
152 | 6688151 | Engine Base B Comp. (old 221-38020-81) New | € 11.24 | |
Screw 5x12/ps (old 994-15050-121) | ||||
153 | 6695382 | Screw 5x12/ps (old 994-15050-121) | € 1.10 | |
Verbinder | ||||
154 | 6694031 | Verbinder | € 1.43 |
