Dessins techniques et pièces de rechange Hikoki TBC-550

Recherche de pièces de rechange:
Hikoki
Type exact:
TBC-550

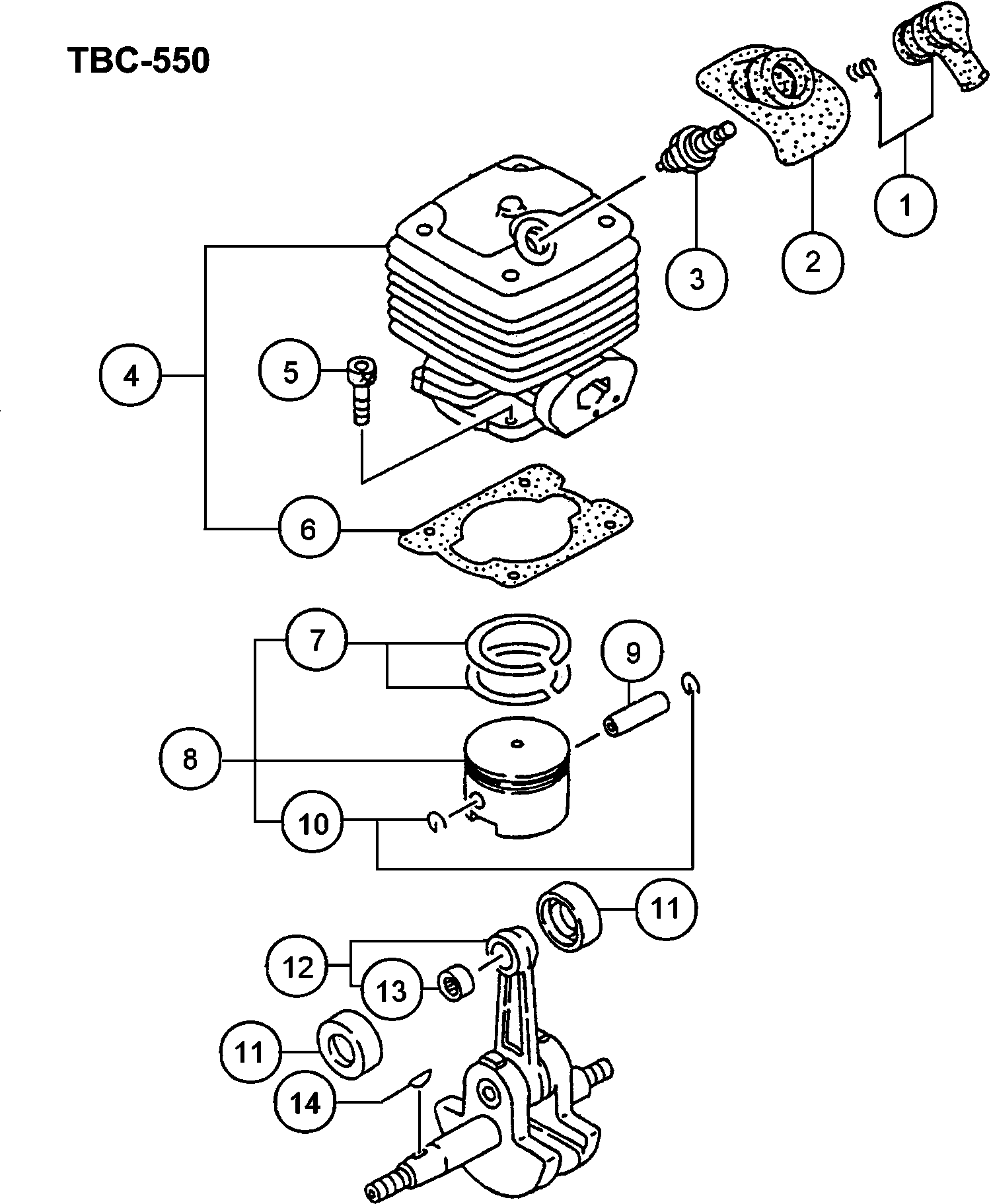

Dessins des HIKOKI TBC-550

Liste de pièces de rechange des HIKOKI TBC-550

Sur cette page, vous pouvez ajouter des pièces de rechange à votre panier en sélectionnant la quantité désirée et en cliquant sur le bouton derrière. Si vous avez terminé votre sélection, veuillez activer le bouton "Votre panier" en bas de la page. Les prix mentionnés ci-dessous sont TTC. Le montant exact de la TVA est calculé dans le panier en fonction du pays dans lequel vous souhaitez recevoir le colis.
Spark Plug Cap Ass'y (old 157-11666-90/6687472)
16687479Spark Plug Cap Ass'y (old 157-11666-90/6687472)€ 2.22
Spark Plug Rubber Cover (old 255-04200-20)
26688336Spark Plug Rubber Cover (old 255-04200-20)€ 3.17
Bougie (oud 6685086)
36699319Bougie (oud 6685086)€ 8.56
Cylinder Set (old 001-0422u-90)
46685470Cylinder Set (old 001-0422u-90)€ 69.41
Vis Ø5x18
56684586Vis Ø5x18€ 2.06
Cylinder Gasket (old 017-04220-21)
66685738Cylinder Gasket (old 017-04220-21)€ 1.10
Piston Ring (old 041-04090-21)
76686126Piston Ring (old 041-04090-21)€ 7.44
Piston Set (old 030-0422u-90)
86685887Piston Set (old 030-0422u-90)€ 18.44
Piston Pin 10x35 (old 037-10100-20 & 6686012)
96686019Piston Pin 10x35 (old 037-10100-20 & 6686012)€ 2.22
Piston Pin Circlip (old 039-01000-20)
106686026Piston Pin Circlip (old 039-01000-20)€ 1.10
Piston Pin Collar (old 036-04090-20)
116685993Piston Pin Collar (old 036-04090-20)€ 5.06
Crank Shaft Comp. (old 046-04220-80)
126686190Crank Shaft Comp. (old 046-04220-80)€ 84.79
Needle Bearing, 2x8.8 (old 999-62101-480)
136695602Needle Bearing, 2x8.8 (old 999-62101-480)€ 5.06
Wood-ruff Key 3x13x5 (old 068-02000-20/790118)
146686457Wood-ruff Key 3x13x5 (old 068-02000-20/790118)€ 1.10
Small Nut 10 (old 991-11100-013/6695138/790215/669
316695139Small Nut 10 (old 991-11100-013/6695138/790215/669€ 1.00
Crank Case Ass'y (old 072-04220-91)
326686553Crank Case Ass'y (old 072-04220-91)€ 57.94
Crank Case Gasket (old 090-04200-21/6686712)
336686713Crank Case Gasket (old 090-04200-21/6686712)€ 1.10
Olie Keerring
346695637Olie Keerring€ 3.17
Épuisé
356695557Épuisé
Bague
366686463Bague€ 1.10
Crank Shaft Shim 0.10 (old 071-02007-21)
376686470Crank Shaft Shim 0.10 (old 071-02007-21)€ 1.10
Crank Shaft Shim 0.20 (old 071-02007-23)
376686472Crank Shaft Shim 0.20 (old 071-02007-23)€ 1.10
Crank Shaft Shim 0.30 (old 071-02007-24)
376686473Crank Shaft Shim 0.30 (old 071-02007-24)€ 1.10
Screw 6x45/s (old 994-14060-451)
386695367Screw 6x45/s (old 994-14060-451)€ 1.10
Hex Hole Button Screw 6x45 (old 990-53060-453)
38A6695084Hex Hole Button Screw 6x45 (old 990-53060-453)€ 1.10
Bague
396684826Bague€ 2.06
Épuisé
406695499Épuisé
Hex. Socket Hd. Bolt (w/button)m6 (old 990-53060-3
40A6684825Hex. Socket Hd. Bolt (w/button)m6 (old 990-53060-3€ 2.06
Lock Nut M6 (oud 991-01060-013)
416684872Lock Nut M6 (oud 991-01060-013)€ 2.06
Outer Receiver (old 894-01401-20)
426694043Outer Receiver (old 894-01401-20)€ 3.17
Magnet Rotor Comp. (old 155-20537-80)
436687371Magnet Rotor Comp. (old 155-20537-80)€ 21.35
Bague
446695185Bague€ 1.10
Épuisé
456695138Épuisé
Bobine
466687649Bobine€ 40.51
Screw 5x18/s (old 994-14050-181)
476695339Screw 5x18/s (old 994-14050-181)€ 1.10
Ring 5 (oud 992-00050-011)
486684864Ring 5 (oud 992-00050-011)€ 2.06
Primary Cord Grommet (old 203-06000-20)
496688049Primary Cord Grommet (old 203-06000-20)€ 1.10
Cord Clamp Comp. (old 198-05015-80/6687996/6688012
506688004Cord Clamp Comp. (old 198-05015-80/6687996/6688012€ 1.10
Épuisé
516686972Épuisé
Screw 6x20/s (old 994-14060-202)
526695361Screw 6x20/s (old 994-14060-202)€ 1.10
Primary Cord Grommet (old 203-10000-20)
536688055Primary Cord Grommet (old 203-10000-20)€ 1.10
Lead Wire Ass'y (old 191-04276-90)
556687966Lead Wire Ass'y (old 191-04276-90)€ 6.65
Fuel Tank Cushion Rubber (old 655-04200-20)
716692225Fuel Tank Cushion Rubber (old 655-04200-20)€ 1.10
Inlaatpakking
726689883Inlaatpakking€ 1.10
Carb. Insulator Set (old 404-0422u-90)
736689950Carb. Insulator Set (old 404-0422u-90)€ 8.23
Carburetor Gasket (old 402-01740-20/6689844)
746689826Carburetor Gasket (old 402-01740-20/6689844)€ 1.10
Carburateurset
756690467Carburateurset€ 86.83
Carburetor Ass'y Hda306 Walbro (old 455-0422w-90)
75A6690468Carburetor Ass'y Hda306 Walbro (old 455-0422w-90)€ 86.83
Screw 5x24ws (old 994-16050-241)
766695423Screw 5x24ws (old 994-16050-241)€ 1.10
Choke Lever (old 495-04200-20)
776691004Choke Lever (old 495-04200-20)€ 1.10
Fuel Pipe 2.5x4x90 (old 700-02504-09)
786685267Fuel Pipe 2.5x4x90 (old 700-02504-09)€ 1.10
Small Nut 10 (old 991-11100-013/6695138/790215/669
796695139Small Nut 10 (old 991-11100-013/6695138/790215/669€ 1.00
Bague
806695235Bague€ 1.10
Priming Pump Comp. (old 422-25030-80)
816690080Priming Pump Comp. (old 422-25030-80)€ 6.65
Fuel Pipe Ass'y 3x5x230 (old 223-01251-90)
826688166Fuel Pipe Ass'y 3x5x230 (old 223-01251-90)€ 4.12
Clip.6.3 Dia. (old 680-00731-20)
836684619Clip.6.3 Dia. (old 680-00731-20)€ 2.06
Pump Filter Body Ass'y (old 675-01630-90/6692277)
846692273Pump Filter Body Ass'y (old 675-01630-90/6692277)€ 6.82
Fuel Tank, White (old 591-0422p-21/6691525)
856691526Fuel Tank, White (old 591-0422p-21/6691525)€ 11.40
Return Grommet (old 6684627)
866697846Return Grommet (old 6684627)€ 1.00
Épuisé
876691716Épuisé
Tank Holding Band (old 603-04201-20)
886691927Tank Holding Band (old 603-04201-20)€ 6.18
Cushion Rubber (old 652-04201-20)
896692193Cushion Rubber (old 652-04201-20)€ 6.18
Screw 5x16/ps (old 994-15050-162)
906695386Screw 5x16/ps (old 994-15050-162)€ 1.10
Épuisé
926684625Épuisé
Muffler Protector (old 738-04220-20)
1116692777Muffler Protector (old 738-04220-20)€ 11.24
Screw 5x12/ps (old 994-15050-122)
1126695383Screw 5x12/ps (old 994-15050-122)€ 1.10
Hex. Hole Bolt M5x12/s (old 994-61050-124)
1136684667Hex. Hole Bolt M5x12/s (old 994-61050-124)€ 2.06
Rondelle Ø 5
1146684918Rondelle Ø 5€ 2.06
Hex. Hole Button Screw 6x65 (old 990-53060-653)
1156695088Hex. Hole Button Screw 6x65 (old 990-53060-653)€ 2.22
Bague
1166684639Bague€ 2.06
Muffler Set, Spare (old 704-0423z-90)
1176692465Muffler Set, Spare (old 704-0423z-90)€ 21.35
Muffler Special Gasket (old 751-04200-20)
1186692883Muffler Special Gasket (old 751-04200-20)€ 1.10
Tail Pipe Set, Spare (old 721-0423z-90)
1196692648Tail Pipe Set, Spare (old 721-0423z-90)€ 3.17
Screw 4x8/s (old 994-14040-081)
1206695325Screw 4x8/s (old 994-14040-081)€ 1.10
Muffler Gasket (old 737-04230-20)
1216692741Muffler Gasket (old 737-04230-20)€ 1.10
Warmteschild
1226687242Warmteschild€ 2.22
Screw 5x18/ps (old 994-15050-182)
1236695389Screw 5x18/ps (old 994-15050-182)€ 1.10
Tank Bracket (old 653-04200-20)
1246692205Tank Bracket (old 653-04200-20)€ 4.60
Fuel Tank Cushion Rubber (old 655-06100-20)
1256692227Fuel Tank Cushion Rubber (old 655-06100-20)€ 1.10
Bague
1266689645Bague€ 1.10
Koppelingsvoering
1276688615Koppelingsvoering€ 13.15
Clutch Spring (old 342-04270-20)
1286689429Clutch Spring (old 342-04270-20)€ 3.17
RING
1296695203RING€ 1.10
Clutch Step Bolt (old 357-0136u-20)
1306689628Clutch Step Bolt (old 357-0136u-20)€ 2.22
Clutch Shaft Comp.
1316699561Clutch Shaft Comp.€ 18.59
Recoil Starter Body Ass'y (old 762-04220-90)
1516692970Recoil Starter Body Ass'y (old 762-04220-90)€ 25.12
Recoil Starter Body Comp. (old 772-04220-80)
1526693025Recoil Starter Body Comp. (old 772-04220-80)€ 13.62
Starter Rope Reel (old 769-04220-20)
1536693007Starter Rope Reel (old 769-04220-20)€ 4.75
Recoil Spring (old 779-04220-20)
1546693114Recoil Spring (old 779-04220-20)€ 8.71
Starter Rope (old 783-04270-20/6693164)
1556693165Starter Rope (old 783-04270-20/6693164)€ 3.17
Starthendel
1566693607Starthendel€ 2.22
Starthendel
1576693232Starthendel€ 3.17
Set Screw (old 839-04220-20)
1586693634Set Screw (old 839-04220-20)€ 1.10
Starter Pawl (old 788-0162v-20)
1596693302Starter Pawl (old 788-0162v-20)€ 2.22
Stop Ring E-5 (old 993-55050-000)
1606684683Stop Ring E-5 (old 993-55050-000)€ 2.06
Screw 5x25ps (old 994-15050-252)
1616695395Screw 5x25ps (old 994-15050-252)€ 1.10
Starter Pawl Spring (old 790-0162v-20)
1626693345Starter Pawl Spring (old 790-0162v-20)€ 2.22
Starter Pulley (old 798-04220-90)
1636693395Starter Pulley (old 798-04220-90)€ 10.61
Cleaner Body Set (old 6690106)
1816699506Cleaner Body Set (old 6690106)€ 13.64
Collar 5.8 (old 659-00801-20)
1826692244Collar 5.8 (old 659-00801-20)€ 1.10
Blow Over Check Board Comp. (old 476-0422u-80/6690
1836690848Blow Over Check Board Comp. (old 476-0422u-80/6690€ 2.22
Élément de filtre à air
1846690357Élément de filtre à air€ 2.22
Luchtfilterkap
1856690149Luchtfilterkap€ 8.23
Boulon
1866690383Boulon€ 1.10
Screw 5x60/s (old 994-14050-601)
1876695354Screw 5x60/s (old 994-14050-601)€ 1.10
Screw (old 514-25001-20)
2016685210Screw (old 514-25001-20)€ 1.10
Pump Body (old 575-25012-20)
2026691420Pump Body (old 575-25012-20)€ 7.92
Pump Gasket (old 577-25012-20)
2036691455Pump Gasket (old 577-25012-20)€ 2.22
Pump Diaphragm (old 576-25012-20)
2046691446Pump Diaphragm (old 576-25012-20)€ 5.06
Inlet Screen (oud 578-25007-20)
2056684700Inlet Screen (oud 578-25007-20)€ 4.12
Idle Adjust Spring (old 463-25012-20)
2066690766Idle Adjust Spring (old 463-25012-20)€ 2.22
Idle Adjust Screw (old 462-25006-20)
2076690736Idle Adjust Screw (old 462-25006-20)€ 3.17
Needle Valve (old 603-25012-20)
2086685215Needle Valve (old 603-25012-20)€ 5.06
Valve Spring (old 477-25051-20)
2096690871Valve Spring (old 477-25051-20)€ 2.22
Valve Spring (old 477-25307-20)
209A6690874Valve Spring (old 477-25307-20)€ 4.27
Control Lever (old 473-25012-20)
2106690819Control Lever (old 473-25012-20)€ 4.27
Hinge Pin (old 605-25001-20)
2116685219Hinge Pin (old 605-25001-20)€ 1.10
Hinge Pin Set Screw (old 546-25001-20)
2126685218Hinge Pin Set Screw (old 546-25001-20)€ 2.22
Diaphragm Gasket (old 475-25032-20)
2136690840Diaphragm Gasket (old 475-25032-20)€ 3.17
Metering Diaphragm Comp. (old 474-25032-80)
2146690829Metering Diaphragm Comp. (old 474-25032-80)€ 11.40
Air Purge Comp. (old 454-25032-80)
2156690434Air Purge Comp. (old 454-25032-80)€ 17.28
Diaphragm Cover (old 476-25032-20)
2166690860Diaphragm Cover (old 476-25032-20)€ 6.18
Set Screw (old 548-25016-20) New Jul
2176691310Set Screw (old 548-25016-20) New Jul€ 1.10
Adjust Spring (old 623-25054-20) New
2186692049Adjust Spring (old 623-25054-20) New€ 2.02
Épuisé
2196690715Épuisé
Épuisé
2206690692Épuisé
Clutch Shaft Comp. (old 289-04205-80/6688583)
2316688582Clutch Shaft Comp. (old 289-04205-80/6688583)€ 21.35
Roulement à billes
2326695559Roulement à billes€ 6.18
Stop Ring C-15, Outer (old 993-50015-002)
2336695285Stop Ring C-15, Outer (old 993-50015-002)€ 1.10
Épuisé
2346689506Épuisé
Épuisé
2356695337Épuisé
Cushion Rubber Comp. (old 599-04201-81/6691827)
2366691828Cushion Rubber Comp. (old 599-04201-81/6691827)€ 11.57
Clutch Case (old 331-04201-20)
2376689193Clutch Case (old 331-04201-20)€ 19.31
Hex. Hole Bolt M5x12/s (old 994-61050-124)
2386684667Hex. Hole Bolt M5x12/s (old 994-61050-124)€ 2.06
Hex. Hole Bolt 5x10 (old 990-51050-103)
2396695042Hex. Hole Bolt 5x10 (old 990-51050-103)€ 1.10
Pipe Holder (old 282-04201-20) New
2406688541Pipe Holder (old 282-04201-20) New€ 3.17
Hex Hole Button Screw 6x45 (old 990-53060-453)
2416695084Hex Hole Button Screw 6x45 (old 990-53060-453)€ 1.10
Bague
2426684826Bague€ 2.06
Bague
2436695194Bague€ 1.10
Square Nut 6 (old 991-91060-061)
2446696512Square Nut 6 (old 991-91060-061)€ 1.00
Épuisé
2616689464Épuisé
Épuisé
2626689356Épuisé
Bushing Ass'y (old 347-37100-90)
2636689515Bushing Ass'y (old 347-37100-90)€ 3.17
Lifting Metal (old 335-37121-20)
2646689271Lifting Metal (old 335-37121-20)€ 2.22
Lifting Metal Collar (old 334-37121-20)
2656689252Lifting Metal Collar (old 334-37121-20)€ 2.22
Hex. Hole Bolt 5x30.p (old 994-62050-304)
2666695501Hex. Hole Bolt 5x30.p (old 994-62050-304)€ 1.10
Special Nut (old 315-37304-20)
2676689100Special Nut (old 315-37304-20)€ 1.10
Handle Grip (old 165-37590-20)
2686684708Handle Grip (old 165-37590-20)€ 6.18
Hex. Hole Bolt 5x22/s (old 994-61050-224)
2696695492Hex. Hole Bolt 5x22/s (old 994-61050-224)€ 1.10
Handle Bracket A, Silver (old 506-37121-20)
2706691132Handle Bracket A, Silver (old 506-37121-20)€ 5.70
Handle Bracket B,silver (old 507-37121-20)
2716691148Handle Bracket B,silver (old 507-37121-20)€ 4.75
Handle Bracket C, Silver (old 508-33411-20)
2726691167Handle Bracket C, Silver (old 508-33411-20)€ 3.17
HEX. HOLE BUTTON SCREW 6X25S (OLD 994-81060-254)
2736684714HEX. HOLE BUTTON SCREW 6X25S (OLD 994-81060-254)€ 2.06
Clamp B. (old 460-33111-20)
2746684715Clamp B. (old 460-33111-20)€ 2.06
Left Handle (old 502-37415-21)
2756684716Left Handle (old 502-37415-21)€ 28.02
Protection Tube 7x790l (old 164-07079-00)
2766687542Protection Tube 7x790l (old 164-07079-00)€ 2.22
Right Handle Sk (old 501-37169-20)
2786691075Right Handle Sk (old 501-37169-20)€ 18.00
Throttle Lever Ass'y 19 (old 870-37168-91)
2796693728Throttle Lever Ass'y 19 (old 870-37168-91)€ 40.51
Safety Lever (old 253-38400-20)
2806684721Safety Lever (old 253-38400-20)€ 6.18
Return Spring (old 832-38400-20)
2816684722Return Spring (old 832-38400-20)€ 2.06
Throttle Lever (old 880-38401-20)
2826684723Throttle Lever (old 880-38401-20)€ 9.82
Blind Plug (old 322-38400-20)
2836684724Blind Plug (old 322-38400-20)€ 2.06
Screw M4x20 (black) (old 993-46040-202)
2846684725Screw M4x20 (black) (old 993-46040-202)€ 2.06
Screw 5x30 (black) (old 994-31050-303)
2856684726Screw 5x30 (black) (old 994-31050-303)€ 2.06
Contal Nut 5 (old 991-01050-043)
2866684727Contal Nut 5 (old 991-01050-043)€ 2.06
Stop Switch (old 156-37168-80)
2876687438Stop Switch (old 156-37168-80)€ 13.80
Stop Switch Comp. (old 156-37168-81)
287A6687439Stop Switch Comp. (old 156-37168-81)€ 13.80
Throttle Wire (old 887-37168-80)
2896694008Throttle Wire (old 887-37168-80)€ 11.88
Gaskabel
2906693953Gaskabel€ 27.01
Gaskabel
290A6693954Gaskabel€ 27.01
Carter
3016688801Carter€ 104.11
Hex. Hole Bolt M5x25/s (old 994-16050-252/790275)
3026684709Hex. Hole Bolt M5x25/s (old 994-16050-252/790275)€ 2.06
Stop Ring C-28.inner (old 993-51028-002)
3036684741Stop Ring C-28.inner (old 993-51028-002)€ 2.06
Stop Ring C-12 Outer
3046684664Stop Ring C-12 Outer€ 2.06
Roulement à billes
3056695532Roulement à billes€ 6.34
Roulement à billes
3066684608Roulement à billes€ 3.65
Gearcase, Silver (old 300-33392-21/6688733)
3076688703Gearcase, Silver (old 300-33392-21/6688733)€ 27.01
Rondelle D.5
3086684834Rondelle D.5€ 2.06
Hex. Hole Bolt M5x12/s (old 994-61050-124)
3096684667Hex. Hole Bolt M5x12/s (old 994-61050-124)€ 2.06
Hex. Socket Hd. Bolt M5x12 (old 990-51050-123)
309A6684829Hex. Socket Hd. Bolt M5x12 (old 990-51050-123)€ 2.06
Plus Head Bolt 8x10 (old 994-23080-100/6694968)
3106695437Plus Head Bolt 8x10 (old 994-23080-100/6694968)€ 1.10
Épuisé
3116695524Épuisé
Gear Shaft 6x11x14 M10x1.25 Lh (old 304-37850-21)
3126688942Gear Shaft 6x11x14 M10x1.25 Lh (old 304-37850-21)€ 21.35
Roulement à billes
313A6695564Roulement à billes€ 9.19
Stop Ring C-40, Inner (old 993-51040-002)
3146695298Stop Ring C-40, Inner (old 993-51040-002)€ 1.10
Cutter Holder (old 310-37100-22/6689020)
3156689022Cutter Holder (old 310-37100-22/6689020)€ 14.66
Cutter Holder Cap,6x11x14 (old 311-37861-20)
3166689052Cutter Holder Cap,6x11x14 (old 311-37861-20)€ 4.27
Protection Cover A Comp. (old 307-37100-81)
3176688982Protection Cover A Comp. (old 307-37100-81)€ 4.27
Screw 5x16/ws (old 994-16050-162)
3186695418Screw 5x16/ws (old 994-16050-162)€ 1.10
Cutter Fixing Nut L/h (old 313-38100-20/790241)
3196689072Cutter Fixing Nut L/h (old 313-38100-20/790241)€ 2.22
Bague
3206689157Bague€ 1.10
HEX. HOLE BUTTON SCREW 6X25S (OLD 994-81060-254)
3216684714HEX. HOLE BUTTON SCREW 6X25S (OLD 994-81060-254)€ 2.06
Épuisé
3226690299Épuisé
Cover Bracket D30 (old 442-37862-20)
322A6690312Cover Bracket D30 (old 442-37862-20)€ 4.91
Blade Guard 30 Ce (old 441-37130-21/6690229)
3236690230Blade Guard 30 Ce (old 441-37130-21/6690229)€ 15.24
Blade Guard 31 Ce (old 441-37862-20)
323A6690264Blade Guard 31 Ce (old 441-37862-20)€ 17.42
Safety Cover Holder (old 445-37380-20)
3246684748Safety Cover Holder (old 445-37380-20)€ 4.12
Cover Guard (old 447-37380-20)
3256690372Cover Guard (old 447-37380-20)€ 9.19
Blade Guard (old 447-38331-20)
325A6690376Blade Guard (old 447-38331-20)€ 9.02
Mesje (oud 797-37380-21/6693385)
3266693386Mesje (oud 797-37380-21/6693385)€ 4.27
Mesje (oud 797-37714-20)
326A6684750Mesje (oud 797-37714-20)€ 4.12
Screw 5x12/s (old 994-14050-121)
3276695334Screw 5x12/s (old 994-14050-121)€ 1.10
Tapping Screw 4x14 (old 993-48040-142)
327A6684751Tapping Screw 4x14 (old 993-48040-142)€ 2.06
Gear-pinion Set, Spare (old 301-37100-00)
3286688866Gear-pinion Set, Spare (old 301-37100-00)€ 25.12
Hex. Nut 5 (old 991-01050-011)
3296684965Hex. Nut 5 (old 991-01050-011)€ 1.00
Mesje (oud 797-38331-20)
3306684754Mesje (oud 797-38331-20)€ 8.23
Tapping Screw 5x20 (old 993-17052-002)
3316684753Tapping Screw 5x20 (old 993-17052-002)€ 2.06
Épuisé
5016684813Épuisé
ZESKANTSLEUTEL 17/19MM
5026684764ZESKANTSLEUTEL 17/19MM€ 3.80
Protection Cover B (old 308-37861-20)
5036688994Protection Cover B (old 308-37861-20)€ 2.22
Épuisé
504A875769Épuisé
Cutter Cover (old 615-37181-20)
5056692016Cutter Cover (old 615-37181-20)€ 8.08
BLADE B3/12/3.0 (OLD 000-79648-00 & 6693503)
5066695792BLADE B3/12/3.0 (OLD 000-79648-00 & 6693503)€ 23.23
SHOULDER HARNESS D3X
5076695796SHOULDER HARNESS D3X€ 20.33
Votre panier contient 0 de produits.
