Dessins des Hikoki TBC-290

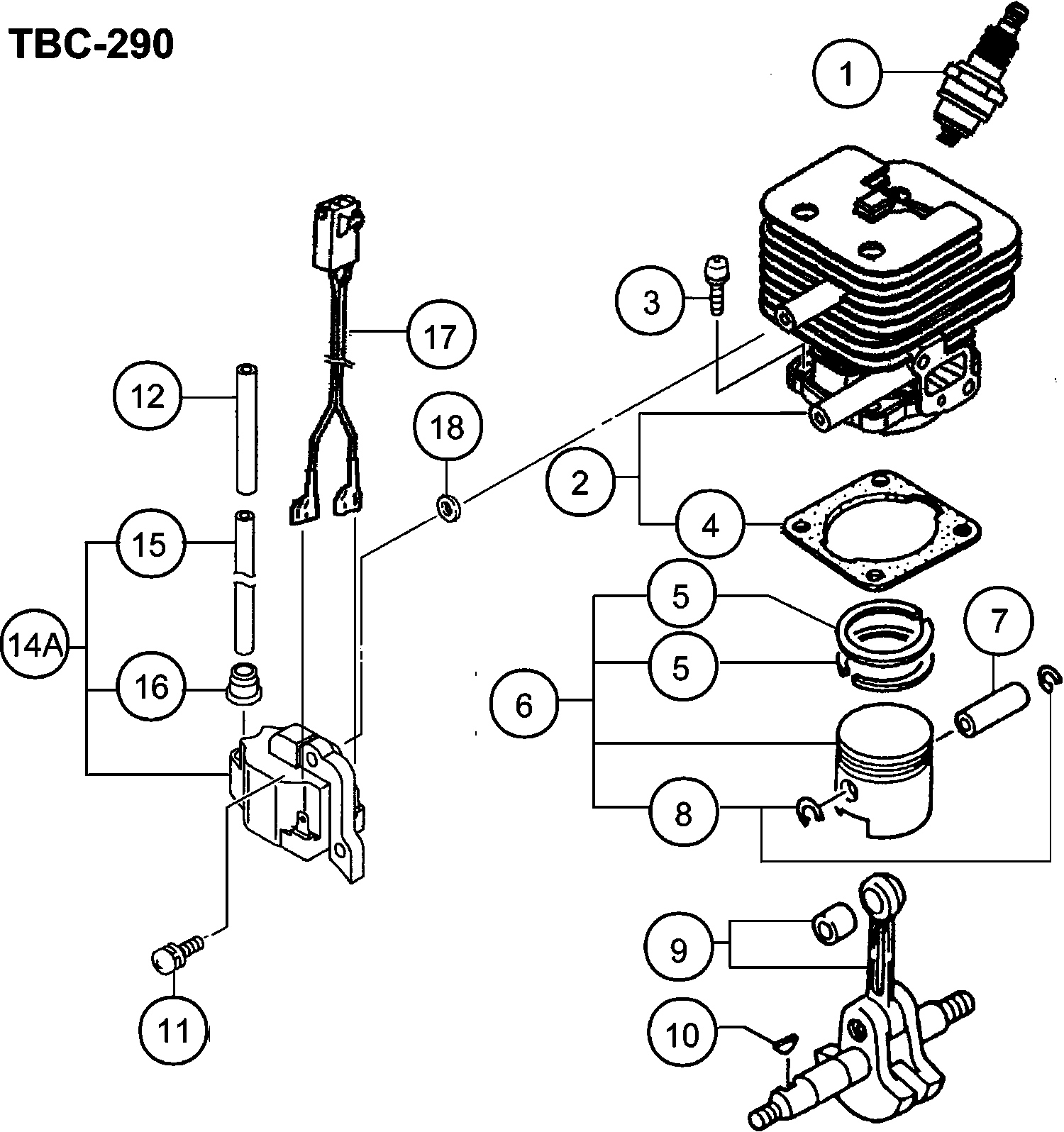

Dessins techniques 1

Liste de pièces de rechange des Hikoki TBC-290

Pos. Description Prix hors TVA Prix ​​TTC
Les prix affichés incluent la TVA

Bougie (oud 6685775)
1 6699326 3.30 3.96

Cylinder Set (old 001-07020-90)
2 6685484 56.26 67.52

Hex.hole Bolt M5x16/s (old 994-61050-164)
3 6684903 2.15 2.58

Cylinder Gasket (old 017-07020-20)
4 6685746 1.15 1.38

Piston Ring 34.5 (old 041-07020-20)
5 6686130 4.45 5.34

Piston Set (old 030-07020-91)
6 6685896 26.16 31.40

Piston Pin (old 037-07020-20/6686011)
7 6686016 2.31 2.78

Circlip (old 039-00000-20)
8 6685078 1.15 1.38

Crank Shaft Comp. (old 046-07221-80/6686210)
9 6696499 67.00 80.40

Woodruff Key 3x13x4.5 (oud 068-10100-20)
10 6684899 2.15 2.58

High Tension Screw 4x18ws (old 994-16040-186)
11 6695407 1.15 1.38

Insulator Tube, 110l (old 250-07020-20)
12 6688319 1.15 1.38

Ignition Coil Ass'y (old 6687665/6699774)
14A 6699772 17.85 21.42

High Tension Cord 140l (old 178-20549-20/6687887)
15 6687888 2.31 2.78

Rubber Beschermkapje
16 6684602 2.15 2.58

Lead Wire Ass'y
17 6697836 5.45 6.54

Ring (old 182-0186a-20)
18 6684600 2.15 2.58

Crank Case Ass'y (old 072-07020-90)
31 6686580 38.26 45.92

Olie Keerring
32 6684607 4.29 5.14

Roulement à billes
33 6684608 3.80 4.56

Crank Case Gasket (old 090-07020-20)
34 6686721 1.15 1.38

Gear Shaft Shim 0.20 (oud 330-00200-23)
35 6684604 2.15 2.58

Gear Shaft Shim 0.30 (oud 330-00200-24)
35 6684605 2.15 2.58

Gear Shaft Shim 0.10 (old 330-00200-21)
35 6689177 1.15 1.38

Gear Shaft Shim 0.15 (old 330-00200-22)
35 6689178 1.15 1.38

Vliegwiel
36 6687374 24.20 29.04

Nut M8 (old 991-01080-011/327325/332299/726603)
37 6684612 2.15 2.58

Bague
38 6695184 1.15 1.38

Hex.hole Bolt M5x16/s (old 994-61050-164)
39 6684903 2.15 2.58

Bague
40 6689645 1.15 1.38

Inlaatpakking
51 6689895 1.15 1.38

Insulator Set (old 404-07020-91)
52 6689972 6.28 7.53

Hex. Hole Bolt 5x25ws (old 994-64050-254/6696513)
53 6695515 1.15 1.38

Carburetor Gasket (old 402-0656a-20)
54 6684616 2.15 2.58

Carburateurset
55 6690500 82.43 98.91

Choke Plate 1.0 (old 528-07020-22/6691277)
56 6691278 1.15 1.38

Cleaner Body Comp. (old 423-0652n-80)
57 6690120 4.45 5.34

Reinigingsspons
58 6690365 1.15 1.38

Luchtfilterkap
59 6690421 13.86 16.64

Cover Fixing Bolt Comp.
60 6698730 3.15 3.78

Screw 5x55 (old 990-11050-552)
61 6694914 1.15 1.38

Ring 5 (oud 992-00050-011)
62 6684864 2.15 2.58

Choke Control Lever (old 523-0652n-20)
63 6691239 1.15 1.38

Tank Comp. Wht (old 591-07039-80/6691587)
64 6691588 11.71 14.06

Collar C (old 659-04300-20)
65 6684623 2.15 2.58

Fuel Pipe Grommet (old 222-06300-20)
66 6688156 1.15 1.38

Fuel Pipe 3x5x80 (oud 700-03005-08)
67 6684880 2.15 2.58

Épuisé
68 6684620

Clip D6 (old 680-00070-20)
69 6685198 1.15 1.38

Fuel Pipe Ass'y (old 223-0162v-90)
70 6688169 2.31 2.78

Hex Hole Bolt 5x20ps (old 994-63050-205)
71 6695506 1.15 1.38

Épuisé
72 6685049

Épuisé
73 6684625

Stand (old 941-07035-20)
74 6694793 3.30 3.96

Tap Screw 4x14 P (old 993-49040-142/6695112)
75 6695280 1.15 1.38

Bague
76 6685070 1.15 1.38

Ring (oud 992-10050-012)
77 6684662 2.15 2.58

Carburateurset
78 6690499 52.34 62.80

Koppeling Schoen
91 6688616 7.59 9.10

Clutch Spring (old 342-06410-20)
92 6689430 2.31 2.78

Bague
93 6684642 2.15 2.58

Clutch Plate A 0.5 (old 348-0630a-20/6689529)
94 6684645 2.15 2.58

Step Bolt (old 357-00601-20)
95 6689627 1.15 1.38

Clutch Set Assy (old 276-06410-91) New
96 6688484 14.53 17.43

Enveloppe De Ventilateur
97 6687019 11.05 13.26

Hex. Hole Bolt 5x15ws (old 994-64050-154)
98 6695512 1.15 1.38

Caoutchouc anti-vibrateur
99 6691838 3.30 3.96

Tapping Screw D5x14 (old 990-72050-144)
100 6685275 1.15 1.38

Pipe Holder (old 360-07030-20)
101 6689656 8.91 10.70

Stop Ring C-12 Outer
102 6684664 2.15 2.58

Hex. Hole Bolt M5x25/s (old 994-16050-252/790275)
103 6684709 2.15 2.58

Hex. Hole Bolt 4x12ws (old 994-64040-125)
104A 6695507 1.15 1.38

Clutch Shaft Comp (old 289-07020-80)
105 6688597 13.20 15.84

Stop Ring R-32 Inner (old 993-53032-002)
106 6695304 1.15 1.38

Bearing Case (old 088-07020-20)
107 6686667 7.75 9.30

Roulement à billes
108 6695553 6.28 7.53

Primary Cord Grommet (old 203-11660-20)
109 6688057 1.15 1.38

Muffler Protector (old 738-07021-20)
110 6692803 7.75 9.30

Spark Plug Cap Ass'y (old 157-01570-90/6687470/668
111 6687468 2.31 2.78

Tapping Screw D4.5x12 (old 990-73045-124)
112 6684637 2.15 2.58

Muffler Gasket (old 737-0165a-20)
113 6692732 1.15 1.38

Warmteschild
114 6687260 3.30 3.96

Muffler Set (old 704-07020-90)
115 6692489 22.24 26.68

Hex. Hole Bolt M6x55 (old 990-51060-553/6696819)
116 6684638 2.15 2.58

Bague
117 6684639 2.15 2.58

Muffler Special Gasket (old 751-07020-20) New
118 6692887 1.15 1.38

Tailpipe Set (old 721-07020-90) New
119 6692669 4.45 5.34

Bague
120A 6685109 1.15 1.38

Screw 4x8/s (old 994-14040-081)
120 6695325 1.15 1.38

Tailpipe Set (old 721-07020-90) New
121 6692669 4.45 5.34

Tail Pipe Set (old 734-07037-90) New
121A 6692712 2.31 2.78

Spark Arrestor, Usa Only (old 732-0631a-21)
122 6692699 1.15 1.38

Bague
123 6684648 2.15 2.58

Recoil Starter Ass'y (old 762-0162v-91/6692968)
151 6692969 22.24 26.68

Starthendel
152 6693227 3.30 3.96

Rope Guide (old 780-06150-20)
153 6693135 3.30 3.96

Recoil Starter Body (old 772-06150-21/6693035)
154 6693036 10.23 12.27

Recoil Spring (old 779-0136u-20)
155 6693111 7.93 9.51

Rope 3.5x890 (old 783-0162v-20/6693171)
156 6693157 2.31 2.78

Starter Rope Reel (old 774-0162v-20)
157 6693057 4.45 5.34

Bague
158 6693419 1.15 1.38

Set Screw (old 839-00025-20)
159 6693632 1.15 1.38

Hex.hole Bolt 4x18ps (old 994-63040-184)
160 6695502 1.15 1.38

Starter Pulley Ass'y (old 798-0166r-90)
161 6693394 7.59 9.10

Starter Pawl (old 788-0138a-20)
162 6693299 2.31 2.78

Starter Pawl Spring (old 790-0162v-20)
163 6693345 2.31 2.78

Pump Body Comp. (old 575-25153-80)
191 6684879 62.16 74.60

Priming Pump Comp. (oud 442-25151-80)
192 6684687 16.34 19.60

Diaphragm Cover (oud 476-25151-20)
193 6684688 8.58 10.29

Priming Body (oud 447-25108-20)
194 6684689 6.44 7.72

Metering Diaphragm Comp. (old 474-25001-80/6690826
195 6690827 11.71 14.06

Diaphragm Gasket (oud 475-25153-20)
196 6684691 8.58 10.29

Pump Diaphragm (old 576-25100-20 & 6696325)
197 6684693 8.58 10.29

Pump Gasket (old 577-25100-20)
198 6691457 7.10 8.52

Stop Ring (oud 489-25100-20)
201 6684696 2.15 2.58

Swivel (oud 539-25120-20)
202 6684697 6.44 7.72

Throttle Set Screw (oud 514-25100-20)
203 6684870 2.15 2.58

Cable Adjuster Stay (oud 544-25164-20)
204 6684873 6.44 7.72

Lock Nut M6 (oud 991-01060-013)
205 6684872 2.15 2.58

Cable Adjuster (oud 614-25137-20)
206 6684871 4.29 5.14

Cleaner Packing (oud 431-0634c-20)
207 6684875 4.29 5.14

Set Screw (old 548-25151-20 & 6696324)
208 6684699 2.15 2.58

Ring (oud 549-25165-20)
209 6684874 2.15 2.58

Inlet Screen (oud 578-25007-20)
210 6684700 4.29 5.14

Épuisé
211 6690700

High/low Adjust Spring (old 623-25032-20)
212 6692048 2.31 2.78

Bague
213 6691317 1.05 1.26

O-ring (old 550-25137-20) New
214 6691322 2.10 2.52

Épuisé
215 6697616

O-RING (OUD 550-25100-20)
216 6684695 4.29 5.14

Main Jet #43 (old 599-2000w-43/6691847/6691849)
217 6691848 4.45 5.34

Drive Shaft 1533l (old 343-38302-20 & 6684701)
231 6689478 14.98 17.97

Épuisé
232 6689407

Bushing Ass'y
233 6697866 1.98 2.37

Hex.nut 6 (old 6684792/991-01060-041/790444)
234 6684835 2.15 2.58

Épuisé
235 6691049

Barrier, 26 Dia, Black (old 520-33398-20)
236 6691231 5.61 6.74

Bolt 6x43/p (black) (old 994-23060-432)
237 6684838 2.15 2.58

Tapping Screw 5x20 (old 993-11052-012)
238 6695255 1.15 1.38

Bague
239 6689681 1.15 1.38

Handle Grip (old 503-3738e-20)
240 6691098 6.44 7.72

Épuisé
241 6689275

Throttle Lever Ass'y, 26 Dia. (old 870-37588-90)
242 6693748 40.24 48.28

Gaskabel
243 6693978 19.51 23.42

Throttle Wire (old 887-38400-80)
244 6694022 8.25 9.90

Stop Switch Comp. (old 156-38400-80)
245 6687459 13.91 16.70

Protection Tube 7x175 (old 164-07017-50)
246 6687526 1.15 1.38

Safety Lever (old 253-38400-20)
247 6684721 6.44 7.72

Return Spring (old 832-38400-20)
248 6684722 2.15 2.58

Blind Plug (old 322-38400-20)
249 6684724 2.15 2.58

Screw M5x20 (old 994-31050-203)
250 6684803 2.15 2.58

Épuisé
251 6684727

Screw M4x20 (black) (old 993-46040-202)
252 6684725 2.15 2.58

Throttle Lever (old 880-38400-20)
253 6684804 8.58 10.29

Épuisé
281B 6601215

Gear Case Set Pn (old 300-3338r-00/6688696)
281 6696497 60.35 72.42

Hex. Hole Bolt M5x25/s (old 994-16050-252/790275)
282 6684709 2.15 2.58

Hex. Socket Hd. Bolt M5x12 (old 990-51050-123)
282A 6684829 2.15 2.58

Rondelle D.5
283 6684834 2.15 2.58

STOP RING C-26, INNER (OLD 993-51026-002)
284 6695294 1.15 1.38

Stop Ring C-10, Outer (old 993-50010-002)
285A 6684821 2.15 2.58

Stop Ring Outer 10 (old 993-57010-002)
285 6695315 1.15 1.38

Épuisé
286 6695526

Épuisé
287 6695524

Gear Case 26 Dia (old 300-37480-20)
288 6688770 15.88 19.05

Plaque D'engrenages (1)
288A 6697738 12.88 15.45

Hex. Hole Bolt M5x12/s (old 994-61050-124)
289 6684667 2.15 2.58

Hex. Socket Hd. Bolt M5x30 S (old 994-61050-304)
289A 6684786 2.15 2.58

Bolt (w/plus) M6x8 (old 990-23060-080)
290A 6684737 2.15 2.58

Oiling Bolt (old 316-38150-20)
290 6689109 1.15 1.38

Roulement à billes
291 6684734 8.58 10.29

Gear Shaft (old 304-3338r-20)
292 6688924 18.15 21.78

Gear Shaft
292A 6697739 14.53 17.43

Roulement à billes
293 6695554 5.94 7.12

Roulement à billes
293A 6695555 7.10 8.52

Stop Ring C-32, Inner (old 993-51032-002/791058)
294 6695295 1.15 1.38

Cutter Holder (old 310-38150-20)
295 6689032 11.71 14.06

Cutter Holder Cap (old 311-38150-20)
296 6689055 5.11 6.14

Cutter Holder Cap
296A 6699009 3.80 4.56

Nut Cover
297 6697792 2.80 3.36

Fixing Nut L M10x1.25 (oud 313-38150-20)
298 6689073 4.63 5.55

Épuisé
298A 6698658

Bague
299 6689159 1.15 1.38

HEX. HOLE BUTTON SCREW 6X25S (OLD 994-81060-254)
300 6684714 2.15 2.58

Cover Bracket D26 (old 442-33699-20/6690307)
301 6690294 1.15 1.38

Cover Bracket D26 (old 442-38331-20)
301A 6690315 4.45 5.34

Cover Bracket D26
301B 6697867 4.29 5.14

Blade Guard 26 Ce (old 441-37380-21/6690241)
302 6690242 16.64 19.96

Blade Guard 26ce (old 441-38331-20)
302A 6690276 17.55 21.06

Safety Cover Holder (old 445-37380-20)
303 6684748 4.29 5.14

Cover Guard (old 447-37380-20)
304 6690372 9.58 11.49

Blade Guard (old 447-38331-20)
304A 6690376 9.40 11.28

Mesje (oud 797-37714-20)
305A 6684750 4.29 5.14

Mesje (oud 797-37380-21/6693385)
305 6693386 4.45 5.34

Tapping Screw 4x14 (old 993-48040-142)
306A 6684751 2.15 2.58

Screw 5x12/s (old 994-14050-121)
306 6695334 1.15 1.38

Gear/pinion Set, Spare (old 301-37480-00)
307 6688875 22.24 26.68

Gear Pinion Set
307A 6697741 20.11 24.14

Hex. Nut 5 (old 991-01050-011)
308 6684965 1.04 1.24

Tapping Screw 5x20 (old 993-17052-002)
309 6684753 2.15 2.58

Mesje (oud 797-38331-20)
310 6684754 8.58 10.29

Gear Case Set Pn (old 300-3338r-00/6688696)
321 6696497 60.35 72.42

Hex. Hole Bolt M5x25/s (old 994-16050-252/790275)
322 6684709 2.15 2.58

STOP RING C-26, INNER (OLD 993-51026-002)
323 6695294 1.15 1.38

Stop Ring Outer 10 (old 993-57010-002)
324 6695315 1.15 1.38

Épuisé
325 6695526

Épuisé
326 6695524

Gear Case 26 Dia (old 300-37480-20)
327 6688770 15.88 19.05

Hex. Hole Bolt M5x12/s (old 994-61050-124)
328 6684667 2.15 2.58

Oiling Bolt (old 316-38150-20)
329 6689109 1.15 1.38

Roulement à billes
330 6684734 8.58 10.29

Gear Shaft (old 304-3338r-20)
331 6688924 18.15 21.78

Roulement à billes
332 6695554 5.94 7.12

Stop Ring C-32, Inner (old 993-51032-002/791058)
333 6695295 1.15 1.38

Cutter Holder (old 310-38150-20)
334 6689032 11.71 14.06

Cutter Holder Cap (old 311-38150-20)
335 6689055 5.11 6.14

Fixing Nut L M10x1.25 (oud 313-38150-20)
336 6689073 4.63 5.55

Bague
337 6689159 1.15 1.38

HEX. HOLE BUTTON SCREW 6X25S (OLD 994-81060-254)
338 6684714 2.15 2.58

Cover Bracket D26 (old 442-33699-20/6690307)
340 6690294 1.15 1.38

Cover Bracket D26 (old 442-37325-20/6690293)
340A 6690303 1.15 1.38

Blade Guard 26 Ce (old 441-37380-21/6690241)
341 6690242 16.64 19.96

Épuisé
341A 6690255

Safety Cover Holder (old 445-37380-20)
342 6684748 4.29 5.14

Safety Guard Holder (old 445-38150-20)
342A 6690343 3.30 3.96

Cover Guard (old 447-37380-20)
343 6690372 9.58 11.49

Mesje (oud 797-37380-21/6693385)
344 6693386 4.45 5.34

Screw 5x12/s (old 994-14050-121)
345 6695334 1.15 1.38

Gear/pinion Set, Spare (old 301-37480-00)
346 6688875 22.24 26.68

Hex. Nut 5 (old 991-01050-011)
347 6684965 1.04 1.24

Tapping Screw 5x20 (old 993-17052-002)
348 6684753 2.15 2.58

Hex. Hole Bolt M5x12/s (old 994-61050-124)
349 6684667 2.15 2.58

Mesje (oud 797-38150-20)
350 6693388 6.28 7.53

Cutter Holder Ass'y
395B 6601216 25.56 30.68

Épuisé
501 6684813

Épuisé
502 6684764

Cutter Cover (old 615-37224-20/790290)
503 6684768 2.15 2.58

Épuisé
504A 875769

Épuisé
505 6693520

Épuisé
506 6695789

Épuisé
507 6695795

Protection Cover B (old 308-38150-20 & 6688993)
508 6688995 3.30 3.96

Épuisé
509 6695786

Épuisé
510 6695784

Mounting Nut L-m10x1.25 (old 356-3383b-20)
511 6684756 9.08 10.89

Mounting Nut L-m8x1.25 (old 356-3383e-20)
512 6689624 7.75 9.30

Cutting Body (old 786-33830-20)
513 6684757 22.69 27.22

Special Nut (old 315-33830-20)
514 6684758 9.40 11.28

Reel Spring (old 793-33830-20)
515 6684759 4.29 5.14

Spool (old 787-33830-20)
516 6684760 15.58 18.69

Cutting Body Cap (old 789-33830-20)
517 6684761 36.15 43.38

Eyelet (old 788-33830-20)
518 6684762 4.29 5.14

Sure-tap Manual P/l 9
519 6697805 1.98 2.37

Winding Protector (old 307-37307-20)
520 6684763 4.29 5.14

Nylon Cord Cutter
521 6601148 19.21 23.06

Case
522 6601149 10.73 12.87

Ecrou (1)
523 6601150 6.93 8.31

Reel Spring (old 793-38454-20)
524 6693380 3.30 3.96

Line Holder
525 6601151 7.59 9.10

Couvercle (1)
526 6601152 7.75 9.30

Eyelet (old 788-37770-20)
527 6684810 2.15 2.58

Votre panier contient 0 de produits.
