Dessins techniques et pièces de rechange Hikoki TBC-225S
Type exact:
TBC-225S
TBC-225S

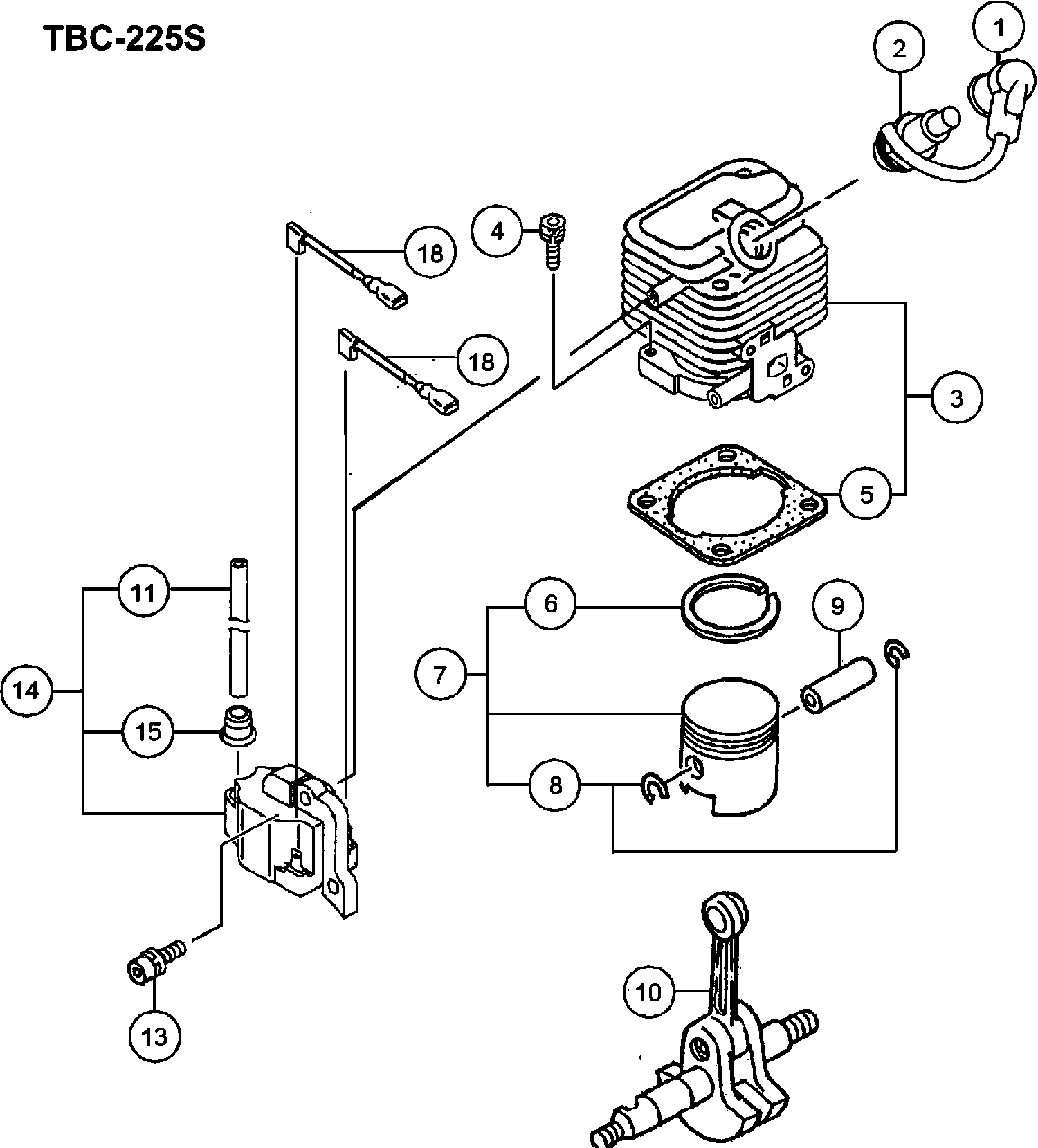

Dessins des HIKOKI TBC-225S
Liste de pièces de rechange des HIKOKI TBC-225S
Sur cette page, vous pouvez ajouter des pièces de rechange à votre panier en sélectionnant la quantité désirée et en cliquant sur le bouton derrière. Si vous avez terminé votre sélection, veuillez activer le bouton "Votre panier" en bas de la page. Les prix mentionnés ci-dessous sont TTC. Le montant exact de la TVA est calculé dans le panier en fonction du pays dans lequel vous souhaitez recevoir le colis.
| Spark Plug Cap Ass'y (old 157-01570-90/6687470/668 | ||||
| 1 | 6687468 | Spark Plug Cap Ass'y (old 157-01570-90/6687470/668 | € 2.22 | |
| Bougie (oud 6685085) | ||||
| 2 | 6699317 | Bougie (oud 6685085) | € 6.49 | |
| Cylinder Set (old 001-07130-91) | ||||
| 3 | 6685489 | Cylinder Set (old 001-07130-91) | € 32.82 | |
| Vis Ø5x18 | ||||
| 4 | 6684586 | Vis Ø5x18 | € 2.06 | |
| Cylinder Gasket (old 017-00980-20 & 6685743) | ||||
| 5 | 6685709 | Cylinder Gasket (old 017-00980-20 & 6685743) | € 1.10 | |
| Piston Ring (old 041-00601-21/ 6686117) | ||||
| 6 | 6686118 | Piston Ring (old 041-00601-21/ 6686117) | € 4.27 | |
| Piston Set (old 030-00070-90) | ||||
| 7 | 6685869 | Piston Set (old 030-00070-90) | € 14.95 | |
| Piston Pin Circlip (old 039-00601-20) | ||||
| 8 | 6684590 | Piston Pin Circlip (old 039-00601-20) | € 2.06 | |
| Zuiger Pin | ||||
| 9 | 6696944 | Zuiger Pin | € 3.19 | |
| Crank Shaft Comp. (old 046-07135-80) | ||||
| 10 | 6686217 | Crank Shaft Comp. (old 046-07135-80) | € 40.51 | |
| High Tension Cord 140l (old 178-20549-20/6687887) | ||||
| 11 | 6687888 | High Tension Cord 140l (old 178-20549-20/6687887) | € 2.22 | |
| Hex.hole Bolt 4x15/ps (old 994-63040-154) | ||||
| 13 | 6684682 | Hex.hole Bolt 4x15/ps (old 994-63040-154) | € 2.06 | |
| Ignition Coil Ass'y (old 6687665/6699774) | ||||
| 14 | 6699772 | Ignition Coil Ass'y (old 6687665/6699774) | € 17.14 | |
| Rubber Beschermkapje | ||||
| 15 | 6684602 | Rubber Beschermkapje | € 2.06 | |
| Stop Cord Comp. (old 178-0136m-80) | ||||
| 18 | 6687826 | Stop Cord Comp. (old 178-0136m-80) | € 2.22 | |
| Gear Shaft Shim 0.20 (oud 330-00200-23) | ||||
| 31 | 6684604 | Gear Shaft Shim 0.20 (oud 330-00200-23) | € 2.06 | |
| Gear Shaft Shim 0.30 (oud 330-00200-24) | ||||
| 31 | 6684605 | Gear Shaft Shim 0.30 (oud 330-00200-24) | € 2.06 | |
| Crank Case Ass'y (old 072-07120-92) | ||||
| 32 | 6686585 | Crank Case Ass'y (old 072-07120-92) | € 34.70 | |
| Olie Keerring | ||||
| 33 | 6684607 | Olie Keerring | € 4.12 | |
| Roulement à billes | ||||
| 34 | 6684608 | Roulement à billes | € 3.65 | |
| Crank Case Gasket (old 090-06410-20) | ||||
| 35 | 6686719 | Crank Case Gasket (old 090-06410-20) | € 1.10 | |
| Vis Ø5x18 | ||||
| 36 | 6684586 | Vis Ø5x18 | € 2.06 | |
| Vliegwiel | ||||
| 37 | 6601171 | Vliegwiel | € 22.07 | |
| Ring M8 (old 992-01080-011) | ||||
| 38 | 6684611 | Ring M8 (old 992-01080-011) | € 2.06 | |
| Nut M8 (old 991-01080-011/327325/332299/726603) | ||||
| 39 | 6684612 | Nut M8 (old 991-01080-011/327325/332299/726603) | € 2.06 | |
| Inlaatpakking | ||||
| 51 | 6689890 | Inlaatpakking | € 1.10 | |
| Carb Insulator Set (old 404-0099f-90) | ||||
| 52 | 6689914 | Carb Insulator Set (old 404-0099f-90) | € 5.70 | |
| CARBURETOR GASKET (OLD 402-0602K-21/6689836) | ||||
| 53 | 6684615 | CARBURETOR GASKET (OLD 402-0602K-21/6689836) | € 2.06 | |
| Hex.hole Bolt 5x22/ws (old 994-64050-224) | ||||
| 54 | 6695514 | Hex.hole Bolt 5x22/ws (old 994-64050-224) | € 1.10 | |
| Shield Tube (old 223-07000-90) | ||||
| 57 | 6688174 | Shield Tube (old 223-07000-90) | € 2.22 | |
| Clip D6 (old 680-00070-20) | ||||
| 58 | 6685198 | Clip D6 (old 680-00070-20) | € 1.10 | |
| Épuisé | ||||
| 59 | 6684620 | Épuisé | ||
| Tank, White (old 591-07120-21/6691593/6691594) | ||||
| 60 | 6691592 | Tank, White (old 591-07120-21/6691593/6691594) | € 9.19 | |
| Tank (evapo) (old 591-0717f-20) | ||||
| 60A | 6691595 | Tank (evapo) (old 591-0717f-20) | € 29.04 | |
| Collar 5.8 (old 659-00801-20) | ||||
| 62 | 6692244 | Collar 5.8 (old 659-00801-20) | € 1.10 | |
| Carburateurset | ||||
| 63 | 6690512 | Carburateurset | € 63.74 | |
| Swivel Cap (old 560-07120-21/6684628) | ||||
| 64 | 6691337 | Swivel Cap (old 560-07120-21/6684628) | € 1.10 | |
| Hex.hole Bolt 5x16/ps (old 994-63050-164) | ||||
| 65 | 6695504 | Hex.hole Bolt 5x16/ps (old 994-63050-164) | € 1.10 | |
| Screw 5x20ws (old 994-65050-205) | ||||
| 66 | 6695516 | Screw 5x20ws (old 994-65050-205) | € 1.10 | |
| Fuel Pipe 3x5x80 (oud 700-03005-08) | ||||
| 68 | 6684880 | Fuel Pipe 3x5x80 (oud 700-03005-08) | € 2.06 | |
| Return Grommet (old 6684627) | ||||
| 69 | 6697846 | Return Grommet (old 6684627) | € 1.00 | |
| Plus Screw 5x60ws (old 994-16050-601) | ||||
| 71 | 6695431 | Plus Screw 5x60ws (old 994-16050-601) | € 1.10 | |
| O-ring P-15 | ||||
| 72 | 6698966 | O-ring P-15 | € 1.00 | |
| Tank Cap D Ass'y (old 595-03002-90/6685071) | ||||
| 74 | 6691748 | Tank Cap D Ass'y (old 595-03002-90/6685071) | € 7.28 | |
| Muffler Protector Black (old 738-07162-20) | ||||
| 91 | 6692809 | Muffler Protector Black (old 738-07162-20) | € 4.91 | |
| Screw 4x15ps (old 994-15040-151) | ||||
| 92 | 6695373 | Screw 4x15ps (old 994-15040-151) | € 1.10 | |
| Tapping Screw D4.5x12 (old 990-73045-124) | ||||
| 94 | 6684637 | Tapping Screw D4.5x12 (old 990-73045-124) | € 2.06 | |
| Hex. Socket Hd. Bolt M5x50 (old 990-51050-503) | ||||
| 95 | 6685114 | Hex. Socket Hd. Bolt M5x50 (old 990-51050-503) | € 1.10 | |
| Rondelle Ø 5 | ||||
| 96 | 6684918 | Rondelle Ø 5 | € 2.06 | |
| Muffler Set (old 704-07139-90 & 6692433) | ||||
| 98 | 6692496 | Muffler Set (old 704-07139-90 & 6692433) | € 12.04 | |
| Muffler Gasket (old 737-07000-20 & 6692743) | ||||
| 100 | 6692745 | Muffler Gasket (old 737-07000-20 & 6692743) | € 1.10 | |
| Warmteschild | ||||
| 101 | 6687253 | Warmteschild | € 2.22 | |
| Bague | ||||
| 103 | 6684642 | Bague | € 2.06 | |
| Koppeling Schoen | ||||
| 104 | 6688616 | Koppeling Schoen | € 7.28 | |
| Clutch Spring (old 342-06410-20) | ||||
| 105 | 6689430 | Clutch Spring (old 342-06410-20) | € 2.22 | |
| Clutch Plate A 0.5 (old 348-0630a-20/6689529) | ||||
| 106 | 6684645 | Clutch Plate A 0.5 (old 348-0630a-20/6689529) | € 2.06 | |
| Step Bolt (old 357-00601-20) | ||||
| 107 | 6689627 | Step Bolt (old 357-00601-20) | € 1.10 | |
| Bague | ||||
| 108 | 6684648 | Bague | € 2.06 | |
| Hex. Hole Bolt M5x18/ws (old 994-64050-184) | ||||
| 110 | 6684647 | Hex. Hole Bolt M5x18/ws (old 994-64050-184) | € 2.06 | |
| Hex. Hole Bolt M5x30/ws (old 994-64050-304) | ||||
| 112 | 6684973 | Hex. Hole Bolt M5x30/ws (old 994-64050-304) | € 2.06 | |
| Cord Clamp Comp. (old 198-11600-80/6691462/6691463 | ||||
| 113 | 6688011 | Cord Clamp Comp. (old 198-11600-80/6691462/6691463 | € 1.10 | |
| Muffler Special Gasket (old 751-04200-20) | ||||
| 114 | 6692883 | Muffler Special Gasket (old 751-04200-20) | € 1.10 | |
| Exhaust Pipe Set, Spare (old 734-0099k-90) New | ||||
| 115 | 6692709 | Exhaust Pipe Set, Spare (old 734-0099k-90) New | € 2.22 | |
| Bague | ||||
| 116 | 6685109 | Bague | € 1.10 | |
| Muffler Wire Net Set (old 732-0099f-90) New | ||||
| 117 | 6692688 | Muffler Wire Net Set (old 732-0099f-90) New | € 2.22 | |
| Épuisé | ||||
| 131A | 6699995 | Épuisé | ||
| Recoil Starter Body Comp. (old 772-07350-80) | ||||
| 132 | 6684673 | Recoil Starter Body Comp. (old 772-07350-80) | € 18.30 | |
| Starter Rope 3.5x860 (old 783-0720f-20/6697590) | ||||
| 133 | 6684674 | Starter Rope 3.5x860 (old 783-0720f-20/6697590) | € 4.12 | |
| Recoil Spring (old 780-06097-20/6697591) | ||||
| 134 | 6684675 | Recoil Spring (old 780-06097-20/6697591) | € 11.09 | |
| Starter Rope Reel | ||||
| 135A | 6699997 | Starter Rope Reel | € 8.08 | |
| Dumper Spring (old 758-0651h-20) | ||||
| 136 | 6684677 | Dumper Spring (old 758-0651h-20) | € 8.23 | |
| Cam Plate | ||||
| 137A | 6699996 | Cam Plate | € 2.45 | |
| SET SCREW (OLD 839-03045-20) | ||||
| 138 | 6684679 | SET SCREW (OLD 839-03045-20) | € 2.06 | |
| Starthendel | ||||
| 139 | 6684680 | Starthendel | € 2.06 | |
| Starter Pulley Ass'y (old 798-0651h-90) | ||||
| 140 | 6684681 | Starter Pulley Ass'y (old 798-0651h-90) | € 12.67 | |
| Hex. Hole Bolt 4x18ws (old 994-64040-185) | ||||
| 141 | 6695508 | Hex. Hole Bolt 4x18ws (old 994-64040-185) | € 1.10 | |
| Stop Ring E-5 (old 993-55050-000) | ||||
| 142 | 6684683 | Stop Ring E-5 (old 993-55050-000) | € 2.06 | |
| Starter Pawl Spring (old 790-06097-20) | ||||
| 143 | 6684684 | Starter Pawl Spring (old 790-06097-20) | € 4.12 | |
| Starter Pawl (old 788-0651h-20) | ||||
| 144 | 6684685 | Starter Pawl (old 788-0651h-20) | € 4.12 | |
| Cam Plate Ass'y | ||||
| 145 | 6699691 | Cam Plate Ass'y | € 5.86 | |
| Air Cleaner Ass'y (old 410-00025-90) | ||||
| 171 | 6690005 | Air Cleaner Ass'y (old 410-00025-90) | € 9.19 | |
| Air Cleaner Cap (old 424-00025-20) | ||||
| 172 | 6690139 | Air Cleaner Cap (old 424-00025-20) | € 4.27 | |
| Élément de filtre à air | ||||
| 173 | 6690347 | Élément de filtre à air | € 4.27 | |
| Collar (old 470-00025-20) | ||||
| 175 | 6690801 | Collar (old 470-00025-20) | € 2.22 | |
| Cleaner Body Comp. (old 423-00025-80) | ||||
| 176 | 6690085 | Cleaner Body Comp. (old 423-00025-80) | € 8.56 | |
| Pump Body Comp. (old 575-25153-80) | ||||
| 191 | 6684879 | Pump Body Comp. (old 575-25153-80) | € 59.68 | |
| Priming Pump Comp. (oud 442-25151-80) | ||||
| 192 | 6684687 | Priming Pump Comp. (oud 442-25151-80) | € 15.68 | |
| Diaphragm Cover (oud 476-25151-20) | ||||
| 193 | 6684688 | Diaphragm Cover (oud 476-25151-20) | € 8.23 | |
| Priming Body (oud 447-25108-20) | ||||
| 194 | 6684689 | Priming Body (oud 447-25108-20) | € 6.18 | |
| Metering Diaphragm Comp. (old 474-25241-80) | ||||
| 195 | 6690830 | Metering Diaphragm Comp. (old 474-25241-80) | € 11.40 | |
| Diaphragm Gasket (oud 475-25153-20) | ||||
| 196 | 6684691 | Diaphragm Gasket (oud 475-25153-20) | € 8.23 | |
| Pump Diaphragm (old 576-25100-20 & 6696325) | ||||
| 197 | 6684693 | Pump Diaphragm (old 576-25100-20 & 6696325) | € 8.23 | |
| Pump Gasket (old 577-25100-20) | ||||
| 198 | 6691457 | Pump Gasket (old 577-25100-20) | € 6.82 | |
| Main Jet #38 (old 599-2000w-38) | ||||
| 199 | 6691844 | Main Jet #38 (old 599-2000w-38) | € 4.27 | |
| O-RING (OUD 550-25100-20) | ||||
| 200 | 6684695 | O-RING (OUD 550-25100-20) | € 4.12 | |
| Stop Ring (oud 489-25100-20) | ||||
| 201 | 6684696 | Stop Ring (oud 489-25100-20) | € 2.06 | |
| Swivel (oud 539-25120-20) | ||||
| 202 | 6684697 | Swivel (oud 539-25120-20) | € 6.18 | |
| Throttle Set Screw (old 548-25140-20) | ||||
| 203 | 6684698 | Throttle Set Screw (old 548-25140-20) | € 4.12 | |
| Set Screw (old 548-25151-20 & 6696324) | ||||
| 204 | 6684699 | Set Screw (old 548-25151-20 & 6696324) | € 2.06 | |
| Inlet Screen (oud 578-25007-20) | ||||
| 205 | 6684700 | Inlet Screen (oud 578-25007-20) | € 4.12 | |
| Épuisé | ||||
| 221 | 6688604 | Épuisé | ||
| Tapping Screw D4.5x14 (old 990-75045-144) | ||||
| 222 | 6685152 | Tapping Screw D4.5x14 (old 990-75045-144) | € 1.10 | |
| Hex. Hole Bolt M5x30/ws (old 994-64050-304) | ||||
| 223 | 6684973 | Hex. Hole Bolt M5x30/ws (old 994-64050-304) | € 2.06 | |
| Enveloppe De Ventilateur | ||||
| 224 | 6687031 | Enveloppe De Ventilateur | € 13.94 | |
| Square Nut 5 (old 991-91050-001) | ||||
| 225 | 6695176 | Square Nut 5 (old 991-91050-001) | € 1.10 | |
| Spacer (old 249-0712k-20) New | ||||
| 226 | 6688311 | Spacer (old 249-0712k-20) New | € 1.01 | |
| Stop Ring C-10, Outer (old 993-50010-002) | ||||
| 227 | 6684821 | Stop Ring C-10, Outer (old 993-50010-002) | € 2.06 | |
| Drive Shaft 1480l (old 343-38379-20/6689479) | ||||
| 251 | 6696009 | Drive Shaft 1480l (old 343-38379-20/6689479) | € 12.98 | |
| Stuurbuis | ||||
| 252 | 6689410 | Stuurbuis | € 23.23 | |
| Épuisé | ||||
| 253 | 6684831 | Épuisé | ||
| Épuisé | ||||
| 254 | 6685075 | Épuisé | ||
| Front Handle 24 (old 500-38451-20) New | ||||
| 255 | 6691057 | Front Handle 24 (old 500-38451-20) New | € 8.08 | |
| Hex.hole Bolt 5x30s (old 994-16050-301) New | ||||
| 256 | 6695426 | Hex.hole Bolt 5x30s (old 994-16050-301) New | € 1.10 | |
| Throttle Wire (old 885-38451-81) | ||||
| 257 | 6693983 | Throttle Wire (old 885-38451-81) | € 3.17 | |
| Throttle Lever Ass'y 24 (old 870-38451-90) New | ||||
| 258 | 6693770 | Throttle Lever Ass'y 24 (old 870-38451-90) New | € 17.86 | |
| Throttle Lever (old 880-38451-20) New | ||||
| 259 | 6685006 | Throttle Lever (old 880-38451-20) New | € 1.10 | |
| Return Spring (old 832-38451-20) | ||||
| 260 | 6684998 | Return Spring (old 832-38451-20) | € 1.10 | |
| Stop Switch (old 162-38451-20) New | ||||
| 261 | 6685009 | Stop Switch (old 162-38451-20) New | € 2.22 | |
| Switch Mark (old 925-38451-20) New | ||||
| 262 | 6685003 | Switch Mark (old 925-38451-20) New | € 1.10 | |
| Stop Switch Comp. (old 156-38451-80/6685028) New | ||||
| 263 | 6687462 | Stop Switch Comp. (old 156-38451-80/6685028) New | € 9.02 | |
| Machine Screw M5x30 (old 990-11050-301) | ||||
| 264 | 6685076 | Machine Screw M5x30 (old 990-11050-301) | € 1.10 | |
| Hex. Nut 5 (old 991-01050-011) | ||||
| 265 | 6684965 | Hex. Nut 5 (old 991-01050-011) | € 1.00 | |
| Protection Tube D7x170 (old 164-07017-01) New | ||||
| 266 | 6685007 | Protection Tube D7x170 (old 164-07017-01) New | € 2.22 | |
| Shaft Grip (old 509-38453-21) New | ||||
| 267 | 6691183 | Shaft Grip (old 509-38453-21) New | € 4.27 | |
| Carter | ||||
| 301 | 6688822 | Carter | € 57.94 | |
| Hex. Hole Bolt M5x25/s (old 994-16050-252/790275) | ||||
| 302 | 6684709 | Hex. Hole Bolt M5x25/s (old 994-16050-252/790275) | € 2.06 | |
| Stop Ring C-24.inner (old 993-51024-002) | ||||
| 303 | 6684732 | Stop Ring C-24.inner (old 993-51024-002) | € 2.06 | |
| Stop Ring C-9, Outer (old 993-50009-002) | ||||
| 304 | 6695281 | Stop Ring C-9, Outer (old 993-50009-002) | € 1.10 | |
| Roulement à billes | ||||
| 305 | 6684735 | Roulement à billes | € 8.23 | |
| Gear Case 24 (old 300-38360-21) | ||||
| 306 | 6688815 | Gear Case 24 (old 300-38360-21) | € 11.88 | |
| Screw 5x12/w.s (old 994-16050-121) | ||||
| 307 | 6695414 | Screw 5x12/w.s (old 994-16050-121) | € 1.10 | |
| Oiling Bolt (old 316-38150-20) | ||||
| 308 | 6689109 | Oiling Bolt (old 316-38150-20) | € 1.10 | |
| Roulement à billes | ||||
| 309 | 6695567 | Roulement à billes | € 4.27 | |
| Gear Shaft (old 304-38360-20) | ||||
| 310 | 6688948 | Gear Shaft (old 304-38360-20) | € 9.35 | |
| Roulement à billes | ||||
| 311 | 6695527 | Roulement à billes | € 6.34 | |
| STOP RING C-26, INNER (OLD 993-51026-002) | ||||
| 312 | 6695294 | STOP RING C-26, INNER (OLD 993-51026-002) | € 1.10 | |
| Cutter Holder (old 310-38360-20) | ||||
| 313 | 6689033 | Cutter Holder (old 310-38360-20) | € 6.18 | |
| Gear/pinion Set (old 301-38360-00) | ||||
| 314 | 6688883 | Gear/pinion Set (old 301-38360-00) | € 13.36 | |
| Gear Case Cover (old 303-38360-20) | ||||
| 315 | 6688917 | Gear Case Cover (old 303-38360-20) | € 2.22 | |
| Hex. Socket Hd. Bolt (w/button) M6x20 (old 990-530 | ||||
| 341 | 6685064 | Hex. Socket Hd. Bolt (w/button) M6x20 (old 990-530 | € 1.10 | |
| Bague | ||||
| 342 | 6684826 | Bague | € 2.06 | |
| SAFETY GUARD BRACKET (OLD 442-37417-20) | ||||
| 343 | 6685065 | SAFETY GUARD BRACKET (OLD 442-37417-20) | € 2.22 | |
| Safety Cover Comp. (old 441-37820-80) | ||||
| 344 | 6685066 | Safety Cover Comp. (old 441-37820-80) | € 13.94 | |
| Bague | ||||
| 345 | 6685068 | Bague | € 1.10 | |
| Bague | ||||
| 346 | 6685070 | Bague | € 1.10 | |
| Mesje (oud 797-37820-20) | ||||
| 347 | 6685067 | Mesje (oud 797-37820-20) | € 5.06 | |
| Nut M4 (old 991-01040-011) | ||||
| 348 | 6685069 | Nut M4 (old 991-01040-011) | € 1.10 | |
| Épuisé | ||||
| 501 | 6684813 | Épuisé | ||
| Combi Box Spanner 13x19 (old 829-29005-2h) New | ||||
| 502 | 6693588 | Combi Box Spanner 13x19 (old 829-29005-2h) New | € 3.17 | |
Votre panier contient 0 de produits.
