Vous trouverez ici toutes les pièces et dessins disponibles du 'Hikoki SB8V2'. De là, vous pouvez commander directement toutes les pièces souhaitées. De nombreuses pièces doivent être commandées auprès du fabricant, selon la marque, cela prend une à quatre semaines. Toutes les informations dont nous disposons se trouvent sur notre site Web, nous ne pouvons pas vous conseiller sur ce dont vous avez besoin, pour cela vous devrez retourner la machine pour réparation. Veuillez noter ce qui suit lors de la commande:

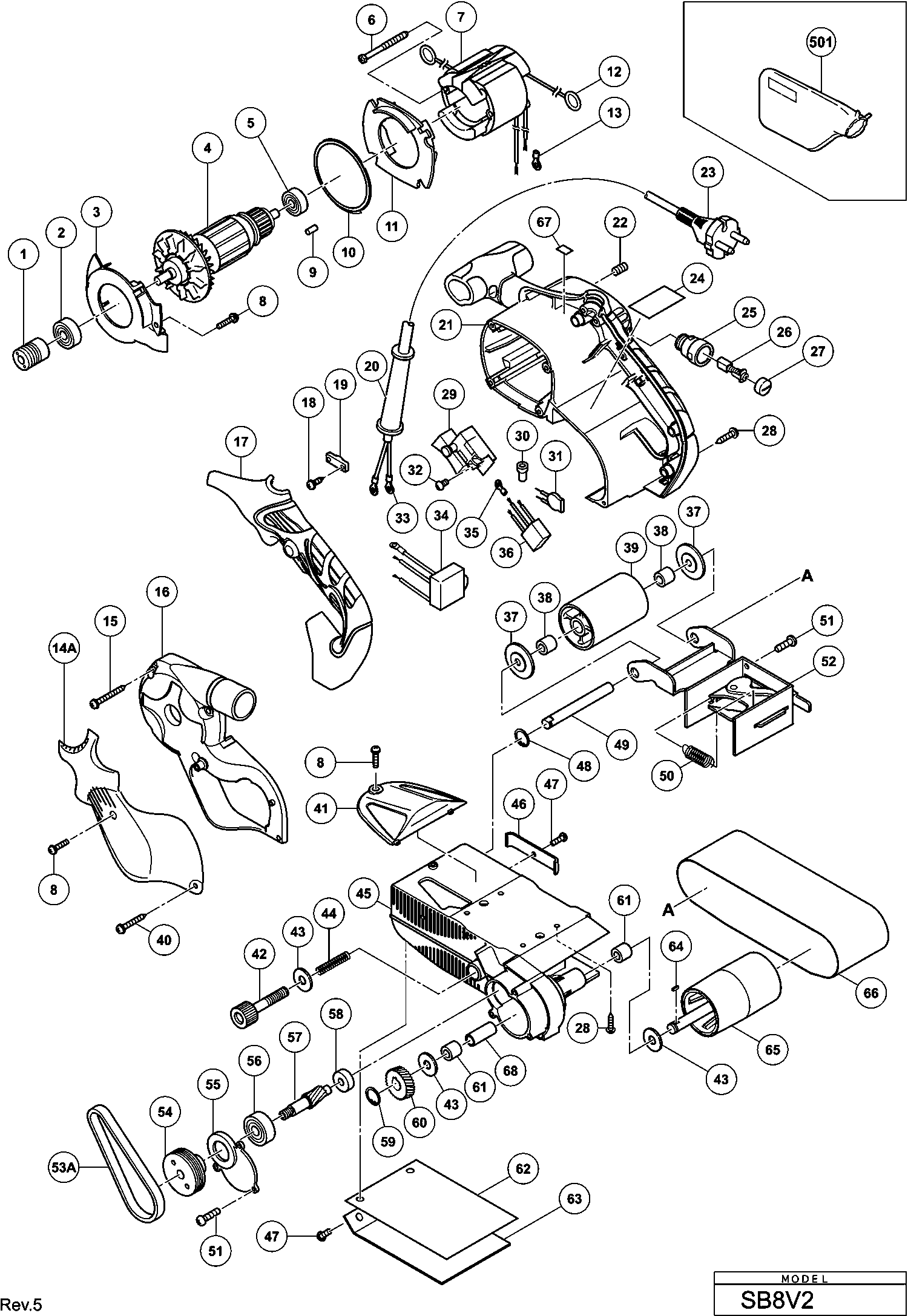

Dessins des Hikoki SB8V2
Liste de pièces de rechange des Hikoki SB8V2
Pos. | Description | Prix hors TVA | Prix TTC | |
Les prix affichés incluent la TVA | ||||
Poulie Sb 10v2 | ||||
1 | 327742 | 8.10 | 9.72 | |
Roulement | ||||
2 | 6000VV | 6.15 | 7.38 | |
Aspiration Des Poussiere | ||||
3 | 327739 | 3.00 | 3.60 | |
Induit 230v | ||||
4 | 360797E | 57.89 | 69.46 | |
Roulement A Billes | ||||
5 | 608VVM | 5.70 | 6.84 | |
Vis D5*55 | ||||
6 | 953174 | 1.04 | 1.24 | |
Inducteur Includ.12 For Nzl,gbr (230v),europe,nor | ||||
7 | 340700G | 61.46 | 73.76 | |
Vis Ø 4x12 noir Till 8.2019 (since 9.2017 Except | ||||
8 | 935196 | 1.04 | 1.24 | |
STYLO EN CAOUTCHOUC | ||||
9 | 931701 | 1.05 | 1.26 | |
Rondelle | ||||
10 | 328209 | 3.00 | 3.60 | |
Baffle | ||||
11 | 327738 | 1.95 | 2.34 | |
Raccord | ||||
12 | 930703 | 2.40 | 2.88 | |
Borne | ||||
13 | 980063 | 1.04 | 1.24 | |
Capot de Courroie | ||||
14A | 328433 | 4.80 | 5.76 | |
Vis D5*45 | ||||
15 | 316321 | 1.65 | 1.98 | |
Carter | ||||
16 | 327740 | 26.40 | 31.68 | |
Demi Poingnee | ||||
17 | 327760 | 14.55 | 17.46 | |
Pas d'informations disponibles, non commandable | ||||
18 | 984750 | |||
Serre Cable | ||||
19 | 937631 | 1.04 | 1.24 | |
Entree De Cable Ø 10,7 | ||||
20 | 940778 | 2.10 | 2.52 | |
Protecteur de câble D8.2 (ancien 958049z) | ||||
20 | 958049 | 1.04 | 1.24 | |
Carter | ||||
21 | 327759 | 63.25 | 75.90 | |
Vis de réglage hexagonale M5x8 | ||||
22 | 938477 | 1.05 | 1.26 | |
Câble 2,5m 2 X 1.0 Sans Fiche | ||||
23 | 500237Z | 11.40 | 13.68 | |
Cordon 2,5m 2 X 1.0 H05vv-f (ancien 500395z) | ||||
23 | 500447Z | 6.60 | 7.92 | |
S/e Porte Balais | ||||
25 | 958900 | 6.45 | 7.74 | |
Charbons (1 Paire) | ||||
26 | 999043 | 4.50 | 5.40 | |
Bouchon Charbon | ||||
27 | 945161 | 1.20 | 1.44 | |
Vis Ø 4*16 Noir | ||||
28 | 305812 | 1.04 | 1.24 | |
Commutateur | ||||
29 | 325085 | 9.90 | 11.88 | |
Commutateur | ||||
29A | 339021 | 9.90 | 11.88 | |
Connecteur 50091 | ||||
30 | 959140 | 3.30 | 3.96 | |
Varistor Pour Gbr,europe,fin,nor,swe,den,aut | ||||
31 | 328432 | 3.00 | 3.60 | |
Vis machine (avec rondelle) M3,5x6 | ||||
32 | 305499 | 1.05 | 1.26 | |
Borne | ||||
33 | 980063 | 1.04 | 1.24 | |
Controleur | ||||
34 | 327758 | 42.08 | 50.49 | |
Borne For Noise Suppressor | ||||
35 | 938108 | 1.20 | 1.44 | |
Condensateur | ||||
36 | 325566 | 9.00 | 10.80 | |
Rondelle | ||||
37 | 953184 | 10.95 | 13.14 | |
Coussinet | ||||
38 | 953175 | 1.65 | 1.98 | |
Rouleau Avant Sb-75 Includ.38 | ||||
39 | 953160 | 16.36 | 19.64 | |
Vis à tôle D4x30 (noir) | ||||
40 | 305490 | 1.04 | 1.24 | |
Plaque Avant | ||||
41 | 327744 | 1.95 | 2.34 | |
Vis de réglage | ||||
42 | 319258 | 3.30 | 3.96 | |
Rondelle Ø 19 | ||||
43 | 948213 | 1.05 | 1.26 | |
Ressort | ||||
44 | 953071 | 1.05 | 1.26 | |
Chassis | ||||
45 | 327745 | 57.89 | 69.46 | |
Piece De Guidage | ||||
46 | 327746 | 1.95 | 2.34 | |
Vis machine M4x10 (10 pièces) (ANCIEN 949216Z) | ||||
47 | 949216 | 1.05 | 1.26 | |
Clips D10 (x10) paquet de 10 Till 12.2003 | ||||
48 | 939540 | 1.95 | 2.34 | |
Arbre | ||||
49 | 953162 | 4.50 | 5.40 | |
Ressort | ||||
50 | 953163 | 1.05 | 1.26 | |
Vis Sb 10v (paquet de 10) | ||||
51 | 949218 | 1.05 | 1.26 | |
Pas d'informations disponibles, non commandable | ||||
52 | 327756 | |||
Ceinture | ||||
53A | 330690 | 3.00 | 3.60 | |
Poulie Sb 10v2 | ||||
54 | 327749 | 16.09 | 19.30 | |
Carter | ||||
55 | 327748 | 3.90 | 4.68 | |
Roulement à billes 6200 Vv | ||||
56 | 6200VV | 6.15 | 7.38 | |
Pignon | ||||
57 | 327750 | 9.00 | 10.80 | |
Pas d'informations disponibles, non commandable | ||||
58 | 935522 | |||
Clips D10 (x10) paquet de 10 Till 12.2003 | ||||
59 | 939540 | 1.95 | 2.34 | |
Pignon | ||||
60 | 953151 | 14.10 | 16.92 | |
Coussinet | ||||
61 | 953175 | 1.65 | 1.98 | |
Pas d'informations disponibles, non commandable | ||||
62 | 327752 | |||
Pas d'informations disponibles, non commandable | ||||
63 | 327751 | |||
Clavette 3*3*8 | ||||
64 | 944109 | 1.70 | 2.04 | |
Rouleau Arriere | ||||
65 | 327747 | 26.40 | 31.68 | |
Pas d'informations disponibles, non commandable | ||||
66 | 939735 | |||
Joint anti-poussière | ||||
67 | 328513 | 1.65 | 1.98 | |
Pas d'informations disponibles, non commandable | ||||
68 | 370075 | |||
Pas d'informations disponibles, non commandable | ||||
501 | 323011 | |||
Pas d'informations disponibles, non commandable | ||||
601 | 939736 | |||
Pas d'informations disponibles, non commandable | ||||
602 | 939737 | |||
Pas d'informations disponibles, non commandable | ||||
603 | 939738 | |||
Pas d'informations disponibles, non commandable | ||||
604 | 939739 | |||
Pas d'informations disponibles, non commandable | ||||
605 | 939740 | |||
Pas d'informations disponibles, non commandable | ||||
606 | 939741 | |||
Pas d'informations disponibles, non commandable | ||||
607 | 939742 | |||
Pas d'informations disponibles, non commandable | ||||
608 | 939743 | |||
Pas d'informations disponibles, non commandable | ||||
609 | 939744 | |||
Pas d'informations disponibles, non commandable | ||||
610 | 939745 | |||
Pas d'informations disponibles, non commandable | ||||
611 | 939746 | |||
Pas d'informations disponibles, non commandable | ||||
612 | 939747 | |||
Pas d'informations disponibles, non commandable | ||||
613 | 939748 | |||
Pas d'informations disponibles, non commandable | ||||
614 | 939749 |
