Dessins techniques et pièces de rechange Hikoki RP3608DAW4Z
Type exact:
RP3608DAW4Z
RP3608DAW4Z

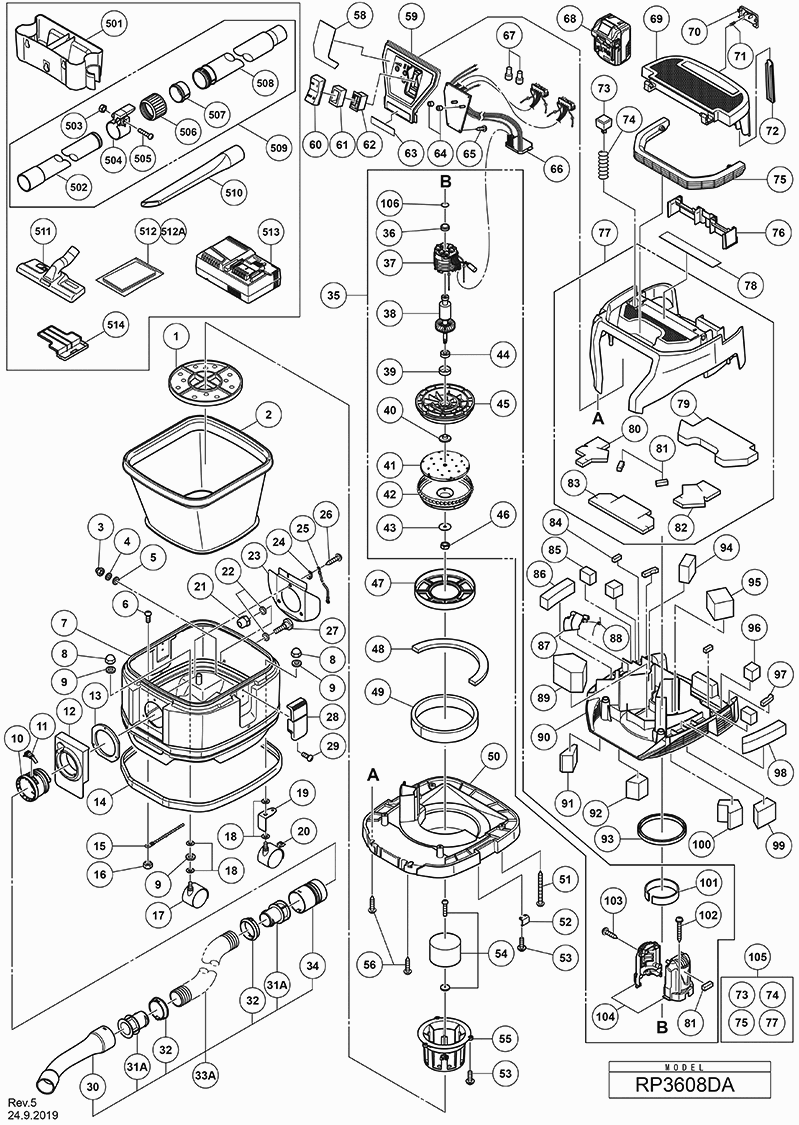

Dessins des HIKOKI RP3608DAW4Z
Liste de pièces de rechange des HIKOKI RP3608DAW4Z
Sur cette page, vous pouvez ajouter des pièces de rechange à votre panier en sélectionnant la quantité désirée et en cliquant sur le bouton derrière. Si vous avez terminé votre sélection, veuillez activer le bouton "Votre panier" en bas de la page. Les prix mentionnés ci-dessous sont TTC. Le montant exact de la TVA est calculé dans le panier en fonction du pays dans lequel vous souhaitez recevoir le colis.
| Stoffilter Verzwaarder | ||||
| 1 | 330599 | Stoffilter Verzwaarder | € 11.81 | |
| FIJNSTOFFILTERZAK (TEXTIEL) | ||||
| 2 | 337458 | FIJNSTOFFILTERZAK (TEXTIEL) | € 33.00 | |
| Ecrou | ||||
| 3 | 311839 | Ecrou | € 1.01 | |
| Rondelle M4 | ||||
| 4 | 949453 | Rondelle M4 | € 1.01 | |
| Rondelle M4 (x10) paquet de 10 | ||||
| 5 | 949423 | Rondelle M4 (x10) paquet de 10 | € 1.01 | |
| Vis Sb 10v (paquet de 10) | ||||
| 6 | 949218 | Vis Sb 10v (paquet de 10) | € 1.01 | |
| TANK ASS'Y (8L) | ||||
| 7 | 373591 | TANK ASS'Y (8L) | € 68.64 | |
| Dopmoer M8 | ||||
| 8 | 975597 | Dopmoer M8 | € 1.01 | |
| Rondelle M.8 (x10) Paquet de 10 | ||||
| 9 | 949433 | Rondelle M.8 (x10) Paquet de 10 | € 1.01 | |
| Slangaansluitstuk | ||||
| 10 | 337451 | Slangaansluitstuk | € 5.33 | |
| Stoppeur | ||||
| 11 | 321014 | Stoppeur | € 1.58 | |
| Voordeksel | ||||
| 12 | 337449 | Voordeksel | € 2.02 | |
| Joint | ||||
| 13 | 339182 | Joint | € 2.30 | |
| Stootrand | ||||
| 14 | 337446 | Stootrand | € 11.09 | |
| Earth Chain | ||||
| 15 | 329872 | Earth Chain | € 1.73 | |
| Zwenkwiel Kompleet | ||||
| 17 | 337438 | Zwenkwiel Kompleet | € 2.45 | |
| Rubber Washer | ||||
| 18 | 338453 | Rubber Washer | € 1.01 | |
| CASTER HOLDER | ||||
| 19 | 338454 | CASTER HOLDER | € 1.00 | |
| Zwenkwiel Kompleet + Rem | ||||
| 20 | 337439 | Zwenkwiel Kompleet + Rem | € 2.88 | |
| SPECIAL NUT | ||||
| 21 | 373590 | SPECIAL NUT | € 2.59 | |
| WASHER | ||||
| 22 | 374772 | WASHER | € 1.00 | |
| Poly Guide | ||||
| 23 | 337452 | Poly Guide | € 1.58 | |
| Aardplaatje | ||||
| 24 | 337454 | Aardplaatje | € 1.00 | |
| INTERNAL WIRE | ||||
| 25 | 329183 | INTERNAL WIRE | € 3.02 | |
| Vis Ø 4*25 Since 4.2012 | ||||
| 26 | 307028 | Vis Ø 4*25 Since 4.2012 | € 1.01 | |
| SPECIAL BOLT | ||||
| 27 | 373589 | SPECIAL BOLT | € 1.73 | |
| Etrier De Serrage | ||||
| 28 | 337455 | Etrier De Serrage | € 4.61 | |
| Vis Cj 65vai (paquet de 10) | ||||
| 29 | 949219 | Vis Cj 65vai (paquet de 10) | € 1.15 | |
| HANDGREEP MET LUCHTREGELING | ||||
| 30 | 373581 | HANDGREEP MET LUCHTREGELING | € 4.32 | |
| Épuisé | ||||
| 31A | 334396 | Épuisé | ||
| Joint | ||||
| 32 | 321066 | Joint | € 1.58 | |
| SLANG+KOPPELSTUKKEN-HANDGREEP RP3608 38MM | ||||
| 33A | 373580 | SLANG+KOPPELSTUKKEN-HANDGREEP RP3608 38MM | € 29.83 | |
| KOPPELSTUK (STOFZUIGERKANT) | ||||
| 34 | 320985 | KOPPELSTUK (STOFZUIGERKANT) | € 14.39 | |
| MOTOR ASS'Y | ||||
| 35 | 373569 | MOTOR ASS'Y | € 116.69 | |
| Plaq.en Caoutchouc (1) | ||||
| 36 | 338928 | Plaq.en Caoutchouc (1) | € 1.00 | |
| STATOR FET PCB | ||||
| 37 | 341051 | STATOR FET PCB | € 53.86 | |
| ROTOR | ||||
| 38 | 361091 | ROTOR | € 41.58 | |
| BEARING HOLDER | ||||
| 39 | 339180 | BEARING HOLDER | € 1.00 | |
| FLANGE WASHER | ||||
| 40 | 339174 | FLANGE WASHER | € 1.01 | |
| FAN | ||||
| 41 | 339166 | FAN | € 2.88 | |
| CASING | ||||
| 42 | 339177 | CASING | € 2.88 | |
| SPECIAL WASHER | ||||
| 43 | 339178 | SPECIAL WASHER | € 1.00 | |
| Kogellager 608vv | ||||
| 44 | 333945 | Kogellager 608vv | € 1.73 | |
| FAN BASE | ||||
| 45 | 373573 | FAN BASE | € 6.91 | |
| LOCK NUT M8 | ||||
| 46 | 339175 | LOCK NUT M8 | € 1.00 | |
| Draag Ring (b) | ||||
| 47 | 334977 | Draag Ring (b) | € 13.20 | |
| SILENT FILTER (H) | ||||
| 48 | 374771 | SILENT FILTER (H) | € 1.30 | |
| Silent Filter (a) | ||||
| 49 | 337475 | Silent Filter (a) | € 1.00 | |
| MOTOR BASE ASS'Y | ||||
| 50 | 373592 | MOTOR BASE ASS'Y | € 20.33 | |
| Vis Ø 4x45 | ||||
| 51 | 301815 | Vis Ø 4x45 | € 1.01 | |
| Stopper Plate | ||||
| 52 | 339358 | Stopper Plate | € 1.00 | |
| Vis Ø 4x16 | ||||
| 53 | 994810 | Vis Ø 4x16 | € 1.01 | |
| VLOTTER | ||||
| 54 | 374770 | VLOTTER | € 3.17 | |
| Vlotterhouder | ||||
| 55 | 337456 | Vlotterhouder | € 2.74 | |
| PANEL SHEET (C) | ||||
| 58 | 373579 | PANEL SHEET (C) | € 3.89 | |
| SWITCH HOLDER | ||||
| 59 | 373571 | SWITCH HOLDER | € 19.27 | |
| SWITCH COVER | ||||
| 60 | 373576 | SWITCH COVER | € 1.00 | |
| SWITCH PACKING | ||||
| 61 | 373578 | SWITCH PACKING | € 1.00 | |
| SWITCH | ||||
| 62 | 373577 | SWITCH | € 13.25 | |
| Beschermschuim | ||||
| 64 | 370077 | Beschermschuim | € 1.00 | |
| TAPPING SCREW D3X12 (W/FLANGE) | ||||
| 65 | 372288 | TAPPING SCREW D3X12 (W/FLANGE) | € 1.15 | |
| CONTROLLER MAIN ASS'Y | ||||
| 66 | 373567 | CONTROLLER MAIN ASS'Y | € 128.17 | |
| CONNECTOR | ||||
| 67 | 374773 | CONNECTOR | € 1.01 | |
| Épuisé | ||||
| 68 | 371750 | Épuisé | ||
| BATTERY GUARD ASS'Y | ||||
| 69 | 373572 | BATTERY GUARD ASS'Y | € 19.93 | |
| CLAMP LEVER (A) | ||||
| 70 | 373613 | CLAMP LEVER (A) | € 1.00 | |
| CLAMP SPRING | ||||
| 71 | 373610 | CLAMP SPRING | € 1.00 | |
| CORD COVER | ||||
| 72 | 373607 | CORD COVER | € 1.15 | |
| PUSH BUTTON | ||||
| 73 | 373609 | PUSH BUTTON | € 1.15 | |
| BUTTON SPRING | ||||
| 74 | 373612 | BUTTON SPRING | € 1.00 | |
| HANDLE | ||||
| 75 | 373604 | HANDLE | € 6.19 | |
| BATTERY TERMINAL HOLDER | ||||
| 76 | 373605 | BATTERY TERMINAL HOLDER | € 3.17 | |
| HEAD COVER ASS'Y | ||||
| 77 | 373598 | HEAD COVER ASS'Y | € 19.67 | |
| HEAD COVER PACKING (A) | ||||
| 79 | 373599 | HEAD COVER PACKING (A) | € 2.02 | |
| HEAD COVER PACKING (C) | ||||
| 80 | 373602 | HEAD COVER PACKING (C) | € 1.00 | |
| HEAD COVER PACKING (D) | ||||
| 81 | 373603 | HEAD COVER PACKING (D) | € 1.00 | |
| HEAD COVER PACKING (C) NEW | ||||
| 82 | 373601 | HEAD COVER PACKING (C) NEW | € 1.01 | |
| HEAD COVER PACKING (B) NEW | ||||
| 83 | 373600 | HEAD COVER PACKING (B) NEW | € 1.30 | |
| SILENT FILTER (D) | ||||
| 84 | 373619 | SILENT FILTER (D) | € 1.15 | |
| SILENT FILTER (C) | ||||
| 85 | 373616 | SILENT FILTER (C) | € 1.00 | |
| SILENT FILTER (B) | ||||
| 86 | 373615 | SILENT FILTER (B) | € 1.00 | |
| AIR VALVE | ||||
| 87 | 373608 | AIR VALVE | € 1.00 | |
| VALVE SPRING | ||||
| 88 | 373611 | VALVE SPRING | € 1.00 | |
| SILENT FILTER (L) | ||||
| 89 | 373626 | SILENT FILTER (L) | € 1.15 | |
| MOTOR COVER | ||||
| 90 | 373597 | MOTOR COVER | € 16.90 | |
| SILENT FILTER (F) NEW | ||||
| 91 | 373623 | SILENT FILTER (F) NEW | € 1.00 | |
| SILENT FILTER (E) | ||||
| 92 | 373621 | SILENT FILTER (E) | € 1.00 | |
| MOTOR PACKING (A) | ||||
| 93 | 373596 | MOTOR PACKING (A) | € 3.31 | |
| SILENT FILTER (J) | ||||
| 94 | 373625 | SILENT FILTER (J) | € 1.00 | |
| SILENT FILTER (M) | ||||
| 95 | 373624 | SILENT FILTER (M) | € 1.00 | |
| SILENT FILTER (C) | ||||
| 96 | 373617 | SILENT FILTER (C) | € 1.00 | |
| SILENT FILTER (D) | ||||
| 97 | 373618 | SILENT FILTER (D) | € 1.00 | |
| SILENT FILTER (A) | ||||
| 98 | 373614 | SILENT FILTER (A) | € 1.00 | |
| SILENT FILTER (E) | ||||
| 99 | 373620 | SILENT FILTER (E) | € 1.00 | |
| SILENT FILTER (F) | ||||
| 100 | 373622 | SILENT FILTER (F) | € 1.00 | |
| HOUSING PACKING (A) | ||||
| 101 | 373570 | HOUSING PACKING (A) | € 1.00 | |
| Vis Ø 4x35 noir | ||||
| 102 | 303694 | Vis Ø 4x35 noir | € 1.00 | |
| Vis Ø4x20 | ||||
| 103 | 301653 | Vis Ø4x20 | € 1.00 | |
| Carter | ||||
| 104 | 338902 | Carter | € 6.05 | |
| HEAD COVER (A) ASS'Y | ||||
| 105 | 373606 | HEAD COVER (A) ASS'Y | € 61.51 | |
| RING | ||||
| 106 | 372734 | RING | € 1.00 | |
| HULPSTUKKEN HOUDER | ||||
| 501 | 373588 | HULPSTUKKEN HOUDER | € 8.93 | |
| ZUIGBUIS (B) | ||||
| 502 | 373584 | ZUIGBUIS (B) | € 5.62 | |
| MOER M4 ( 10 STUKS ) | ||||
| 503 | 949554 | MOER M4 ( 10 STUKS ) | € 1.01 | |
| PIPE HANGER | ||||
| 504 | 338448 | PIPE HANGER | € 1.00 | |
| Vis Ø 4x16 | ||||
| 505 | 993539 | Vis Ø 4x16 | € 1.00 | |
| PIPE SCREW | ||||
| 506 | 373587 | PIPE SCREW | € 1.73 | |
| CUT SLEEVE | ||||
| 507 | 373585 | CUT SLEEVE | € 1.44 | |
| ZUIGBUIS (A) | ||||
| 508 | 373583 | ZUIGBUIS (A) | € 5.76 | |
| TELESCOOPSTANG KOMPLEET RP3608 | ||||
| 509 | 373582 | TELESCOOPSTANG KOMPLEET RP3608 | € 17.16 | |
| Épuisé | ||||
| 510 | 337523 | Épuisé | ||
| Épuisé | ||||
| 511 | 337522 | Épuisé | ||
| Épuisé | ||||
| 512A | 375679 | Épuisé | ||
| Beschermkapje Voor Batterij | ||||
| 514 | 329897 | Beschermkapje Voor Batterij | € 1.73 | |
| Épuisé | ||||
| 601 | 373627 | Épuisé | ||
