Dessins techniques et pièces de rechange Hikoki RB160EF
Type exact:
RB160EF
RB160EF

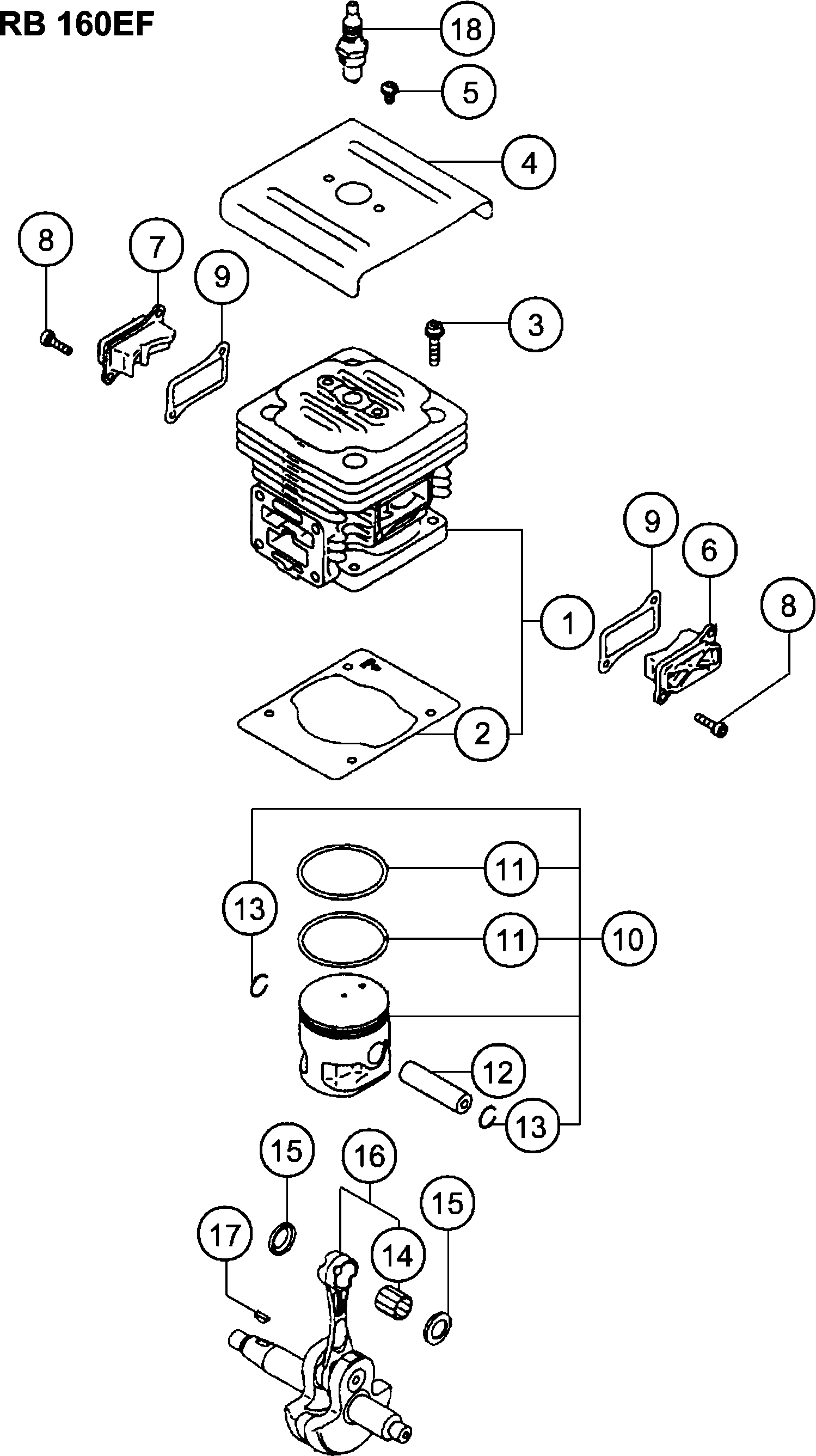

Dessins des HIKOKI RB160EF
Liste de pièces de rechange des HIKOKI RB160EF
Sur cette page, vous pouvez ajouter des pièces de rechange à votre panier en sélectionnant la quantité désirée et en cliquant sur le bouton derrière. Si vous avez terminé votre sélection, veuillez activer le bouton "Votre panier" en bas de la page. Les prix mentionnés ci-dessous sont TTC. Le montant exact de la TVA est calculé dans le panier en fonction du pays dans lequel vous souhaitez recevoir le colis.
| Cylinder Set (old 001-16005-90) | ||||
| 1 | 6685500 | Cylinder Set (old 001-16005-90) | € 233.23 | |
| Cylinder Gasket (old 017-16005-20) | ||||
| 2 | 6685757 | Cylinder Gasket (old 017-16005-20) | € 4.95 | |
| Cylinder Bolt 5x22 (old 026-16005-20) | ||||
| 3 | 6685846 | Cylinder Bolt 5x22 (old 026-16005-20) | € 1.11 | |
| Cilinder Afdekkap (oud 016-16005-20) | ||||
| 4 | 6685699 | Cilinder Afdekkap (oud 016-16005-20) | € 9.10 | |
| Screw A 5x8torx (old 806-31905-20) New | ||||
| 5 | 6693472 | Screw A 5x8torx (old 806-31905-20) New | € 5.43 | |
| Port Cover S (old 050-16005-20) | ||||
| 6 | 6686257 | Port Cover S (old 050-16005-20) | € 9.27 | |
| Port Cover F (old 051-16005-20) | ||||
| 7 | 6686282 | Port Cover F (old 051-16005-20) | € 9.27 | |
| Screw C 4x16torx (old 808-31905-20) | ||||
| 8 | 6693480 | Screw C 4x16torx (old 808-31905-20) | € 1.11 | |
| Port Cover Gasket (old 052-16005-20) | ||||
| 9 | 6686317 | Port Cover Gasket (old 052-16005-20) | € 3.19 | |
| Piston Set (old 030-16005-90) | ||||
| 10 | 6685906 | Piston Set (old 030-16005-90) | € 23.43 | |
| Piston Ring (old 041-16005-20) | ||||
| 11 | 6686136 | Piston Ring (old 041-16005-20) | € 13.26 | |
| Piston Pin (old 037-16005-20) | ||||
| 12 | 6686022 | Piston Pin (old 037-16005-20) | € 13.32 | |
| Circlip (old 039-16005-20) New | ||||
| 13 | 6686037 | Circlip (old 039-16005-20) New | € 9.10 | |
| Needle Bearing (old 800-31905-20) New Aug | ||||
| 14 | 6693415 | Needle Bearing (old 800-31905-20) New Aug | € 69.99 | |
| Piston Pin Collar (old 036-16005-20) | ||||
| 15 | 6685996 | Piston Pin Collar (old 036-16005-20) | € 3.19 | |
| Crank Shaft Comp. (old 046-16005-80) | ||||
| 16 | 6686239 | Crank Shaft Comp. (old 046-16005-80) | € 241.00 | |
| Épuisé | ||||
| 17 | 6686458 | Épuisé | ||
| Spark Plug Cmr7h (old 6685783) | ||||
| 18 | 6699312 | Spark Plug Cmr7h (old 6685783) | € 25.47 | |
| Épuisé | ||||
| 31 | 6686606 | Épuisé | ||
| Crank Case Gasket (old 090-16005-20) | ||||
| 32 | 6686730 | Crank Case Gasket (old 090-16005-20) | € 4.31 | |
| Roulement à billes | ||||
| 33 | 6693429 | Roulement à billes | € 23.43 | |
| Olie Keerring | ||||
| 34 | 6695643 | Olie Keerring | € 12.78 | |
| Olie Keerring | ||||
| 35 | 6695645 | Olie Keerring | € 15.08 | |
| Épuisé | ||||
| 36 | 6695299 | Épuisé | ||
| Screw E 5x30 Torx (old 810-31905-20) New | ||||
| 37 | 6693500 | Screw E 5x30 Torx (old 810-31905-20) New | € 1.02 | |
| Coil Cover (old 195-16005-20) New | ||||
| 38 | 6687984 | Coil Cover (old 195-16005-20) New | € 4.50 | |
| Screw C 4x16torx (old 808-31905-20) | ||||
| 39 | 6693480 | Screw C 4x16torx (old 808-31905-20) | € 1.11 | |
| Screw F 6x45 Torx (old 811-31905-20) New | ||||
| 40 | 6693507 | Screw F 6x45 Torx (old 811-31905-20) New | € 4.31 | |
| Flywheel Nut M10 (old 066-16005-20) New | ||||
| 41 | 6686446 | Flywheel Nut M10 (old 066-16005-20) New | € 5.08 | |
| Magneto Ass'y | ||||
| 42 | 6699767 | Magneto Ass'y | € 229.57 | |
| Vliegwiel | ||||
| 42A | 6699764 | Vliegwiel | € 79.35 | |
| Épuisé | ||||
| 43 | 6687635 | Épuisé | ||
| Spark Plug Cap Ass'y | ||||
| 44 | 6699766 | Spark Plug Cap Ass'y | € 15.37 | |
| Grommet (old 202-16005-20) New | ||||
| 45 | 6688042 | Grommet (old 202-16005-20) New | € 1.02 | |
| Screw C 4x16torx (old 808-31905-20) | ||||
| 46 | 6693480 | Screw C 4x16torx (old 808-31905-20) | € 1.11 | |
| Stop Cord Comp. (old 178-16005-80) New | ||||
| 47 | 6687882 | Stop Cord Comp. (old 178-16005-80) New | € 13.42 | |
| Starter Pulley Ass'y (old 798-16005-90) | ||||
| 48 | 6693412 | Starter Pulley Ass'y (old 798-16005-90) | € 23.43 | |
| Magneto Ass'y | ||||
| 49 | 6699767 | Magneto Ass'y | € 229.57 | |
| Ignition Coil Ass'y (old 6687635) | ||||
| 50 | 6699765 | Ignition Coil Ass'y (old 6687635) | € 150.37 | |
| Insulator Set (old 404-16005-90) | ||||
| 61 | 6689985 | Insulator Set (old 404-16005-90) | € 8.78 | |
| Screw B 5x20torx (old 807-31905-20) New | ||||
| 62 | 6693475 | Screw B 5x20torx (old 807-31905-20) New | € 3.19 | |
| Insulator Gasket (old 403-16005-20) | ||||
| 63 | 6689903 | Insulator Gasket (old 403-16005-20) | € 9.90 | |
| Carburetor Gasket (old 402-16006-20) | ||||
| 64 | 6689850 | Carburetor Gasket (old 402-16006-20) | € 3.19 | |
| Épuisé | ||||
| 65 | 6692538 | Épuisé | ||
| Épuisé | ||||
| 66 | 6692704 | Épuisé | ||
| Muffler S,bolt 6x70to (old 750-16005-20) | ||||
| 67 | 6692882 | Muffler S,bolt 6x70to (old 750-16005-20) | € 5.43 | |
| Screw D 6x14torx (old 809-31905-20) New | ||||
| 68 | 6693488 | Screw D 6x14torx (old 809-31905-20) New | € 5.43 | |
| Muffler Gasket (old 737-16005-20) | ||||
| 69 | 6692752 | Muffler Gasket (old 737-16005-20) | € 12.78 | |
| Carburateurset | ||||
| 71 | 6690527 | Carburateurset | € 297.36 | |
| Earth Cord B (old 274-16005-80) New | ||||
| 72 | 6688465 | Earth Cord B (old 274-16005-80) New | € 6.39 | |
| Cleaner Special Bolt (old 451-16006-20) | ||||
| 73 | 6690387 | Cleaner Special Bolt (old 451-16006-20) | € 2.24 | |
| Cleaner Fixing Gasket (old 457-16006-20) | ||||
| 74 | 6690677 | Cleaner Fixing Gasket (old 457-16006-20) | € 8.30 | |
| Blowover Check Boad A (old 476-16006-20) | ||||
| 75 | 6690852 | Blowover Check Boad A (old 476-16006-20) | € 13.42 | |
| Cleaner Cap Ass'y (old 414-16006-90) | ||||
| 76 | 6690055 | Cleaner Cap Ass'y (old 414-16006-90) | € 13.42 | |
| Cleaner Body Ass'y (old 419-16006-90) | ||||
| 77 | 6690060 | Cleaner Body Ass'y (old 419-16006-90) | € 27.24 | |
| Screw I 5x25torx (old 814-31905-20) | ||||
| 78 | 6693532 | Screw I 5x25torx (old 814-31905-20) | € 2.24 | |
| Carb Cover (old 201-25268-20) New | ||||
| 80 | 6688034 | Carb Cover (old 201-25268-20) New | € 2.90 | |
| Épuisé | ||||
| 83 | 6693582 | Épuisé | ||
| Muffler Set (old 704-16005-90) | ||||
| 84 | 6692505 | Muffler Set (old 704-16005-90) | € 114.78 | |
| Recoil Starter Body Ass'y (old 762-16005-90) | ||||
| 111 | 6692999 | Recoil Starter Body Ass'y (old 762-16005-90) | € 69.99 | |
| Rope Reel (old 768-16005-20) | ||||
| 112 | 6693006 | Rope Reel (old 768-16005-20) | € 13.42 | |
| Recoil Spring (old 779-16005-20) | ||||
| 113 | 6693127 | Recoil Spring (old 779-16005-20) | € 23.43 | |
| Bague | ||||
| 114 | 6693255 | Bague | € 5.43 | |
| Friction Spring (old 836-16005-20) New | ||||
| 115 | 6693619 | Friction Spring (old 836-16005-20) New | € 4.31 | |
| Friction Plate (old 837-16005-20) New | ||||
| 116 | 6693631 | Friction Plate (old 837-16005-20) New | € 19.47 | |
| Bague | ||||
| 117 | 6693427 | Bague | € 3.19 | |
| Set Bolt (old 839-16005-20) New | ||||
| 118 | 6693640 | Set Bolt (old 839-16005-20) New | € 4.31 | |
| Rope (old 783-16005-20) | ||||
| 119 | 6693181 | Rope (old 783-16005-20) | € 7.34 | |
| Starthendel | ||||
| 120 | 6693245 | Starthendel | € 9.90 | |
| Starthendel | ||||
| 121 | 6693605 | Starthendel | € 4.31 | |
| Screw G 5x16 (old 812-31905-20) New | ||||
| 122 | 6693522 | Screw G 5x16 (old 812-31905-20) New | € 2.24 | |
| Pump Body Ass'y (old 575-25292-90) | ||||
| 131 | 6691436 | Pump Body Ass'y (old 575-25292-90) | € 134.30 | |
| Inlet Screen (oud 578-25007-20) | ||||
| 132 | 6684700 | Inlet Screen (oud 578-25007-20) | € 4.15 | |
| Priming Pump Comp. (oud 442-25151-80) | ||||
| 133 | 6684687 | Priming Pump Comp. (oud 442-25151-80) | € 15.81 | |
| Diaphragm Cover (oud 476-25151-20) | ||||
| 134 | 6684688 | Diaphragm Cover (oud 476-25151-20) | € 8.30 | |
| Priming Body (oud 447-25108-20) | ||||
| 135 | 6684689 | Priming Body (oud 447-25108-20) | € 6.23 | |
| Ring (oud 549-25165-20) | ||||
| 136 | 6684874 | Ring (oud 549-25165-20) | € 2.08 | |
| Swivel (oud 539-25120-20) | ||||
| 137 | 6684697 | Swivel (oud 539-25120-20) | € 6.23 | |
| Stop Ring (oud 489-25100-20) | ||||
| 138 | 6684696 | Stop Ring (oud 489-25100-20) | € 2.08 | |
| Pump Gasket (old 577-25292-20 & 6696321) | ||||
| 139 | 6684692 | Pump Gasket (old 577-25292-20 & 6696321) | € 28.25 | |
| Pump Diaphragm (old 576-25100-20 & 6696325) | ||||
| 140 | 6684693 | Pump Diaphragm (old 576-25100-20 & 6696325) | € 8.30 | |
| Diaphragm Gasket (oud 475-25153-20) | ||||
| 141 | 6684691 | Diaphragm Gasket (oud 475-25153-20) | € 8.30 | |
| Metering Diaphragm Comp. (old 474-25241-80) | ||||
| 142 | 6690830 | Metering Diaphragm Comp. (old 474-25241-80) | € 11.50 | |
| Throttle Set Screw (oud 514-25100-20) | ||||
| 143 | 6684870 | Throttle Set Screw (oud 514-25100-20) | € 2.08 | |
| Cable Adjuster Stay (oud 544-25164-20) | ||||
| 144 | 6684873 | Cable Adjuster Stay (oud 544-25164-20) | € 6.23 | |
| Lock Nut M6 (oud 991-01060-013) | ||||
| 145 | 6684872 | Lock Nut M6 (oud 991-01060-013) | € 2.08 | |
| Cable Adjuster (oud 614-25137-20) | ||||
| 146 | 6684871 | Cable Adjuster (oud 614-25137-20) | € 4.15 | |
| Cleaner Gasket (old 431-16005-20) New | ||||
| 147 | 6690186 | Cleaner Gasket (old 431-16005-20) New | € 3.19 | |
| Set Screw (old 548-25151-20 & 6696324) | ||||
| 148 | 6684699 | Set Screw (old 548-25151-20 & 6696324) | € 2.08 | |
| Épuisé | ||||
| 149 | 6691858 | Épuisé | ||
| O-RING (OUD 550-25100-20) | ||||
| 150 | 6684695 | O-RING (OUD 550-25100-20) | € 4.15 | |
| Épuisé | ||||
| 161 | 6685805 | Épuisé | ||
| Cushion Pad (old 021-31905-20) | ||||
| 162 | 6685814 | Cushion Pad (old 021-31905-20) | € 58.42 | |
| Cushion Pad Clip (old 046-31905-20) New | ||||
| 163 | 6686243 | Cushion Pad Clip (old 046-31905-20) New | € 3.19 | |
| Shoulder Belt (old 022-31906-20/6696368) | ||||
| 164 | 6685821 | Shoulder Belt (old 022-31906-20/6696368) | € 31.18 | |
| Cushion Rubber (old 030-31905-80) New | ||||
| 165 | 6685910 | Cushion Rubber (old 030-31905-80) New | € 34.99 | |
| Bague | ||||
| 166 | 6692961 | Bague | € 1.00 | |
| Screw L 5x40torx (old 817-31905-20) New | ||||
| 167 | 6693549 | Screw L 5x40torx (old 817-31905-20) New | € 2.90 | |
| Screw M 5x16torx (old 825-31905-20) New | ||||
| 168 | 6693571 | Screw M 5x16torx (old 825-31905-20) New | € 5.43 | |
| Cushion Rubber (old 031-31905-80) New | ||||
| 169 | 6685960 | Cushion Rubber (old 031-31905-80) New | € 37.04 | |
| Épuisé | ||||
| 170 | 6685967 | Épuisé | ||
| Tank Ass'y (old 590-16005-90/6691612) | ||||
| 171 | 6696103 | Tank Ass'y (old 590-16005-90/6691612) | € 128.26 | |
| Tank Dop Compleet | ||||
| 172 | 6691773 | Tank Dop Compleet | € 13.76 | |
| Tank Cap Chain (old 626-16005-20) | ||||
| 173 | 6692054 | Tank Cap Chain (old 626-16005-20) | € 2.24 | |
| Fuel Pipe Ass'y (old 223-16005-90) | ||||
| 174 | 6688175 | Fuel Pipe Ass'y (old 223-16005-90) | € 16.99 | |
| Pump Filter Body Ass'y (old 675-01630-90/6692277) | ||||
| 175 | 6692273 | Pump Filter Body Ass'y (old 675-01630-90/6692277) | € 6.87 | |
| Clip.6.3 Dia. (old 680-00731-20) | ||||
| 176 | 6684619 | Clip.6.3 Dia. (old 680-00731-20) | € 2.08 | |
| Boulon | ||||
| 177 | 6691980 | Boulon | € 4.94 | |
| Épuisé | ||||
| 178 | 6692321 | Épuisé | ||
| West Belt Ass'y (old 035-31907-90) | ||||
| 179 | 6685988 | West Belt Ass'y (old 035-31907-90) | € 37.13 | |
| Épuisé | ||||
| 191 | 6685604 | Épuisé | ||
| Épuisé | ||||
| 192 | 6685636 | Épuisé | ||
| Screw I 5x25torx (old 814-31905-20) | ||||
| 193 | 6693532 | Screw I 5x25torx (old 814-31905-20) | € 2.24 | |
| Épuisé | ||||
| 194 | 6688426 | Épuisé | ||
| O-ring G-95 (old 999-67095-010) | ||||
| 195 | 6695687 | O-ring G-95 (old 999-67095-010) | € 3.19 | |
| Enveloppe De Ventilateur | ||||
| 196 | 6687291 | Enveloppe De Ventilateur | € 5.43 | |
| Épuisé | ||||
| 197 | 6696987 | Épuisé | ||
| Intake Cover (old 054-31905-80) | ||||
| 198 | 6686342 | Intake Cover (old 054-31905-80) | € 21.30 | |
| Screw I 5x25torx (old 814-31905-20) | ||||
| 199 | 6693532 | Screw I 5x25torx (old 814-31905-20) | € 2.24 | |
| Cord Clamp (old 198-31905-80) New | ||||
| 200 | 6688014 | Cord Clamp (old 198-31905-80) New | € 1.02 | |
| Screw J 5x14torx (old 815-31905-20) New | ||||
| 201 | 6693536 | Screw J 5x14torx (old 815-31905-20) New | € 5.43 | |
| Tube (old 283-31905-20) | ||||
| 202 | 6688545 | Tube (old 283-31905-20) | € 3.19 | |
| Épuisé | ||||
| 203 | 6687175 | Épuisé | ||
| Screw K 6x35torx (old 816-31905-20) New | ||||
| 204 | 6693543 | Screw K 6x35torx (old 816-31905-20) New | € 4.36 | |
| Muffler Protector (old 738-16005-20) New | ||||
| 205 | 6692825 | Muffler Protector (old 738-16005-20) New | € 81.70 | |
| Screw I 5x25torx (old 814-31905-20) | ||||
| 206 | 6693532 | Screw I 5x25torx (old 814-31905-20) | € 2.24 | |
| Épuisé | ||||
| 207 | 6686265 | Épuisé | ||
| Épuisé | ||||
| 208 | 6685843 | Épuisé | ||
| Cleaner Body (old 423-31907-20) | ||||
| 209 | 6690136 | Cleaner Body (old 423-31907-20) | € 40.85 | |
| Luchtfilterkap | ||||
| 210 | 6690425 | Luchtfilterkap | € 70.68 | |
| Luchtfilterkap | ||||
| 211 | 6690812 | Luchtfilterkap | € 7.99 | |
| Cleaner Knob (old 861-31907-80) New | ||||
| 213 | 6693664 | Cleaner Knob (old 861-31907-80) New | € 10.60 | |
| Screw I 5x25torx (old 814-31905-20) | ||||
| 214 | 6693532 | Screw I 5x25torx (old 814-31905-20) | € 2.24 | |
| Élément de filtre à air | ||||
| 215 | 6690073 | Élément de filtre à air | € 46.71 | |
| Élément de filtre à air | ||||
| 216 | 6690078 | Élément de filtre à air | € 29.28 | |
| Cleaner Tube (old 437-16006-20) New | ||||
| 217 | 6690207 | Cleaner Tube (old 437-16006-20) New | € 37.04 | |
| Clamp B 64 (old 771-31907-20) New | ||||
| 218 | 6693016 | Clamp B 64 (old 771-31907-20) New | € 6.39 | |
| Clamp A 51 (old 770-31907-20) New | ||||
| 219 | 6693013 | Clamp A 51 (old 770-31907-20) New | € 11.91 | |
| Screw N 5x20torx (old 826-31905-20) New | ||||
| 220 | 6693576 | Screw N 5x20torx (old 826-31905-20) New | € 4.94 | |
| Handle Nut M5 (old 282-31905-20) New | ||||
| 221 | 6688542 | Handle Nut M5 (old 282-31905-20) New | € 2.03 | |
| Throttle Lever Set (old 871-31906-90) | ||||
| 241 | 6693782 | Throttle Lever Set (old 871-31906-90) | € 159.44 | |
| Grip (old 248-31906-20) New | ||||
| 242 | 6688302 | Grip (old 248-31906-20) New | € 21.53 | |
| Grip Comp. (old 262-31906-80) | ||||
| 243 | 6688384 | Grip Comp. (old 262-31906-80) | € 21.53 | |
| Screw A 4x14 (old 806-31906-20) New | ||||
| 244 | 6693473 | Screw A 4x14 (old 806-31906-20) New | € 1.11 | |
| Throttle Lever (old 263-31906-20) | ||||
| 245 | 6688390 | Throttle Lever (old 263-31906-20) | € 4.79 | |
| Lever (old 249-31906-20) New | ||||
| 246 | 6688312 | Lever (old 249-31906-20) New | € 4.31 | |
| Overbrengings Schacht | ||||
| 247 | 6689297 | Overbrengings Schacht | € 13.42 | |
| Épuisé | ||||
| 248 | 6688256 | Épuisé | ||
| Épuisé | ||||
| 249 | 6693646 | Épuisé | ||
| Épuisé | ||||
| 250 | 6691213 | Épuisé | ||
| Stopper Ring 6 (old 993-54006-002) New | ||||
| 251 | 6695306 | Stopper Ring 6 (old 993-54006-002) New | € 1.11 | |
| Stop Switch (old 162-16005-20) | ||||
| 252 | 6687508 | Stop Switch (old 162-16005-20) | € 4.31 | |
| Stop Switch Spring (old 262-16005-20) | ||||
| 253 | 6688382 | Stop Switch Spring (old 262-16005-20) | € 6.07 | |
| Screw B 4x10 (old 807-31906-20) New | ||||
| 254 | 6693476 | Screw B 4x10 (old 807-31906-20) New | € 1.11 | |
| Cord W1150m (old 173-16005-80) | ||||
| 255 | 6687788 | Cord W1150m (old 173-16005-80) | € 6.23 | |
| Cord B 1100m (old 174-16005-80) | ||||
| 256 | 6687790 | Cord B 1100m (old 174-16005-80) | € 6.23 | |
| Gaskabel | ||||
| 257 | 6693938 | Gaskabel | € 18.89 | |
| Protection Tube 7x940l (old 164-07094-00) | ||||
| 258 | 6687548 | Protection Tube 7x940l (old 164-07094-00) | € 2.24 | |
| Wing Bolt 6x50 (old 990-60060-501) | ||||
| 259 | 6695096 | Wing Bolt 6x50 (old 990-60060-501) | € 2.24 | |
| Cap Nut 6 (old 991-41060-022) New | ||||
| 260 | 6695146 | Cap Nut 6 (old 991-41060-022) New | € 1.11 | |
| Clamp (old 229-31906-20) New | ||||
| 261 | 6688222 | Clamp (old 229-31906-20) New | € 14.21 | |
| Flexible Pipe | ||||
| 501 | 6686798 | Flexible Pipe | € 16.25 | |
| Swivel Pipe (old 102-31905-20) | ||||
| 502 | 6686816 | Swivel Pipe (old 102-31905-20) | € 31.18 | |
| Straight Pipe (old 103-31905-20) | ||||
| 503 | 6686821 | Straight Pipe (old 103-31905-20) | € 11.98 | |
| Straight Pipe (old 305-31905-21/6688954) | ||||
| 504 | 6688955 | Straight Pipe (old 305-31905-21/6688954) | € 21.53 | |
| Pipe Band 96 (old 100-31905-20) | ||||
| 505 | 6686786 | Pipe Band 96 (old 100-31905-20) | € 4.31 | |
| Pipe Band 115 (old 267-31905-20) | ||||
| 506 | 6688416 | Pipe Band 115 (old 267-31905-20) | € 4.31 | |
| WRENCH 8X10 (OLD 801-20000-20/6696596/790382) | ||||
| 507 | 6684766 | WRENCH 8X10 (OLD 801-20000-20/6696596/790382) | € 2.40 | |
| Combi Box Wrench 19x16 (old 853-31905-20) | ||||
| 508 | 6693652 | Combi Box Wrench 19x16 (old 853-31905-20) | € 12.78 | |
| Starter Mark Rb160ef (old 915-31908-20) | ||||
| 601 | 6696394 | Starter Mark Rb160ef (old 915-31908-20) | € 1.91 | |
Votre panier contient 0 de produits.
