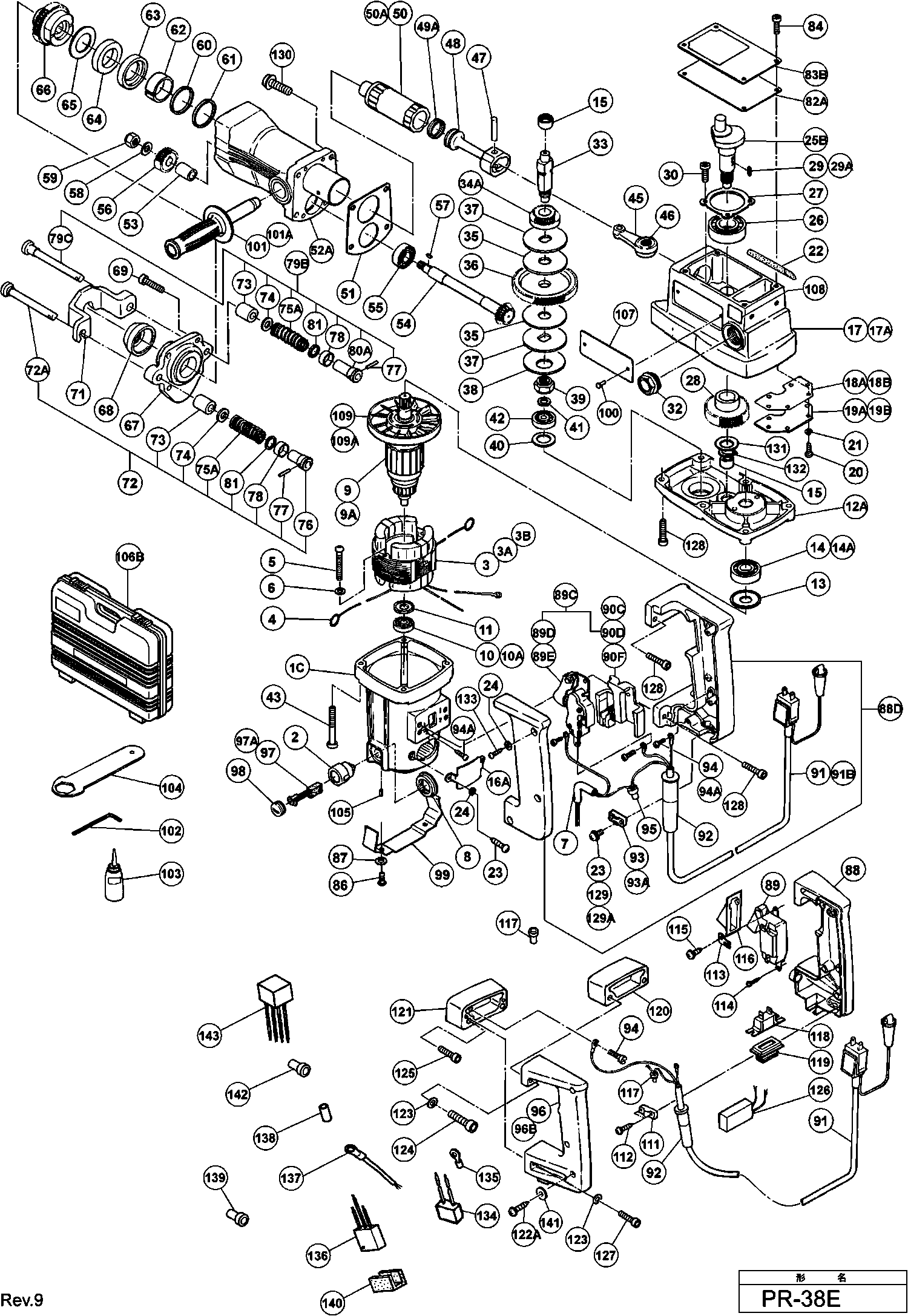

Dessins des Hikoki PR-38E
Liste de pièces de rechange des Hikoki PR-38E
Pos. | Description | Prix hors TVA | Prix TTC | |
Les prix affichés incluent la TVA | ||||
Boîtier (vert argenté métallique) Inclut.2,10 | ||||
1B | 332168 | 48.81 | 58.58 | |
Pas d'informations disponibles, non commandable | ||||
1C | 332169 | |||
S/e Porte Balais | ||||
2 | 971001 | 6.45 | 7.74 | |
Stator 220v-230v H-90sa Includ.103 Pour Nzl,saf | ||||
3 | 944535E | 46.75 | 56.10 | |
Ensemble Stator 240v Includ.103 | ||||
3 | 944535F | 46.75 | 56.10 | |
Pas d'informations disponibles, non commandable | ||||
3A | 944535L | |||
Pas d'informations disponibles, non commandable | ||||
3B | 340556G | |||
Raccord | ||||
4 | 930703 | 2.40 | 2.88 | |
Pas d'informations disponibles, non commandable | ||||
5 | 949233 | |||
Rondelle de ressort M5 (10 pièces) | ||||
6 | 949454 | 1.04 | 1.24 | |
Pas d'informations disponibles, non commandable | ||||
8 | 956127 | |||
Induit 230v | ||||
9 | 971052E | 87.59 | 105.10 | |
Induit 240v | ||||
9 | 971052F | 87.59 | 105.10 | |
Pas d'informations disponibles, non commandable | ||||
9A | 360608E | |||
Roulement | ||||
10 | 6000VV | 6.15 | 7.38 | |
Roulement à billes 6000ddwcmns7l | ||||
10A | 6000DW | 4.65 | 5.58 | |
Bague | ||||
11 | 944433 | 1.65 | 1.98 | |
Carter d'engrenage Ass'y (vert argenté métallique) | ||||
12A | 332170 | 42.76 | 51.32 | |
Joint Etanche Pouss (1) | ||||
13 | 971054 | 3.60 | 4.32 | |
Roulement | ||||
14 | 6202VV | 7.05 | 8.46 | |
Pas d'informations disponibles, non commandable | ||||
14A | 6202DW | |||
Roulement A Aiguilles | ||||
15 | 939299 | 10.65 | 12.78 | |
Couvercle latéral (vert argenté métallique) Depuis | ||||
16A | 332171 | 1.80 | 2.16 | |
Pas d'informations disponibles, non commandable | ||||
17 | 971056 | |||
Carter de vilebrequin Ass'y (vert argent métalliqu | ||||
17A | 331912 | 182.88 | 219.45 | |
Pas d'informations disponibles, non commandable | ||||
18A | 971057 | |||
Joint de Couverture (b) | ||||
18B | 971098 | 1.05 | 1.26 | |
Pas d'informations disponibles, non commandable | ||||
19A | 971058 | |||
Plaque (b) | ||||
19B | 971099 | 1.05 | 1.26 | |
Vis M4*12 (paquet de 10) | ||||
20 | 949217 | 1.05 | 1.26 | |
Rondelle de ressort M4 (10 pièces) | ||||
21 | 949453 | 1.05 | 1.26 | |
Feutre à huile | ||||
22 | 956967 | 1.05 | 1.26 | |
Vis M4*12 (paquet de 10) | ||||
23 | 949217 | 1.05 | 1.26 | |
Rondelle de ressort M4 (10 pièces) | ||||
24 | 949453 | 1.05 | 1.26 | |
Vilebrequin Ass'y (ancien 971164) | ||||
25B | 971167 | 43.86 | 52.64 | |
Roulement à billes 6204dducmps2s | ||||
26 | 6204DD | 9.00 | 10.80 | |
Pas d'informations disponibles, non commandable | ||||
27 | 971060 | |||
Engrenage | ||||
28 | 971061 | 32.18 | 38.61 | |
Goupille 3X13 | ||||
29 | 932815 | 1.35 | 1.62 | |
Clé à plume 3x3x12 | ||||
29A | 937177 | 1.65 | 1.98 | |
Vis M5x16 (paquet de 10) | ||||
30 | 949821 | 2.55 | 3.06 | |
Niveau d'huile | ||||
32 | 955011 | 10.95 | 13.14 | |
Pas d'informations disponibles, non commandable | ||||
33 | 971062 | |||
Engrenage conique (ancien 944510) | ||||
34A | 998543 | 25.99 | 31.18 | |
Plaque D'embrayage | ||||
35 | 981941 | 5.55 | 6.66 | |
Second Pignon Dh 22vb | ||||
36 | 971064 | 33.55 | 40.26 | |
Pas d'informations disponibles, non commandable | ||||
37 | 956207 | |||
Ressort | ||||
38 | 944514 | 1.04 | 1.24 | |
Pas d'informations disponibles, non commandable | ||||
39 | 944515 | |||
Bague | ||||
40 | 944525 | 1.05 | 1.26 | |
Bague | ||||
41 | 944516 | 1.04 | 1.24 | |
Roulement A Bille | ||||
42 | 629VVM | 5.85 | 7.02 | |
Pas d'informations disponibles, non commandable | ||||
43 | 949832 | |||
Pas d'informations disponibles, non commandable | ||||
45 | 956106 | |||
Roulement Aiguilles Dh38ya/45sa | ||||
46 | 980756 | 10.65 | 12.78 | |
Goupille | ||||
47 | 956110 | 1.65 | 1.98 | |
Piston | ||||
48 | 971065 | 40.43 | 48.51 | |
Anneau en X | ||||
49A | 971151 | 2.55 | 3.06 | |
Frappeur H60ma/ka | ||||
50 | 956111 | 37.13 | 44.55 | |
Pas d'informations disponibles, non commandable | ||||
50A | 322058 | |||
Emballage d'étanchéité | ||||
51 | 971068 | 1.05 | 1.26 | |
Carter de cylindre Ass'y (vert argenté métallique) | ||||
52A | 331957 | 158.54 | 190.24 | |
Pas d'informations disponibles, non commandable | ||||
53 | 955975 | |||
ARBRE D'ENTRAÎNEMENT | ||||
54 | 956211 | 75.90 | 91.08 | |
Roulement A Billes | ||||
55 | 6001VV | 6.60 | 7.92 | |
Pas d'informations disponibles, non commandable | ||||
56 | 971070 | |||
Pas d'informations disponibles, non commandable | ||||
57 | 932819 | |||
Rondelle M8 (x10) Paquet de 10 | ||||
58 | 949457 | 1.05 | 1.26 | |
Pas d'informations disponibles, non commandable | ||||
59 | 944426 | |||
Rondelle de cylindre | ||||
60 | 956225 | 1.05 | 1.26 | |
Bague en uréthane | ||||
61 | 956224 | 9.30 | 11.16 | |
Bouche | ||||
62 | 971071 | 11.55 | 13.86 | |
Anneau de fermeture lunaire | ||||
63 | 971072 | 7.05 | 8.46 | |
Amortisseur | ||||
64 | 971073 | 10.65 | 12.78 | |
Bague Acier Dh 40mr | ||||
65 | 971074 | 1.05 | 1.26 | |
Engrenage H90sc/se | ||||
66 | 971075 | 55.41 | 66.50 | |
Couvercle avant | ||||
67 | 971076 | 64.21 | 77.06 | |
Couvercle anti-poussière | ||||
68 | 971077 | 1.04 | 1.24 | |
Vis M6x25 (paquet de 10) | ||||
69 | 949652 | 3.30 | 3.96 | |
Retenue (1) | ||||
71 | 971078 | 35.06 | 42.08 | |
Tige de Retenue (a) Ass'y | ||||
72 | 971106 | 21.04 | 25.24 | |
Tige de Retenue (a) (ancien 998554) | ||||
72A | 971079 | 5.70 | 6.84 | |
Pas d'informations disponibles, non commandable | ||||
73 | 971080 | |||
Rondelle M8 (x10) Paquet de 10 | ||||
74 | 949426 | 1.05 | 1.26 | |
Pas d'informations disponibles, non commandable | ||||
75A | 998558 | |||
Pas d'informations disponibles, non commandable | ||||
76 | 971082 | |||
Pas d'informations disponibles, non commandable | ||||
77 | 971083 | |||
Pas d'informations disponibles, non commandable | ||||
78 | 971084 | |||
Tige de Retenue (a) Ass'y | ||||
79B | 971107 | 21.18 | 25.41 | |
Pas d'informations disponibles, non commandable | ||||
79C | 998557 | |||
Pas d'informations disponibles, non commandable | ||||
80A | 971082 | |||
Rondelle Dh20v/25pa/pb | ||||
81 | 971087 | 1.04 | 1.24 | |
Joint de Couverture | ||||
82A | 971088 | 1.05 | 1.26 | |
Plaque De Recouvrement | ||||
83B | 332172 | 5.10 | 6.12 | |
Vis M5*14 (paquet de 10) | ||||
84 | 949665 | 2.10 | 2.52 | |
Vis M5*8 (paquet de 10) | ||||
86 | 949235 | 1.05 | 1.26 | |
Rondelle de ressort M5 (10 pièces) | ||||
87 | 949454 | 1.04 | 1.24 | |
Pas d'informations disponibles, non commandable | ||||
88 | 971146 | |||
Poignée et ensemble de couvercle de poignée | ||||
88B | 971168 | 25.71 | 30.86 | |
Poignée Ass'y (a) Vert Argent Métallique Incl.93a | ||||
88D | 334511 | 47.03 | 56.43 | |
Interrupteur (type vis 1p) sans verrou | ||||
89 | 956433 | 15.54 | 18.64 | |
Unité de commutation (1p type à vis) S/o | ||||
89C | 971161 | 32.18 | 38.61 | |
Interrupteur (a) (type à vis 1p) S/o | ||||
89D | 971162 | 26.40 | 31.68 | |
Interrupteur (ancien 958064z) | ||||
89E | 981533Z | 21.04 | 25.24 | |
Pas d'informations disponibles, non commandable | ||||
90C | 971163 | |||
SOUTIEN (A) | ||||
90D | 981986Z | 21.45 | 25.74 | |
Support (f) Depuis 11.1995 | ||||
90F | 312408 | 7.05 | 8.46 | |
Cord | ||||
91 | 930044 | 38.50 | 46.20 | |
Pas d'informations disponibles, non commandable | ||||
91B | 500478Z | |||
Entree De Cable Ø 10,7 | ||||
92 | 940778 | 2.10 | 2.52 | |
Protecteur de câble D8.2 (ancien 958049z) | ||||
92 | 958049 | 1.04 | 1.24 | |
Pas d'informations disponibles, non commandable | ||||
93 | 930108 | |||
Serre Cable | ||||
93A | 960266 | 1.04 | 1.24 | |
Pas d'informations disponibles, non commandable | ||||
94 | 949292 | |||
Vis C 6sa Since D106801 | ||||
94A | 958523 | 1.04 | 1.24 | |
Connecteur 50092 | ||||
95 | 959141 | 3.75 | 4.50 | |
Pas d'informations disponibles, non commandable | ||||
96 | 971147 | |||
Charbons (1 Paire) | ||||
97 | 999043 | 4.50 | 5.40 | |
Charbons Autorupteurs (1 paire) | ||||
97A | 999073 | 14.40 | 17.28 | |
Bouchon Charbon H41sa Vb13y | ||||
98 | 935829 | 1.05 | 1.26 | |
Pas d'informations disponibles, non commandable | ||||
99 | 971091 | |||
Rivet D2,5x4,8 (10 pièces) | ||||
100 | 949510 | 1.04 | 1.24 | |
Pas d'informations disponibles, non commandable | ||||
101 | 944457 | |||
Pas d'informations disponibles, non commandable | ||||
101A | 328656 | |||
Pas d'informations disponibles, non commandable | ||||
102 | 944459 | |||
Huile de lubrification (120cc) | ||||
103 | 931848 | 8.40 | 10.08 | |
Pas d'informations disponibles, non commandable | ||||
104 | 971109 | |||
Vis de réglage hexagonale M5x8 | ||||
105 | 938477 | 1.05 | 1.26 | |
Pas d'informations disponibles, non commandable | ||||
106B | 312831 | |||
Ventilateur Dh 40yb | ||||
109 | 971097 | 7.65 | 9.18 | |
Pas d'informations disponibles, non commandable | ||||
109A | 322059 | |||
Serre Cable | ||||
111 | 937631 | 1.04 | 1.24 | |
Vis Ø4*20 | ||||
112 | 982095 | 1.04 | 1.24 | |
Pas d'informations disponibles, non commandable | ||||
113 | 956252 | |||
Vis | ||||
114 | 954017 | 1.04 | 1.24 | |
Pas d'informations disponibles, non commandable | ||||
115 | 930446 | |||
Couvercle D'interrupteur | ||||
116 | 971793 | 3.00 | 3.60 | |
Connecteur 50091 | ||||
117 | 959140 | 3.30 | 3.96 | |
Commutateur | ||||
118 | 953261 | 13.50 | 16.20 | |
Couvercle D'interrupteur | ||||
119 | 971792 | 1.65 | 1.98 | |
Pas d'informations disponibles, non commandable | ||||
120 | 971128Z | |||
Pas d'informations disponibles, non commandable | ||||
121 | 971148 | |||
Vis Ø 4*25 noir | ||||
122A | 307028 | 1.05 | 1.26 | |
Rondelle M.6 (x10) paquet de 10 | ||||
123 | 949425 | 1.05 | 1.26 | |
Vis Dh-38 | ||||
124 | 986491 | 1.04 | 1.24 | |
Vis de Blocage M6x25 à Tête Hexagonale Creuse | ||||
125 | 987707 | 1.05 | 1.26 | |
Pas d'informations disponibles, non commandable | ||||
126 | 956613 | |||
Boulon Hd. M6x22 (10 Pièces) | ||||
127 | 949670 | 3.00 | 3.60 | |
Boulon Hd. M6x22 (10 Pièces) | ||||
128 | 949670 | 3.00 | 3.60 | |
Pas d'informations disponibles, non commandable | ||||
129 | 957147 | |||
Pas d'informations disponibles, non commandable | ||||
129A | 984750 | |||
Pas d'informations disponibles, non commandable | ||||
130 | 971392 | |||
Rondelle | ||||
131 | 983719 | 1.05 | 1.26 | |
Clips Pour Ø 15 (x10) paquet 10 | ||||
132 | 939544 | 2.13 | 2.55 | |
Pas d'informations disponibles, non commandable | ||||
133 | 956636 | |||
Condensateur | ||||
134 | 930039 | 1.95 | 2.34 | |
Cosses de câble (10 pièces) | ||||
135 | 959144 | 3.00 | 3.60 | |
Condensateur | ||||
136 | 994273 | 4.29 | 5.14 | |
Condensateur | ||||
136 | 930039 | 1.95 | 2.34 | |
Plus disponible, pas de remplacement | ||||
137 | 985289 | |||
Manchon à cabler | ||||
138 | 981373 | 1.05 | 1.26 | |
Connecteur 50091 | ||||
139 | 959140 | 3.30 | 3.96 | |
Caoutchouc | ||||
140 | 930153 | 1.04 | 1.24 | |
Rondelle M4 (x10) Paquet de 10 | ||||
141 | 949429 | 1.05 | 1.26 | |
Connecteur 50092 | ||||
142 | 959141 | 3.75 | 4.50 | |
Pas d'informations disponibles, non commandable | ||||
143 | 328657 | |||
Pas d'informations disponibles, non commandable | ||||
601 | 955994 | |||
Pas d'informations disponibles, non commandable | ||||
602 | 955995 | |||
Pas d'informations disponibles, non commandable | ||||
603 | 955996 | |||
Pas d'informations disponibles, non commandable | ||||
604 | 955998 | |||
Pas d'informations disponibles, non commandable | ||||
605 | 956000 | |||
Pas d'informations disponibles, non commandable | ||||
606 | 955154 | |||
Pas d'informations disponibles, non commandable | ||||
607 | 955155 | |||
Pas d'informations disponibles, non commandable | ||||
608 | 956002 | |||
Pas d'informations disponibles, non commandable | ||||
609 | 955157 | |||
Pas d'informations disponibles, non commandable | ||||
610 | 956004 | |||
Pas d'informations disponibles, non commandable | ||||
611 | 955159 | |||
Pas d'informations disponibles, non commandable | ||||
612 | 955997 | |||
Pas d'informations disponibles, non commandable | ||||
613 | 955999 | |||
Pas d'informations disponibles, non commandable | ||||
614 | 956001 | |||
Pas d'informations disponibles, non commandable | ||||
615 | 955166 | |||
Pas d'informations disponibles, non commandable | ||||
616 | 955167 | |||
Pas d'informations disponibles, non commandable | ||||
617 | 956003 | |||
Pas d'informations disponibles, non commandable | ||||
618 | 955168 | |||
Pas d'informations disponibles, non commandable | ||||
619 | 956005 | |||
Pas d'informations disponibles, non commandable | ||||
620 | 955169 | |||
Pas d'informations disponibles, non commandable | ||||
621 | 955163 | |||
Pas d'informations disponibles, non commandable | ||||
622 | 956008 | |||
Pas d'informations disponibles, non commandable | ||||
623 | 955165 | |||
Pas d'informations disponibles, non commandable | ||||
624 | 956009 | |||
Pas d'informations disponibles, non commandable | ||||
625 | 955186 | |||
Pas d'informations disponibles, non commandable | ||||
626 | 981890 | |||
Pas d'informations disponibles, non commandable | ||||
627 | 981904 | |||
Pas d'informations disponibles, non commandable | ||||
628 | 981891 | |||
Pas d'informations disponibles, non commandable | ||||
629 | 981905 | |||
Pas d'informations disponibles, non commandable | ||||
630 | 981892 | |||
Pas d'informations disponibles, non commandable | ||||
631 | 981906 | |||
Pas d'informations disponibles, non commandable | ||||
632 | 981893 | |||
Pas d'informations disponibles, non commandable | ||||
633 | 981907 | |||
Pas d'informations disponibles, non commandable | ||||
634 | 981895 | |||
Pas d'informations disponibles, non commandable | ||||
635 | 981909 | |||
Pas d'informations disponibles, non commandable | ||||
636 | 981896 | |||
Pas d'informations disponibles, non commandable | ||||
637 | 981910 | |||
Pas d'informations disponibles, non commandable | ||||
638 | 981911 | |||
Pas d'informations disponibles, non commandable | ||||
639 | 981912 | |||
Pas d'informations disponibles, non commandable | ||||
640 | 981913 | |||
Pas d'informations disponibles, non commandable | ||||
642 | 944477 | |||
Pas d'informations disponibles, non commandable | ||||
643 | 981919 | |||
Pas d'informations disponibles, non commandable | ||||
644 | 981920 | |||
Pas d'informations disponibles, non commandable | ||||
645 | 981921 | |||
Pas d'informations disponibles, non commandable | ||||
646 | 981929 | |||
Pas d'informations disponibles, non commandable | ||||
647 | 981930 | |||
Pas d'informations disponibles, non commandable | ||||
648 | 981931 | |||
Pas d'informations disponibles, non commandable | ||||
650 | 944574 | |||
Pas d'informations disponibles, non commandable | ||||
651 | 981922 | |||
Pas d'informations disponibles, non commandable | ||||
652 | 981923 | |||
Pas d'informations disponibles, non commandable | ||||
653 | 981925 | |||
Pas d'informations disponibles, non commandable | ||||
654 | 981926 | |||
Pas d'informations disponibles, non commandable | ||||
655 | 944460 | |||
Pas d'informations disponibles, non commandable | ||||
656 | 944461 | |||
Pas d'informations disponibles, non commandable | ||||
657 | 993038 | |||
Pas d'informations disponibles, non commandable | ||||
659 | 944500 | |||
Pas d'informations disponibles, non commandable | ||||
661 | 944464 | |||
Pas d'informations disponibles, non commandable | ||||
662A | 318085 | |||
Huile OMALA (1 litre) | ||||
663 | 955009 | 21.04 | 25.24 | |
Pas d'informations disponibles, non commandable | ||||
664 | 971105 | |||
Pas d'informations disponibles, non commandable | ||||
665 | 980734 | |||
Pas d'informations disponibles, non commandable | ||||
666 | 956126 | |||
Pas d'informations disponibles, non commandable | ||||
667 | 980982 | |||
Pas d'informations disponibles, non commandable | ||||
668 | 998561 | |||
Pas d'informations disponibles, non commandable | ||||
669 | 998562 | |||
Pas d'informations disponibles, non commandable | ||||
670 | 320859 | |||
Feutre d'huile | ||||
671 | 324896 | 3.75 | 4.50 |
