Vous trouverez ici toutes les pièces et dessins disponibles du 'Hikoki PDA-100K'. De là, vous pouvez commander directement toutes les pièces souhaitées. De nombreuses pièces doivent être commandées auprès du fabricant, selon la marque, cela prend une à quatre semaines. Toutes les informations dont nous disposons se trouvent sur notre site Web, nous ne pouvons pas vous conseiller sur ce dont vous avez besoin, pour cela vous devrez retourner la machine pour réparation. Veuillez noter ce qui suit lors de la commande:

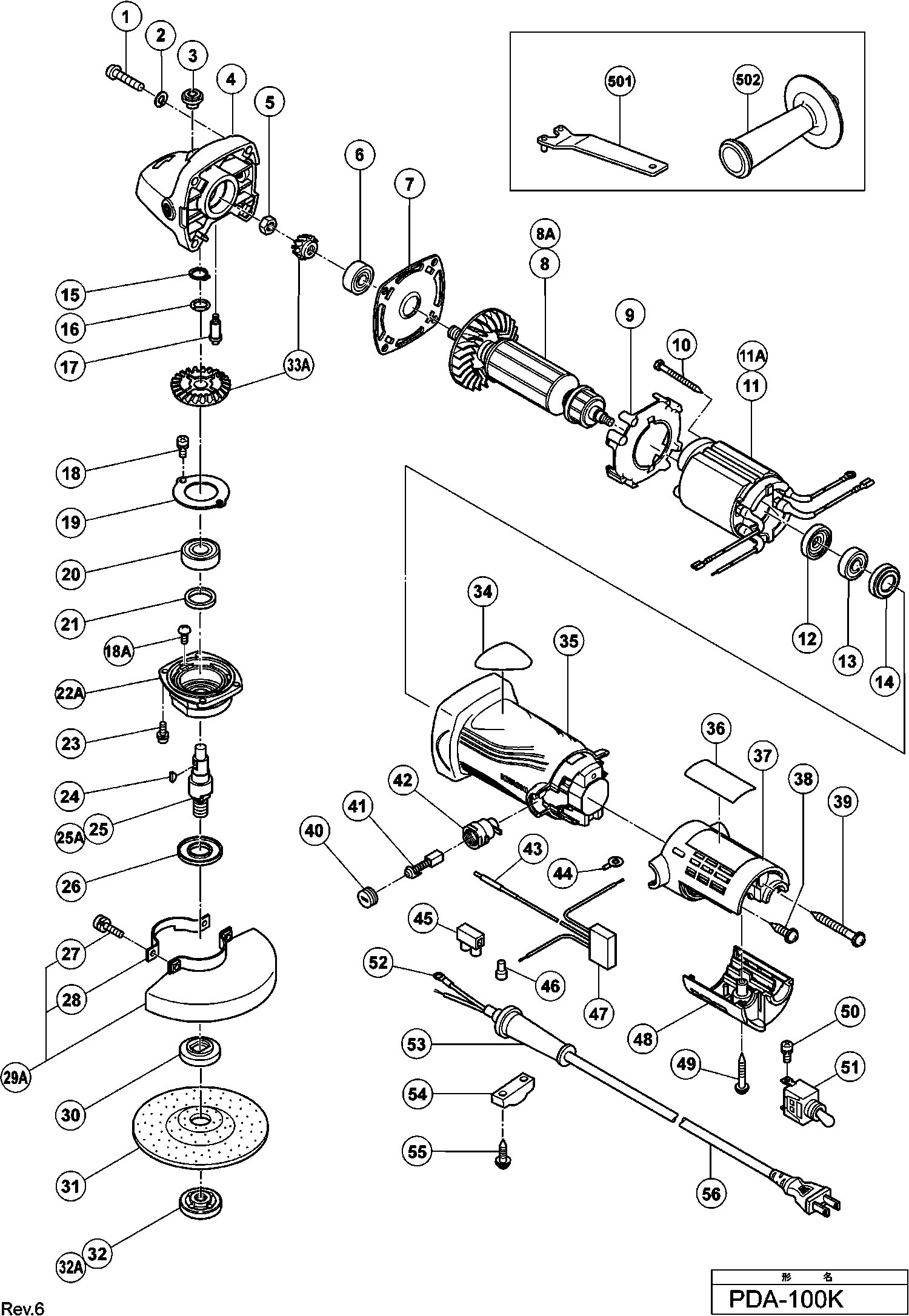

Dessins des Hikoki PDA-100K
Liste de pièces de rechange des Hikoki PDA-100K
Pos. | Description | Prix hors TVA | Prix TTC | |
Les prix affichés incluent la TVA | ||||
Vis à Métaux M5x22 (10 Pièces) | ||||
1 | 949242 | 1.35 | 1.62 | |
Rondelle de ressort M5 (10 pièces) | ||||
2 | 949454 | 1.04 | 1.24 | |
Bouton Bloc | ||||
3 | 301944 | 1.04 | 1.24 | |
Carter | ||||
4 | 316484 | 18.98 | 22.77 | |
Ecrou Frein M7 | ||||
5 | 301941 | 1.04 | 1.24 | |
Roulement A Billes | ||||
6 | 628VVC | 11.85 | 14.22 | |
Palier G13sd/g13v | ||||
7 | 316480 | 3.30 | 3.96 | |
Pas d'informations disponibles, non commandable | ||||
8 | 360567E | |||
Pas d'informations disponibles, non commandable | ||||
8A | 360944C | |||
Baffle | ||||
9 | 319898 | 1.05 | 1.26 | |
Pas d'informations disponibles, non commandable | ||||
10 | 320677 | |||
Pas d'informations disponibles, non commandable | ||||
11 | 340514F | |||
Pas d'informations disponibles, non commandable | ||||
11A | 340842C | |||
Joint | ||||
12 | 313775 | 1.05 | 1.26 | |
Roulement à billes 626vvmc2erps2s | ||||
13 | 626VVM | 5.70 | 6.84 | |
Plaq.en Caoutchouc (1) | ||||
14 | 309929 | 1.04 | 1.24 | |
Circlips Dim 11 Till 9.2012 | ||||
15 | 316487 | 1.65 | 1.98 | |
Bague | ||||
16 | 316486 | 1.65 | 1.98 | |
Goupille De Blocage | ||||
17 | 301943 | 1.65 | 1.98 | |
Vis M4*10 Till 09.2009 | ||||
18 | 997263 | 1.05 | 1.26 | |
Vis Ø 4*8 | ||||
18A | 323556 | 1.05 | 1.26 | |
Flasque De Palier | ||||
19 | 316490 | 1.65 | 1.98 | |
Roulement Cr12v H90sc | ||||
20 | 6201VV | 6.45 | 7.74 | |
Feutre | ||||
21 | 301946 | 1.04 | 1.24 | |
Presse-étoupe | ||||
22A | 333838 | 3.00 | 3.60 | |
Vis de scellage M4*12 | ||||
23 | 307127 | 1.05 | 1.26 | |
Clavette G13sd | ||||
24 | 302047 | 1.05 | 1.26 | |
Pas d'informations disponibles, non commandable | ||||
25 | 316485 | |||
Pas d'informations disponibles, non commandable | ||||
25A | 317822 | |||
Joint Anti Poussiere | ||||
26 | 301945 | 1.05 | 1.26 | |
Vis à métaux (avec rondelle) M5x16 (noir) | ||||
27 | 308386 | 1.05 | 1.26 | |
Collier Fg 12sb | ||||
28 | 301949 | 1.04 | 1.24 | |
Protecteur | ||||
29B | 301948 | 5.71 | 6.86 | |
Plus disponible, pas de remplacement | ||||
30 | 372737 | |||
Pas d'informations disponibles, non commandable | ||||
31 | 939640 | |||
Pas d'informations disponibles, non commandable | ||||
32A | 339578 | |||
Pas d'informations disponibles, non commandable | ||||
33A | 331840 | |||
Pas d'informations disponibles, non commandable | ||||
35 | 320675 | |||
Pas d'informations disponibles, non commandable | ||||
37 | 322533 | |||
Vis autotaraudeuse D4x20 avec bride (noir) | ||||
38 | 302086 | 1.05 | 1.26 | |
Vis D4*40 | ||||
39 | 306664 | 1.05 | 1.26 | |
Bouchon Charbon | ||||
40 | 936551 | 1.05 | 1.26 | |
Plus disponible, pas de remplacement | ||||
41 | 999021 | |||
S/e Porte Balais | ||||
42 | 313777 | 1.50 | 1.80 | |
Terminal de terre pour TPE | ||||
43 | 314854 | 1.50 | 1.80 | |
Borne | ||||
44 | 980063 | 1.04 | 1.24 | |
Condensateur | ||||
47 | 994273 | 4.29 | 5.14 | |
Pas d'informations disponibles, non commandable | ||||
48 | 322532 | |||
Vis autotaraudeuse (avec bride) D4x25 (noire) | ||||
49 | 304035 | 1.04 | 1.24 | |
Vis machine (avec rondelle) M3,5x6 | ||||
50 | 305499 | 1.05 | 1.26 | |
Commutateur | ||||
51 | 955509 | 10.80 | 12.96 | |
Borne | ||||
52 | 980063 | 1.04 | 1.24 | |
Entree De Cable Ø 8.8 | ||||
53 | 380090 | 1.04 | 1.25 | |
Entree De Cable Ø 10,1 | ||||
53 | 938051 | 1.04 | 1.24 | |
Serre Cable | ||||
54 | 937631 | 1.04 | 1.24 | |
Pas d'informations disponibles, non commandable | ||||
55 | 984750 | |||
Cordon 2,5m 2 X 1.0 H05vv-f (ancien 500395z) | ||||
56 | 500447Z | 6.60 | 7.92 | |
Pas d'informations disponibles, non commandable | ||||
501 | 313933 | |||
Pas d'informations disponibles, non commandable | ||||
502A | 994322 | |||
Pas d'informations disponibles, non commandable | ||||
601 | 302098 | |||
Pas d'informations disponibles, non commandable | ||||
602 | 302099 | |||
Pas d'informations disponibles, non commandable | ||||
603 | 984646 | |||
Pas d'informations disponibles, non commandable | ||||
604A | 323918 | |||
Pas d'informations disponibles, non commandable | ||||
605 | 314053 | |||
Pas d'informations disponibles, non commandable | ||||
606 | 314054 | |||
Pas d'informations disponibles, non commandable | ||||
607 | 314057 | |||
Pas d'informations disponibles, non commandable | ||||
608 | 314059 | |||
Pas d'informations disponibles, non commandable | ||||
609 | 314061 | |||
Pas d'informations disponibles, non commandable | ||||
610 | 314051 | |||
Pas d'informations disponibles, non commandable | ||||
611 | 314052 | |||
Pas d'informations disponibles, non commandable | ||||
612 | 314055 | |||
Pas d'informations disponibles, non commandable | ||||
613 | 314056 | |||
Pas d'informations disponibles, non commandable | ||||
614 | 314058 | |||
Pas d'informations disponibles, non commandable | ||||
615 | 314060 | |||
Pas d'informations disponibles, non commandable | ||||
616 | 954021 | |||
Bouchon D’obturation A 6 | ||||
617 | 935513 | 4.20 | 5.04 | |
Pas d'informations disponibles, non commandable | ||||
618 | 936548 | |||
Pas d'informations disponibles, non commandable | ||||
619 | 936558Z |
