Vous trouverez ici toutes les pièces et dessins disponibles du 'Hikoki P20SB'. De là, vous pouvez commander directement toutes les pièces souhaitées. De nombreuses pièces doivent être commandées auprès du fabricant, selon la marque, cela prend une à quatre semaines. Toutes les informations dont nous disposons se trouvent sur notre site Web, nous ne pouvons pas vous conseiller sur ce dont vous avez besoin, pour cela vous devrez retourner la machine pour réparation. Veuillez noter ce qui suit lors de la commande:

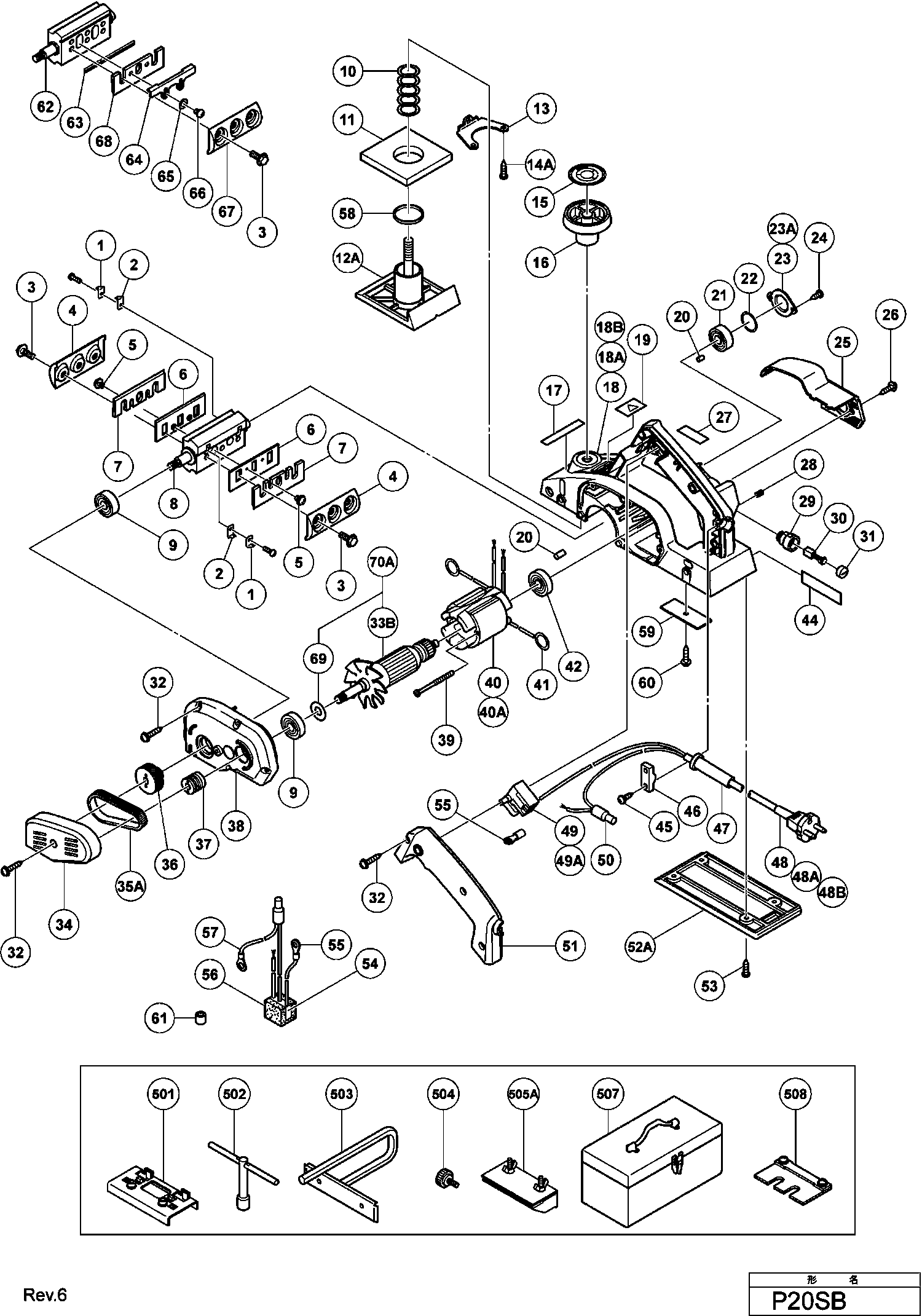

Dessins des Hikoki P20SB
Liste de pièces de rechange des Hikoki P20SB
Pos. | Description | Prix hors TVA | Prix TTC | |
Les prix affichés incluent la TVA | ||||
Ressort P-20sa For Ind | ||||
1 | 958731Z | 1.05 | 1.26 | |
Plaque de serrage | ||||
2 | 958732Z | 1.20 | 1.44 | |
Pas d'informations disponibles, non commandable | ||||
3 | 990669 | |||
Support (2 pièces) | ||||
4 | 958734Z | 9.90 | 11.88 | |
Vis P-20sa Except For Double Edged Blade Type | ||||
5 | 986723 | 1.05 | 1.26 | |
Pte Fers P-20sa For Ind | ||||
6 | 958733Z | 1.35 | 1.62 | |
Pas d'informations disponibles, non commandable | ||||
7 | 958728 | |||
Pas d'informations disponibles, non commandable | ||||
8 | 958730Z | |||
Roulement à billes 6200 Vv | ||||
9 | 6200VV | 6.15 | 7.38 | |
Ressort | ||||
10 | 958709 | 1.95 | 2.34 | |
Caoutchouc Mousse F 20a | ||||
11 | 958708 | 1.65 | 1.98 | |
Semelle avant | ||||
12A | 335305 | 6.45 | 7.74 | |
Plaque | ||||
13 | 958945 | 1.65 | 1.98 | |
Vis à tarauder D4X16 | ||||
14A | 954004 | 1.04 | 1.24 | |
Echelle | ||||
15 | 958710 | 1.05 | 1.26 | |
Bouton | ||||
16 | 958729 | 6.15 | 7.38 | |
Pas d'informations disponibles, non commandable | ||||
17 | 957561 | |||
Pas d'informations disponibles, non commandable | ||||
18 | 308103 | |||
Boîtier P20sb Inclu.13,14a,28,29,32,39,51,59,60 | ||||
18A | 962642Z | 84.56 | 101.48 | |
Pas d'informations disponibles, non commandable | ||||
18B | 318083 | |||
STYLO EN CAOUTCHOUC | ||||
20 | 931701 | 1.05 | 1.26 | |
Roulement | ||||
21 | 6000VV | 6.15 | 7.38 | |
Pas d'informations disponibles, non commandable | ||||
22 | 945153 | |||
Couvercle de roulement (ancien 958703) | ||||
23 | 313671 | 1.05 | 1.26 | |
Pas d'informations disponibles, non commandable | ||||
23A | 317826 | |||
Vis | ||||
24 | 954017 | 1.04 | 1.24 | |
Couvercle De Carcasse F 20a | ||||
25 | 958714 | 5.25 | 6.30 | |
Pas d'informations disponibles, non commandable | ||||
26 | 930446 | |||
Vis de réglage hexagonale M5x8 | ||||
28 | 938477 | 1.05 | 1.26 | |
S/e Porte Balais | ||||
29 | 957571 | 2.40 | 2.88 | |
Plus disponible, pas de remplacement | ||||
30 | 999021 | |||
Bouchon Charbons | ||||
31 | 931266 | 1.04 | 1.24 | |
Pas d'informations disponibles, non commandable | ||||
32 | 956636 | |||
Pas d'informations disponibles, non commandable | ||||
33B | 360967F | |||
Couvercle F 20a | ||||
34 | 958719Z | 3.00 | 3.60 | |
Courroie Trapezoidale | ||||
35A | 958718 | 9.30 | 11.16 | |
Poulie Receptrice F 20a | ||||
36 | 958717 | 8.70 | 10.44 | |
Poulie (a) | ||||
37 | 958716 | 6.45 | 7.74 | |
Palier | ||||
38 | 958704 | 9.15 | 10.98 | |
Vis Ø 4*60 | ||||
39 | 960108 | 1.04 | 1.24 | |
Inducteur F-20a Includ.41 | ||||
40 | 954215E | 15.26 | 18.32 | |
Pas d'informations disponibles, non commandable | ||||
40A | 958693H | |||
Raccord For Aus | ||||
41 | 930630 | 1.35 | 1.62 | |
Roulement A Billes | ||||
42 | 608VVM | 5.70 | 6.84 | |
Rivet D2,5x4,8 (10 pièces) | ||||
43 | 949510 | 1.04 | 1.24 | |
Pas d'informations disponibles, non commandable | ||||
45 | 984750 | |||
Serre Cable | ||||
46 | 937631 | 1.04 | 1.24 | |
Entree De Cable Till 11.1982 For Aus | ||||
47 | 930026 | 3.00 | 3.60 | |
Entree De Cable | ||||
47 | 930487 | 2.25 | 2.70 | |
Pas d'informations disponibles, non commandable | ||||
48 | 500487Z | |||
Commutateur | ||||
49 | 957747 | 14.03 | 16.83 | |
Commutateur | ||||
49A | 963756Z | 13.20 | 15.84 | |
Pas d'informations disponibles, non commandable | ||||
51 | 962643Z | |||
Plaque De Base | ||||
52A | 335306 | 5.25 | 6.30 | |
Vis à tarauder D4X16 | ||||
53 | 954004 | 1.04 | 1.24 | |
Porte Couteaux P20se Includ.9.21 For Double Edged | ||||
62 | 316397 | 61.33 | 73.59 | |
Pas d'informations disponibles, non commandable | ||||
63A | 336571 | |||
Plaque de serrage CS 50 EB | ||||
64 | 314754 | 3.30 | 3.96 | |
Rondelle M4 (x10) paquet de 10 | ||||
65 | 949423 | 1.05 | 1.26 | |
Vis machine M4x5 (10 pièces) | ||||
66 | 949213 | 1.05 | 1.26 | |
Porte-burin | ||||
67 | 316398 | 12.75 | 15.30 | |
Jeu De Pte Fers P 20sd For Double Edged Blade Typ | ||||
68 | 314740 | 17.05 | 20.46 | |
Rondelle (a2) | ||||
69 | 334713 | 1.20 | 1.44 | |
Pas d'informations disponibles, non commandable | ||||
70A | 360943F | |||
Pas d'informations disponibles, non commandable | ||||
501 | 958736 | |||
Pas d'informations disponibles, non commandable | ||||
502 | 940543 | |||
Pas d'informations disponibles, non commandable | ||||
503 | 958842Z | |||
VIS C M4X34 | ||||
504 | 940650 | 1.05 | 1.26 | |
Porte-lame pour aiguiser | ||||
505A | 314767 | 3.30 | 3.96 | |
Pas d'informations disponibles, non commandable | ||||
508 | 316419 | |||
Pas d'informations disponibles, non commandable | ||||
601 | 879210 |
