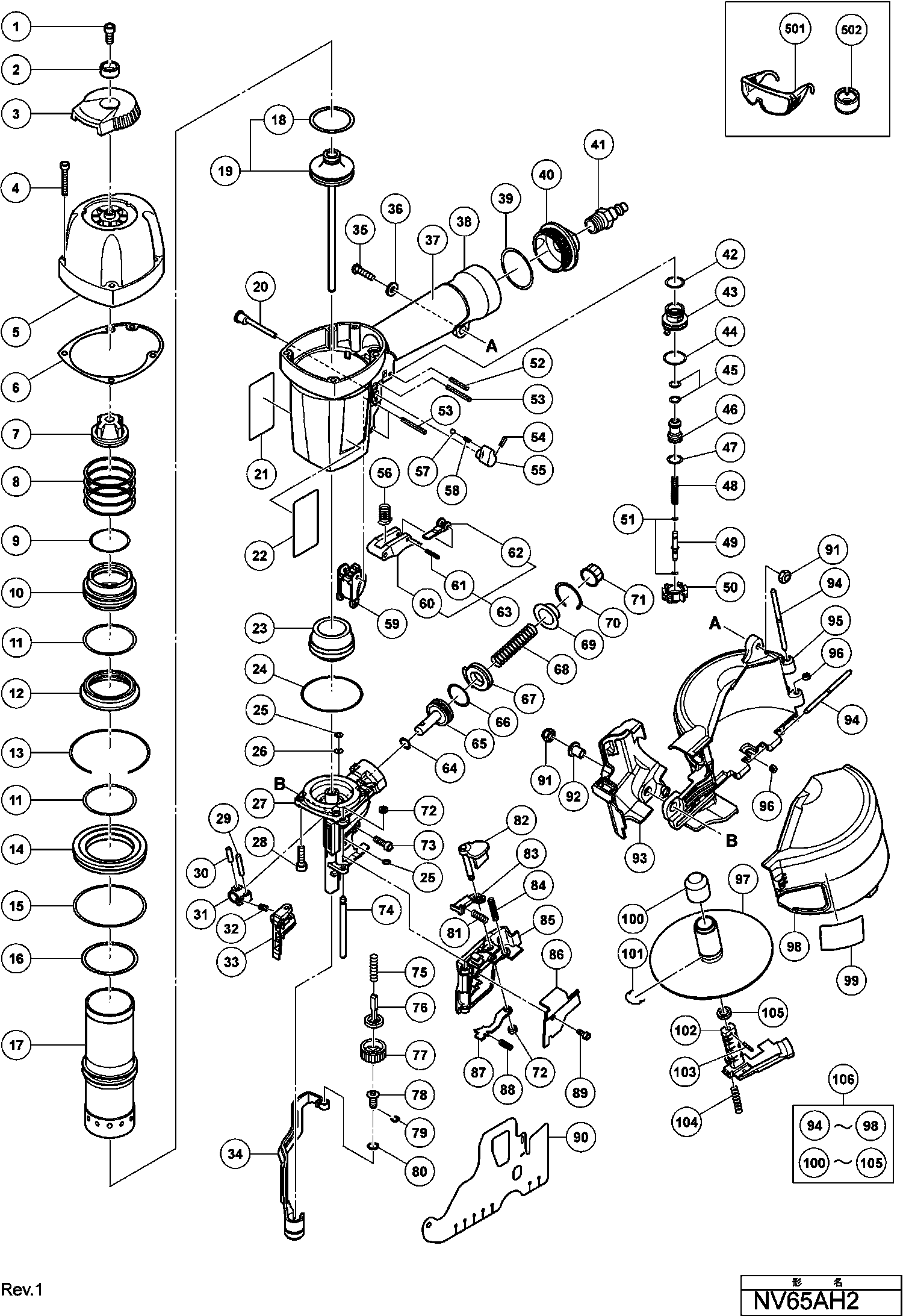

Dessins des Hikoki NV65AH2
Liste de pièces de rechange des Hikoki NV65AH2
Pos. | Description | Prix hors TVA | Prix TTC | |
Les prix affichés incluent la TVA | ||||
Vis M6x16 (paquet de 10) | ||||
1 | 949755 | 3.00 | 3.60 | |
Plaque (1) | ||||
2 | 880515 | 5.85 | 7.02 | |
COUVERCLE SUPERIEUR | ||||
3 | 884332 | 4.20 | 5.04 | |
Pas d'informations disponibles, non commandable | ||||
4 | 949822 | |||
Couvercle d'échappement (or) | ||||
5 | 888013 | 16.50 | 19.80 | |
JOINT DE GARNITURE | ||||
6 | 880358 | 1.65 | 1.98 | |
Caoutchouc de valve d'échappement (a) (ancien 8803 | ||||
7 | 881761 | 9.45 | 11.34 | |
Ressort de tête de soupape | ||||
8 | 880356 | 3.60 | 4.32 | |
O-ring | ||||
9 | 980879 | 1.05 | 1.26 | |
Plaque De Cylindre Nv 65ad | ||||
10A | 889036 | 9.00 | 10.80 | |
Caoutchouc de valve de tête (a) (ancien 880355) | ||||
12 | 881760 | 4.50 | 5.40 | |
Rondelle Elastique | ||||
13 | 880669 | 2.55 | 3.06 | |
Plaque de Cylindre | ||||
14 | 880667 | 22.28 | 26.73 | |
Joint | ||||
15A | 884339 | 2.10 | 2.52 | |
O Ring H90sc/se | ||||
16 | 878716 | 1.65 | 1.98 | |
Pas d'informations disponibles, non commandable | ||||
17 | 888025 | |||
Joint torique (i.d 34.7) | ||||
18 | 882685 | 1.65 | 1.98 | |
Ensemble de piston | ||||
19 | 888026 | 33.00 | 39.60 | |
Barre de changement | ||||
20A | 888798 | 1.95 | 2.34 | |
Pas d'informations disponibles, non commandable | ||||
21A | 888957 | |||
Plaque Du Construc. (1) | ||||
22 | 888024 | 1.04 | 1.24 | |
Amortisseur de piston | ||||
23 | 882676 | 12.15 | 14.58 | |
Joint torique (s-44) | ||||
24 | 880362 | 1.04 | 1.24 | |
Joint | ||||
25 | 874436 | 1.05 | 1.26 | |
Bague | ||||
26 | 878279 | 1.05 | 1.26 | |
Pas d'informations disponibles, non commandable | ||||
27 | 888007 | |||
Boulon de haute tension Nylock M6x20 | ||||
28 | 880675 | 4.05 | 4.86 | |
Goupille Nr 83a | ||||
29 | 880659 | 1.05 | 1.26 | |
Pas d'informations disponibles, non commandable | ||||
30 | 888162 | |||
Bras De Guide Nv38ab/50ah | ||||
31 | 878132 | 40.84 | 49.00 | |
Ressort pour mécanisme d'alimentation | ||||
32 | 888108 | 1.04 | 1.24 | |
Mécanisme d'alimentation | ||||
33 | 882671 | 23.93 | 28.71 | |
Pas d'informations disponibles, non commandable | ||||
34 | 888259 | |||
Vis à machine M5x20 (noir) | ||||
35 | 302196 | 1.05 | 1.26 | |
Rondelle (OLD 876205) | ||||
36A | 889024 | 1.04 | 1.24 | |
Pas d'informations disponibles, non commandable | ||||
38 | 888012 | |||
Joint | ||||
39 | 880183 | 1.05 | 1.26 | |
Chapeau (1) | ||||
40 | 888014 | 5.85 | 7.02 | |
Bouchon d'air Npt 3/8 | ||||
41 | 887863 | 2.10 | 2.52 | |
BAGUE O DU PISTON D'ALIMENTATION (I.D.14) | ||||
42 | 877763 | 1.05 | 1.26 | |
Douille de valve (b) | ||||
43 | 884963 | 1.65 | 1.98 | |
Joint torique (P-18) | ||||
44 | 873570 | 1.35 | 1.62 | |
Pas d'informations disponibles, non commandable | ||||
45A | 889335 | |||
Piston de valve | ||||
46 | 884964 | 1.65 | 1.98 | |
JOINT TORIQUE (1AP-10) (ANCIEN 872654) | ||||
47A | 889495 | 1.04 | 1.24 | |
Ressort | ||||
48 | 887178 | 1.20 | 1.44 | |
Pas d'informations disponibles, non commandable | ||||
49 | 888177 | |||
Fourreau De Valve Nv65ad2/50ah | ||||
50 | 884962 | 1.65 | 1.98 | |
Joint torique (I.D.1.8) | ||||
51 | 878888 | 1.05 | 1.26 | |
Broche à Rouleau D3x22 (10 Pièces) | ||||
52 | 949864 | 1.65 | 1.98 | |
Pas d'informations disponibles, non commandable | ||||
53 | 887865 | |||
Goupille cylindrique D3x10 (10 pièces) | ||||
54 | 887458 | 1.20 | 1.44 | |
Bouton de changement (d) | ||||
55 | 887684 | 1.20 | 1.44 | |
Pas d'informations disponibles, non commandable | ||||
56 | 888261 | |||
Bille Ø3.97 (x10) paquet de 10 | ||||
57 | 959155 | 1.04 | 1.24 | |
Ressort | ||||
58 | 887673 | 1.20 | 1.44 | |
Pas d'informations disponibles, non commandable | ||||
59 | 887686 | |||
Pas d'informations disponibles, non commandable | ||||
60 | 888402 | |||
Goupille roulante D2.5 | ||||
61A | 887856 | 1.20 | 1.44 | |
Pas d'informations disponibles, non commandable | ||||
62 | 888174 | |||
Pas d'informations disponibles, non commandable | ||||
63 | 888173 | |||
O Ring (p-9) | ||||
64 | 872645 | 1.65 | 1.98 | |
Pas d'informations disponibles, non commandable | ||||
65 | 888401 | |||
Joint (p-21) Nv90ab | ||||
66 | 880330 | 1.05 | 1.26 | |
AMORTISSEUR (ANCIEN 880367) | ||||
67A | 889339 | 1.20 | 1.44 | |
Pas d'informations disponibles, non commandable | ||||
68 | 878603 | |||
Culasse Piston Nv90ab | ||||
69 | 880331 | 3.15 | 3.78 | |
Pas d'informations disponibles, non commandable | ||||
70 | 888028 | |||
Douille de magazine | ||||
71 | 878305 | 1.04 | 1.24 | |
Bague Nv90ab | ||||
72 | 880319 | 1.65 | 1.98 | |
Boulon à tête hexagonale M5x22 | ||||
73 | 888102 | 1.05 | 1.26 | |
Pas d'informations disponibles, non commandable | ||||
74 | 888009 | |||
Pas d'informations disponibles, non commandable | ||||
75 | 888258 | |||
LEVIER DE POUSSÉE (D) (ANCIEN 887678) | ||||
76A | 889331 | 3.60 | 4.32 | |
Pas d'informations disponibles, non commandable | ||||
77 | 886736 | |||
Pas d'informations disponibles, non commandable | ||||
78 | 888257 | |||
Circlips Sod-110 Till 6.1998 | ||||
79 | 872971 | 1.05 | 1.26 | |
Joint torique (s-5) | ||||
80 | 872822 | 3.00 | 3.60 | |
Ressort | ||||
81 | 301631 | 1.04 | 1.24 | |
Verrou de guidage Nv50ae | ||||
82 | 886107 | 5.10 | 6.12 | |
Pas d'informations disponibles, non commandable | ||||
83A | 889128 | |||
Ressort | ||||
84 | 880446 | 1.35 | 1.62 | |
Pas d'informations disponibles, non commandable | ||||
85 | 888008 | |||
Couverture de guidage de clou | ||||
86 | 882681 | 4.80 | 5.76 | |
Arrêt de clou | ||||
87 | 882680 | 3.30 | 3.96 | |
Ressort | ||||
88 | 880494 | 2.40 | 2.88 | |
Vis Ø 4x10 | ||||
89 | 880413 | 1.05 | 1.26 | |
Pas d'informations disponibles, non commandable | ||||
90 | 888260 | |||
Ecrou Plastique M5 | ||||
91 | 877371 | 1.05 | 1.26 | |
Douille (1) | ||||
92 | 882907 | 3.30 | 3.96 | |
Pas d'informations disponibles, non commandable | ||||
93 | 888265 | |||
Pas d'informations disponibles, non commandable | ||||
94 | 888021 | |||
Pas d'informations disponibles, non commandable | ||||
95 | 888016 | |||
Joint | ||||
96 | 877826 | 2.55 | 3.06 | |
Pas d'informations disponibles, non commandable | ||||
97 | 888018 | |||
Pas d'informations disponibles, non commandable | ||||
98 | 888017 | |||
Etiquette | ||||
99 | 888266 | 1.04 | 1.24 | |
Pas d'informations disponibles, non commandable | ||||
100 | 888020 | |||
Ressort à cliquet | ||||
101 | 880398 | 7.65 | 9.18 | |
Embout D'arbre Nv90ab | ||||
102A | 889509 | 1.80 | 2.16 | |
Broche de rouleau D2.5x12 | ||||
103 | 878791 | 1.04 | 1.24 | |
Ressort (1) | ||||
104 | 881826 | 1.05 | 1.26 | |
Emballage de la vanne | ||||
105 | 888151 | 1.04 | 1.24 | |
Pas d'informations disponibles, non commandable | ||||
106 | 888015 | |||
O Ring Nv 50a1 | ||||
107 | 889010 | 1.04 | 1.24 | |
Pas d'informations disponibles, non commandable | ||||
501 | 875769 | |||
Pas d'informations disponibles, non commandable | ||||
601 | 880408 | |||
Pas d'informations disponibles, non commandable | ||||
603 | 880517 | |||
Pas d'informations disponibles, non commandable | ||||
604 | 877153 | |||
Pas d'informations disponibles, non commandable | ||||
605 | 874042 | |||
Kit de mécanisme d'activation séquentielle simple | ||||
606 | 887916 | 3.30 | 3.96 |
