Vous trouverez ici toutes les pièces et dessins disponibles du 'Hikoki NT50GS'. De là, vous pouvez commander directement toutes les pièces souhaitées. De nombreuses pièces doivent être commandées auprès du fabricant, selon la marque, cela prend une à quatre semaines. Toutes les informations dont nous disposons se trouvent sur notre site Web, nous ne pouvons pas vous conseiller sur ce dont vous avez besoin, pour cela vous devrez retourner la machine pour réparation. Veuillez noter ce qui suit lors de la commande:

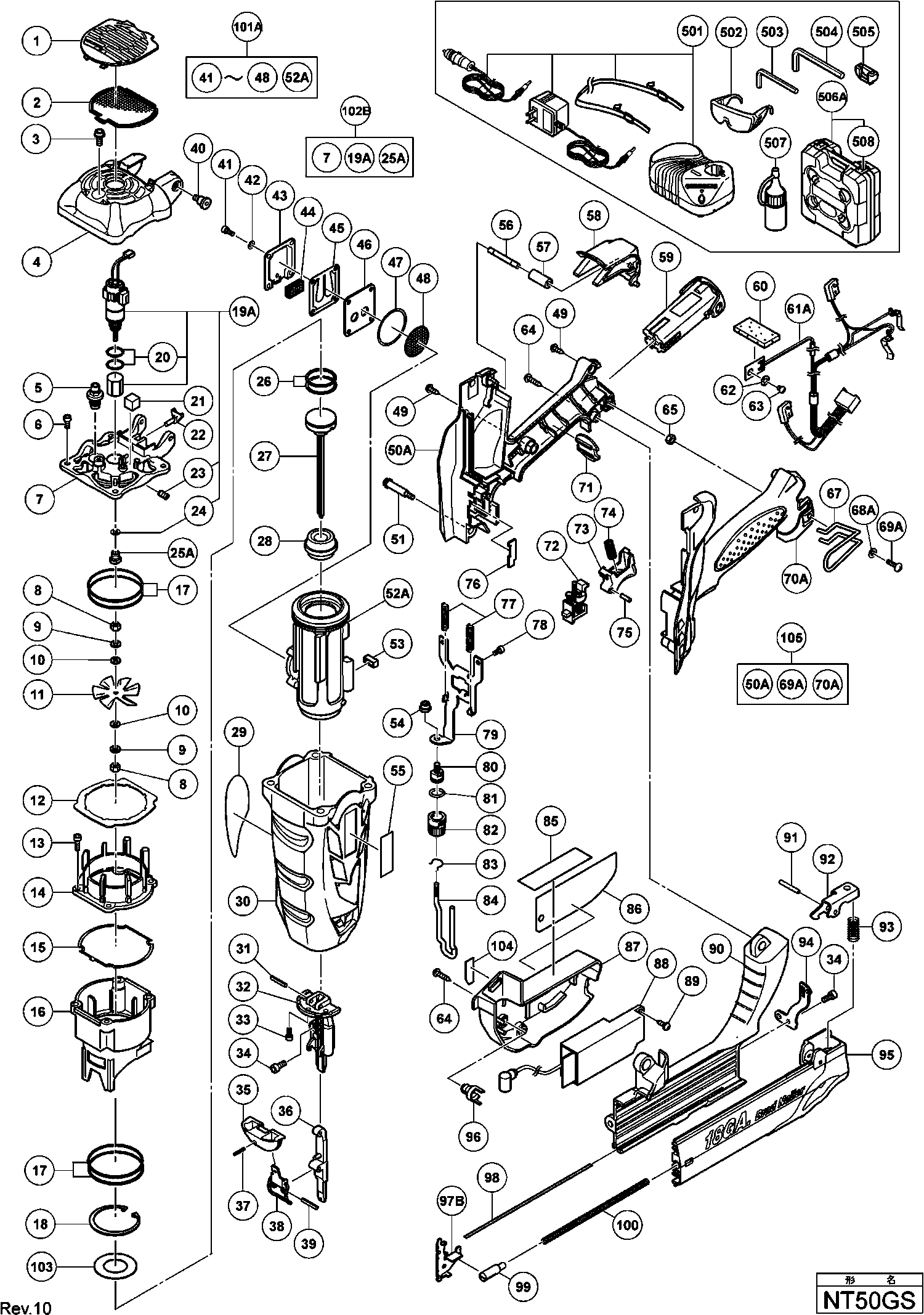

Dessins des Hikoki NT50GS
Liste de pièces de rechange des Hikoki NT50GS
| Pos. | Description | Prix hors TVA | Prix TTC | |
| Les prix affichés incluent la TVA | ||||
| Protection B#9r192230 | ||||
| 1 | 886664 | 1.05 | 1.26 | |
| Filtre | ||||
| 2 | 886344 | 10.20 | 12.24 | |
| Vis Ø 5x10 B#9r192232 | ||||
| 3 | 886347 | 1.05 | 1.26 | |
| Couvercle Cartouche | ||||
| 4 | 886335 | 3.15 | 3.78 | |
| Bougie Nr 90gc | ||||
| 5 | 885333 | 3.30 | 3.96 | |
| Vis Dh 40yb | ||||
| 6 | 880630 | 1.05 | 1.26 | |
| Carter Superieur B#9r192236 | ||||
| 7 | 886661 | 20.90 | 25.08 | |
| Ecrou Ø 3 (x10) | ||||
| 8 | 949553 | 1.04 | 1.24 | |
| Rondelle M3 (x10) Paquet de 10 Since 9.2012 For E | ||||
| 9 | 949451 | 1.05 | 1.26 | |
| Rondelle (x10) | ||||
| 10 | 949422 | 1.04 | 1.24 | |
| Ventilateur | ||||
| 11 | 886309 | 2.10 | 2.52 | |
| Joint B#9r192241 | ||||
| 12 | 886568 | 1.05 | 1.26 | |
| Vis M4x16 (paquet de 10) | ||||
| 13 | 949754 | 2.40 | 2.88 | |
| Couvercle | ||||
| 14 | 886295 | 9.15 | 10.98 | |
| Joint B#9r192244 | ||||
| 15 | 886296 | 1.05 | 1.26 | |
| Chambre Superieur B#9r192245 | ||||
| 16 | 886297 | 10.65 | 12.78 | |
| Segment B#9r192246 | ||||
| 17 | 886312 | 2.10 | 2.52 | |
| Clips B#9r192247 | ||||
| 18 | 886298 | 1.05 | 1.26 | |
| Moteur | ||||
| 19A | 887446 | 104.50 | 125.40 | |
| Joint | ||||
| 20 | 875638 | 1.65 | 1.98 | |
| Joint | ||||
| 21 | 886315 | 1.05 | 1.26 | |
| Adaptateur | ||||
| 22 | 886313 | 1.05 | 1.26 | |
| Vis Ø 4x5 | ||||
| 23 | 886314 | 1.05 | 1.26 | |
| Plaq.en Caoutchouc (1) | ||||
| 24 | 886567 | 1.05 | 1.26 | |
| Recouvrement | ||||
| 25A | 887890 | 2.10 | 2.52 | |
| Zuigerring | ||||
| 26 | 886848 | 5.63 | 6.75 | |
| Piston (1) | ||||
| 27 | 886839 | 22.83 | 27.39 | |
| Piston Bumper | ||||
| 28 | 886851 | 2.10 | 2.52 | |
| Épuisé | ||||
| 29 | 888752 | |||
| Carter | ||||
| 30 | 886855 | 16.36 | 19.64 | |
| Broche | ||||
| 31 | 886310 | 1.05 | 1.26 | |
| Piece De Guidage | ||||
| 32 | 886840 | 24.68 | 29.61 | |
| Vis Ø 4x12 B#9r192262 | ||||
| 33 | 886311 | 1.05 | 1.26 | |
| Vis Ø 4x10 | ||||
| 34 | 880413 | 1.05 | 1.26 | |
| Protection B#9r192204 | ||||
| 35 | 886570 | 2.10 | 2.52 | |
| Plaque De Guidage | ||||
| 36 | 886841 | 14.30 | 17.16 | |
| Goupille Nv65ac | ||||
| 37 | 949776 | 2.40 | 2.88 | |
| Arretoir | ||||
| 38 | 886843 | 3.15 | 3.78 | |
| Goupille | ||||
| 39 | 949496 | 1.65 | 1.98 | |
| Vis Ø 5 B#9r192253 | ||||
| 40 | 886566 | 1.05 | 1.26 | |
| Vis Ø 4x8 | ||||
| 41 | 886307 | 1.05 | 1.26 | |
| Rondelle | ||||
| 42 | 886319 | 1.05 | 1.26 | |
| Plaque B#9r192276 | ||||
| 43 | 886287 | 4.20 | 5.04 | |
| Filtre B#9r192277 | ||||
| 44 | 886288 | 2.10 | 2.52 | |
| Joint | ||||
| 45 | 886290 | 3.15 | 3.78 | |
| Joint B#9r192279 | ||||
| 46 | 886293 | 2.10 | 2.52 | |
| O-RING | ||||
| 47 | 886294 | 1.05 | 1.26 | |
| Grille B#9r192281 | ||||
| 48 | 886292 | 3.30 | 3.96 | |
| Vis Ø 4*16 Noir | ||||
| 49 | 305812 | 1.04 | 1.24 | |
| Épuisé | ||||
| 50A | 886317 | |||
| Vis Ø 4x32 B#9r192269 | ||||
| 51 | 886565 | 1.05 | 1.26 | |
| Cylindre | ||||
| 52A | 887356 | 36.10 | 43.32 | |
| RUBBER | ||||
| 53 | 886285 | 1.05 | 1.26 | |
| Ecrou Plastique M5 | ||||
| 54 | 877371 | 1.05 | 1.26 | |
| Hitachi Naamplaat | ||||
| 55 | 886342 | 1.80 | 2.16 | |
| Broche | ||||
| 56 | 886332 | 1.05 | 1.26 | |
| Douille Caoutchouc | ||||
| 57 | 886333 | 1.05 | 1.26 | |
| Levier B#9r192284 | ||||
| 58 | 886326 | 2.10 | 2.52 | |
| Épuisé | ||||
| 59 | 326263 | |||
| Support | ||||
| 60 | 886316 | 1.05 | 1.26 | |
| Fil interne (a) | ||||
| 61A | 887635 | 72.19 | 86.62 | |
| Rondelle M4 (x10) paquet de 10 | ||||
| 62 | 949423 | 1.05 | 1.26 | |
| Vis Ø 4*10 | ||||
| 63 | 324082 | 1.65 | 1.98 | |
| Vis 4x20 Noir | ||||
| 64 | 302086 | 1.05 | 1.26 | |
| Ecrou Ø 4 Noir B#9r192290 | ||||
| 65 | 886330 | 1.05 | 1.26 | |
| Crochet | ||||
| 67 | 886345 | 3.15 | 3.78 | |
| Bague | ||||
| 68A | 887036 | 1.05 | 1.26 | |
| Schroef M4x25 Zwart | ||||
| 69A | 887034 | 1.05 | 1.26 | |
| Épuisé | ||||
| 70A | 886323 | |||
| Support B#9r192292 | ||||
| 71 | 326316 | 1.05 | 1.26 | |
| Guide B#9r192298 | ||||
| 72 | 886552 | 3.15 | 3.78 | |
| Commutateur | ||||
| 73 | 886327 | 1.05 | 1.26 | |
| Ressort B#9r192293 | ||||
| 74 | 886328 | 1.05 | 1.26 | |
| Goupille (x10) | ||||
| 75 | 949890 | 1.80 | 2.16 | |
| Plaque De Recouvrement | ||||
| 76 | 886324 | 1.05 | 1.26 | |
| VEER | ||||
| 77 | 886301 | 1.05 | 1.26 | |
| Vis Ø 4x10 B#9r192299 | ||||
| 78 | 886308 | 1.05 | 1.26 | |
| Pushing Lever Arm | ||||
| 79 | 886856 | 8.33 | 9.99 | |
| Pushing Lever Piece | ||||
| 80 | 887035 | 3.15 | 3.78 | |
| O-ring | ||||
| 81 | 992912 | 1.05 | 1.26 | |
| Ajusteur | ||||
| 82 | 886338 | 2.10 | 2.52 | |
| Ressort | ||||
| 83 | 886331 | 1.05 | 1.26 | |
| Pushing Lever | ||||
| 84 | 886852 | 4.65 | 5.58 | |
| WARNING LABEL | ||||
| 86 | 888774 | 1.04 | 1.24 | |
| Épuisé | ||||
| 87 | 886844 | |||
| Controleur B#9r192322 | ||||
| 88 | 886320 | 72.33 | 86.79 | |
| SCHROEF MET FLENS D4X12 (ZWART) | ||||
| 89 | 325083 | 1.65 | 1.98 | |
| Reservoir | ||||
| 90 | 886845 | 22.83 | 27.39 | |
| Rol Pin D4x32 (10 Stuks) | ||||
| 91 | 949685 | 2.55 | 3.06 | |
| Spijker Stopper | ||||
| 92 | 885894 | 1.05 | 1.26 | |
| Ressort | ||||
| 93 | 885895 | 1.05 | 1.26 | |
| Épuisé | ||||
| 94 | 886842 | |||
| Magazine Cover | ||||
| 95 | 886849 | 14.78 | 17.73 | |
| Prisme B#9r192321 | ||||
| 96 | 886322 | 1.05 | 1.26 | |
| Spijkervoeding | ||||
| 97B | 887995 | 2.10 | 2.52 | |
| Nail Plate | ||||
| 98 | 885898 | 1.05 | 1.26 | |
| Knop Van Spijker Doorvoer Systeem | ||||
| 99 | 885899 | 1.05 | 1.26 | |
| Ressort | ||||
| 100 | 885900 | 1.05 | 1.26 | |
| Épuisé | ||||
| 101A | 887387 | |||
| Cylinder Deksel Kompleet | ||||
| 102B | 887891 | 138.74 | 166.48 | |
| Cylinder Plate | ||||
| 103 | 887032 | 1.05 | 1.26 | |
| Caution Label | ||||
| 104 | 887415 | 1.20 | 1.44 | |
| Handgreep Set (oud 886317+886323) | ||||
| 105 | 331424 | 18.15 | 21.78 | |
| Épuisé | ||||
| 502 | 875769 | |||
| Épuisé | ||||
| 503 | 943277 | |||
| Épuisé | ||||
| 504 | 944458 | |||
| Neuskap | ||||
| 505 | 886846 | 1.65 | 1.98 | |
| Épuisé | ||||
| 506A | 886857 | |||
| Épuisé | ||||
| 507 | 886036 | |||
| Levier | ||||
| 508 | 887996 | 1.20 | 1.44 | |
