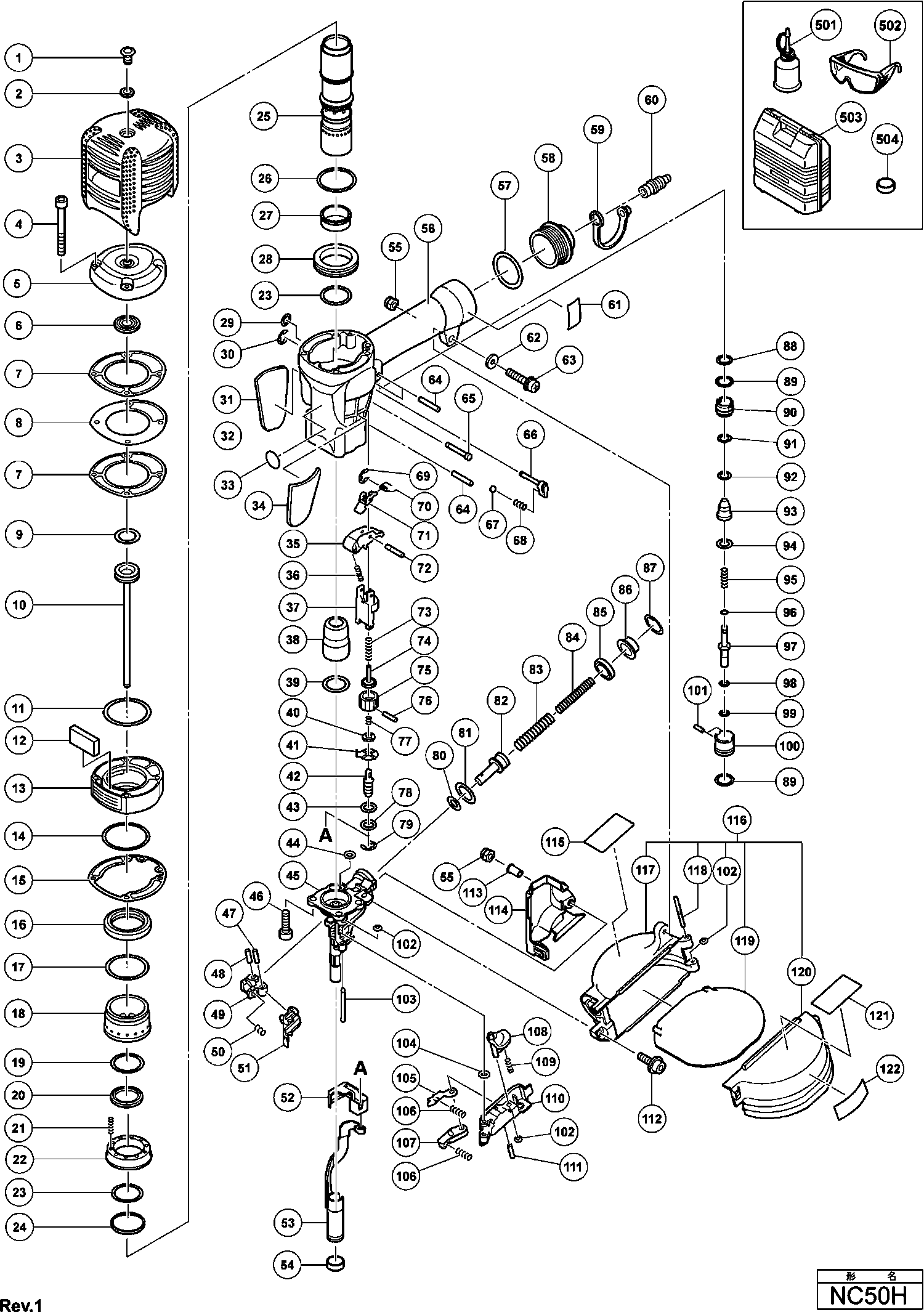

Dessins des Hikoki NC50H
Liste de pièces de rechange des Hikoki NC50H
Pos. | Description | Prix hors TVA | Prix TTC | |
Les prix affichés incluent la TVA | ||||
Pas d'informations disponibles, non commandable | ||||
1 | 885265 | |||
Bague | ||||
2 | 885264 | 5.10 | 6.12 | |
Pas d'informations disponibles, non commandable | ||||
3 | 885593 | |||
Boulon Nylock M5x55 | ||||
4 | 883403 | 9.00 | 10.80 | |
Couvercle supérieur (or) | ||||
5 | 886632 | 67.10 | 80.52 | |
Pare-chocs de tête | ||||
6 | 883423 | 7.05 | 8.46 | |
Joint Cm 12y | ||||
7 | 883130 | 10.05 | 12.06 | |
Plaque (1) | ||||
8 | 883132 | 5.10 | 6.12 | |
O-ring de piston | ||||
9 | 885253 | 8.10 | 9.72 | |
Pas d'informations disponibles, non commandable | ||||
10 | 885597 | |||
Joint torique (diamètre intérieur 45,5) | ||||
11 | 883401 | 21.18 | 25.41 | |
Pas d'informations disponibles, non commandable | ||||
12 | 883402 | |||
Pas d'informations disponibles, non commandable | ||||
13 | 886634 | |||
O-ring | ||||
14 | 980715 | 2.40 | 2.88 | |
Entretoise | ||||
15 | 885188 | 13.05 | 15.66 | |
Caoutchouc de Soupape à Manchon | ||||
16 | 883121 | 8.10 | 9.72 | |
Pas d'informations disponibles, non commandable | ||||
17 | 885678 | |||
Pas d'informations disponibles, non commandable | ||||
18 | 883118 | |||
Pas d'informations disponibles, non commandable | ||||
19 | 885679 | |||
Caoutchouc d'Échappement | ||||
20 | 883120 | 5.10 | 6.12 | |
Ressort de Soupape à Manchon | ||||
21 | 883123 | 1.80 | 2.16 | |
Pas d'informations disponibles, non commandable | ||||
22 | 885861 | |||
Joint torique (i.d. 29.7) | ||||
23 | 880865 | 1.35 | 1.62 | |
Parachoc Cylindrique | ||||
24 | 885862 | 13.05 | 15.66 | |
Pas d'informations disponibles, non commandable | ||||
25 | 885863 | |||
Joint torique (diamètre intérieur 45,5) | ||||
26 | 883418 | 1.80 | 2.16 | |
Anneau de cylindre | ||||
27 | 881244 | 10.05 | 12.06 | |
Plaque de Cylindre | ||||
28 | 883117 | 19.25 | 23.10 | |
Joint torique (diamètre intérieur 1,8) Depuis 7.20 | ||||
29 | 883405 | 5.10 | 6.12 | |
Clips | ||||
30 | 968643 | 1.95 | 2.34 | |
Pas d'informations disponibles, non commandable | ||||
32 | 887976 | |||
Étiquette d'avertissement (a) | ||||
33 | 883513 | 1.65 | 1.98 | |
Déclencheur(s) | ||||
35 | 886052 | 9.00 | 10.80 | |
Ressort de détente | ||||
36 | 884916 | 1.80 | 2.16 | |
Guide de Levier de Poussée | ||||
37 | 886047 | 18.29 | 21.94 | |
Amortisseur de piston | ||||
38 | 885254 | 13.35 | 16.02 | |
O-ring | ||||
39 | 980879 | 1.05 | 1.26 | |
Plaque de réglage | ||||
40 | 884973 | 1.65 | 1.98 | |
Plaque de réglage | ||||
41 | 882886 | 3.30 | 3.96 | |
LEVIER DE POUSSÉE (B) | ||||
42 | 882888 | 17.33 | 20.79 | |
O-RING (S-4) | ||||
43 | 981317 | 1.05 | 1.26 | |
O Ring (1ap-3) | ||||
44 | 873093 | 1.05 | 1.26 | |
Pas d'informations disponibles, non commandable | ||||
45 | 886050 | |||
Boulon Dh-40ma | ||||
46 | 993040 | 2.40 | 2.88 | |
Arbre (b) | ||||
47 | 883093 | 3.30 | 3.96 | |
Roll Pin D4x16 (10 pièces) | ||||
48 | 949497 | 2.55 | 3.06 | |
Bras d'alimentation (b) | ||||
49 | 883144 | 46.75 | 56.10 | |
Ressort pour mécanisme d'alimentation | ||||
50 | 883143 | 1.65 | 1.98 | |
Pas d'informations disponibles, non commandable | ||||
51 | 885604 | |||
Couverture de levier de poussée (b) | ||||
52 | 883113 | 5.10 | 6.12 | |
Pas d'informations disponibles, non commandable | ||||
53 | 886058 | |||
Pas d'informations disponibles, non commandable | ||||
54 | 886057 | |||
Ecrou Plastique M5 | ||||
55 | 877371 | 1.05 | 1.26 | |
Joint | ||||
57 | 880183 | 1.05 | 1.26 | |
Capuchon (or) | ||||
58 | 886426 | 20.21 | 24.26 | |
Housse Anti-Poussière | ||||
59 | 877914 | 1.95 | 2.34 | |
Bouchon d'air L-pt 1/4 | ||||
60 | 883135 | 14.99 | 17.98 | |
Pas d'informations disponibles, non commandable | ||||
62 | 886059 | |||
Pas d'informations disponibles, non commandable | ||||
63 | 885266 | |||
Broche à Rouleau D3x28 (10 Pièces) | ||||
64 | 949865 | 2.55 | 3.06 | |
Goupille de déclenchement | ||||
65 | 885268 | 13.05 | 15.66 | |
Bouton de verrouillage | ||||
66 | 885865 | 18.70 | 22.44 | |
Bille Acier Ø 3.175 (x10) | ||||
67 | 959148 | 1.05 | 1.26 | |
Ressort de verrouillage | ||||
68 | 882923 | 1.80 | 2.16 | |
Pas d'informations disponibles, non commandable | ||||
69 | 886056 | |||
Ressort | ||||
70 | 886054 | 14.16 | 17.00 | |
Levier d'Armement (s) | ||||
71 | 886053 | 161.56 | 193.88 | |
Broche de Levier d'Armement | ||||
72 | 886055 | 22.00 | 26.40 | |
Ressort de levier de poussée (a) | ||||
73 | 883305 | 1.50 | 1.80 | |
LEVIER DE POUSSÉE (C) | ||||
74 | 882891 | 18.15 | 21.78 | |
Ajusteur | ||||
75 | 882889 | 3.45 | 4.14 | |
Goupille D2x16 | ||||
76 | 880093 | 1.04 | 1.24 | |
Ressort d'ajustement | ||||
77 | 882890 | 1.65 | 1.98 | |
Joint torique (s-5) | ||||
78 | 872822 | 3.00 | 3.60 | |
Circlips Sod-110 Till 6.1998 | ||||
79 | 872971 | 1.05 | 1.26 | |
O Ring (p-9) | ||||
80 | 872645 | 1.65 | 1.98 | |
BAGUE O DU PISTON D'ALIMENTATION (I.D.14) | ||||
81 | 877763 | 1.05 | 1.26 | |
Piston d'alimentation | ||||
82 | 883094 | 22.00 | 26.40 | |
Ressort | ||||
83 | 883095 | 1.80 | 2.16 | |
Ressort (b) | ||||
84 | 883096 | 1.80 | 2.16 | |
Butoir | ||||
85 | 885681 | 7.35 | 8.82 | |
Couvercle Nv65ac | ||||
86 | 883098 | 3.45 | 4.14 | |
Clips Pour Ø 24mm | ||||
87 | 983748 | 1.05 | 1.26 | |
O-ring Dh 15dv/20dv | ||||
88 | 876319 | 1.65 | 1.98 | |
O-ring | ||||
89 | 876031 | 1.65 | 1.98 | |
Douille de valve (b) | ||||
90 | 883100 | 6.75 | 8.10 | |
Joint torique (p7-u) | ||||
91 | 883105 | 3.45 | 4.14 | |
Joint torique (p9-u) | ||||
92 | 883104 | 3.45 | 4.14 | |
Piston de valve | ||||
93 | 883101 | 30.25 | 36.30 | |
O-ring (1ap-11) | ||||
94 | 878764 | 1.04 | 1.24 | |
Ressort | ||||
95 | 883103 | 1.80 | 2.16 | |
Joint torique (diamètre intérieur 1,8) Depuis 7.20 | ||||
96 | 883405 | 5.10 | 6.12 | |
Piston | ||||
97 | 886051 | 55.00 | 66.00 | |
Joint torique (1ap-5) | ||||
98 | 873407 | 1.04 | 1.24 | |
O Ring C 8fc | ||||
99 | 997218 | 1.05 | 1.26 | |
Fourreau De Valve Nv65ad2/50ah | ||||
100 | 883099 | 8.10 | 9.72 | |
Goupille D2x8 (lot de 10) | ||||
101 | 949778 | 1.80 | 2.16 | |
Bague Nv90ab | ||||
102 | 880319 | 1.65 | 1.98 | |
Arbre de guidage des clous | ||||
103 | 885603 | 15.26 | 18.32 | |
Joint | ||||
104 | 874436 | 1.05 | 1.26 | |
Arrêt des clous (a) | ||||
105 | 885601 | 20.49 | 24.58 | |
Ressort d'arrêt | ||||
106 | 885602 | 5.10 | 6.12 | |
Pas d'informations disponibles, non commandable | ||||
107 | 885600 | |||
Verrou de guidage Nv50ae | ||||
108 | 886107 | 5.10 | 6.12 | |
Ressort | ||||
109 | 880446 | 1.35 | 1.62 | |
Pas d'informations disponibles, non commandable | ||||
110 | 885599 | |||
Goupille Ø 3x14 | ||||
111 | 949900 | 2.40 | 2.88 | |
Vis M5*25 | ||||
112 | 992253 | 1.05 | 1.26 | |
Douille (1) | ||||
113 | 885605 | 11.10 | 13.32 | |
Pas d'informations disponibles, non commandable | ||||
114 | 887964 | |||
ÉTIQUETTE D'AVERTISSEMENT | ||||
115 | 887175 | 5.10 | 6.12 | |
Magasin complet | ||||
116 | 885612 | 82.36 | 98.84 | |
Reservoir | ||||
117 | 885613 | 22.00 | 26.40 | |
Broche | ||||
118 | 883111 | 9.75 | 11.70 | |
Porte-clou | ||||
119 | 880438 | 7.05 | 8.46 | |
Pas d'informations disponibles, non commandable | ||||
120 | 885614 | |||
ÉTIQUETTE D'AVERTISSEMENT | ||||
121 | 887174 | 5.10 | 6.12 | |
Pas d'informations disponibles, non commandable | ||||
501 | 883136 | |||
Pas d'informations disponibles, non commandable | ||||
502 | 875769 | |||
Pas d'informations disponibles, non commandable | ||||
503A | 888666 | |||
Pas d'informations disponibles, non commandable | ||||
504 | 886057 | |||
Grippe Nv90ab | ||||
601 | 881768 | 5.25 | 6.30 | |
Pas d'informations disponibles, non commandable | ||||
602A | 888213 | |||
Pas d'informations disponibles, non commandable | ||||
603 | 876212 | |||
Pas d'informations disponibles, non commandable | ||||
604 | 887133 | |||
Pas d'informations disponibles, non commandable | ||||
605 | 887978 |
