Dessins techniques et pièces de rechange Hikoki HTD-2522PF

Recherche de pièces de rechange:
Hikoki
Type exact:
HTD-2522PF

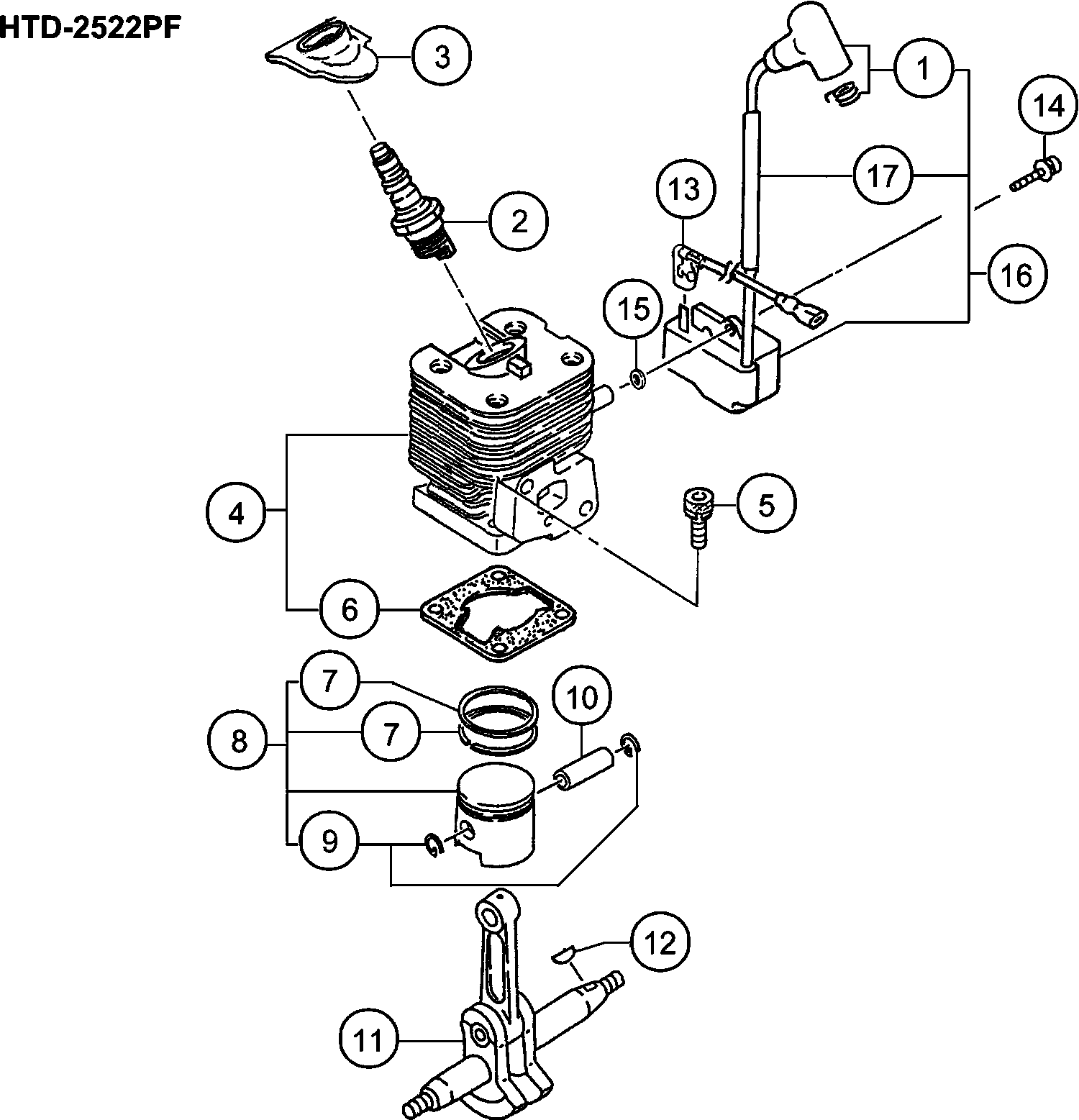

Dessins des HIKOKI HTD-2522PF

Liste de pièces de rechange des HIKOKI HTD-2522PF

Sur cette page, vous pouvez ajouter des pièces de rechange à votre panier en sélectionnant la quantité désirée et en cliquant sur le bouton derrière. Si vous avez terminé votre sélection, veuillez activer le bouton "Votre panier" en bas de la page. Les prix mentionnés ci-dessous sont TTC. Le montant exact de la TVA est calculé dans le panier en fonction du pays dans lequel vous souhaitez recevoir le colis.
Anti Parasite
16684894Anti Parasite€ 8.23
Bougie (oud 6685085)
26699317Bougie (oud 6685085)€ 6.49
Spark Plug Rubber Cover (old 255-01680-20)
36688334Spark Plug Rubber Cover (old 255-01680-20)€ 3.17
Cylinder Set (old 001-03002-90)
46685462Cylinder Set (old 001-03002-90)€ 63.74
Vis Ø5x18
56684586Vis Ø5x18€ 2.06
Cylinder Gasket (old 017-03002-21)
66685728Cylinder Gasket (old 017-03002-21)€ 1.10
Piston Ring (oud 041-01601-20)
76684588Piston Ring (oud 041-01601-20)€ 8.23
Piston Set (old 030-01680-90)
86685877Piston Set (old 030-01680-90)€ 27.01
Circlip (old 039-00000-20)
96685078Circlip (old 039-00000-20)€ 1.10
Piston Pin (old 037-07020-20/6686011)
106686016Piston Pin (old 037-07020-20/6686011)€ 2.22
Épuisé
116686176Épuisé
Woodruff Key 3x13x4.5 (oud 068-10100-20)
126684899Woodruff Key 3x13x4.5 (oud 068-10100-20)€ 2.06
Cord, B 140m (old 178-03002-80)
136687840Cord, B 140m (old 178-03002-80)€ 3.17
Vis Ø4x18 Till H124040
146684599Vis Ø4x18 Till H124040€ 2.06
Ring (old 182-0186a-20)
156684600Ring (old 182-0186a-20)€ 2.06
Épuisé
166687704Épuisé
Insulator Tube (old 250-01680-20)
176688316Insulator Tube (old 250-01680-20)€ 1.01
Gear Shaft Shim 0.20 (oud 330-00200-23)
316684604Gear Shaft Shim 0.20 (oud 330-00200-23)€ 2.06
Gear Shaft Shim 0.30 (oud 330-00200-24)
316684605Gear Shaft Shim 0.30 (oud 330-00200-24)€ 2.06
Gear Shaft Shim 0.10 (old 330-00200-21)
316689177Gear Shaft Shim 0.10 (old 330-00200-21)€ 1.10
Gear Shaft Shim 0.15 (old 330-00200-22)
316689178Gear Shaft Shim 0.15 (old 330-00200-22)€ 1.10
Épuisé
326688047Épuisé
Épuisé
336686529Épuisé
Olie Keerring
346684607Olie Keerring€ 4.12
Roulement à billes
356684608Roulement à billes€ 3.65
Épuisé
366686705Épuisé
Stud Bolt 6x22 (old 100-02100-20)
376686771Stud Bolt 6x22 (old 100-02100-20)€ 1.10
Hex. Socket Hd. Bolt M5x30 S (old 994-61050-304)
386684786Hex. Socket Hd. Bolt M5x30 S (old 994-61050-304)€ 2.06
Hex. Hole Bolt 5x45 (old 990-51050-453)
396695055Hex. Hole Bolt 5x45 (old 990-51050-453)€ 1.10
Rondelle D.5
406684834Rondelle D.5€ 2.06
Vliegwiel
416687418Vliegwiel€ 27.01
Bague
426684971Bague€ 1.00
Ring M8 (old 992-01080-011)
436684611Ring M8 (old 992-01080-011)€ 2.06
Nut M8 (old 991-01080-011/327325/332299/726603)
446684612Nut M8 (old 991-01080-011/327325/332299/726603)€ 2.06
Intake Manifold Gasket (old 403-03002-20)
516689874Intake Manifold Gasket (old 403-03002-20)€ 2.22
Insulator Set,spare (old 404-03002-91)
526689937Insulator Set,spare (old 404-03002-91)€ 6.34
Hex. Hole Bolt 5x25ws (old 994-64050-254/6696513)
536695515Hex. Hole Bolt 5x25ws (old 994-64050-254/6696513)€ 1.10
Carburetor Gasket (old 402-03002-20)
546689828Carburetor Gasket (old 402-03002-20)€ 3.17
O-ring P-15
556698966O-ring P-15€ 1.00
Cleaner Body Comp. (old 423-06500-81/6690118) For
566690119Cleaner Body Comp. (old 423-06500-81/6690118) For€ 4.27
Collar 7.5 (old 470-06500-20)
576690804Collar 7.5 (old 470-06500-20)€ 1.10
Choke Valve (old 528-03002-20)
586691261Choke Valve (old 528-03002-20)€ 3.17
Épuisé
596684658Épuisé
Blow Over Check Board (old 476-01700-20/790189)
606690843Blow Over Check Board (old 476-01700-20/790189)€ 1.10
Ring (oud 992-10050-012)
616684662Ring (oud 992-10050-012)€ 2.06
Screw M5x60 (oud 990-11050-602)
626684660Screw M5x60 (oud 990-11050-602)€ 2.06
Reinigingsspons
636690364Reinigingsspons€ 1.10
Luchtfilterkap
646690415Luchtfilterkap€ 5.06
Special Screw (old 380-0637c-20)
656689737Special Screw (old 380-0637c-20)€ 1.10
Carburateurset
666690461Carburateurset€ 59.82
Shield Tube (old 223-07000-90)
676688174Shield Tube (old 223-07000-90)€ 2.22
Clip.6.3 Dia. (old 680-00731-20)
686684619Clip.6.3 Dia. (old 680-00731-20)€ 2.06
Épuisé
696684620Épuisé
Épuisé
706699738Épuisé
Tank F T
70A6699335Tank F T€ 14.66
Tank Cap D Ass'y (old 595-03002-90/6685071)
716691748Tank Cap D Ass'y (old 595-03002-90/6685071)€ 7.28
Collar 5.8 (old 659-00801-20)
726692244Collar 5.8 (old 659-00801-20)€ 1.10
Hex. Hole Bolt 5x18ps (old 994-63050-185)
736695505Hex. Hole Bolt 5x18ps (old 994-63050-185)€ 1.10
Swivel Cap (old 560-07120-21/6684628)
766691337Swivel Cap (old 560-07120-21/6684628)€ 1.10
Priming Pump Comp. (old 442-25143-80)
776685139Priming Pump Comp. (old 442-25143-80)€ 5.70
Fuel Pipe 2.5x4x80 (old 700-02504-08)
786692347Fuel Pipe 2.5x4x80 (old 700-02504-08)€ 1.10
Fuel Pipe 2.5x4x70 (old 700-02504-07)
796692346Fuel Pipe 2.5x4x70 (old 700-02504-07)€ 1.10
Return Grommet (old 6684627)
806697846Return Grommet (old 6684627)€ 1.00
Muffler Protector (old 738-03002-21)
916692772Muffler Protector (old 738-03002-21)€ 9.50
Muffler Ass'y
92A6601160Muffler Ass'y€ 69.55
Rondelle
94A6696547Rondelle€ 1.01
Hex. Hole Screw 6x55 (old 990-53060-553)
956695086Hex. Hole Screw 6x55 (old 990-53060-553)€ 1.10
Enveloppe De Ventilateur
976686957Enveloppe De Ventilateur€ 16.12
Recoil Spring (old 780-06097-20/6697591)
986684675Recoil Spring (old 780-06097-20/6697591)€ 11.09
Starter Rope Reel (old 774-06097-20)
996693066Starter Rope Reel (old 774-06097-20)€ 3.17
Set Screw (old 839-02010-20/6693638)
1006693633Set Screw (old 839-02010-20/6693638)€ 1.10
Starter Pulley Ass'y (old 798-06500-90 & 6693401)
1016693405Starter Pulley Ass'y (old 798-06500-90 & 6693401)€ 4.27
Primary Cord Grommet (old 203-06000-20)
1026688049Primary Cord Grommet (old 203-06000-20)€ 1.10
Starter Rope (old 783-06097-20/6693174)
1036693168Starter Rope (old 783-06097-20/6693174)€ 2.22
Starthendel
1046693237Starthendel€ 1.10
Hex.hole Bolt 4x15/ps (old 994-63040-154)
1056684682Hex.hole Bolt 4x15/ps (old 994-63040-154)€ 2.06
Knaldemper Afdekkap (oud 735-03002-81)
1066692718Knaldemper Afdekkap (oud 735-03002-81)€ 8.56
Bague
1086684661Bague€ 2.06
Screw 5x8/s (old 994-14050-081)
1106695332Screw 5x8/s (old 994-14050-081)€ 1.01
Slipkoppeling Kompleet
1116688494Slipkoppeling Kompleet€ 9.35
Tapping Screw 4.5x10 (old 990-73045-104)
1126695104Tapping Screw 4.5x10 (old 990-73045-104)€ 1.10
Bolt 4x12ps (old 994-25040-128)
1136695441Bolt 4x12ps (old 994-25040-128)€ 1.10
Starter Pawl Spring (old 790-06097-20)
1146684684Starter Pawl Spring (old 790-06097-20)€ 4.12
Starter Pawl (old 788-06500-20)
1156693319Starter Pawl (old 788-06500-20)€ 2.22
Throttle Set Screw (old 548-25140-20)
1216684698Throttle Set Screw (old 548-25140-20)€ 4.12
Swivel (oud 539-25120-20)
1226684697Swivel (oud 539-25120-20)€ 6.18
Stop Ring (oud 489-25100-20)
1236684696Stop Ring (oud 489-25100-20)€ 2.06
O-RING (OUD 550-25100-20)
1246684695O-RING (OUD 550-25100-20)€ 4.12
Main Jet #35 (old 599-2001w-35)
1256691873Main Jet #35 (old 599-2001w-35)€ 6.02
Pump Gasket (old 577-25100-20)
1266691457Pump Gasket (old 577-25100-20)€ 6.82
Pump Diaphragm (old 576-25100-20 & 6696325)
1276684693Pump Diaphragm (old 576-25100-20 & 6696325)€ 8.23
Inlet Screen (oud 578-25007-20)
1286684700Inlet Screen (oud 578-25007-20)€ 4.12
Pump Body Comp. (old 575-25225-80) New
1296691435Pump Body Comp. (old 575-25225-80) New€ 14.65
Diaphragm Packing (old 475-25038-20)
1306685220Diaphragm Packing (old 475-25038-20)€ 2.22
Metering Diaphragm Comp. (old 474-25241-80)
1316690830Metering Diaphragm Comp. (old 474-25241-80)€ 11.40
Diaphragm Cover (old 476-25004-20)
1326685222Diaphragm Cover (old 476-25004-20)€ 4.27
Set Screw (old 548-25101-20)
1336691312Set Screw (old 548-25101-20)€ 1.10
Gear Case Comp. (old 300-3317a-81/6688670)
1516688671Gear Case Comp. (old 300-3317a-81/6688670)€ 27.01
Épuisé
151A6688828Épuisé
Stop Ring C-15, Outer (old 993-50015-002)
1526695285Stop Ring C-15, Outer (old 993-50015-002)€ 1.10
Roulement à billes
1536695538Roulement à billes€ 6.34
Clutch Drum Comp. (old 288-33180-80)
1546688570Clutch Drum Comp. (old 288-33180-80)€ 16.99
Gear Shaft (old 305-33160-20)
1556688960Gear Shaft (old 305-33160-20)€ 2.22
Guide Plate (old 075-33160-20)
1566686612Guide Plate (old 075-33160-20)€ 1.10
Cam Rod (old 101-33190-20)
1576686811Cam Rod (old 101-33190-20)€ 5.54
Gear 2 (old 307-33180-20)
1586688974Gear 2 (old 307-33180-20)€ 25.12
Gear Case Gasket (old 303-33160-20)
1596688909Gear Case Gasket (old 303-33160-20)€ 1.10
Épuisé
1606692100Épuisé
Cutter Guide, 625mm (old 122-33160-21/6687134)
1616687135Cutter Guide, 625mm (old 122-33160-21/6687134)€ 23.23
Cutter Guide 625.5l M6 (old 122-33178-20)
161A6687137Cutter Guide 625.5l M6 (old 122-33178-20)€ 23.23
Hex Hole Flush Screw 6x16 (old 990-52060-165)
1626695073Hex Hole Flush Screw 6x16 (old 990-52060-165)€ 1.10
Hex. Hole Flush Bolt 6x25 (old 990-52060-255)
162A6695075Hex. Hole Flush Bolt 6x25 (old 990-52060-255)€ 1.10
Bovenmes (a)
1636687084Bovenmes (a)€ 40.51
AFDICHT RUBBER
1646686654AFDICHT RUBBER€ 1.10
Bague
1656687187Bague€ 1.10
Boulon
1666687160Boulon€ 1.10
Boulon
166A6687158Boulon€ 1.10
Ecrou de bride
167A6695170Ecrou de bride€ 1.10
Hex. Hole Bolt 4x10s (old 994-61040-104)
1686695484Hex. Hole Bolt 4x10s (old 994-61040-104)€ 1.10
Hex. Hole Bolt M4x12/s (old 994-61040-124)
168A6684595Hex. Hole Bolt M4x12/s (old 994-61040-124)€ 2.06
GREASE NIPPLE COMP. (OLD 300-32250-80)
1696688643GREASE NIPPLE COMP. (OLD 300-32250-80)€ 1.10
Hex. Hole Bolt 6x14 (old 990-51060-143)
1706695058Hex. Hole Bolt 6x14 (old 990-51060-143)€ 1.10
Hex. Hole Bolt 6x18/s (old 994-61060-184)
170A6695495Hex. Hole Bolt 6x18/s (old 994-61060-184)€ 1.10
Support Plate (old 462-33298-21/6690763)
1716690764Support Plate (old 462-33298-21/6690763)€ 4.27
Bague
1726684822Bague€ 2.06
Nut 6 Ups-p (old 991-87060-001 & 6698766)
1736695175Nut 6 Ups-p (old 991-87060-001 & 6698766)€ 1.10
Bague
1746684639Bague€ 2.06
Gear Case B (old 301-33160-21)
1756688844Gear Case B (old 301-33160-21)€ 7.20
Cutter Cover (old 138-33168-20)
1766687301Cutter Cover (old 138-33168-20)€ 8.08
Spring Nut 6 (old 994-40060-011)
1776695475Spring Nut 6 (old 994-40060-011)€ 1.10
Hex. Hole Bolt 4x10s (old 994-61040-104)
1786695484Hex. Hole Bolt 4x10s (old 994-61040-104)€ 1.10
Protection Plate (old 136-33160-20)
1796687285Protection Plate (old 136-33160-20)€ 11.57
Bague
1806695219Bague€ 1.10
Cord Clamp Comp. (old 198-10246-80)
1816688008Cord Clamp Comp. (old 198-10246-80)€ 1.10
Bague
1826684639Bague€ 2.06
Handle A (old 050-33150-22)
2016686270Handle A (old 050-33150-22)€ 8.71
Stop Switch Comp. (old 170-3317a-80)
2026687764Stop Switch Comp. (old 170-3317a-80)€ 10.14
Button Stop (old 258-11650-20)
2036688366Button Stop (old 258-11650-20)€ 1.10
Screw 3x10 (old 994-31030-101)
2046684913Screw 3x10 (old 994-31030-101)€ 2.06
Throttle Lever (old 230-33150-20)
2056688226Throttle Lever (old 230-33150-20)€ 2.22
Safety Lever (old 231-33150-20)
2066688235Safety Lever (old 231-33150-20)€ 2.22
Throttle Lever Spring (old 232-33150-20)
2076688243Throttle Lever Spring (old 232-33150-20)€ 2.22
Handle B (old 051-33150-23)
2086686307Handle B (old 051-33150-23)€ 8.71
Cap (old 765-32120-20)
2096693002Cap (old 765-32120-20)€ 1.10
Tapping Screw 4x18 (old 993-11041-812)
2106695246Tapping Screw 4x18 (old 993-11041-812)€ 1.10
Gaskabel
2116693912Gaskabel€ 4.91
Stop Button Mark (old 925-32530-20)
2126694585Stop Button Mark (old 925-32530-20)€ 1.10
Screw 5x45s (old 994-14050-451)
2136695350Screw 5x45s (old 994-14050-451)€ 1.10
Épuisé
2146696987Épuisé
Ring 5 (oud 992-00050-011)
2166684864Ring 5 (oud 992-00050-011)€ 2.06
Handle (old 210-33247-20)
2176688097Handle (old 210-33247-20)€ 9.50
Bague
2186689680Bague€ 1.10
Rondelle D.5
2196684834Rondelle D.5€ 2.06
Hex. Hole Bolt 5x40 (old 990-51050-403)
2206695054Hex. Hole Bolt 5x40 (old 990-51050-403)€ 1.10
Protection Tube, 140l (old 164-07014-00)
2216687522Protection Tube, 140l (old 164-07014-00)€ 1.01
Collar 5.8 (old 659-00801-20)
2226692244Collar 5.8 (old 659-00801-20)€ 1.10
Handle B (old 051-33290-20)
2316686314Handle B (old 051-33290-20)€ 4.91
Handle A (old 050-33290-20)
2326686279Handle A (old 050-33290-20)€ 4.91
Throttle Lever (old 230-33290-20)
2336688230Throttle Lever (old 230-33290-20)€ 1.10
Safety Lever Or (old 231-33290-21 & 6688239)
2346688240Safety Lever Or (old 231-33290-21 & 6688239)€ 1.10
Throttle Lever Spring (old 232-33160-20)
2356688244Throttle Lever Spring (old 232-33160-20)€ 1.10
Stop Switch Comp. (old 170-33253-80) New
2366687769Stop Switch Comp. (old 170-33253-80) New€ 9.19
Lock Lever (old 233-33290-20)
2376688246Lock Lever (old 233-33290-20)€ 1.10
Spring (old 245-33290-20)
2386688279Spring (old 245-33290-20)€ 1.10
Bague
2396685070Bague€ 1.10
Tapping Screw D4x10 (old 993-41040-101)
2406685161Tapping Screw D4x10 (old 993-41040-101)€ 1.10
Tapping Screw D4.5x16 (old 990-72045-164/790451)
2416684636Tapping Screw D4.5x16 (old 990-72045-164/790451)€ 2.06
Gaskabel
2426693993Gaskabel€ 4.27
Button Stop (old 258-11650-20)
2436688366Button Stop (old 258-11650-20)€ 1.10
Screw 3x10 (old 994-31030-101)
2446684913Screw 3x10 (old 994-31030-101)€ 2.06
Stop Button Mark (old 925-33160-20)
2456694588Stop Button Mark (old 925-33160-20)€ 1.10
Crank Case Packing
2466696539Crank Case Packing€ 1.01
Handle (old 210-33247-20)
2476688097Handle (old 210-33247-20)€ 9.50
Bague
2486689680Bague€ 1.10
Rondelle D.5
2496684834Rondelle D.5€ 2.06
Hex. Hole Bolt 5x40 (old 990-51050-403)
2506695054Hex. Hole Bolt 5x40 (old 990-51050-403)€ 1.10
Protection Tube 130l (old 164-07013-01)
2516687521Protection Tube 130l (old 164-07013-01)€ 1.10
Épuisé
5016684813Épuisé
Combi Box Spanner 10x19 ,plus (old 036-29331-50)
5026685997Combi Box Spanner 10x19 ,plus (old 036-29331-50)€ 4.27
Name Plate Htd2522pf (old 906-03002-21) New
6016694122Name Plate Htd2522pf (old 906-03002-21) New€ 2.02
Votre panier contient 0 de produits.
