Dessins techniques et pièces de rechange Hikoki HTD-2520PF

Type exact:
HTD-2520PF
HTD-2520PF

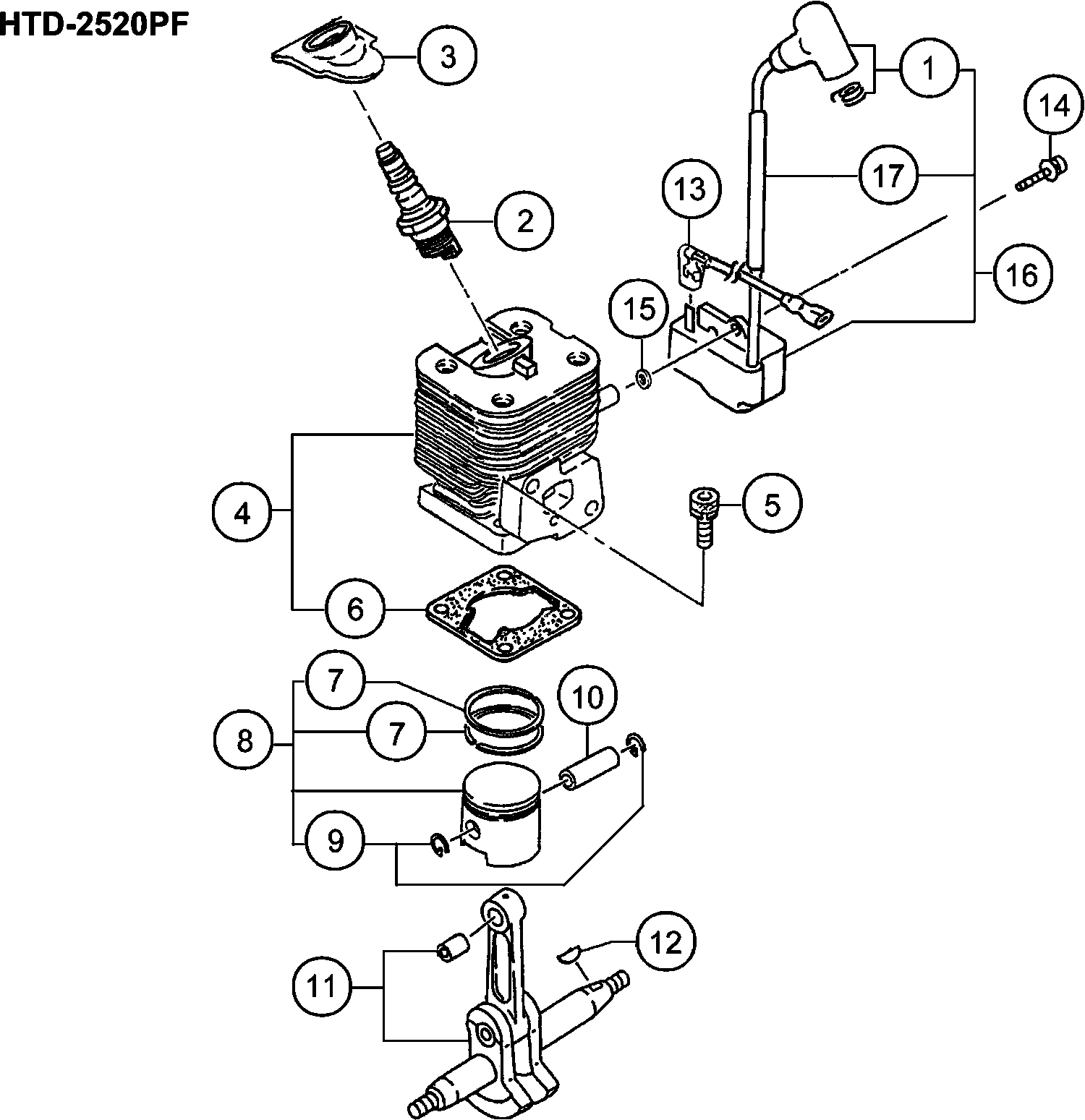

Dessins des HIKOKI HTD-2520PF
Liste de pièces de rechange des HIKOKI HTD-2520PF
Sur cette page, vous pouvez ajouter des pièces de rechange à votre panier en sélectionnant la quantité désirée et en cliquant sur le bouton derrière. Si vous avez terminé votre sélection, veuillez activer le bouton "Votre panier" en bas de la page. Les prix mentionnés ci-dessous sont TTC. Le montant exact de la TVA est calculé dans le panier en fonction du pays dans lequel vous souhaitez recevoir le colis.
Anti Parasite | ||||
1 | 6684894 | Anti Parasite | € 8.23 | |
Bougie (oud 6685085) | ||||
2 | 6699317 | Bougie (oud 6685085) | € 6.49 | |
Spark Plug Rubber Cover (old 255-01680-20) | ||||
3 | 6688334 | Spark Plug Rubber Cover (old 255-01680-20) | € 3.17 | |
Cylinder Set (old 001-03002-90) | ||||
4 | 6685462 | Cylinder Set (old 001-03002-90) | € 63.74 | |
Vis Ø5x18 | ||||
5 | 6684586 | Vis Ø5x18 | € 2.06 | |
Cylinder Gasket (old 017-03002-21) | ||||
6 | 6685728 | Cylinder Gasket (old 017-03002-21) | € 1.10 | |
Piston Ring (oud 041-01601-20) | ||||
7 | 6684588 | Piston Ring (oud 041-01601-20) | € 8.23 | |
Piston Set (old 030-01680-90) | ||||
8 | 6685877 | Piston Set (old 030-01680-90) | € 27.01 | |
Circlip (old 039-00000-20) | ||||
9 | 6685078 | Circlip (old 039-00000-20) | € 1.10 | |
Piston Pin (old 037-07020-20/6686011) | ||||
10 | 6686016 | Piston Pin (old 037-07020-20/6686011) | € 2.22 | |
Épuisé | ||||
11 | 6686176 | Épuisé | ||
Woodruff Key 3x13x4.5 (oud 068-10100-20) | ||||
12 | 6684899 | Woodruff Key 3x13x4.5 (oud 068-10100-20) | € 2.06 | |
Cord, B 140m (old 178-03002-80) | ||||
13 | 6687840 | Cord, B 140m (old 178-03002-80) | € 3.17 | |
Vis Ø4x18 Till H124040 | ||||
14 | 6684599 | Vis Ø4x18 Till H124040 | € 2.06 | |
Ring (old 182-0186a-20) | ||||
15 | 6684600 | Ring (old 182-0186a-20) | € 2.06 | |
Épuisé | ||||
16 | 6687704 | Épuisé | ||
Insulator Tube (old 250-01680-20) | ||||
17 | 6688316 | Insulator Tube (old 250-01680-20) | € 1.01 | |
Gear Shaft Shim 0.20 (oud 330-00200-23) | ||||
31 | 6684604 | Gear Shaft Shim 0.20 (oud 330-00200-23) | € 2.06 | |
Gear Shaft Shim 0.30 (oud 330-00200-24) | ||||
31 | 6684605 | Gear Shaft Shim 0.30 (oud 330-00200-24) | € 2.06 | |
Gear Shaft Shim 0.10 (old 330-00200-21) | ||||
31 | 6689177 | Gear Shaft Shim 0.10 (old 330-00200-21) | € 1.10 | |
Gear Shaft Shim 0.15 (old 330-00200-22) | ||||
31 | 6689178 | Gear Shaft Shim 0.15 (old 330-00200-22) | € 1.10 | |
Épuisé | ||||
32 | 6688047 | Épuisé | ||
Épuisé | ||||
33 | 6686529 | Épuisé | ||
Olie Keerring | ||||
34 | 6684607 | Olie Keerring | € 4.12 | |
Roulement à billes | ||||
35 | 6684608 | Roulement à billes | € 3.65 | |
Épuisé | ||||
36 | 6686705 | Épuisé | ||
Stud Bolt 6x22 (old 100-02100-20) | ||||
37 | 6686771 | Stud Bolt 6x22 (old 100-02100-20) | € 1.10 | |
Hex. Socket Hd. Bolt M5x30 S (old 994-61050-304) | ||||
38 | 6684786 | Hex. Socket Hd. Bolt M5x30 S (old 994-61050-304) | € 2.06 | |
Hex. Hole Bolt 5x45 (old 990-51050-453) | ||||
39 | 6695055 | Hex. Hole Bolt 5x45 (old 990-51050-453) | € 1.10 | |
Rondelle D.5 | ||||
40 | 6684834 | Rondelle D.5 | € 2.06 | |
Vliegwiel | ||||
41 | 6687418 | Vliegwiel | € 27.01 | |
Bague | ||||
42 | 6684971 | Bague | € 1.00 | |
Ring M8 (old 992-01080-011) | ||||
43 | 6684611 | Ring M8 (old 992-01080-011) | € 2.06 | |
Nut M8 (old 991-01080-011/327325/332299/726603) | ||||
44 | 6684612 | Nut M8 (old 991-01080-011/327325/332299/726603) | € 2.06 | |
Intake Manifold Gasket (old 403-03002-20) | ||||
51 | 6689874 | Intake Manifold Gasket (old 403-03002-20) | € 2.22 | |
Insulator Set,spare (old 404-03002-91) | ||||
52 | 6689937 | Insulator Set,spare (old 404-03002-91) | € 6.34 | |
Hex. Hole Bolt 5x25ws (old 994-64050-254/6696513) | ||||
53 | 6695515 | Hex. Hole Bolt 5x25ws (old 994-64050-254/6696513) | € 1.10 | |
O-ring P-15 | ||||
55 | 6698966 | O-ring P-15 | € 1.00 | |
Cleaner Body Comp. (old 423-06500-81/6690118) For | ||||
56 | 6690119 | Cleaner Body Comp. (old 423-06500-81/6690118) For | € 4.27 | |
Collar 7.5 (old 470-06500-20) | ||||
57 | 6690804 | Collar 7.5 (old 470-06500-20) | € 1.10 | |
Choke Valve (old 528-03002-20) | ||||
58 | 6691261 | Choke Valve (old 528-03002-20) | € 3.17 | |
Épuisé | ||||
59 | 6684658 | Épuisé | ||
Blow Over Check Board (old 476-01700-20/790189) | ||||
60 | 6690843 | Blow Over Check Board (old 476-01700-20/790189) | € 1.10 | |
Ring (oud 992-10050-012) | ||||
61 | 6684662 | Ring (oud 992-10050-012) | € 2.06 | |
Screw M5x60 (oud 990-11050-602) | ||||
62 | 6684660 | Screw M5x60 (oud 990-11050-602) | € 2.06 | |
Reinigingsspons | ||||
63 | 6690364 | Reinigingsspons | € 1.10 | |
Luchtfilterkap | ||||
64 | 6690415 | Luchtfilterkap | € 5.06 | |
Special Screw (old 380-0637c-20) | ||||
65 | 6689737 | Special Screw (old 380-0637c-20) | € 1.10 | |
Carburateurset | ||||
66 | 6690461 | Carburateurset | € 59.82 | |
Shield Tube (old 223-07000-90) | ||||
67 | 6688174 | Shield Tube (old 223-07000-90) | € 2.22 | |
Clip.6.3 Dia. (old 680-00731-20) | ||||
68 | 6684619 | Clip.6.3 Dia. (old 680-00731-20) | € 2.06 | |
Épuisé | ||||
69 | 6684620 | Épuisé | ||
Épuisé | ||||
70 | 6699738 | Épuisé | ||
Tank F T | ||||
70A | 6699335 | Tank F T | € 14.66 | |
Tank Cap D Ass'y (old 595-03002-90/6685071) | ||||
71 | 6691748 | Tank Cap D Ass'y (old 595-03002-90/6685071) | € 7.28 | |
Collar 5.8 (old 659-00801-20) | ||||
73 | 6692244 | Collar 5.8 (old 659-00801-20) | € 1.10 | |
Hex. Hole Bolt 5x18ps (old 994-63050-185) | ||||
75 | 6695505 | Hex. Hole Bolt 5x18ps (old 994-63050-185) | € 1.10 | |
Swivel Cap (old 560-07120-21/6684628) | ||||
76 | 6691337 | Swivel Cap (old 560-07120-21/6684628) | € 1.10 | |
Priming Pump Comp. (old 442-25143-80) | ||||
77 | 6685139 | Priming Pump Comp. (old 442-25143-80) | € 5.70 | |
Fuel Pipe 2.5x4x80 (old 700-02504-08) | ||||
78 | 6692347 | Fuel Pipe 2.5x4x80 (old 700-02504-08) | € 1.10 | |
Fuel Pipe 2.5x4x70 (old 700-02504-07) | ||||
79 | 6692346 | Fuel Pipe 2.5x4x70 (old 700-02504-07) | € 1.10 | |
Return Grommet (old 6684627) | ||||
80 | 6697846 | Return Grommet (old 6684627) | € 1.00 | |
Carburetor Gasket (old 402-03002-20) | ||||
82 | 6689828 | Carburetor Gasket (old 402-03002-20) | € 3.17 | |
Muffler Protector (old 738-03002-21) | ||||
91 | 6692772 | Muffler Protector (old 738-03002-21) | € 9.50 | |
Muffler Ass'y | ||||
92A | 6601160 | Muffler Ass'y | € 69.55 | |
Rondelle | ||||
94A | 6696547 | Rondelle | € 1.01 | |
Hex. Hole Screw 6x55 (old 990-53060-553) | ||||
95 | 6695086 | Hex. Hole Screw 6x55 (old 990-53060-553) | € 1.10 | |
Enveloppe De Ventilateur | ||||
97 | 6686957 | Enveloppe De Ventilateur | € 16.12 | |
Recoil Spring (old 780-06097-20/6697591) | ||||
98 | 6684675 | Recoil Spring (old 780-06097-20/6697591) | € 11.09 | |
Starter Rope Reel (old 774-06097-20) | ||||
99 | 6693066 | Starter Rope Reel (old 774-06097-20) | € 3.17 | |
Set Screw (old 839-02010-20/6693638) | ||||
100 | 6693633 | Set Screw (old 839-02010-20/6693638) | € 1.10 | |
Starter Pulley Ass'y (old 798-06500-90 & 6693401) | ||||
101 | 6693405 | Starter Pulley Ass'y (old 798-06500-90 & 6693401) | € 4.27 | |
Primary Cord Grommet (old 203-06000-20) | ||||
102 | 6688049 | Primary Cord Grommet (old 203-06000-20) | € 1.10 | |
Starter Rope (old 783-06097-20/6693174) | ||||
103 | 6693168 | Starter Rope (old 783-06097-20/6693174) | € 2.22 | |
Starthendel | ||||
104 | 6693237 | Starthendel | € 1.10 | |
Hex.hole Bolt 4x15/ps (old 994-63040-154) | ||||
105 | 6684682 | Hex.hole Bolt 4x15/ps (old 994-63040-154) | € 2.06 | |
Knaldemper Afdekkap (oud 735-03002-81) | ||||
106 | 6692718 | Knaldemper Afdekkap (oud 735-03002-81) | € 8.56 | |
Bague | ||||
108 | 6684661 | Bague | € 2.06 | |
Screw 5x8/s (old 994-14050-081) | ||||
110 | 6695332 | Screw 5x8/s (old 994-14050-081) | € 1.01 | |
Slipkoppeling Kompleet | ||||
111 | 6688494 | Slipkoppeling Kompleet | € 9.35 | |
Tapping Screw 4.5x10 (old 990-73045-104) | ||||
112 | 6695104 | Tapping Screw 4.5x10 (old 990-73045-104) | € 1.10 | |
Bolt 4x12ps (old 994-25040-128) | ||||
113 | 6695441 | Bolt 4x12ps (old 994-25040-128) | € 1.10 | |
Starter Pawl Spring (old 790-06097-20) | ||||
114 | 6684684 | Starter Pawl Spring (old 790-06097-20) | € 4.12 | |
Starter Pawl (old 788-06500-20) | ||||
115 | 6693319 | Starter Pawl (old 788-06500-20) | € 2.22 | |
Throttle Set Screw (old 548-25140-20) | ||||
121 | 6684698 | Throttle Set Screw (old 548-25140-20) | € 4.12 | |
Swivel (oud 539-25120-20) | ||||
122 | 6684697 | Swivel (oud 539-25120-20) | € 6.18 | |
Stop Ring (oud 489-25100-20) | ||||
123 | 6684696 | Stop Ring (oud 489-25100-20) | € 2.06 | |
O-RING (OUD 550-25100-20) | ||||
124 | 6684695 | O-RING (OUD 550-25100-20) | € 4.12 | |
Main Jet #35 (old 599-2001w-35) | ||||
125 | 6691873 | Main Jet #35 (old 599-2001w-35) | € 6.02 | |
Pump Gasket (old 577-25100-20) | ||||
126 | 6691457 | Pump Gasket (old 577-25100-20) | € 6.82 | |
Pump Diaphragm (old 576-25100-20 & 6696325) | ||||
127 | 6684693 | Pump Diaphragm (old 576-25100-20 & 6696325) | € 8.23 | |
Inlet Screen (oud 578-25007-20) | ||||
128 | 6684700 | Inlet Screen (oud 578-25007-20) | € 4.12 | |
Pump Body Comp. (old 575-25225-80) New | ||||
129 | 6691435 | Pump Body Comp. (old 575-25225-80) New | € 14.65 | |
Diaphragm Packing (old 475-25038-20) | ||||
130 | 6685220 | Diaphragm Packing (old 475-25038-20) | € 2.22 | |
Metering Diaphragm Comp. (old 474-25241-80) | ||||
131 | 6690830 | Metering Diaphragm Comp. (old 474-25241-80) | € 11.40 | |
Diaphragm Cover (old 476-25004-20) | ||||
132 | 6685222 | Diaphragm Cover (old 476-25004-20) | € 4.27 | |
Set Screw (old 548-25101-20) | ||||
133 | 6691312 | Set Screw (old 548-25101-20) | € 1.10 | |
Handle A (old 050-33150-22) | ||||
201 | 6686270 | Handle A (old 050-33150-22) | € 8.71 | |
Stop Switch Comp. (old 170-3317a-80) | ||||
202 | 6687764 | Stop Switch Comp. (old 170-3317a-80) | € 10.14 | |
Button Stop (old 258-11650-20) | ||||
203 | 6688366 | Button Stop (old 258-11650-20) | € 1.10 | |
Screw 3x10 (old 994-31030-101) | ||||
204 | 6684913 | Screw 3x10 (old 994-31030-101) | € 2.06 | |
Throttle Lever (old 230-33150-20) | ||||
205 | 6688226 | Throttle Lever (old 230-33150-20) | € 2.22 | |
Safety Lever (old 231-33150-20) | ||||
206 | 6688235 | Safety Lever (old 231-33150-20) | € 2.22 | |
Throttle Lever Spring (old 232-33150-20) | ||||
207 | 6688243 | Throttle Lever Spring (old 232-33150-20) | € 2.22 | |
Handle B (old 051-33150-23) | ||||
208 | 6686307 | Handle B (old 051-33150-23) | € 8.71 | |
Cap (old 765-32120-20) | ||||
209 | 6693002 | Cap (old 765-32120-20) | € 1.10 | |
Tapping Screw 4x18 (old 993-11041-812) | ||||
210 | 6695246 | Tapping Screw 4x18 (old 993-11041-812) | € 1.10 | |
Gaskabel | ||||
211 | 6693912 | Gaskabel | € 4.91 | |
Stop Button Mark (old 925-32530-20) | ||||
212 | 6694585 | Stop Button Mark (old 925-32530-20) | € 1.10 | |
Screw 5x45s (old 994-14050-451) | ||||
213 | 6695350 | Screw 5x45s (old 994-14050-451) | € 1.10 | |
Épuisé | ||||
214 | 6696987 | Épuisé | ||
Ring 5 (oud 992-00050-011) | ||||
216 | 6684864 | Ring 5 (oud 992-00050-011) | € 2.06 | |
Handle (old 210-33247-20) | ||||
217 | 6688097 | Handle (old 210-33247-20) | € 9.50 | |
Bague | ||||
218 | 6689680 | Bague | € 1.10 | |
Rondelle D.5 | ||||
219 | 6684834 | Rondelle D.5 | € 2.06 | |
Hex. Hole Bolt 5x40 (old 990-51050-403) | ||||
220 | 6695054 | Hex. Hole Bolt 5x40 (old 990-51050-403) | € 1.10 | |
Protection Tube 10x150l (old 164-10015-00/6687556/ | ||||
221 | 6687558 | Protection Tube 10x150l (old 164-10015-00/6687556/ | € 1.10 | |
Collar 5.8 (old 659-00801-20) | ||||
222 | 6692244 | Collar 5.8 (old 659-00801-20) | € 1.10 | |
Protection Tube 130l (old 164-07013-01) | ||||
230 | 6687521 | Protection Tube 130l (old 164-07013-01) | € 1.10 | |
Handle B (old 051-33290-20) | ||||
231 | 6686314 | Handle B (old 051-33290-20) | € 4.91 | |
Handle A (old 050-33290-20) | ||||
232 | 6686279 | Handle A (old 050-33290-20) | € 4.91 | |
Throttle Lever (old 230-33290-20) | ||||
233 | 6688230 | Throttle Lever (old 230-33290-20) | € 1.10 | |
Safety Lever Or (old 231-33290-21 & 6688239) | ||||
234 | 6688240 | Safety Lever Or (old 231-33290-21 & 6688239) | € 1.10 | |
Throttle Lever Spring (old 232-33160-20) | ||||
235 | 6688244 | Throttle Lever Spring (old 232-33160-20) | € 1.10 | |
Stop Switch Comp. (old 170-33253-80) New | ||||
236 | 6687769 | Stop Switch Comp. (old 170-33253-80) New | € 9.19 | |
Lock Lever (old 233-33290-20) | ||||
237 | 6688246 | Lock Lever (old 233-33290-20) | € 1.10 | |
Spring (old 245-33290-20) | ||||
238 | 6688279 | Spring (old 245-33290-20) | € 1.10 | |
Bague | ||||
239 | 6685070 | Bague | € 1.10 | |
Tapping Screw D4x10 (old 993-41040-101) | ||||
240 | 6685161 | Tapping Screw D4x10 (old 993-41040-101) | € 1.10 | |
Tapping Screw D4.5x16 (old 990-72045-164/790451) | ||||
241 | 6684636 | Tapping Screw D4.5x16 (old 990-72045-164/790451) | € 2.06 | |
Gaskabel | ||||
242 | 6693993 | Gaskabel | € 4.27 | |
Button Stop (old 258-11650-20) | ||||
243 | 6688366 | Button Stop (old 258-11650-20) | € 1.10 | |
Screw 3x10 (old 994-31030-101) | ||||
244 | 6684913 | Screw 3x10 (old 994-31030-101) | € 2.06 | |
Stop Button Mark (old 925-33160-20) | ||||
245 | 6694588 | Stop Button Mark (old 925-33160-20) | € 1.10 | |
Crank Case Packing | ||||
246 | 6696539 | Crank Case Packing | € 1.01 | |
Handle (old 210-33247-20) | ||||
247 | 6688097 | Handle (old 210-33247-20) | € 9.50 | |
Bague | ||||
248 | 6689680 | Bague | € 1.10 | |
Rondelle D.5 | ||||
249 | 6684834 | Rondelle D.5 | € 2.06 | |
Hex. Hole Bolt 5x40 (old 990-51050-403) | ||||
250 | 6695054 | Hex. Hole Bolt 5x40 (old 990-51050-403) | € 1.10 | |
Gear Case Comp. (old 300-33287-81) | ||||
251 | 6688683 | Gear Case Comp. (old 300-33287-81) | € 23.23 | |
Épuisé | ||||
251A | 6688827 | Épuisé | ||
Stop Ring C-15, Outer (old 993-50015-002) | ||||
252 | 6695285 | Stop Ring C-15, Outer (old 993-50015-002) | € 1.10 | |
Roulement à billes | ||||
253 | 6695538 | Roulement à billes | € 6.34 | |
Clutch Drum Comp. (old 288-33180-80) | ||||
254 | 6688570 | Clutch Drum Comp. (old 288-33180-80) | € 16.99 | |
Gear Shaft (old 305-33160-20) | ||||
255 | 6688960 | Gear Shaft (old 305-33160-20) | € 2.22 | |
Guide Plate (old 075-33287-20) | ||||
256 | 6686614 | Guide Plate (old 075-33287-20) | € 4.27 | |
Gear 2 (old 307-33287-20) | ||||
257 | 6688979 | Gear 2 (old 307-33287-20) | € 25.12 | |
Gear Case Gasket (old 303-33160-20) | ||||
258 | 6688909 | Gear Case Gasket (old 303-33160-20) | € 1.10 | |
Gear Case Cover (old 630-33287-20) | ||||
259 | 6692102 | Gear Case Cover (old 630-33287-20) | € 5.54 | |
Cutter Guide 590 (old 6687152) | ||||
260 | 6697700 | Cutter Guide 590 (old 6687152) | € 10.78 | |
Bague | ||||
261 | 6684639 | Bague | € 2.06 | |
Nut 6 Ups-p (old 991-87060-001 & 6698766) | ||||
262 | 6695175 | Nut 6 Ups-p (old 991-87060-001 & 6698766) | € 1.10 | |
Cutter B (old 6687119) | ||||
263 | 6697674 | Cutter B (old 6687119) | € 32.23 | |
Afdicht Rubber | ||||
264 | 6686658 | Afdicht Rubber | € 1.10 | |
Bague | ||||
265 | 6687187 | Bague | € 1.10 | |
Boulon | ||||
266 | 6687158 | Boulon | € 1.10 | |
Ecrou de bride | ||||
267 | 6695170 | Ecrou de bride | € 1.10 | |
Hex. Hole Bolt 4x10s (old 994-61040-104) | ||||
268 | 6695484 | Hex. Hole Bolt 4x10s (old 994-61040-104) | € 1.10 | |
GREASE NIPPLE COMP. (OLD 300-32250-80) | ||||
269 | 6688643 | GREASE NIPPLE COMP. (OLD 300-32250-80) | € 1.10 | |
Hex. Hole Bolt 6x18/s (old 994-61060-184) | ||||
270 | 6695495 | Hex. Hole Bolt 6x18/s (old 994-61060-184) | € 1.10 | |
Boulon | ||||
271 | 6687162 | Boulon | € 1.10 | |
Bovenmes (a) (old 6687095) | ||||
272 | 6697675 | Bovenmes (a) (old 6687095) | € 32.23 | |
Support Plate (old 462-33287-20) | ||||
273 | 6690761 | Support Plate (old 462-33287-20) | € 3.17 | |
Ring 5 (oud 992-00050-011) | ||||
274 | 6684864 | Ring 5 (oud 992-00050-011) | € 2.06 | |
Épuisé | ||||
275 | 6696987 | Épuisé | ||
Cutter Cover (old 138-33258-20) | ||||
276 | 6687311 | Cutter Cover (old 138-33258-20) | € 7.28 | |
Spring Nut 6 (old 994-40060-011) | ||||
277 | 6695475 | Spring Nut 6 (old 994-40060-011) | € 1.10 | |
Holding Plate (old 070-33287-20) | ||||
278 | 6686468 | Holding Plate (old 070-33287-20) | € 1.10 | |
Cord Clamp Comp. (old 198-10246-80) | ||||
279 | 6688008 | Cord Clamp Comp. (old 198-10246-80) | € 1.10 | |
Combi Box Spanner 10x19 ,plus (old 036-29331-50) | ||||
501 | 6685997 | Combi Box Spanner 10x19 ,plus (old 036-29331-50) | € 4.27 | |
Épuisé | ||||
502 | 6684813 | Épuisé | ||
Name Plate Htd2520pf (old 906-03016-20) New | ||||
601 | 6694126 | Name Plate Htd2520pf (old 906-03016-20) New | € 2.02 |
Votre panier contient 0 de produits.
