Vous trouverez ici toutes les pièces et dessins disponibles du 'Hikoki H50SA'. De là, vous pouvez commander directement toutes les pièces souhaitées. De nombreuses pièces doivent être commandées auprès du fabricant, selon la marque, cela prend une à quatre semaines. Toutes les informations dont nous disposons se trouvent sur notre site Web, nous ne pouvons pas vous conseiller sur ce dont vous avez besoin, pour cela vous devrez retourner la machine pour réparation. Veuillez noter ce qui suit lors de la commande:

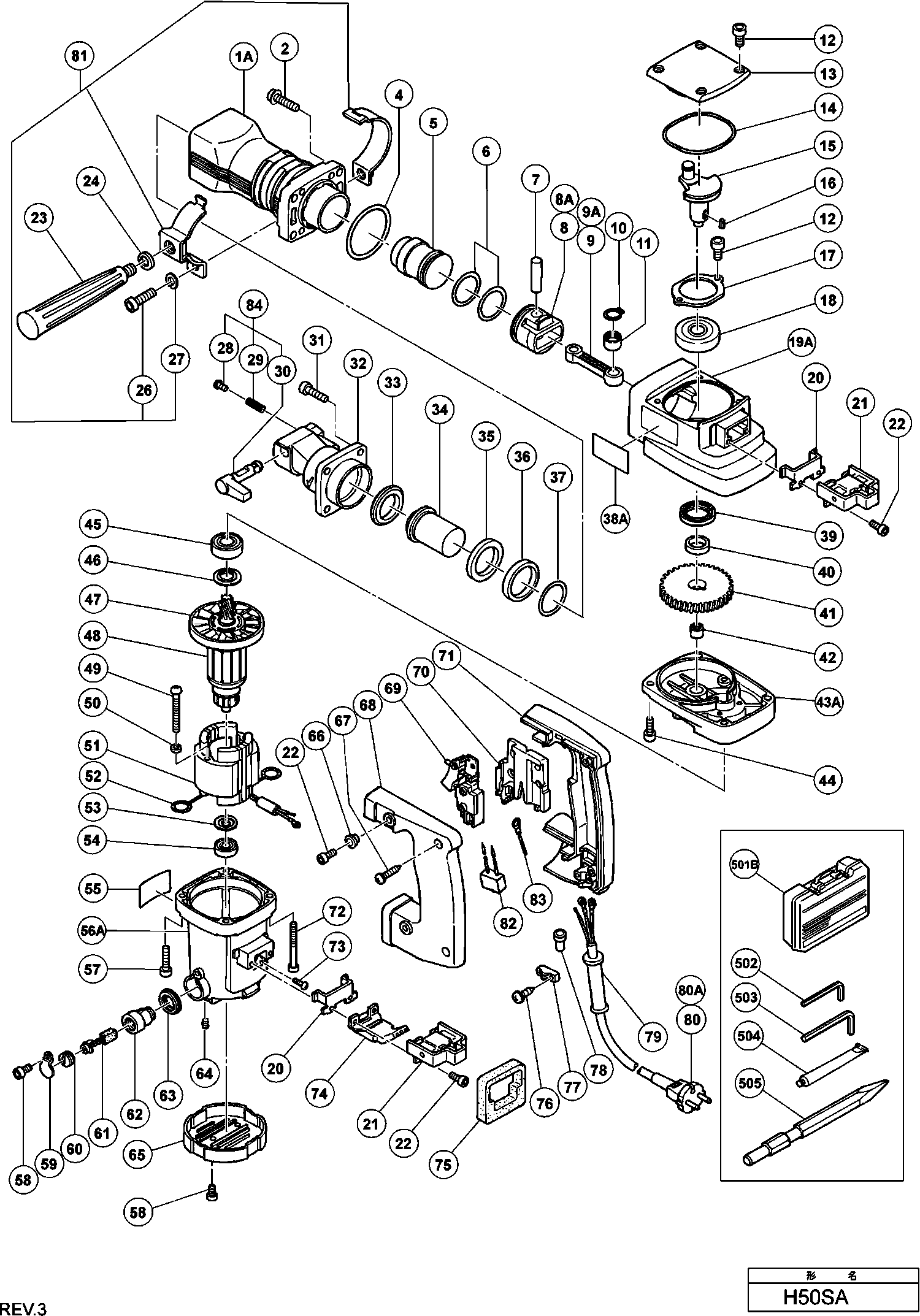

Dessins des Hikoki H50SA
Liste de pièces de rechange des Hikoki H50SA
Pos. | Description | Prix hors TVA | Prix TTC | |
Les prix affichés incluent la TVA | ||||
Pas d'informations disponibles, non commandable | ||||
1A | 332153 | |||
Vis Ø8*30 | ||||
2 | 995400 | 1.05 | 1.26 | |
O Ring (1as-60) Since 9.1979 | ||||
4 | 956996 | 3.00 | 3.60 | |
Frappeur H60ma/ka | ||||
5 | 301510 | 28.60 | 34.32 | |
O Ring (fpm810) | ||||
6 | 985454 | 7.95 | 9.54 | |
Goupille | ||||
7 | 301509 | 5.25 | 6.30 | |
Piston | ||||
8 | 985452 | 23.38 | 28.05 | |
Piston | ||||
8A | 317084 | 14.10 | 16.92 | |
Bielle | ||||
9 | 301508 | 28.19 | 33.82 | |
Pas d'informations disponibles, non commandable | ||||
9A | 322020 | |||
Circlips Ø12 (x10) paquet de 10 | ||||
10 | 939542 | 1.50 | 1.80 | |
Roulement Aiguilles Dh38ya/45sa | ||||
11 | 980756 | 10.65 | 12.78 | |
Vis M5*16 | ||||
12 | 990079 | 1.05 | 1.26 | |
Pas d'informations disponibles, non commandable | ||||
13 | 301507 | |||
O Ring | ||||
14 | 301506 | 2.40 | 2.88 | |
Pas d'informations disponibles, non commandable | ||||
15 | 301504 | |||
Clavette 3*3*10 | ||||
16 | 940533 | 1.20 | 1.44 | |
Chapeau D.roulement (1) | ||||
17 | 985443 | 4.50 | 5.40 | |
Roulement à billes 6204dducmps2s | ||||
18 | 6204DD | 9.00 | 10.80 | |
Pas d'informations disponibles, non commandable | ||||
19A | 332152 | |||
Plaque | ||||
20 | 980750 | 17.05 | 20.46 | |
Amortisseur Poignee | ||||
21 | 980727 | 14.10 | 16.92 | |
Vis M.5*14 | ||||
22 | 984509 | 1.05 | 1.26 | |
Pas d'informations disponibles, non commandable | ||||
23 | 980020 | |||
Rondelle M 12(x10) Paquet de 10 | ||||
24 | 949463 | 1.65 | 1.98 | |
Vis M8x25 (paquet de 10) | ||||
26 | 949760 | 5.55 | 6.66 | |
Rondelle M8 (x10) Paquet de 10 | ||||
27 | 949457 | 1.05 | 1.26 | |
GOUJON D'ARRÊT | ||||
28 | 980121 | 7.95 | 9.54 | |
Pas d'informations disponibles, non commandable | ||||
29 | 301558 | |||
Pas d'informations disponibles, non commandable | ||||
30 | 995395 | |||
Vis M.8*25 | ||||
31 | 985479 | 2.55 | 3.06 | |
Pas d'informations disponibles, non commandable | ||||
32 | 301514 | |||
Amortisseur (b) | ||||
33 | 301513 | 2.85 | 3.42 | |
Second Frappeur | ||||
34 | 301512 | 35.61 | 42.74 | |
Rondelle Amortisseurt H-55sa | ||||
35 | 986943 | 14.71 | 17.66 | |
Amortisseur | ||||
36 | 986942 | 5.85 | 7.02 | |
O-ring H-55sa | ||||
37 | 986946 | 11.85 | 14.22 | |
Pas d'informations disponibles, non commandable | ||||
38A | 301517 | |||
Joint | ||||
39 | 995403 | 2.40 | 2.88 | |
Entretoise H60ma/ka | ||||
40 | 995402 | 10.20 | 12.24 | |
Pas d'informations disponibles, non commandable | ||||
41 | 301505 | |||
Roulement A Aiguilles | ||||
42 | 939299 | 10.65 | 12.78 | |
Pas d'informations disponibles, non commandable | ||||
43A | 332154 | |||
Vis Dh-38 | ||||
44 | 992803 | 1.05 | 1.26 | |
Roulement | ||||
45 | 6202VV | 7.05 | 8.46 | |
Rondelle | ||||
46 | 980700 | 1.04 | 1.24 | |
Baffle | ||||
47 | 980740 | 6.45 | 7.74 | |
Pas d'informations disponibles, non commandable | ||||
48 | 360129F | |||
Pas d'informations disponibles, non commandable | ||||
49 | 949233 | |||
Rondelle de ressort M5 (10 pièces) | ||||
50 | 949454 | 1.04 | 1.24 | |
Pas d'informations disponibles, non commandable | ||||
51 | 340162F | |||
Raccord | ||||
52 | 930703 | 2.40 | 2.88 | |
Pas d'informations disponibles, non commandable | ||||
53 | 998550 | |||
Roulement | ||||
54 | 6000VV | 6.15 | 7.38 | |
Pas d'informations disponibles, non commandable | ||||
56A | 332151 | |||
Boulon à six pans creux avec frein filet M6x30 | ||||
57 | 993496 | 1.05 | 1.26 | |
Vis à tête creuse avec joint d'étanchéité M5x10 | ||||
58 | 877839 | 1.05 | 1.26 | |
Protection | ||||
59 | 980733 | 1.05 | 1.26 | |
Bouchon Charbon H41sa Vb13y | ||||
60 | 935829 | 1.05 | 1.26 | |
Charbons (1 Paire) | ||||
61 | 999043 | 4.50 | 5.40 | |
S/e Porte Balais | ||||
62 | 971001 | 6.45 | 7.74 | |
Pas d'informations disponibles, non commandable | ||||
63 | 956127 | |||
Vis de réglage hexagonale M5x8 | ||||
64 | 938477 | 1.05 | 1.26 | |
COUVERCLE ARRIERE | ||||
65 | 980732 | 2.85 | 3.42 | |
Entretoise | ||||
66 | 991711 | 1.05 | 1.26 | |
Pas d'informations disponibles, non commandable | ||||
67 | 956636 | |||
Couv.poignee H-55sa | ||||
68 | 983273 | 15.26 | 18.32 | |
Interrupteur (avec verrou) | ||||
69 | 995398 | 26.40 | 31.68 | |
Pas d'informations disponibles, non commandable | ||||
70 | 990082 | |||
Couv.poignee H-55sa | ||||
71 | 983272 | 16.64 | 19.96 | |
Vis M.6*55 | ||||
72 | 301567 | 2.55 | 3.06 | |
Pas d'informations disponibles, non commandable | ||||
73 | 949292 | |||
Passage De Cable | ||||
74 | 980754 | 7.65 | 9.18 | |
Joint | ||||
75 | 980751 | 1.35 | 1.62 | |
Pas d'informations disponibles, non commandable | ||||
76 | 984750 | |||
Serre Cable | ||||
77 | 960266 | 1.04 | 1.24 | |
Connecteur 50092 | ||||
78 | 959141 | 3.75 | 4.50 | |
Entree De Cable Ø 10,7 | ||||
79 | 940778 | 2.10 | 2.52 | |
Protecteur de câble D8.2 (ancien 958049z) | ||||
79 | 958049 | 1.04 | 1.24 | |
Pas d'informations disponibles, non commandable | ||||
80 | 500393Z | |||
Pas d'informations disponibles, non commandable | ||||
80A | 500428Z | |||
Assemblée de bande de manche incl.26,27 | ||||
81 | 308064 | 17.88 | 21.45 | |
Condensateur | ||||
82 | 930039 | 1.95 | 2.34 | |
Cosses de câble (10 pièces) | ||||
83 | 959144 | 3.00 | 3.60 | |
Verrouillage Complet H55sa/60ka Includ.23b,24a,25 | ||||
84 | 995399 | 23.38 | 28.05 | |
Pas d'informations disponibles, non commandable | ||||
501B | 319782 | |||
Pas d'informations disponibles, non commandable | ||||
502 | 944458 | |||
Pas d'informations disponibles, non commandable | ||||
503 | 872422 | |||
Pas d'informations disponibles, non commandable | ||||
504 | 955613 | |||
Graisse (tube 30 Grammes) | ||||
505 | 981840 | 8.40 | 10.08 | |
Graisse (pot de 500 grammes) | ||||
601 | 980927 | 73.01 | 87.62 | |
Graisse (tube 30 Grammes) | ||||
602 | 981840 | 8.40 | 10.08 | |
Pas d'informations disponibles, non commandable | ||||
603 | 955614 | |||
Pas d'informations disponibles, non commandable | ||||
604 | 980029 | |||
Pas d'informations disponibles, non commandable | ||||
605 | 980030 | |||
Pas d'informations disponibles, non commandable | ||||
606 | 980031 | |||
Pas d'informations disponibles, non commandable | ||||
607 | 980032 | |||
Pas d'informations disponibles, non commandable | ||||
608 | 980033 | |||
Pas d'informations disponibles, non commandable | ||||
610 | 944574 | |||
Pas d'informations disponibles, non commandable | ||||
611A | 318085 | |||
Pas d'informations disponibles, non commandable | ||||
612 | 955623 | |||
Pas d'informations disponibles, non commandable | ||||
613 | 955624 | |||
Pas d'informations disponibles, non commandable | ||||
614 | 955625 | |||
Pas d'informations disponibles, non commandable | ||||
615 | 955183 | |||
Pas d'informations disponibles, non commandable | ||||
616 | 955181 | |||
Pas d'informations disponibles, non commandable | ||||
617 | 980034 | |||
Pas d'informations disponibles, non commandable | ||||
618 | 955629 | |||
Graisse pour marteau-perceuse (70g) | ||||
619 | 308471 | 12.75 | 15.30 | |
Pas d'informations disponibles, non commandable | ||||
620 | 320859 |
