Vous trouverez ici toutes les pièces et dessins disponibles du 'Hikoki H45FRV'. De là, vous pouvez commander directement toutes les pièces souhaitées. De nombreuses pièces doivent être commandées auprès du fabricant, selon la marque, cela prend une à quatre semaines. Toutes les informations dont nous disposons se trouvent sur notre site Web, nous ne pouvons pas vous conseiller sur ce dont vous avez besoin, pour cela vous devrez retourner la machine pour réparation. Veuillez noter ce qui suit lors de la commande:

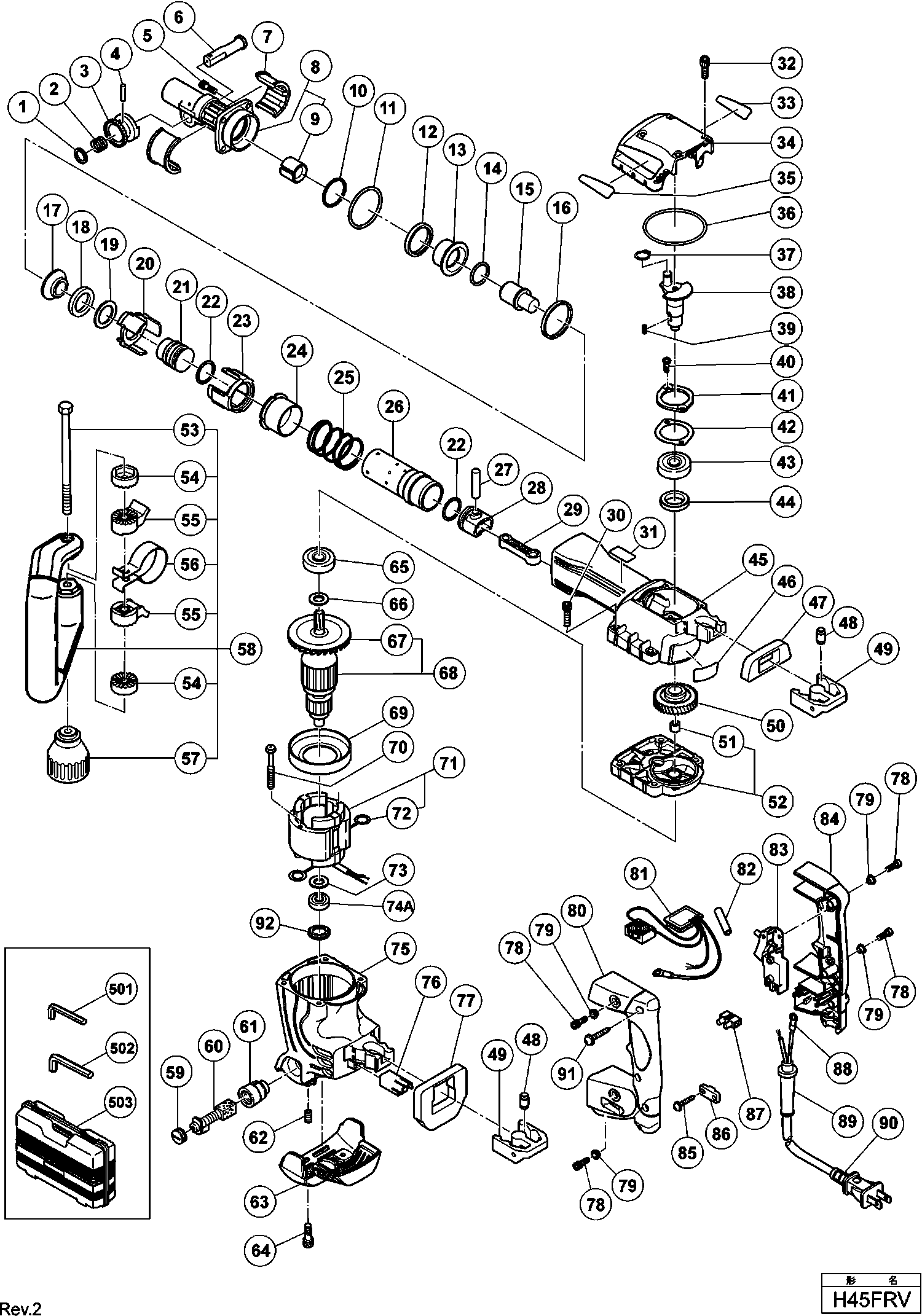

Dessins des Hikoki H45FRV
Liste de pièces de rechange des Hikoki H45FRV
Pos. | Description | Prix hors TVA | Prix TTC | |
Les prix affichés incluent la TVA | ||||
Bague (ancien 983280z) | ||||
1 | 983277 | 5.25 | 6.30 | |
Ressort H 45sa Till 3.1995 | ||||
2 | 981937 | 1.05 | 1.26 | |
Bouton | ||||
3 | 983241 | 35.06 | 42.08 | |
Goupille Ø4*20 Till 10.1987 (till 9.1987 For Aus, | ||||
4 | 943364 | 1.05 | 1.26 | |
Vis Ø 16x25 | ||||
5 | 981942 | 1.65 | 1.98 | |
Pas d'informations disponibles, non commandable | ||||
6 | 322347 | |||
Pas d'informations disponibles, non commandable | ||||
7 | 322344 | |||
Pas d'informations disponibles, non commandable | ||||
8 | 322345 | |||
Pas d'informations disponibles, non commandable | ||||
9 | 322346 | |||
O-ring | ||||
10 | 980879 | 1.05 | 1.26 | |
Joint torique (1as-50) | ||||
11 | 990067 | 1.65 | 1.98 | |
Amortisseur H 45mr | ||||
12 | 322528 | 1.65 | 1.98 | |
Logement Frappeur | ||||
13 | 320811 | 32.18 | 38.61 | |
O'ring (s-25) | ||||
14 | 319572 | 1.65 | 1.98 | |
Pas d'informations disponibles, non commandable | ||||
15 | 322371 | |||
Amortisseur | ||||
16 | 320817 | 3.30 | 3.96 | |
Logement Frappeur | ||||
17 | 320814 | 10.65 | 12.78 | |
Amortisseur | ||||
18 | 320815 | 3.30 | 3.96 | |
Bague | ||||
19 | 322412 | 1.65 | 1.98 | |
Logement Frappeur | ||||
20 | 320816 | 1.65 | 1.98 | |
Frappeur | ||||
21 | 320822 | 14.99 | 17.98 | |
O Ring | ||||
22 | 320823 | 3.30 | 3.96 | |
Support Cylindre | ||||
23 | 320818 | 6.45 | 7.74 | |
Pas d'informations disponibles, non commandable | ||||
24 | 322372 | |||
Ressort | ||||
25 | 320821 | 3.30 | 3.96 | |
Pas d'informations disponibles, non commandable | ||||
26 | 322336 | |||
Goupille | ||||
27 | 320826 | 4.80 | 5.76 | |
Piston | ||||
28 | 320824 | 4.80 | 5.76 | |
Bielle | ||||
29 | 320825 | 3.30 | 3.96 | |
Vis M6*45 | ||||
30 | 986940 | 1.05 | 1.26 | |
Vis M4*12 For Switch Holder (t2.6 Steel Plate) | ||||
32 | 983162 | 1.05 | 1.26 | |
Couvercle | ||||
34 | 320831 | 7.65 | 9.18 | |
O Ring | ||||
36 | 878867 | 3.30 | 3.96 | |
Clips D10 (x10) paquet de 10 Till 12.2003 | ||||
37 | 939540 | 1.95 | 2.34 | |
Excentrique | ||||
38 | 320829 | 37.95 | 45.54 | |
Clavette 4*4*10 | ||||
39 | 930511 | 2.40 | 2.88 | |
Vis De Serrage | ||||
40 | 980760 | 1.05 | 1.26 | |
Rondelle | ||||
41 | 980761 | 7.65 | 9.18 | |
Pas d'informations disponibles, non commandable | ||||
42 | 322529 | |||
Roulement à billes 6203dducmav2s | ||||
43 | 6203DD | 7.65 | 9.18 | |
Joint H 41sa | ||||
44 | 310119 | 3.60 | 4.32 | |
Fourreau Cylindre | ||||
45 | 320828 | 64.21 | 77.06 | |
Joint Mousse | ||||
47 | 320837 | 3.30 | 3.96 | |
Caoutchouc d'amortissement de poignée | ||||
48 | 310124 | 4.20 | 5.04 | |
Support | ||||
49 | 310123 | 11.85 | 14.22 | |
Engrenage | ||||
50 | 320830 | 26.40 | 31.68 | |
Roulement A Aiguilles | ||||
51 | 939299 | 10.65 | 12.78 | |
Carter | ||||
52 | 320841 | 35.06 | 42.08 | |
Vis M.8 | ||||
53 | 317107 | 3.30 | 3.96 | |
Entretoise Crantee | ||||
54 | 317106 | 3.30 | 3.96 | |
Entretoise Crantee | ||||
55 | 317105 | 4.80 | 5.76 | |
Bande de Serrage | ||||
56 | 320635 | 6.75 | 8.10 | |
Bouton De Serrage H60ma/ka | ||||
57 | 317108 | 9.90 | 11.88 | |
Pas d'informations disponibles, non commandable | ||||
58 | 317103 | |||
Bouchon Charbon H41sa Vb13y | ||||
59 | 935829 | 1.05 | 1.26 | |
Charbons Autorupteurs (1 paire) | ||||
60 | 999073 | 14.40 | 17.28 | |
S/e Porte Balais | ||||
61 | 971001 | 6.45 | 7.74 | |
Vis de réglage hexagonale M5x8 | ||||
62 | 938477 | 1.05 | 1.26 | |
Capot | ||||
63 | 320834 | 9.30 | 11.16 | |
Boulon à tête hexagonale Seal Lock M5x8 | ||||
64 | 321527 | 1.65 | 1.98 | |
Roulement à billes 6201dducmav2s | ||||
65 | 6201DD | 6.30 | 7.56 | |
Joint | ||||
66 | 302429 | 1.05 | 1.26 | |
Ventilateur Dh 40fr | ||||
67 | 321640 | 6.45 | 7.74 | |
Pas d'informations disponibles, non commandable | ||||
68 | 360571U | |||
Baffle | ||||
69 | 320832 | 1.65 | 1.98 | |
Vis D5*55 | ||||
70 | 953174 | 1.04 | 1.24 | |
Pas d'informations disponibles, non commandable | ||||
71 | 340568G | |||
Raccord | ||||
72 | 930703 | 2.40 | 2.88 | |
Rondelle | ||||
73 | 982631 | 1.04 | 1.24 | |
Roulement | ||||
74A | 608DDM | 5.55 | 6.66 | |
Carter | ||||
75 | 320833 | 90.48 | 108.57 | |
Entretoise | ||||
76 | 320836 | 1.65 | 1.98 | |
Joint Mousse | ||||
77 | 320838 | 4.80 | 5.76 | |
Boulon à tête sphérique M5x12 auto-verrouillable | ||||
78 | 991690 | 1.05 | 1.26 | |
Entretoise | ||||
79 | 991711 | 1.05 | 1.26 | |
Pas d'informations disponibles, non commandable | ||||
80 | 322350 | |||
Pas d'informations disponibles, non commandable | ||||
81 | 322348 | |||
Tube de vinyle L55 | ||||
82 | 322530 | 1.65 | 1.98 | |
Interrupteur (b) (Type Vis 1p) Avec Verrou | ||||
83 | 306143 | 17.05 | 20.46 | |
Pas d'informations disponibles, non commandable | ||||
84 | 322349 | |||
Pas d'informations disponibles, non commandable | ||||
85 | 984750 | |||
Serre Cable | ||||
86 | 960266 | 1.04 | 1.24 | |
Connecteur Till 10.1999 For Aus | ||||
87 | 938307 | 2.13 | 2.55 | |
Terminal M4 | ||||
88 | 930804 | 3.00 | 3.60 | |
Entree De Cable Ø 8.8 | ||||
89 | 380090 | 1.04 | 1.25 | |
Pas d'informations disponibles, non commandable | ||||
90 | 500434Z | |||
Vis Ø 4*25 noir | ||||
91 | 307028 | 1.05 | 1.26 | |
Joint anti-poussière | ||||
92 | 333143 | 3.45 | 4.14 | |
Pas d'informations disponibles, non commandable | ||||
501 | 944458 | |||
Pas d'informations disponibles, non commandable | ||||
502 | 944459 | |||
Pas d'informations disponibles, non commandable | ||||
503 | 320842 | |||
Pas d'informations disponibles, non commandable | ||||
601 | 985383 | |||
Pas d'informations disponibles, non commandable | ||||
602 | 985386 | |||
Pas d'informations disponibles, non commandable | ||||
603 | 985384 | |||
Pas d'informations disponibles, non commandable | ||||
604 | 985385 | |||
Pas d'informations disponibles, non commandable | ||||
605 | 985381 | |||
Pas d'informations disponibles, non commandable | ||||
606 | 985382 | |||
Graisse (tube 30 Grammes) | ||||
607 | 981840 | 8.40 | 10.08 | |
Graisse pour marteau-perceuse (70g) | ||||
608 | 308471 | 12.75 | 15.30 | |
Couvercle anti-poussière | ||||
609 | 993245 | 6.75 | 8.10 | |
Plus disponible, pas de remplacement | ||||
610 | 323131 | |||
Plus disponible, pas de remplacement | ||||
611 | 323131 |
