Vous trouverez ici toutes les pièces et dessins disponibles du 'Hikoki GP3V'. De là, vous pouvez commander directement toutes les pièces souhaitées. De nombreuses pièces doivent être commandées auprès du fabricant, selon la marque, cela prend une à quatre semaines. Toutes les informations dont nous disposons se trouvent sur notre site Web, nous ne pouvons pas vous conseiller sur ce dont vous avez besoin, pour cela vous devrez retourner la machine pour réparation. Veuillez noter ce qui suit lors de la commande:

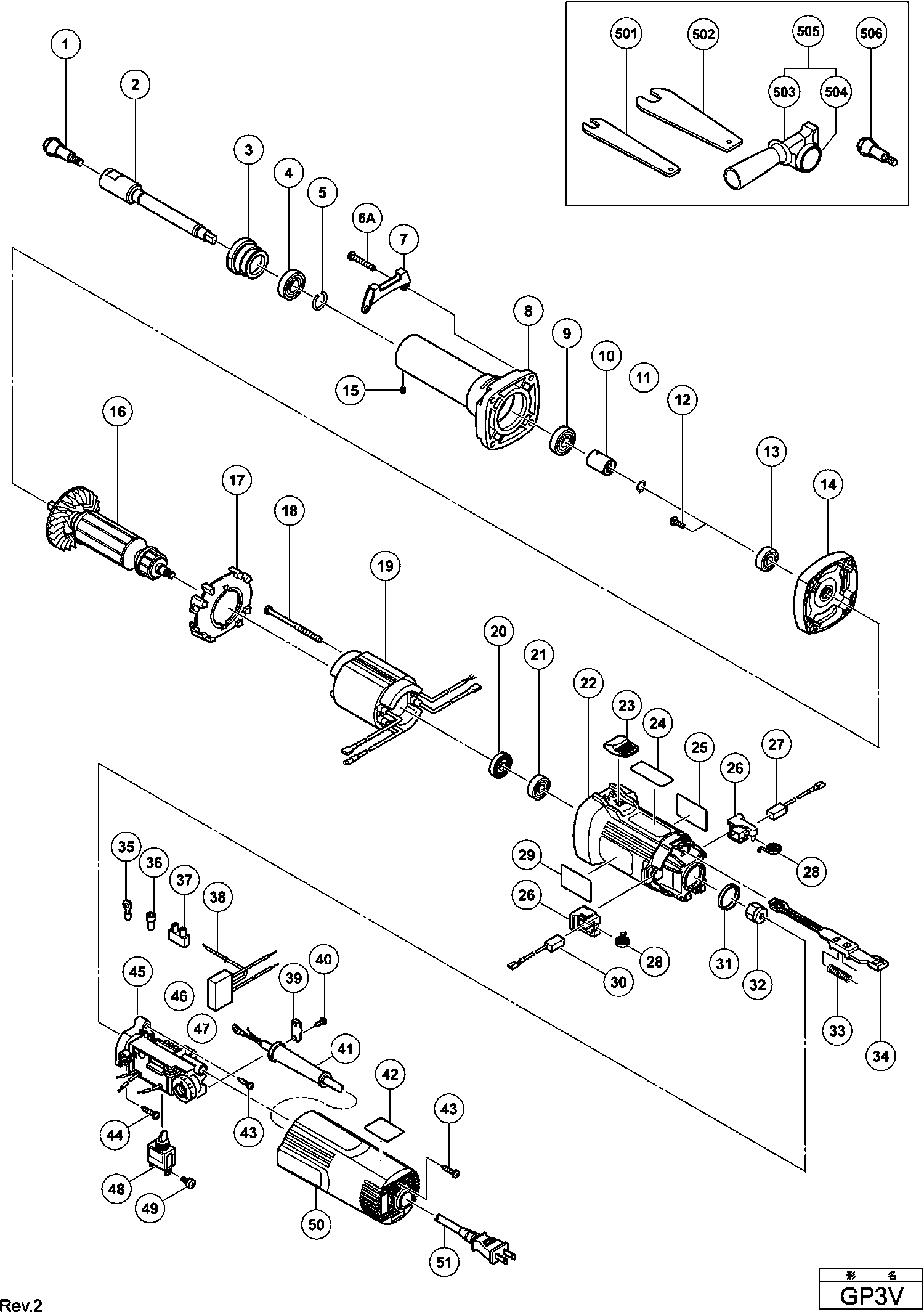

Dessins des Hikoki GP3V
Liste de pièces de rechange des Hikoki GP3V
Pos. | Description | Prix hors TVA | Prix TTC | |
Les prix affichés incluent la TVA | ||||
Pas d'informations disponibles, non commandable | ||||
1 | 333936 | |||
Arbre | ||||
2 | 332453 | 14.38 | 17.25 | |
Flasque De Palier | ||||
3 | 332452 | 4.28 | 5.13 | |
Roulement A Billes | ||||
4 | 6001VV | 6.60 | 7.92 | |
Rondelle | ||||
5 | 932617 | 1.05 | 1.26 | |
Vis autotaraudeuse D5x35 (noir) | ||||
6A | 334402 | 1.05 | 1.26 | |
Plaque de protection | ||||
7 | 317807 | 1.05 | 1.26 | |
Support de nez | ||||
8 | 334280 | 14.10 | 16.92 | |
Roulement | ||||
9 | 6000VV | 6.15 | 7.38 | |
Plus disponible, pas de remplacement | ||||
10 | 334281 | |||
ACCOUPLEMENT (OUD 334281) | ||||
10A | 372999 | 16.09 | 19.30 | |
Clips Cj65va2 Dh25pa/pb | ||||
11 | 940079 | 1.04 | 1.24 | |
Vis Ø 4*8 | ||||
12 | 323556 | 1.05 | 1.26 | |
Roulement A Billes | ||||
13 | 609VVM | 6.00 | 7.20 | |
Palier | ||||
14 | 333643 | 8.55 | 10.26 | |
VIS À TÊTE HEXAGONALE CREUSE M4X4 | ||||
15 | 981478 | 1.05 | 1.26 | |
Induit 220-230 Volt | ||||
16 | 360911E | 36.99 | 44.38 | |
Baffle | ||||
17 | 319898 | 1.05 | 1.26 | |
Vis Ø 4*70 | ||||
18 | 982021 | 1.04 | 1.24 | |
Champ | ||||
19 | 340827F | 21.18 | 25.41 | |
Protecteur Poussiere | ||||
20 | 315877 | 1.05 | 1.26 | |
Roulement A Billes | ||||
21 | 608VVM | 5.70 | 6.84 | |
Carter | ||||
22 | 317802 | 12.00 | 14.40 | |
Bouton Interrupteur | ||||
23 | 314428 | 1.04 | 1.24 | |
S/e Porte Balais | ||||
26 | 317810 | 4.80 | 5.76 | |
Jeu De Charbons Autorupteur | ||||
27 | 999076 | 14.40 | 17.28 | |
Ressort | ||||
28 | 308536 | 1.65 | 1.98 | |
Jeu De Charbons | ||||
30 | 999088 | 4.50 | 5.40 | |
Plaq.en Caoutchouc (1) | ||||
31 | 995662 | 1.04 | 1.24 | |
Aimant | ||||
32 | 318721 | 17.60 | 21.12 | |
Ressort | ||||
33 | 314429 | 1.04 | 1.24 | |
Barrette | ||||
34 | 319370 | 1.05 | 1.26 | |
Terminal M4 | ||||
35 | 930804 | 3.00 | 3.60 | |
Connecteur 50091 | ||||
36 | 959140 | 3.30 | 3.96 | |
Connecteur Till 10.1999 For Aus | ||||
37 | 938307 | 2.13 | 2.55 | |
Terminal de terre pour TPE | ||||
38 | 314854 | 1.50 | 1.80 | |
Serre Cable | ||||
39 | 937631 | 1.04 | 1.24 | |
Pas d'informations disponibles, non commandable | ||||
40 | 984750 | |||
Entree De Cable Ø 8.8 | ||||
41 | 380090 | 1.04 | 1.25 | |
Entree De Cable Ø 10,1 | ||||
41 | 938051 | 1.04 | 1.24 | |
Etiquette Sp 18va | ||||
42 | 333938 | 1.80 | 2.16 | |
Vis à tarauder D4x20 avec bride (noir) | ||||
43 | 301653 | 1.04 | 1.24 | |
Vis Ø 4*25 noir | ||||
44 | 307028 | 1.05 | 1.26 | |
Contrôleur 100v-120v | ||||
45 | 333591 | 77.28 | 92.73 | |
Contrôleur 220v-240v | ||||
45 | 333592 | 77.28 | 92.73 | |
Contrôleur 127v | ||||
45 | 333593 | 77.28 | 92.73 | |
Condensateur | ||||
46 | 325566 | 9.00 | 10.80 | |
Borne | ||||
47 | 980063 | 1.04 | 1.24 | |
Pas d'informations disponibles, non commandable | ||||
48 | 314603 | |||
Vis machine (avec rondelle) M3,5x6 | ||||
49 | 305499 | 1.05 | 1.26 | |
Capot Arriere | ||||
50 | 319376 | 3.90 | 4.68 | |
Cordon | ||||
51 | 500240Z | 13.18 | 15.81 | |
Câble 2,5m 2 X 1.0 Sans Fiche | ||||
51 | 500237Z | 11.40 | 13.68 | |
Cordon 2,5m 2 X 1.0 H05vv-f (ancien 500395z) | ||||
51 | 500447Z | 6.60 | 7.92 | |
Pas d'informations disponibles, non commandable | ||||
501 | 936553 | |||
Pas d'informations disponibles, non commandable | ||||
502 | 936638 | |||
Pas d'informations disponibles, non commandable | ||||
503 | 324548 | |||
Douille | ||||
504 | 330061 | 3.45 | 4.14 | |
Pas d'informations disponibles, non commandable | ||||
505 | 330060 | |||
Pas d'informations disponibles, non commandable | ||||
505A | 371325 | |||
Pas d'informations disponibles, non commandable | ||||
506 | 331477 | |||
Pas d'informations disponibles, non commandable | ||||
601 | 939101 | |||
Pas d'informations disponibles, non commandable | ||||
602 | 939102 | |||
Pas d'informations disponibles, non commandable | ||||
603 | 939103 | |||
Pas d'informations disponibles, non commandable | ||||
604 | 939104 | |||
Pas d'informations disponibles, non commandable | ||||
605 | 939106 | |||
Pas d'informations disponibles, non commandable | ||||
606 | 939107 | |||
Pas d'informations disponibles, non commandable | ||||
607 | 939108 | |||
Pas d'informations disponibles, non commandable | ||||
608 | 949023 | |||
Pas d'informations disponibles, non commandable | ||||
609 | 949021 | |||
Pas d'informations disponibles, non commandable | ||||
610 | 949022 | |||
Pas d'informations disponibles, non commandable | ||||
611 | 939110 | |||
Pas d'informations disponibles, non commandable | ||||
612 | 939111 | |||
Pas d'informations disponibles, non commandable | ||||
613 | 939112 | |||
Pas d'informations disponibles, non commandable | ||||
614 | 939113 | |||
Pas d'informations disponibles, non commandable | ||||
615 | 939114 | |||
Pas d'informations disponibles, non commandable | ||||
616 | 939115 | |||
Pas d'informations disponibles, non commandable | ||||
617 | 939116 | |||
Pas d'informations disponibles, non commandable | ||||
618 | 939117 | |||
Pas d'informations disponibles, non commandable | ||||
619 | 939118 | |||
Pas d'informations disponibles, non commandable | ||||
620 | 939119 | |||
Pas d'informations disponibles, non commandable | ||||
621 | 939120 | |||
Pas d'informations disponibles, non commandable | ||||
622 | 331477 | |||
Pas d'informations disponibles, non commandable | ||||
623 | 932624 | |||
Pas d'informations disponibles, non commandable | ||||
624 | 985136 | |||
Pas d'informations disponibles, non commandable | ||||
625 | 332812 |
