Vous trouverez ici toutes les pièces et dessins disponibles du 'Hikoki GP2S2'. De là, vous pouvez commander directement toutes les pièces souhaitées. De nombreuses pièces doivent être commandées auprès du fabricant, selon la marque, cela prend une à quatre semaines. Toutes les informations dont nous disposons se trouvent sur notre site Web, nous ne pouvons pas vous conseiller sur ce dont vous avez besoin, pour cela vous devrez retourner la machine pour réparation. Veuillez noter ce qui suit lors de la commande:

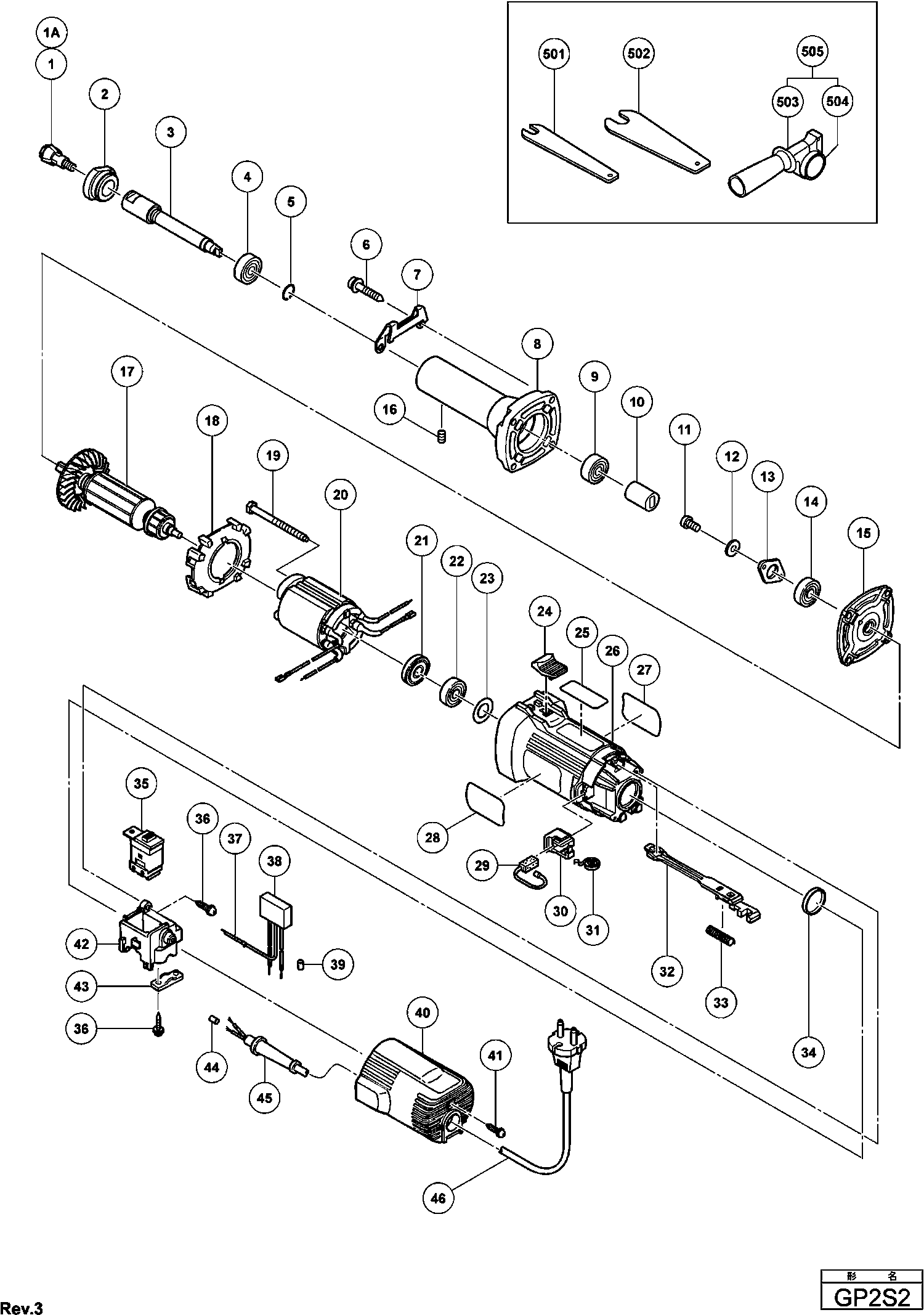

Dessins des Hikoki GP2S2
Liste de pièces de rechange des Hikoki GP2S2
Pos. | Description | Prix hors TVA | Prix TTC | |
Les prix affichés incluent la TVA | ||||
Pas d'informations disponibles, non commandable | ||||
1 | 331422 | |||
Pas d'informations disponibles, non commandable | ||||
1A | 332812 | |||
Flasque De Palier | ||||
2 | 332452 | 4.28 | 5.13 | |
Arbre | ||||
3 | 332453 | 14.38 | 17.25 | |
Roulement A Billes | ||||
4 | 6001VV | 6.60 | 7.92 | |
Rondelle | ||||
5 | 932617 | 1.05 | 1.26 | |
VIS D5X30 | ||||
6 | 986011 | 1.04 | 1.24 | |
Plaque de protection | ||||
7 | 317807 | 1.05 | 1.26 | |
Support de nez | ||||
8 | 331474 | 13.95 | 16.74 | |
Roulement | ||||
9 | 6000VV | 6.15 | 7.38 | |
Plus disponible, pas de remplacement | ||||
10 | 985140 | |||
ACCOUPLEMENT (OUD 985140) | ||||
10A | 372998 | 13.95 | 16.74 | |
Vis Ø 4x10 | ||||
11 | 987201 | 1.05 | 1.26 | |
Rondelle de ressort M4 (10 pièces) | ||||
12 | 949453 | 1.05 | 1.26 | |
Palier en tôle | ||||
13 | 937876 | 1.05 | 1.26 | |
Roulement A Billes | ||||
14 | 608VVM | 5.70 | 6.84 | |
Palier | ||||
15 | 331475 | 5.18 | 6.21 | |
VIS À TÊTE HEXAGONALE CREUSE M4X4 | ||||
16 | 981478 | 1.05 | 1.26 | |
Induit 230v | ||||
17 | 360879E | 28.05 | 33.66 | |
Baffle | ||||
18 | 319898 | 1.05 | 1.26 | |
Vis Ø 4*70 | ||||
19 | 982021 | 1.04 | 1.24 | |
Stator 230V | ||||
20 | 340758H | 19.33 | 23.19 | |
Protecteur Poussiere | ||||
21 | 315877 | 1.05 | 1.26 | |
Roulement A Billes | ||||
22 | 608VVM | 5.70 | 6.84 | |
Rondelle M14 | ||||
23 | 332804 | 1.05 | 1.26 | |
Bouton Interrupteur | ||||
24 | 314428 | 1.04 | 1.24 | |
Carter | ||||
26 | 317802 | 12.00 | 14.40 | |
Jeu De Charbons | ||||
29 | 999088 | 4.50 | 5.40 | |
S/e Porte Balais | ||||
30 | 317810 | 4.80 | 5.76 | |
Ressort | ||||
31 | 308536 | 1.65 | 1.98 | |
Levier Interrupteur | ||||
32 | 317806 | 1.05 | 1.26 | |
Ressort | ||||
33 | 314429 | 1.04 | 1.24 | |
Plaq.en Caoutchouc (1) | ||||
34 | 995662 | 1.04 | 1.24 | |
Commutateur | ||||
35 | 332805 | 10.80 | 12.96 | |
Pas d'informations disponibles, non commandable | ||||
36 | 984750 | |||
Terminal de terre pour TPE | ||||
37 | 314854 | 1.50 | 1.80 | |
Condensateur | ||||
38 | 325566 | 9.00 | 10.80 | |
Manchon à cabler | ||||
39 | 981373 | 1.05 | 1.26 | |
Couvercle G13sd | ||||
40 | 317808 | 5.85 | 7.02 | |
Pas d'informations disponibles, non commandable | ||||
41 | 984750 | |||
Porte-interrupteur ASS'Y (ancien 317811) | ||||
42 | 376969 | 1.05 | 1.26 | |
Serre Cable | ||||
43 | 937631 | 1.04 | 1.24 | |
Manchon à cabler | ||||
44 | 981373 | 1.05 | 1.26 | |
Entree De Cable Ø 8.8 | ||||
45 | 380090 | 1.04 | 1.25 | |
Entree De Cable Ø 10,1 | ||||
45 | 938051 | 1.04 | 1.24 | |
Câble 3M 2 X 1,0 H05vv-f avec prise 16a CEE | ||||
46 | 500461Z | 17.88 | 21.45 | |
Cordon | ||||
46 | 500240Z | 13.18 | 15.81 | |
Câble 2,5m 2 X 1.0 Sans Fiche | ||||
46 | 500237Z | 11.40 | 13.68 | |
Pas d'informations disponibles, non commandable | ||||
501 | 936553 | |||
Pas d'informations disponibles, non commandable | ||||
502 | 936638 | |||
Pas d'informations disponibles, non commandable | ||||
503 | 324548 | |||
Douille | ||||
504 | 330061 | 3.45 | 4.14 | |
Pas d'informations disponibles, non commandable | ||||
505 | 330060 | |||
Pas d'informations disponibles, non commandable | ||||
505A | 371325 | |||
Pas d'informations disponibles, non commandable | ||||
601 | 932624 | |||
Pas d'informations disponibles, non commandable | ||||
602 | 985135 | |||
Pas d'informations disponibles, non commandable | ||||
603 | 985136 | |||
Pas d'informations disponibles, non commandable | ||||
604 | 939103 | |||
Pas d'informations disponibles, non commandable | ||||
605 | 939104 | |||
Pas d'informations disponibles, non commandable | ||||
606 | 939107 | |||
Pas d'informations disponibles, non commandable | ||||
607 | 949021 | |||
Pas d'informations disponibles, non commandable | ||||
608 | 949022 | |||
Pas d'informations disponibles, non commandable | ||||
609 | 939110 | |||
Pas d'informations disponibles, non commandable | ||||
610 | 939115 | |||
Pas d'informations disponibles, non commandable | ||||
611 | 939117 | |||
Pas d'informations disponibles, non commandable | ||||
612 | 939118 | |||
Pas d'informations disponibles, non commandable | ||||
613 | 939119 | |||
Pas d'informations disponibles, non commandable | ||||
614 | 939120 |
