Vous trouverez ici toutes les pièces et dessins disponibles du 'Hikoki G14DSL'. De là, vous pouvez commander directement toutes les pièces souhaitées. De nombreuses pièces doivent être commandées auprès du fabricant, selon la marque, cela prend une à quatre semaines. Toutes les informations dont nous disposons se trouvent sur notre site Web, nous ne pouvons pas vous conseiller sur ce dont vous avez besoin, pour cela vous devrez retourner la machine pour réparation. Veuillez noter ce qui suit lors de la commande:

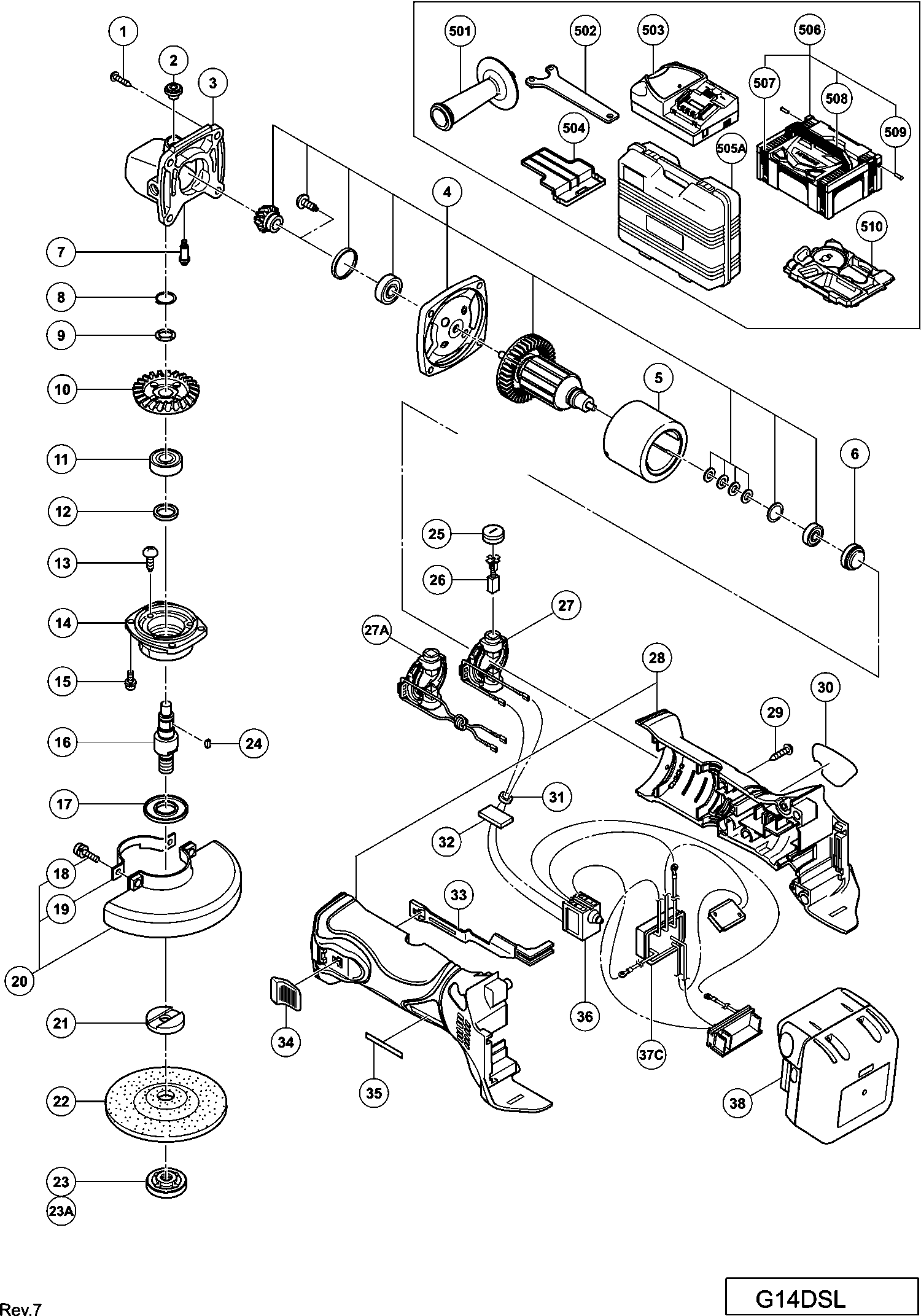

Dessins des Hikoki G14DSL
Liste de pièces de rechange des Hikoki G14DSL
Pos. | Description | Prix hors TVA | Prix TTC | |
Les prix affichés incluent la TVA | ||||
Vis Tôlière Avec Rondelle D4x23 (noir) | ||||
1 | 328643 | 1.05 | 1.26 | |
Bouton Bloc | ||||
2 | 301944 | 1.04 | 1.24 | |
Carter G 18dl Inclus.2,7 | ||||
3 | 303078 | 9.00 | 10.80 | |
Induit Complet | ||||
4 | 360803 | 81.68 | 98.01 | |
Aimant | ||||
5 | 328195 | 18.84 | 22.60 | |
Plaq.en Caoutchouc (1) | ||||
6 | 328201 | 1.05 | 1.26 | |
Goupille De Blocage | ||||
7 | 301943 | 1.65 | 1.98 | |
Circlips Dim 11 Till 9.2012 | ||||
8 | 316487 | 1.65 | 1.98 | |
Bague | ||||
9 | 316486 | 1.65 | 1.98 | |
Pignon | ||||
10 | 328196 | 11.70 | 14.04 | |
Roulement A Billes | ||||
11 | 6001VV | 6.60 | 7.92 | |
Feutre | ||||
12 | 301946 | 1.04 | 1.24 | |
Pas d'informations disponibles, non commandable | ||||
13 | 301936 | |||
Palier | ||||
14 | 328198 | 3.15 | 3.78 | |
Vis de scellage M4*12 | ||||
15 | 307127 | 1.05 | 1.26 | |
Axe Ø 14 | ||||
16 | 328359 | 4.20 | 5.04 | |
Joint Anti Poussiere | ||||
17 | 301945 | 1.05 | 1.26 | |
Vis à métaux (avec rondelle) M5x16 (noir) | ||||
18 | 308386 | 1.05 | 1.26 | |
Collier Fg 12sb | ||||
19 | 301949 | 1.04 | 1.24 | |
Protecteur | ||||
20 | 315492 | 12.75 | 15.30 | |
Protecteur | ||||
20 | 331076 | 5.48 | 6.57 | |
Protecteur | ||||
20A | 301948 | 5.71 | 6.86 | |
Plus disponible, pas de remplacement | ||||
21 | 372737 | |||
Pas d'informations disponibles, non commandable | ||||
22 | 316821 | |||
Collet Exterieur | ||||
23 | 937923P | 5.40 | 6.48 | |
Pas d'informations disponibles, non commandable | ||||
23A | 337329 | |||
Pas d'informations disponibles, non commandable | ||||
23B | 339579 | |||
Clavette G13sd | ||||
24 | 302047 | 1.05 | 1.26 | |
Bouchon Charbons | ||||
25 | 328200 | 2.10 | 2.52 | |
Charbon Wh8dh/wh9dm/wr12dh | ||||
26 | 999054 | 6.45 | 7.74 | |
Brosses en Carbone (2 Pièces) | ||||
26A | 999101 | 2.70 | 3.24 | |
Porte Charbon | ||||
27 | 328202 | 7.05 | 8.46 | |
Support Porte Charbons Includ.23,24 | ||||
27A | 334696 | 7.05 | 8.46 | |
Support Porte Charbons Includ.23,24 | ||||
27B | 334696 | 7.05 | 8.46 | |
Plus disponible, pas de remplacement | ||||
28 | 329902 | |||
BOÎTIER (A+B) (ANCIEN 329902) | ||||
28A | 373149 | 77.14 | 92.56 | |
Vis à tarauder D4x20 avec bride (noir) | ||||
29 | 301653 | 1.04 | 1.24 | |
Entretoise Ds 14dmr | ||||
31 | 323229 | 1.35 | 1.62 | |
Support | ||||
32 | 326493 | 1.05 | 1.26 | |
Plus disponible, pas de remplacement | ||||
33 | 328199 | |||
Bouton Interrupteur | ||||
34 | 314428 | 1.04 | 1.24 | |
Plus disponible, pas de remplacement | ||||
36 | 329057 | |||
Interrupteur | ||||
36A | 373565 | 4.65 | 5.58 | |
Ensemble de terminaux du contrôleur | ||||
37C | 334588 | 53.21 | 63.86 | |
Ensemble de terminaux du contrôleur | ||||
37C | 334589 | 53.21 | 63.86 | |
Pas d'informations disponibles, non commandable | ||||
38 | 329083 | |||
Pignon (1) | ||||
39 | 371812 | 4.50 | 5.40 | |
Vis à tête fendue (serrure d’étanchéité) M4 | ||||
40 | 371815 | 1.04 | 1.24 | |
Anneau en Caoutchouc (a) | ||||
41 | 328453 | 1.80 | 2.16 | |
Roulement A Billes (1) | ||||
42 | 371033 | 3.15 | 3.78 | |
Couverture intérieure | ||||
43 | 371817 | 6.15 | 7.38 | |
Roulement à billes 6340vvc2 | ||||
44 | 6340VV | 1.65 | 1.98 | |
Joint Etanche Pouss (1) | ||||
45 | 371813 | 1.04 | 1.24 | |
Poignée latérale G13sr3 | ||||
501 | 318312 | 7.50 | 9.00 | |
Pas d'informations disponibles, non commandable | ||||
502 | 938332Z | |||
Capuchon de protection pour batterie | ||||
504 | 329897 | 1.80 | 2.16 | |
Pas d'informations disponibles, non commandable | ||||
505 | 328206 | |||
Pas d'informations disponibles, non commandable | ||||
505A | 339041 | |||
Pas d'informations disponibles, non commandable | ||||
506 | 336471 | |||
Pas d'informations disponibles, non commandable | ||||
507 | 336472 | |||
Pas d'informations disponibles, non commandable | ||||
508 | 336473 | |||
Pas d'informations disponibles, non commandable | ||||
509 | 336474 | |||
Pas d'informations disponibles, non commandable | ||||
510 | 337113 | |||
Pas d'informations disponibles, non commandable | ||||
601 | 938318 | |||
Pas d'informations disponibles, non commandable | ||||
602 | 938317 | |||
Pas d'informations disponibles, non commandable | ||||
603 | 314095 | |||
Pas d'informations disponibles, non commandable | ||||
604 | 314096 | |||
Pas d'informations disponibles, non commandable | ||||
605 | 314097 | |||
Pas d'informations disponibles, non commandable | ||||
606 | 314098 | |||
Pas d'informations disponibles, non commandable | ||||
607 | 314099 | |||
Pas d'informations disponibles, non commandable | ||||
608 | 314100 | |||
Pas d'informations disponibles, non commandable | ||||
609 | 314101 | |||
Pas d'informations disponibles, non commandable | ||||
610 | 314102 | |||
Pas d'informations disponibles, non commandable | ||||
611 | 314103 | |||
Pas d'informations disponibles, non commandable | ||||
612 | 314104 | |||
Pas d'informations disponibles, non commandable | ||||
613 | 314105 | |||
Pas d'informations disponibles, non commandable | ||||
614 | 332785 | |||
Pas d'informations disponibles, non commandable | ||||
615 | 302098 | |||
Pas d'informations disponibles, non commandable | ||||
616 | 331094 | |||
Pas d'informations disponibles, non commandable | ||||
617 | 984646 | |||
Pas d'informations disponibles, non commandable | ||||
618 | 323918 | |||
Pas d'informations disponibles, non commandable | ||||
619 | 314053 | |||
Pas d'informations disponibles, non commandable | ||||
620 | 314054 | |||
Pas d'informations disponibles, non commandable | ||||
621 | 314057 | |||
Pas d'informations disponibles, non commandable | ||||
622 | 314059 | |||
Pas d'informations disponibles, non commandable | ||||
623 | 314061 | |||
Pas d'informations disponibles, non commandable | ||||
624 | 314051 | |||
Pas d'informations disponibles, non commandable | ||||
625 | 314052 | |||
Pas d'informations disponibles, non commandable | ||||
626 | 314055 | |||
Pas d'informations disponibles, non commandable | ||||
627 | 314056 | |||
Pas d'informations disponibles, non commandable | ||||
628 | 314058 | |||
Pas d'informations disponibles, non commandable | ||||
629 | 314060 | |||
Bouchon D’obturation A 6 | ||||
630 | 935513 | 4.20 | 5.04 | |
Pas d'informations disponibles, non commandable | ||||
631 | 936548 | |||
Pas d'informations disponibles, non commandable | ||||
632 | 936558Z |
