Vous trouverez ici toutes les pièces et dessins disponibles du 'Hikoki G13YF'. De là, vous pouvez commander directement toutes les pièces souhaitées. De nombreuses pièces doivent être commandées auprès du fabricant, selon la marque, cela prend une à quatre semaines. Toutes les informations dont nous disposons se trouvent sur notre site Web, nous ne pouvons pas vous conseiller sur ce dont vous avez besoin, pour cela vous devrez retourner la machine pour réparation. Veuillez noter ce qui suit lors de la commande:

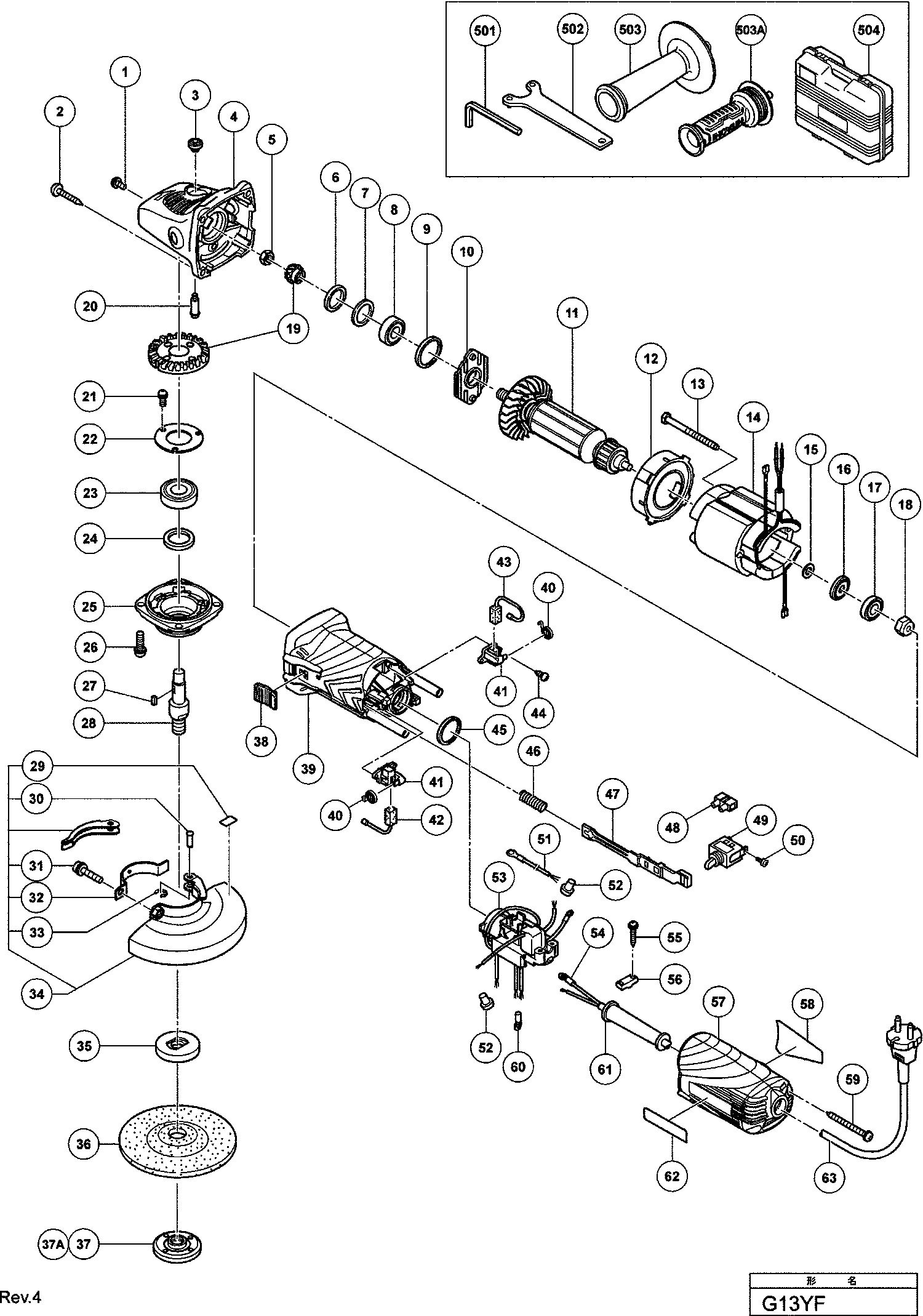

Dessins des Hikoki G13YF
Liste de pièces de rechange des Hikoki G13YF
Pos. | Description | Prix hors TVA | Prix TTC | |
Les prix affichés incluent la TVA | ||||
VIS DE BLOCAGE DE JOINT M4X10 | ||||
1 | 303255 | 1.04 | 1.24 | |
Vis auto-taraudeuse D5x25 (noir) | ||||
2 | 320523 | 1.35 | 1.62 | |
Bouton Bloc | ||||
3 | 301944 | 1.04 | 1.24 | |
Carter Pignon Includ.4,21 | ||||
4 | 321737 | 36.44 | 43.72 | |
Ecrou M8(x10) (paquet de 10) | ||||
5 | 949558 | 1.05 | 1.26 | |
Joint torique (a) | ||||
6 | 308543 | 1.04 | 1.24 | |
Rondelle | ||||
7 | 980866 | 1.04 | 1.24 | |
Roulement à billes 629t12ddc3ps2-l | ||||
8 | 629T12 | 9.83 | 11.79 | |
Joint Caoutchouc | ||||
9 | 957754 | 1.20 | 1.44 | |
Couvercle Roulement | ||||
10 | 321734 | 1.35 | 1.62 | |
Induit G 13yf/g 13va | ||||
11 | 360869E | 50.88 | 61.05 | |
Baffle | ||||
12 | 321732 | 1.35 | 1.62 | |
Vis Ø 4*70 | ||||
13 | 982021 | 1.04 | 1.24 | |
Inducteur G 13yf/g 13va | ||||
14 | 340749E | 24.61 | 29.54 | |
Anneau de retenue | ||||
15 | 311737 | 1.04 | 1.24 | |
Joint d'étanchéité à la poussière (a) | ||||
16 | 311435 | 1.04 | 1.24 | |
Roulement A Billes | ||||
17 | 608VVM | 5.70 | 6.84 | |
Aimant | ||||
18 | 325475 | 4.65 | 5.58 | |
Couple Pignon G13yc/sb2/g 13va | ||||
19 | 329054 | 16.36 | 19.64 | |
Goupille De Blocage | ||||
20 | 301943 | 1.65 | 1.98 | |
Vis M4x8 | ||||
21 | 991207 | 1.04 | 1.24 | |
Couvercle | ||||
22 | 936680 | 1.04 | 1.24 | |
Roulement à billes 6201dducmav2s | ||||
23 | 6201DD | 6.30 | 7.56 | |
Feutre | ||||
24 | 308546 | 1.04 | 1.24 | |
Palier | ||||
25 | 308545 | 7.35 | 8.82 | |
Vis de blocage (avec rondelle sp.) M5x16 | ||||
26 | 307046 | 1.04 | 1.24 | |
Clavette 3*3*8 | ||||
27 | 944109 | 1.70 | 2.04 | |
Arbre | ||||
28 | 994301 | 14.25 | 17.10 | |
Etiquette | ||||
29 | 311492 | 1.20 | 1.44 | |
Goupille G 13se Till 11.2014 | ||||
30 | 311744 | 1.20 | 1.44 | |
Vis à tête hexagonale (avec rondelles) M5x20 | ||||
31 | 316107 | 1.80 | 2.16 | |
Collier pour couvercle de protection | ||||
32 | 311491 | 4.65 | 5.58 | |
Clips Cj-65 | ||||
33 | 874759 | 1.04 | 1.24 | |
Protecteur Complet G 13se/g 13va Includ.611-616 | ||||
34 | 311742 | 20.76 | 24.92 | |
Protecteur Complet G 13se/g 13va Includ.611-616 | ||||
34A | 337232 | 13.35 | 16.02 | |
Pas d'informations disponibles, non commandable | ||||
35 | 937817Z | |||
Pas d'informations disponibles, non commandable | ||||
36 | 316822 | |||
Pas d'informations disponibles, non commandable | ||||
37 | 994324 | |||
Pas d'informations disponibles, non commandable | ||||
37A | 339579 | |||
Bouton De Commande | ||||
38 | 330810 | 1.05 | 1.26 | |
Pas d'informations disponibles, non commandable | ||||
39 | 330808 | |||
Ressort | ||||
40 | 308536 | 1.65 | 1.98 | |
S/e Porte Balais | ||||
41 | 308535 | 6.15 | 7.38 | |
Jeu De Charbons | ||||
42 | 999088 | 4.50 | 5.40 | |
Jeu De Charbons Autorupteur | ||||
43 | 999076 | 14.40 | 17.28 | |
Vis autotaraudeuse D3x10 | ||||
44 | 306945 | 1.04 | 1.24 | |
Plaq.en Caoutchouc (1) | ||||
45 | 995662 | 1.04 | 1.24 | |
Ressort | ||||
46 | 314429 | 1.04 | 1.24 | |
Barette | ||||
47 | 330811 | 1.05 | 1.26 | |
Connecteur Till 10.1999 For Aus | ||||
48 | 938307 | 2.13 | 2.55 | |
Pas d'informations disponibles, non commandable | ||||
49 | 314603 | |||
Vis machine (avec rondelle) M3,5x6 | ||||
50 | 305499 | 1.05 | 1.26 | |
Fil interne | ||||
51 | 331932 | 3.45 | 4.14 | |
Connecteur 50091 | ||||
52 | 959140 | 3.30 | 3.96 | |
Controleur | ||||
53 | 330816 | 54.45 | 65.34 | |
Borne | ||||
54 | 980063 | 1.04 | 1.24 | |
Pas d'informations disponibles, non commandable | ||||
55 | 984750 | |||
Serre Cable | ||||
56 | 937631 | 1.04 | 1.24 | |
Couvercle | ||||
57 | 331934 | 5.25 | 6.30 | |
Vis autotaraudeuse (w/flange) D4x50 (noir) | ||||
59 | 331933 | 1.80 | 2.16 | |
Terminal | ||||
60 | 311741 | 1.04 | 1.24 | |
Entree De Cable Ø 8.8 | ||||
61 | 380090 | 1.04 | 1.25 | |
Câble 3M 2 X 1,0 H05vv-f avec prise 16a CEE | ||||
63 | 500461Z | 17.88 | 21.45 | |
Cordon 2,5m 2 X 1.0 H05vv-f (ancien 500395z) | ||||
63 | 500447Z | 6.60 | 7.92 | |
Pas d'informations disponibles, non commandable | ||||
501 | 944458 | |||
Pas d'informations disponibles, non commandable | ||||
502 | 938332Z | |||
Pas d'informations disponibles, non commandable | ||||
503 | 994322 | |||
Pas d'informations disponibles, non commandable | ||||
503A | 336865 | |||
Pas d'informations disponibles, non commandable | ||||
504 | 323712 | |||
Joint de poignée | ||||
505 | 370397 | 1.95 | 2.34 | |
Pas d'informations disponibles, non commandable | ||||
601 | 937825Z | |||
Pas d'informations disponibles, non commandable | ||||
602 | 937826Z | |||
Pas d'informations disponibles, non commandable | ||||
603 | 314062 | |||
Pas d'informations disponibles, non commandable | ||||
604 | 314063 | |||
Pas d'informations disponibles, non commandable | ||||
605 | 314064 | |||
Pas d'informations disponibles, non commandable | ||||
606 | 314065 | |||
Pas d'informations disponibles, non commandable | ||||
607 | 314066 | |||
Pas d'informations disponibles, non commandable | ||||
608 | 314067 | |||
Pas d'informations disponibles, non commandable | ||||
609 | 314068 | |||
Pas d'informations disponibles, non commandable | ||||
610 | 314069 | |||
Pas d'informations disponibles, non commandable | ||||
611 | 314070 | |||
Pas d'informations disponibles, non commandable | ||||
612 | 314071 | |||
Pas d'informations disponibles, non commandable | ||||
613 | 314072 | |||
Pas d'informations disponibles, non commandable | ||||
614 | 310338 | |||
Pas d'informations disponibles, non commandable | ||||
615 | 332787 | |||
Pas d'informations disponibles, non commandable | ||||
616 | 332788 |
