Vous trouverez ici toutes les pièces et dessins disponibles du 'Hikoki G12SR3'. De là, vous pouvez commander directement toutes les pièces souhaitées. De nombreuses pièces doivent être commandées auprès du fabricant, selon la marque, cela prend une à quatre semaines. Toutes les informations dont nous disposons se trouvent sur notre site Web, nous ne pouvons pas vous conseiller sur ce dont vous avez besoin, pour cela vous devrez retourner la machine pour réparation. Veuillez noter ce qui suit lors de la commande:

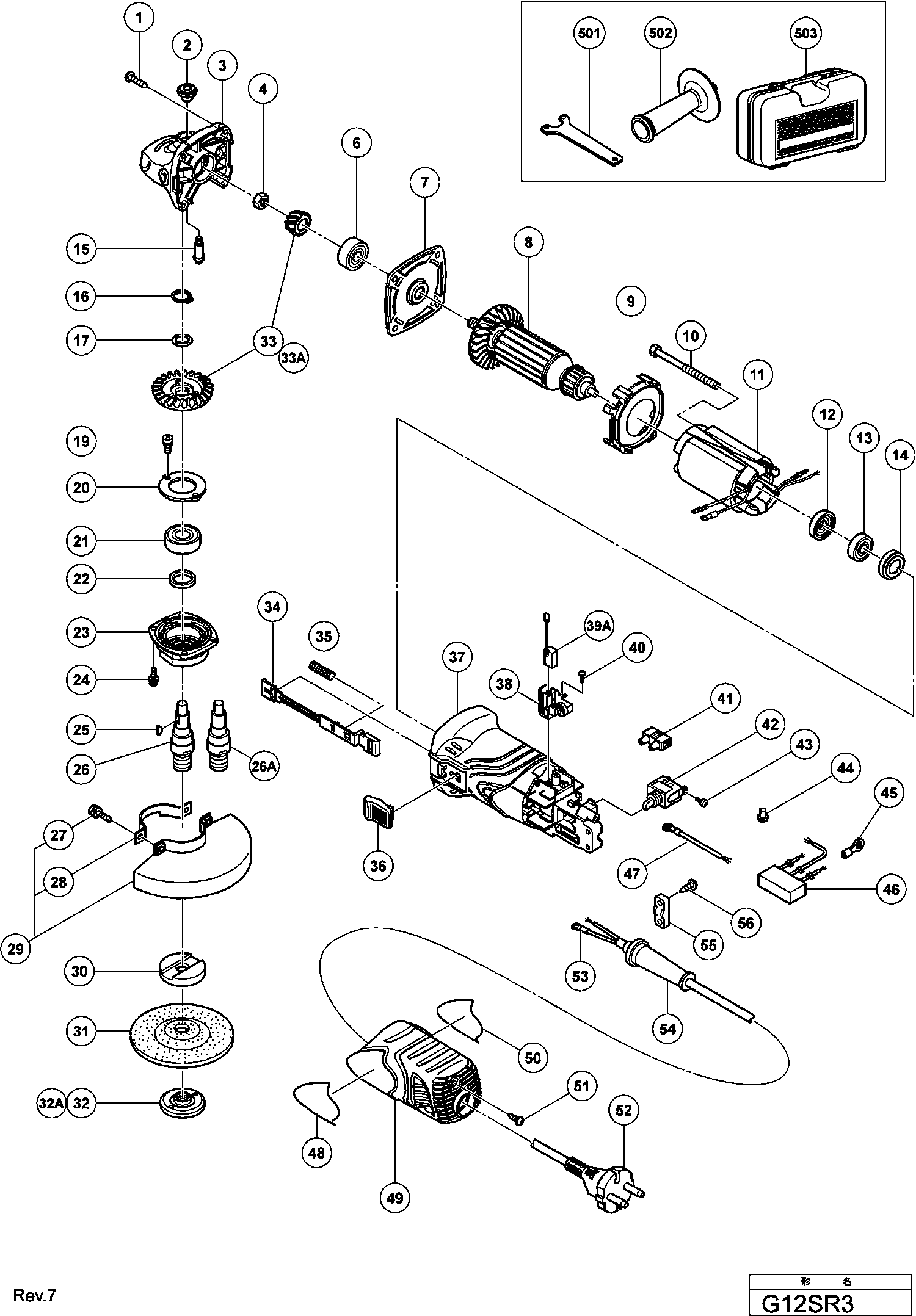

Dessins des Hikoki G12SR3
Liste de pièces de rechange des Hikoki G12SR3
Pos. | Description | Prix hors TVA | Prix TTC | |
Les prix affichés incluent la TVA | ||||
Vis Ø 4*25 noir | ||||
1 | 307028 | 1.05 | 1.26 | |
Bouton Bloc | ||||
2 | 301944 | 1.04 | 1.24 | |
Palier | ||||
3 | 327891 | 8.70 | 10.44 | |
Ecrou Frein G 15yc | ||||
4 | 309191 | 1.04 | 1.24 | |
Roulement A Billes | ||||
6 | 628VVC | 11.85 | 14.22 | |
Plaque | ||||
7 | 327887 | 1.20 | 1.44 | |
Induit 230v | ||||
8 | 360799E | 32.31 | 38.78 | |
Baffle | ||||
9 | 327886 | 1.20 | 1.44 | |
Vis Ø 4x65 | ||||
10 | 963712 | 1.04 | 1.24 | |
Indcuteur | ||||
11 | 340702E | 16.36 | 19.64 | |
Joint Poussiere | ||||
12 | 321722 | 1.35 | 1.62 | |
Roulement à billes 626vvmc2erps2s | ||||
13 | 626VVM | 5.70 | 6.84 | |
Plaq.en Caoutchouc (1) | ||||
14 | 309929 | 1.04 | 1.24 | |
Goupille De Blocage | ||||
15 | 301943 | 1.65 | 1.98 | |
Circlips Dim 11 Till 9.2012 | ||||
16 | 316487 | 1.65 | 1.98 | |
Bague | ||||
17 | 316486 | 1.65 | 1.98 | |
Vis Ø 4x10 | ||||
19 | 987201 | 1.05 | 1.26 | |
Flasque De Palier | ||||
20 | 316490 | 1.65 | 1.98 | |
Roulement à billes 6201dducmav2s | ||||
21 | 6201DD | 6.30 | 7.56 | |
Feutre | ||||
22 | 301946 | 1.04 | 1.24 | |
Pas d'informations disponibles, non commandable | ||||
23 | 316489 | |||
Vis Ø4*12 | ||||
24 | 951039 | 1.05 | 1.26 | |
Clavette G13sd | ||||
25 | 302047 | 1.05 | 1.26 | |
Arbre | ||||
26 | 327896 | 4.20 | 5.04 | |
Arbre | ||||
26A | 334919 | 4.20 | 5.04 | |
Vis à métaux (avec rondelle) M5x16 (noir) | ||||
27 | 308386 | 1.05 | 1.26 | |
Collier Fg 12sb | ||||
28 | 301949 | 1.04 | 1.24 | |
Protecteur | ||||
29 | 315492 | 12.75 | 15.30 | |
Pas d'informations disponibles, non commandable | ||||
30 | 937817Z | |||
Pas d'informations disponibles, non commandable | ||||
31 | 316821 | |||
Collet Exterieur | ||||
32 | 937923P | 5.40 | 6.48 | |
Pas d'informations disponibles, non commandable | ||||
32A | 339579 | |||
Roue conique avec pignon | ||||
33 | 327888 | 10.80 | 12.96 | |
Jeu de pignons | ||||
33A | 337382 | 6.45 | 7.74 | |
Barette | ||||
34 | 327893 | 1.20 | 1.44 | |
Ressort | ||||
35 | 314429 | 1.04 | 1.24 | |
Bouton Interrupteur | ||||
36 | 314428 | 1.04 | 1.24 | |
Carter | ||||
37 | 327885 | 6.30 | 7.56 | |
S/e Porte Balais | ||||
38 | 327895 | 2.10 | 2.52 | |
Balais de charbon (1 paire) | ||||
39 | 999005 | 7.80 | 9.36 | |
Vis à tarauder D3x8 | ||||
40 | 328210 | 1.20 | 1.44 | |
Connecteur Till 10.1999 For Aus | ||||
41 | 938307 | 2.13 | 2.55 | |
Pas d'informations disponibles, non commandable | ||||
42 | 314603 | |||
Vis machine (avec rondelle) M3,5x6 | ||||
43 | 305499 | 1.05 | 1.26 | |
Connecteur 50091 | ||||
44 | 959140 | 3.30 | 3.96 | |
Borne | ||||
45 | 980063 | 1.04 | 1.24 | |
Condensateur antiparasite | ||||
46 | 317491 | 7.35 | 8.82 | |
Fil interne | ||||
47 | 328509 | 1.65 | 1.98 | |
Capot Arriere | ||||
49 | 327894 | 6.45 | 7.74 | |
Pas d'informations disponibles, non commandable | ||||
51 | 307811 | |||
Câble 3M 2 X 1,0 H05vv-f avec prise 16a CEE | ||||
52 | 500461Z | 17.88 | 21.45 | |
Cordon | ||||
52 | 500240Z | 13.18 | 15.81 | |
Cordon 2,5m 2 X 1.0 H05vv-f (ancien 500395z) | ||||
52 | 500447Z | 6.60 | 7.92 | |
Borne | ||||
53 | 980063 | 1.04 | 1.24 | |
Entree De Cable Ø 8.8 | ||||
54 | 380090 | 1.04 | 1.25 | |
Serre Cable | ||||
55 | 937631 | 1.04 | 1.24 | |
Pas d'informations disponibles, non commandable | ||||
56 | 984750 | |||
Pas d'informations disponibles, non commandable | ||||
501 | 938332Z | |||
Poignée latérale G13sr3 | ||||
502 | 318312 | 7.50 | 9.00 | |
Pas d'informations disponibles, non commandable | ||||
503 | 319375 | |||
Pas d'informations disponibles, non commandable | ||||
601 | 314095 | |||
Pas d'informations disponibles, non commandable | ||||
602 | 314096 | |||
Pas d'informations disponibles, non commandable | ||||
603 | 314097 | |||
Pas d'informations disponibles, non commandable | ||||
604 | 314098 | |||
Pas d'informations disponibles, non commandable | ||||
605 | 314099 | |||
Pas d'informations disponibles, non commandable | ||||
606 | 314100 | |||
Pas d'informations disponibles, non commandable | ||||
607 | 314101 | |||
Pas d'informations disponibles, non commandable | ||||
608 | 314102 | |||
Pas d'informations disponibles, non commandable | ||||
609 | 314103 | |||
Pas d'informations disponibles, non commandable | ||||
610 | 314104 | |||
Pas d'informations disponibles, non commandable | ||||
611 | 314105 | |||
Pas d'informations disponibles, non commandable | ||||
612 | 938318 | |||
Pas d'informations disponibles, non commandable | ||||
613 | 938317 | |||
Pas d'informations disponibles, non commandable | ||||
614 | 332785 |
