Vous trouverez ici toutes les pièces et dessins disponibles du 'Hikoki G10SS'. De là, vous pouvez commander directement toutes les pièces souhaitées. De nombreuses pièces doivent être commandées auprès du fabricant, selon la marque, cela prend une à quatre semaines. Toutes les informations dont nous disposons se trouvent sur notre site Web, nous ne pouvons pas vous conseiller sur ce dont vous avez besoin, pour cela vous devrez retourner la machine pour réparation. Veuillez noter ce qui suit lors de la commande:

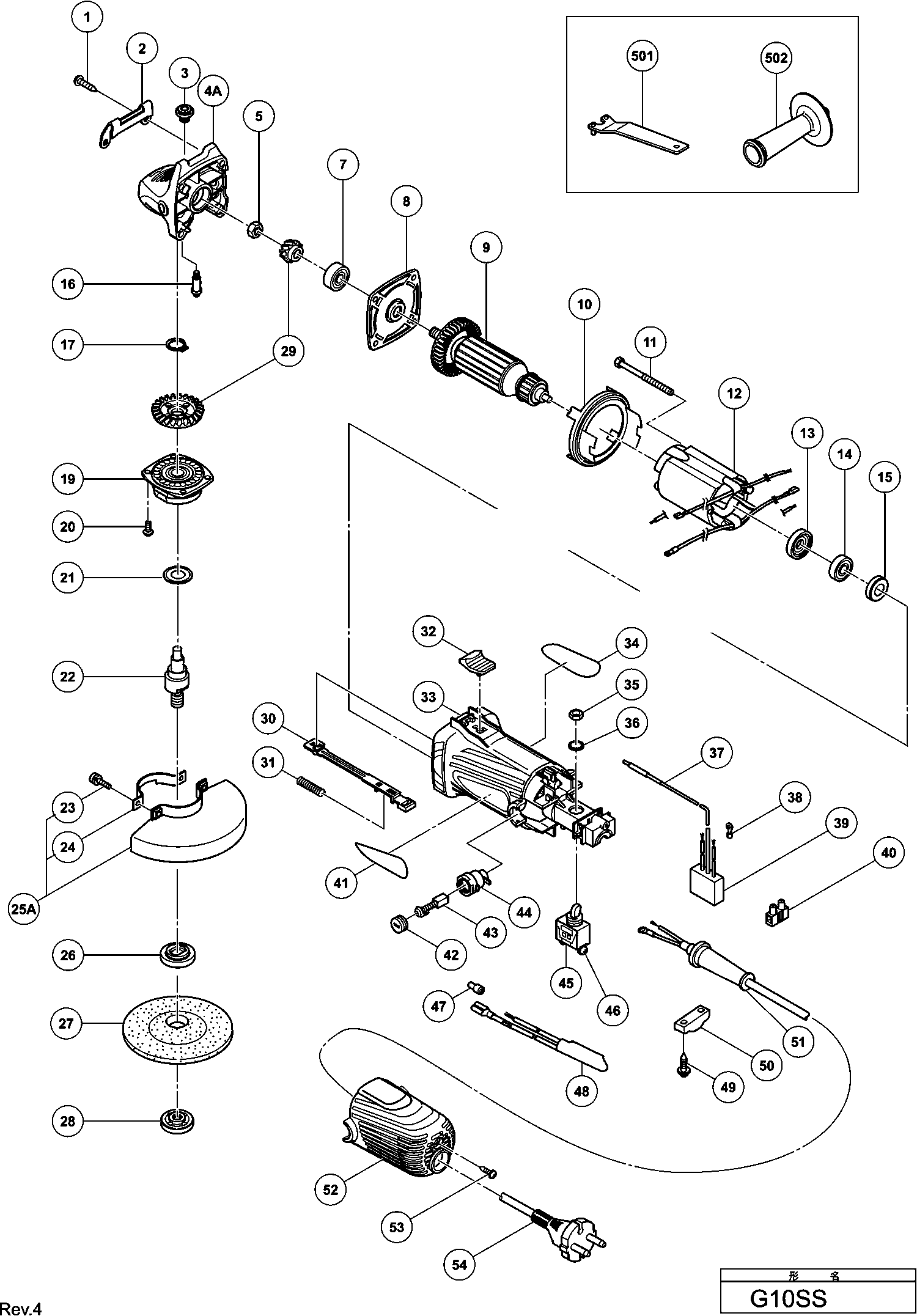

Dessins des Hikoki G10SS
Liste de pièces de rechange des Hikoki G10SS
Pos. | Description | Prix hors TVA | Prix TTC | |
Les prix affichés incluent la TVA | ||||
Vis auto-taraudeuse D5x25 (noir) | ||||
1 | 320523 | 1.35 | 1.62 | |
Plaque de protection | ||||
2 | 317807 | 1.05 | 1.26 | |
Bouton Bloc | ||||
3 | 301944 | 1.04 | 1.24 | |
Carter | ||||
4A | 339150 | 7.50 | 9.00 | |
Ecrou Frein G 15yc | ||||
5 | 309191 | 1.04 | 1.24 | |
Roulement A Billes | ||||
7 | 608VVM | 5.70 | 6.84 | |
Couvercle Roulement | ||||
8 | 328184 | 1.05 | 1.26 | |
Induit | ||||
9 | 360802E | 20.90 | 25.08 | |
Baffle | ||||
10 | 328177 | 1.05 | 1.26 | |
Vis Ø 4x65 | ||||
11 | 963712 | 1.04 | 1.24 | |
Inducteur | ||||
12 | 340705E | 15.95 | 19.14 | |
Joint Poussiere | ||||
13 | 321722 | 1.35 | 1.62 | |
Roulement à billes 626vvmc2erps2s | ||||
14 | 626VVM | 5.70 | 6.84 | |
Plaq.en Caoutchouc (1) | ||||
15 | 309929 | 1.04 | 1.24 | |
Goupille De Blocage | ||||
16 | 301943 | 1.65 | 1.98 | |
Circlips Dim 11 Till 9.2012 | ||||
17 | 316487 | 1.65 | 1.98 | |
Palier | ||||
19 | 328182 | 4.20 | 5.04 | |
Vis Ø 4x12 | ||||
20 | 328628 | 1.05 | 1.26 | |
Rondelle | ||||
21 | 328185 | 1.05 | 1.26 | |
Arbre | ||||
22 | 328174 | 4.20 | 5.04 | |
Vis à métaux (avec rondelle) M5x16 (noir) | ||||
23 | 308386 | 1.05 | 1.26 | |
Collier Fg 12sb | ||||
24 | 301949 | 1.04 | 1.24 | |
Protecteur | ||||
25A | 331076 | 5.48 | 6.57 | |
Plus disponible, pas de remplacement | ||||
26 | 372737 | |||
Pas d'informations disponibles, non commandable | ||||
27 | 316820 | |||
Pas d'informations disponibles, non commandable | ||||
28A | 339578 | |||
ENGRENAGE ET ARBRE | ||||
29 | 328178 | 10.05 | 12.06 | |
Barette G 12sg | ||||
30 | 314427 | 1.05 | 1.26 | |
Ressort | ||||
31 | 314429 | 1.04 | 1.24 | |
Bouton Interrupteur | ||||
32 | 314428 | 1.04 | 1.24 | |
Carter | ||||
33 | 328176 | 8.78 | 10.53 | |
Terminal de terre pour TPE | ||||
37 | 314854 | 1.50 | 1.80 | |
Borne | ||||
38 | 980063 | 1.04 | 1.24 | |
Connecteur Till 10.1999 For Aus | ||||
40 | 938307 | 2.13 | 2.55 | |
Bouchon Charbon | ||||
42 | 936551 | 1.05 | 1.26 | |
Plus disponible, pas de remplacement | ||||
43 | 999021 | |||
S/e Porte Balais | ||||
44 | 313777 | 1.50 | 1.80 | |
Commutateur | ||||
45 | 955509 | 10.80 | 12.96 | |
Vis machine (avec rondelle) M3,5x6 | ||||
46 | 305499 | 1.05 | 1.26 | |
Connecteur 50091 | ||||
47 | 959140 | 3.30 | 3.96 | |
Self antiparasite | ||||
48 | 328629 | 2.10 | 2.52 | |
Pas d'informations disponibles, non commandable | ||||
49 | 984750 | |||
Serre Cable | ||||
50 | 937631 | 1.04 | 1.24 | |
Entree De Cable Ø 8.8 | ||||
51 | 380090 | 1.04 | 1.25 | |
Couvercle | ||||
52 | 328183 | 3.15 | 3.78 | |
Vis Ø 4*16 Noir | ||||
53 | 305812 | 1.04 | 1.24 | |
Cordon 2,5m 2 X 1.0 H05vv-f (ancien 500395z) | ||||
54 | 500447Z | 6.60 | 7.92 | |
Pas d'informations disponibles, non commandable | ||||
501 | 313933 | |||
Pas d'informations disponibles, non commandable | ||||
601 | 314051 | |||
Pas d'informations disponibles, non commandable | ||||
602 | 314052 | |||
Pas d'informations disponibles, non commandable | ||||
603 | 314053 | |||
Pas d'informations disponibles, non commandable | ||||
604 | 314054 | |||
Pas d'informations disponibles, non commandable | ||||
605 | 314055 | |||
Pas d'informations disponibles, non commandable | ||||
606 | 314056 | |||
Pas d'informations disponibles, non commandable | ||||
607 | 314057 | |||
Pas d'informations disponibles, non commandable | ||||
608 | 314058 | |||
Pas d'informations disponibles, non commandable | ||||
609 | 314059 | |||
Pas d'informations disponibles, non commandable | ||||
610 | 314060 | |||
Pas d'informations disponibles, non commandable | ||||
611 | 314061 | |||
Bouchon D’obturation A 6 | ||||
612 | 935513 | 4.20 | 5.04 | |
Pas d'informations disponibles, non commandable | ||||
613 | 936548 | |||
Pas d'informations disponibles, non commandable | ||||
614 | 936558Z | |||
Pas d'informations disponibles, non commandable | ||||
615 | 302098 | |||
Pas d'informations disponibles, non commandable | ||||
616 | 323918 |
