Vous trouverez ici toutes les pièces et dessins disponibles du 'Hikoki FDV12V'. De là, vous pouvez commander directement toutes les pièces souhaitées. De nombreuses pièces doivent être commandées auprès du fabricant, selon la marque, cela prend une à quatre semaines. Toutes les informations dont nous disposons se trouvent sur notre site Web, nous ne pouvons pas vous conseiller sur ce dont vous avez besoin, pour cela vous devrez retourner la machine pour réparation. Veuillez noter ce qui suit lors de la commande:

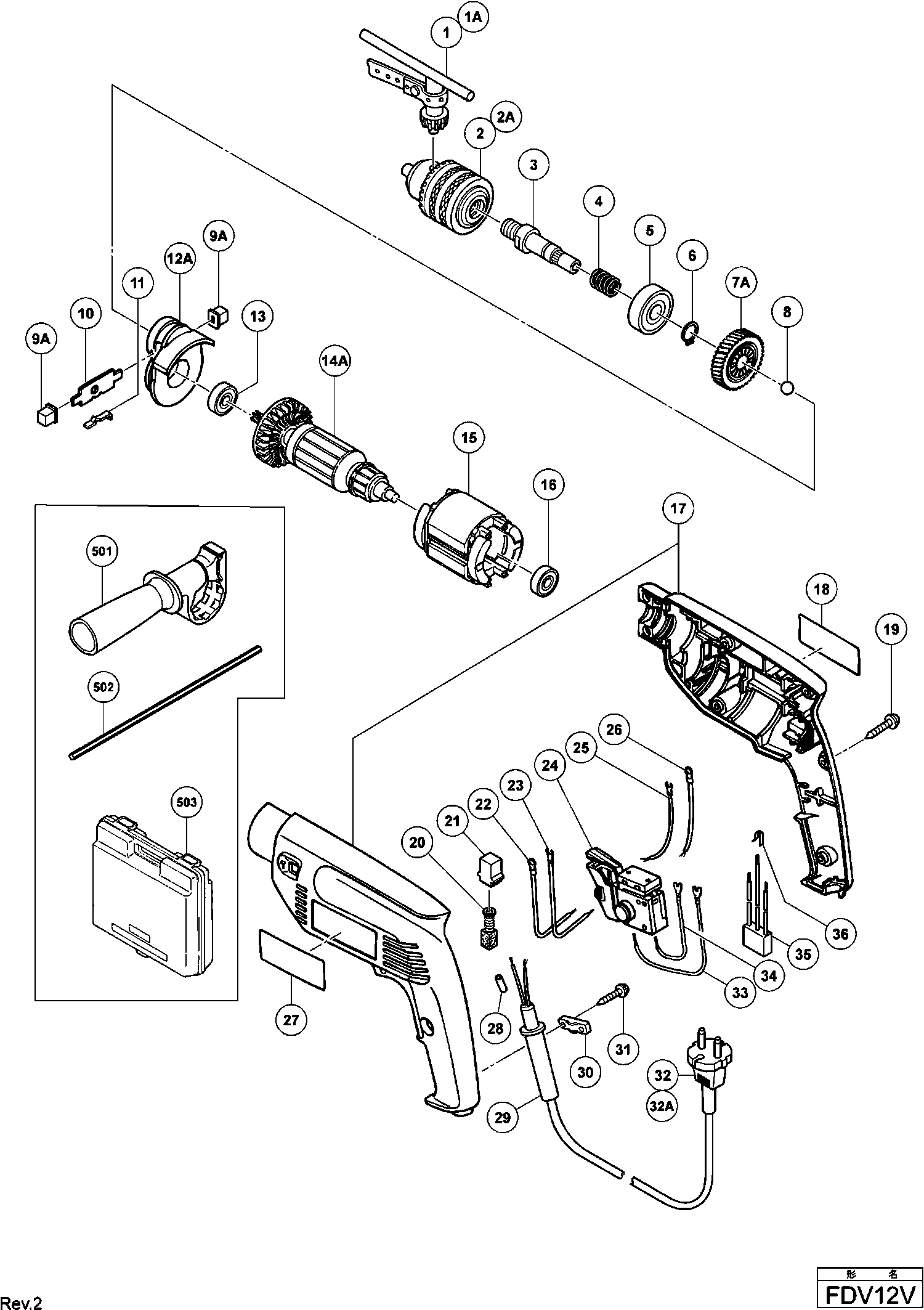

Dessins des Hikoki FDV12V
Liste de pièces de rechange des Hikoki FDV12V
Pos. | Description | Prix hors TVA | Prix TTC | |
Les prix affichés incluent la TVA | ||||
Pas d'informations disponibles, non commandable | ||||
1A | 987576 | |||
Pas d'informations disponibles, non commandable | ||||
3 | 303650 | |||
Ressort | ||||
4 | 303651 | 1.04 | 1.24 | |
Roulement A Billes | ||||
5 | 6001VV | 6.60 | 7.92 | |
Circlips Ø12 (x10) paquet de 10 | ||||
6 | 939542 | 1.50 | 1.80 | |
Pignon | ||||
7B | 370872 | 6.90 | 8.28 | |
Bille d'acier D4.76 (10 pièces) | ||||
8 | 959149 | 1.04 | 1.24 | |
Bouton | ||||
9A | 319604 | 1.65 | 1.98 | |
Came | ||||
10 | 963224 | 1.95 | 2.34 | |
Ressort | ||||
11 | 963226 | 1.35 | 1.62 | |
Support Engrenage Fdv 15d | ||||
12A | 305088 | 9.75 | 11.70 | |
Roulement A Billes | ||||
13 | 608VVM | 5.70 | 6.84 | |
Induit 230v | ||||
14A | 360456E | 28.05 | 33.66 | |
Stator 220v-230v | ||||
15 | 340228E | 17.19 | 20.62 | |
Roulement à billes 626vvmc2erps2s | ||||
16 | 626VVM | 5.70 | 6.84 | |
Pas d'informations disponibles, non commandable | ||||
17 | 303717 | |||
Vis autotaraudeuse D4x20 avec bride (noir) | ||||
19 | 302086 | 1.05 | 1.26 | |
Charbons (1 paire) | ||||
20 | 999041 | 4.50 | 5.40 | |
Porte-Charbon | ||||
21 | 930483 | 1.65 | 1.98 | |
Pas d'informations disponibles, non commandable | ||||
22 | 303661 | |||
Pas d'informations disponibles, non commandable | ||||
23 | 303656 | |||
Interrupteur (l) (type pilier 2p) W/verrou 100v-12 | ||||
24 | 303653 | 46.75 | 56.10 | |
Commutateur | ||||
24 | 303663 | 40.84 | 49.00 | |
Pas d'informations disponibles, non commandable | ||||
25 | 303657 | |||
Pas d'informations disponibles, non commandable | ||||
26 | 303660 | |||
Manchon à cabler | ||||
28 | 981373 | 1.05 | 1.26 | |
Protection de câble D10.2 (ancien 930354) | ||||
29 | 980193 | 1.65 | 1.98 | |
Blindage du cordon D7.2 | ||||
29 | 307217 | 1.05 | 1.26 | |
PASSE-CÂBLES D8.8 | ||||
29 | 303662 | 1.04 | 1.24 | |
Serre Cable | ||||
30 | 960266 | 1.04 | 1.24 | |
Pas d'informations disponibles, non commandable | ||||
31 | 984750 | |||
Pas d'informations disponibles, non commandable | ||||
32 | 500439Z | |||
Cordon 2,5m 2 X 1.0 H05vv-f (ancien 500395z) | ||||
32A | 500447Z | 6.60 | 7.92 | |
Câble de connexion (a) Fdv16vb | ||||
33 | 303654 | 1.04 | 1.24 | |
Pas d'informations disponibles, non commandable | ||||
34 | 303655 | |||
Condensateur | ||||
35 | 994273 | 4.29 | 5.14 | |
Connecteur | ||||
36 | 302488 | 1.04 | 1.24 | |
Pas d'informations disponibles, non commandable | ||||
501 | 303659 | |||
Pas d'informations disponibles, non commandable | ||||
502 | 303709 | |||
Pas d'informations disponibles, non commandable | ||||
601 | 879347 | |||
Pas d'informations disponibles, non commandable | ||||
602 | 879350 | |||
Pas d'informations disponibles, non commandable | ||||
603 | 303843 |
