Vous trouverez ici toutes les pièces et dessins disponibles du 'Hikoki F30A'. De là, vous pouvez commander directement toutes les pièces souhaitées. De nombreuses pièces doivent être commandées auprès du fabricant, selon la marque, cela prend une à quatre semaines. Toutes les informations dont nous disposons se trouvent sur notre site Web, nous ne pouvons pas vous conseiller sur ce dont vous avez besoin, pour cela vous devrez retourner la machine pour réparation. Veuillez noter ce qui suit lors de la commande:

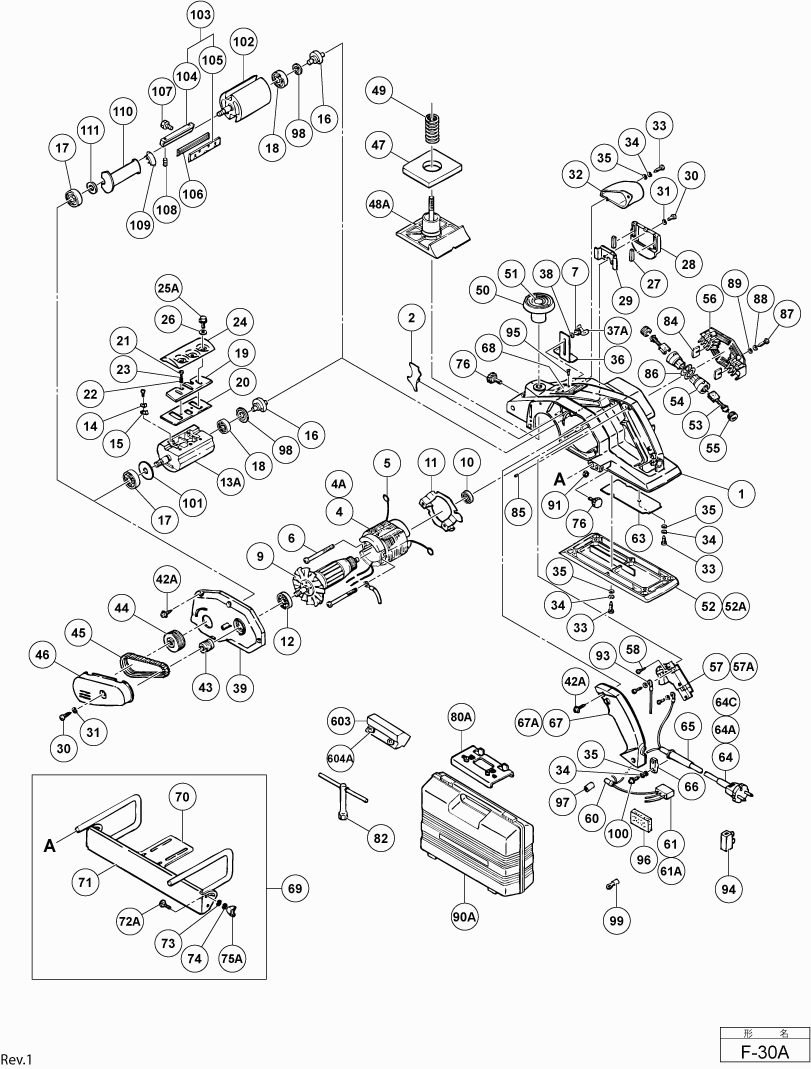

Dessins des Hikoki F30A
Liste de pièces de rechange des Hikoki F30A
| Pos. | Description | Prix hors TVA | Prix TTC | |
| Les prix affichés incluent la TVA | ||||
| Pas d'informations disponibles, non commandable | ||||
| 1 | 958860 | |||
| LUCHTGELEIDER | ||||
| 2 | 958891 | 1.00 | 1.20 | |
| Pas d'informations disponibles, non commandable | ||||
| 4 | 958905G | |||
| Pas d'informations disponibles, non commandable | ||||
| 4A | 958905E | |||
| Raccord | ||||
| 5 | 930703 | 2.40 | 2.88 | |
| Vis Ø 5*65 | ||||
| 6 | 960251 | 1.05 | 1.26 | |
| Pas d'informations disponibles, non commandable | ||||
| 9 | 958864U | |||
| Roulement A Billes | ||||
| 10 | 608VVM | 5.70 | 6.84 | |
| LUCHTGELEIDER | ||||
| 11 | 958865 | 1.00 | 1.20 | |
| Roulement à billes 6200 Vv | ||||
| 12 | 6200VV | 6.15 | 7.38 | |
| Porte Lame Comp F 30a Includ.14-18,98,101 | ||||
| 13A | 991256 | 64.21 | 77.06 | |
| Ressort | ||||
| 14 | 958699 | 1.05 | 1.26 | |
| Bouclier Protecteur | ||||
| 15 | 958700 | 1.05 | 1.26 | |
| Pas d'informations disponibles, non commandable | ||||
| 16 | 958824Z | |||
| Roulement Cr12v H90sc | ||||
| 17 | 6201VV | 6.45 | 7.74 | |
| Roulement à billes 629ddmc3ps2l (ancien 939465) | ||||
| 18 | 629DDM | 5.85 | 7.02 | |
| Pas d'informations disponibles, non commandable | ||||
| 19 | 958867 | |||
| Pas d'informations disponibles, non commandable | ||||
| 20 | 958868 | |||
| Vis M4*8 (paquet de 10) | ||||
| 21 | 949215 | 1.05 | 1.26 | |
| Pas d'informations disponibles, non commandable | ||||
| 24 | 958869 | |||
| Boulon (1) | ||||
| 25A | 958917 | 1.05 | 1.26 | |
| Rondelle | ||||
| 26 | 940391 | 1.05 | 1.26 | |
| Pas d'informations disponibles, non commandable | ||||
| 27 | 958839Z | |||
| Couvercle F 30a | ||||
| 28 | 958902 | 2.55 | 3.06 | |
| Couvercle | ||||
| 29 | 958899 | 1.05 | 1.26 | |
| Vis Sb 10v (paquet de 10) | ||||
| 30 | 949218 | 1.05 | 1.26 | |
| Ejecteur F 30a | ||||
| 32 | 958870 | 2.55 | 3.06 | |
| Vis à tarauder D4X16 | ||||
| 33 | 954004 | 1.04 | 1.24 | |
| Pas d'informations disponibles, non commandable | ||||
| 36 | 958840Z | |||
| Vis à papillon M5 X 6 (10pcs) | ||||
| 37A | 949395 | 3.90 | 4.68 | |
| Palier | ||||
| 39 | 958871 | 23.93 | 28.71 | |
| Vis F 30a/p 20v | ||||
| 42A | 306999 | 1.04 | 1.24 | |
| Poulie Motrice F 30a | ||||
| 43 | 958872 | 7.05 | 8.46 | |
| Poulie Receptrice F 30a | ||||
| 44 | 958873 | 11.25 | 13.50 | |
| Courroie D'entrainement | ||||
| 45 | 958874 | 9.30 | 11.16 | |
| Couvercle Courroie F 30a | ||||
| 46 | 958875 | 3.90 | 4.68 | |
| Joint Mousse F 30a | ||||
| 47 | 958876 | 1.04 | 1.24 | |
| Sabot Av F30a | ||||
| 48A | 958918 | 13.75 | 16.50 | |
| Ressort | ||||
| 49 | 958709 | 1.95 | 2.34 | |
| Bouton | ||||
| 50 | 942328 | 5.25 | 6.30 | |
| Pas d'informations disponibles, non commandable | ||||
| 51 | 958910 | |||
| Pas d'informations disponibles, non commandable | ||||
| 52 | 958878 | |||
| Pas d'informations disponibles, non commandable | ||||
| 52A | 958908Z | |||
| Charbons (1 Paire) | ||||
| 53 | 999043 | 4.50 | 5.40 | |
| S/e Porte Balais | ||||
| 54 | 958900 | 6.45 | 7.74 | |
| Bouchon Charbon | ||||
| 55 | 945161 | 1.20 | 1.44 | |
| Couvercle F 30a | ||||
| 56 | 958879 | 7.65 | 9.18 | |
| Interrupteur (ancien 956632) | ||||
| 57 | 931573 | 40.43 | 48.51 | |
| Commutateur | ||||
| 57 | 953178 | 37.95 | 45.54 | |
| Interrupteur (ancien 956632H) | ||||
| 57 | 956632 | 16.64 | 19.96 | |
| Interrupteur (937664) | ||||
| 57 | 986201 | 16.64 | 19.96 | |
| Pas d'informations disponibles, non commandable | ||||
| 57A | 960280Z | |||
| Vis | ||||
| 58 | 954017 | 1.04 | 1.24 | |
| Connecteur 50091 | ||||
| 60 | 959140 | 3.30 | 3.96 | |
| Pas d'informations disponibles, non commandable | ||||
| 61 | 960283Z | |||
| Condensateur | ||||
| 61A | 994273 | 4.29 | 5.14 | |
| PLAAT | ||||
| 63 | 958882 | 1.00 | 1.20 | |
| Cordon | ||||
| 64 | 500240Z | 13.18 | 15.81 | |
| Plus disponible, pas de remplacement | ||||
| 64A | 500435Z | |||
| Pas d'informations disponibles, non commandable | ||||
| 64C | 500235Z | |||
| Entree De Cable Till 11.1982 For Aus | ||||
| 65 | 930026 | 3.00 | 3.60 | |
| Entree De Cable | ||||
| 65 | 930487 | 2.25 | 2.70 | |
| Serre Cable | ||||
| 66 | 937631 | 1.04 | 1.24 | |
| Couverture de Poignée | ||||
| 67 | 958883 | 8.70 | 10.44 | |
| Pas d'informations disponibles, non commandable | ||||
| 67A | 958907Z | |||
| Pas d'informations disponibles, non commandable | ||||
| 69 | 958886 | |||
| Pas d'informations disponibles, non commandable | ||||
| 70 | 958887 | |||
| Plaque | ||||
| 71 | 958888 | 5.25 | 6.30 | |
| Boulon M5 X 22 | ||||
| 72A | 963492 | 1.50 | 1.80 | |
| Rondelle M5 (x10) paquet de 10 | ||||
| 73 | 949424 | 1.05 | 1.26 | |
| Rondelle de ressort M5 (10 pièces) | ||||
| 74 | 949454 | 1.04 | 1.24 | |
| Écrou à ailes M5 | ||||
| 75A | 963493 | 1.04 | 1.24 | |
| VIS C M4X34 | ||||
| 76 | 940650 | 1.05 | 1.26 | |
| Pas d'informations disponibles, non commandable | ||||
| 80A | 958916 | |||
| Pas d'informations disponibles, non commandable | ||||
| 82 | 940543 | |||
| RUBBEREN STUK | ||||
| 84 | 958898 | 1.00 | 1.20 | |
| GOUJON EN CAOUTCHOUC (ANCIEN 976441) | ||||
| 85 | 946362 | 1.05 | 1.26 | |
| FIBER WASHER (A) | ||||
| 86 | 958901 | 1.00 | 1.20 | |
| Vis Sb/sod/vrt | ||||
| 87 | 956384 | 1.05 | 1.26 | |
| Rondelle de ressort M4 (10 pièces) | ||||
| 88 | 949453 | 1.05 | 1.26 | |
| Rondelle M4 (x10) paquet de 10 | ||||
| 89 | 949423 | 1.05 | 1.26 | |
| Pas d'informations disponibles, non commandable | ||||
| 90A | 314837 | |||
| Écrou M5 (10 pièces) (ANCIEN 949555Z) | ||||
| 91 | 949555 | 1.05 | 1.26 | |
| BEDRADING | ||||
| 93 | 971825 | 1.00 | 1.20 | |
| Connecteur Till 10.1999 For Aus | ||||
| 94 | 938307 | 2.13 | 2.55 | |
| NAGEL D2.5X3.2 (10 STKS.) | ||||
| 95 | 949509 | 1.00 | 1.20 | |
| Support | ||||
| 96 | 963243 | 1.05 | 1.26 | |
| Manchon à cabler | ||||
| 97 | 981373 | 1.05 | 1.26 | |
| Bague Pour Palier | ||||
| 98 | 958915 | 1.04 | 1.24 | |
| Borne For Noise Suppressor | ||||
| 99 | 938108 | 1.20 | 1.44 | |
| Pas d'informations disponibles, non commandable | ||||
| 100 | 984750 | |||
| Rondelle | ||||
| 101 | 944954 | 1.05 | 1.26 | |
| Inclu.16-18,98,109-111 | ||||
| 102 | 308061 | 163.35 | 196.02 | |
| Inclu.107,108 | ||||
| 103 | 308060 | 75.90 | 91.08 | |
| Pas d'informations disponibles, non commandable | ||||
| 104 | 308107 | |||
| SUPPORT DE LAME (B) F-30A(T) (1 PAIRE) | ||||
| 105 | 308108 | 10.20 | 12.24 | |
| Pas d'informations disponibles, non commandable | ||||
| 107 | 963472Z | |||
| Vis de réglage hexagonale M5x8 | ||||
| 108 | 938477 | 1.05 | 1.26 | |
| Pas d'informations disponibles, non commandable | ||||
| 109 | 308062 | |||
| Support | ||||
| 110 | 990665 | 1.05 | 1.26 | |
| Pas d'informations disponibles, non commandable | ||||
| 111 | 308063 | |||
| Pas d'informations disponibles, non commandable | ||||
| 601 | 958893Z | |||
| Pas d'informations disponibles, non commandable | ||||
| 602 | 958909Z | |||
| Pas d'informations disponibles, non commandable | ||||
| 603 | 958889 | |||
| Pas d'informations disponibles, non commandable | ||||
| 604A | 940654 | |||
